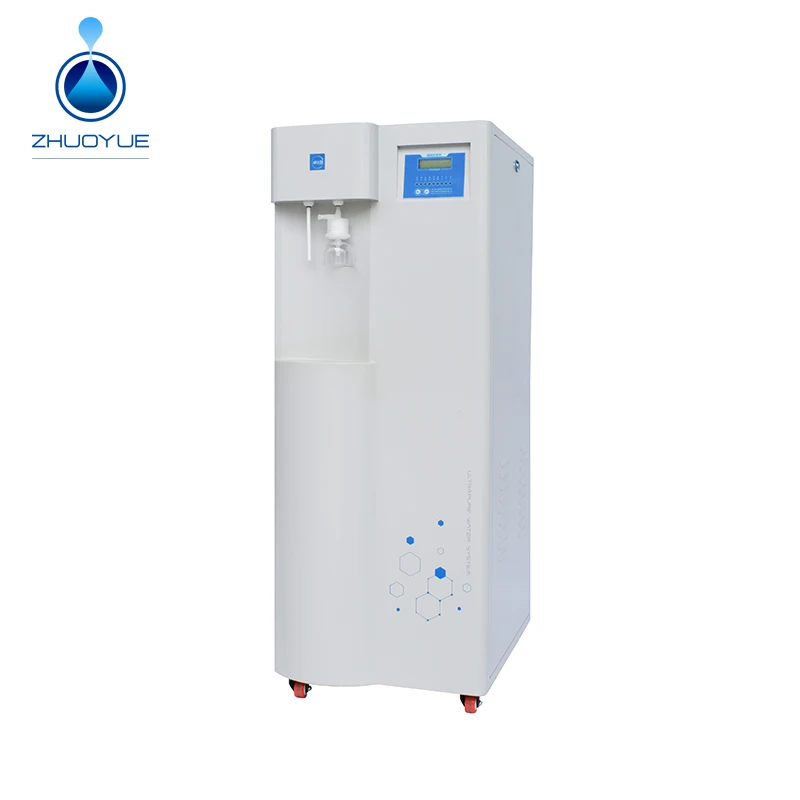

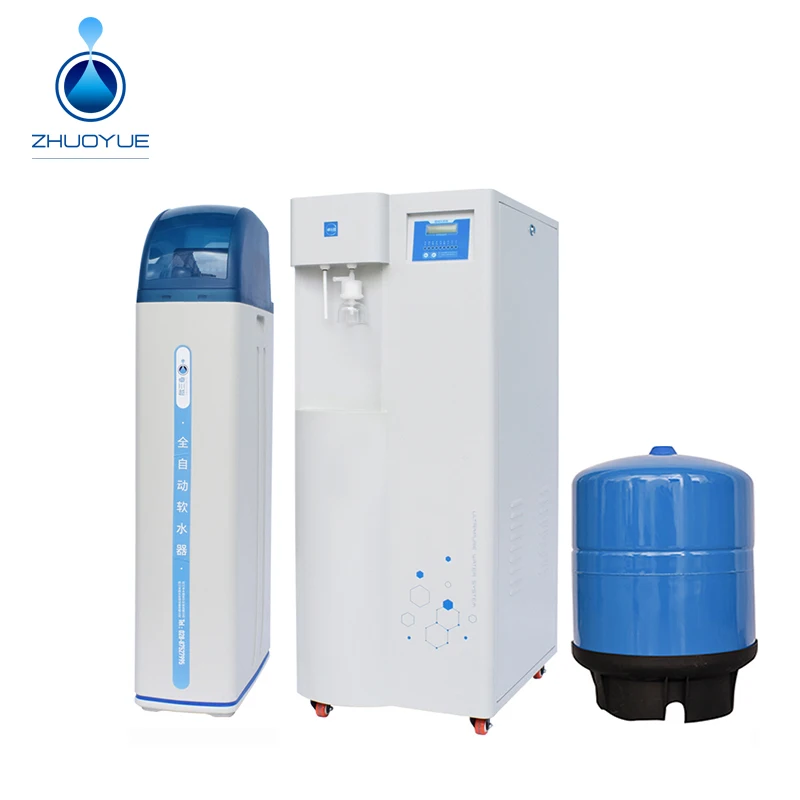

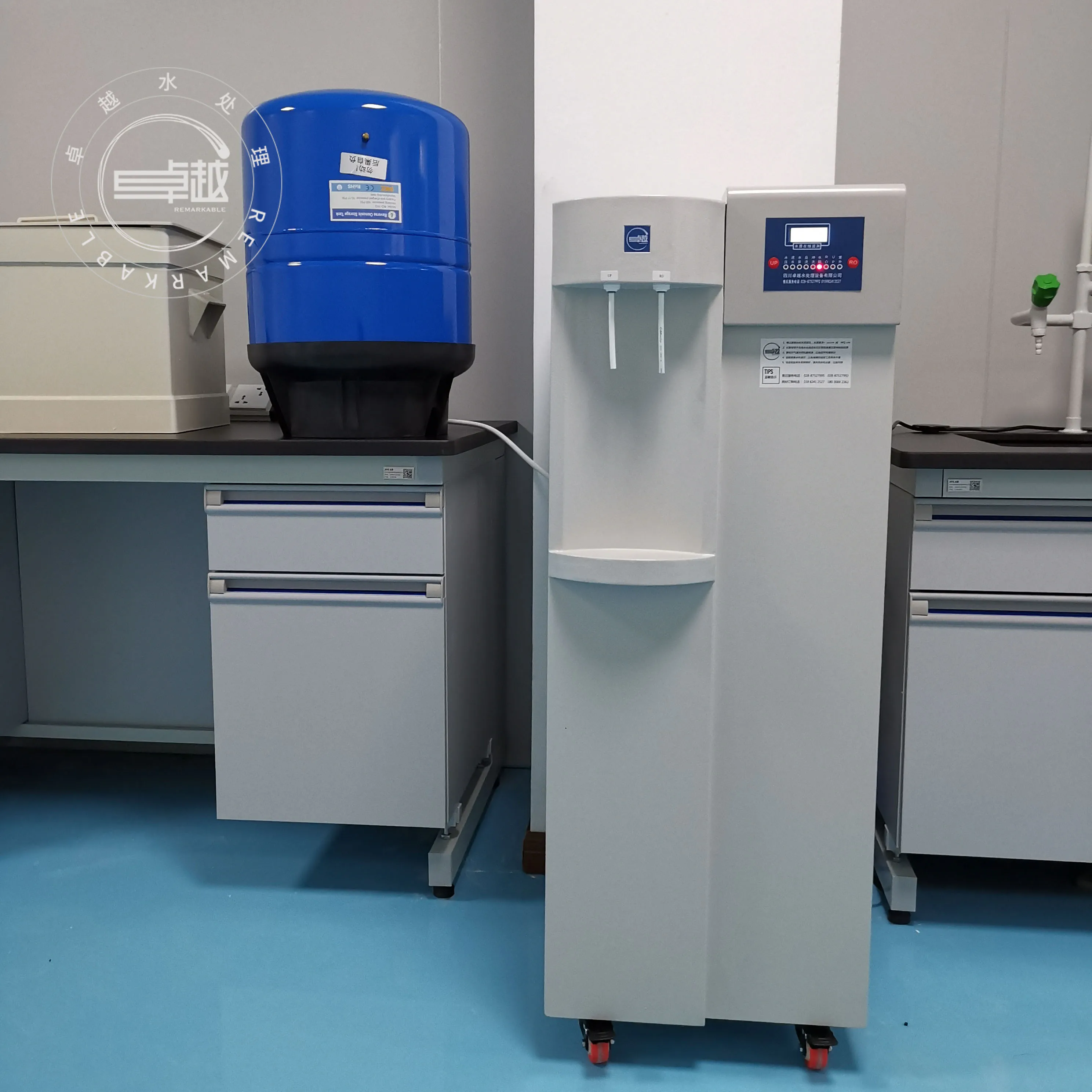

Electrodeionization EDI Model in Water Treatment System to Produce Ultra Pure Water ZYC
- Category: >>>
- Supplier: Sichuan Zhuoyue Water Treatment Equipment Co. Ltd.
Share on (60777955295):

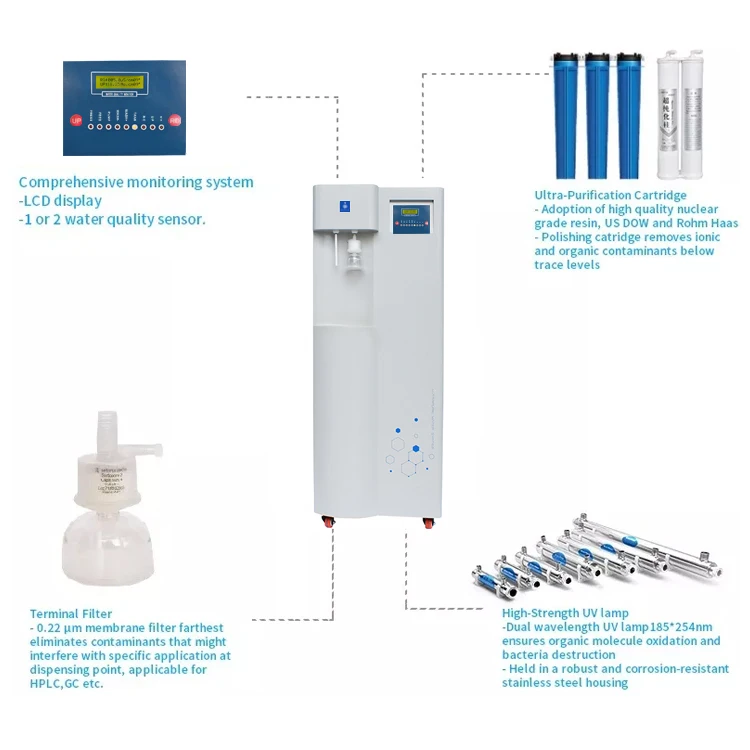

Product Overview
Description
Products Description
External water tanks is optional to meet different need and assure ample water-supply.\t\t\t\t
Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.\t\t\t\t
2 door and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.\t\t\t\t
Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water´s quality.\t\t\t\t
Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.\t\t\t\t
RO module with DOW´s membrane, ensure long life, stable operation and high desalinization rate.\t\t\t\t
DOW´s top polishing resin, ensure ultrapure water´s quality up to 18.2 MΩ.cm, with the lowest TOC level.\t\t\t\t
Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria´s increase and reduce TOC.\t
Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.\t\t\t\t
2 door and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.\t\t\t\t
Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water´s quality.\t\t\t\t
Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.\t\t\t\t
RO module with DOW´s membrane, ensure long life, stable operation and high desalinization rate.\t\t\t\t
DOW´s top polishing resin, ensure ultrapure water´s quality up to 18.2 MΩ.cm, with the lowest TOC level.\t\t\t\t
Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria´s increase and reduce TOC.\t
Model list
Model | ZYC-I | ZYC-II | ZYC-III | ZYC-IV | |||
Optional capacity( L/H) | 20L/H,40L/H, 60L/H, 100L/H | ||||||
Flow rate | Up to1.5- 2.0 liters/minute(with pressure tank) | ||||||
Feed water requirements | Tap water, temperature:5-45°C,pressure:1.0-5.0Kg | ||||||
RO water quality | |||||||
Condutivity(25°C) | 2-10μs/cm | ||||||
Ion rejection rate | 99% (new RO membrane) | ||||||
Organic rejection rate | >99% | ||||||
Particles and bacteria rejection rate | >99% | ||||||
Ultrapure water quality | |||||||
Resistivity(25°C) | 18.25MΩ.cm | ||||||
Bacteria | ＜1cfu/ml | ||||||
Particle(>0.1μm) | ＜1/ml | ||||||
Heavy metal ion | ＜0.1ppb | ||||||
Endotoxin(Pyrogens) | N/A | N/A | N/A | ≤ 0.01EU/ml | |||
TOC Level*** | ＜ 20 ppb | ＜ 20 ppb | ＜ 10 ppb | ＜ 10 ppb | |||
Dimension and weight | Length×Width×Height:550×420×1120mm, 70~80Kg | ||||||
Electrical requirements | AC110-240V, 50/60Hz | ||||||
Power(W) | 50W-100W | ||||||
Terminal disinfection filter (TF) | N/A | N/A | yes | yes | |||
UV lamp | N/A | N/A | yes | yes | |||
UF | N/A | N/A | N/A | yes | |||

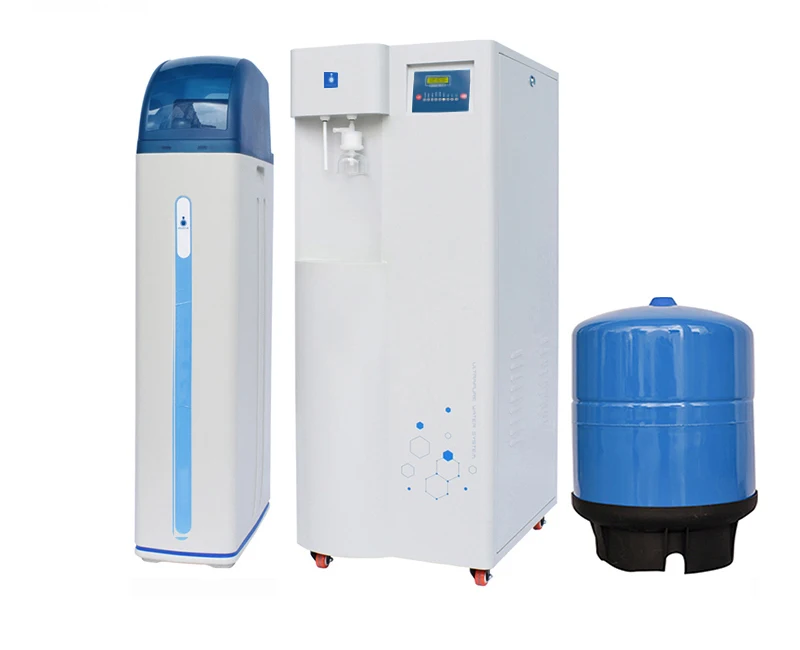

Standard configuration | Main body (Including 1 set of cartridge)+pressure tank | ||||||
Product features

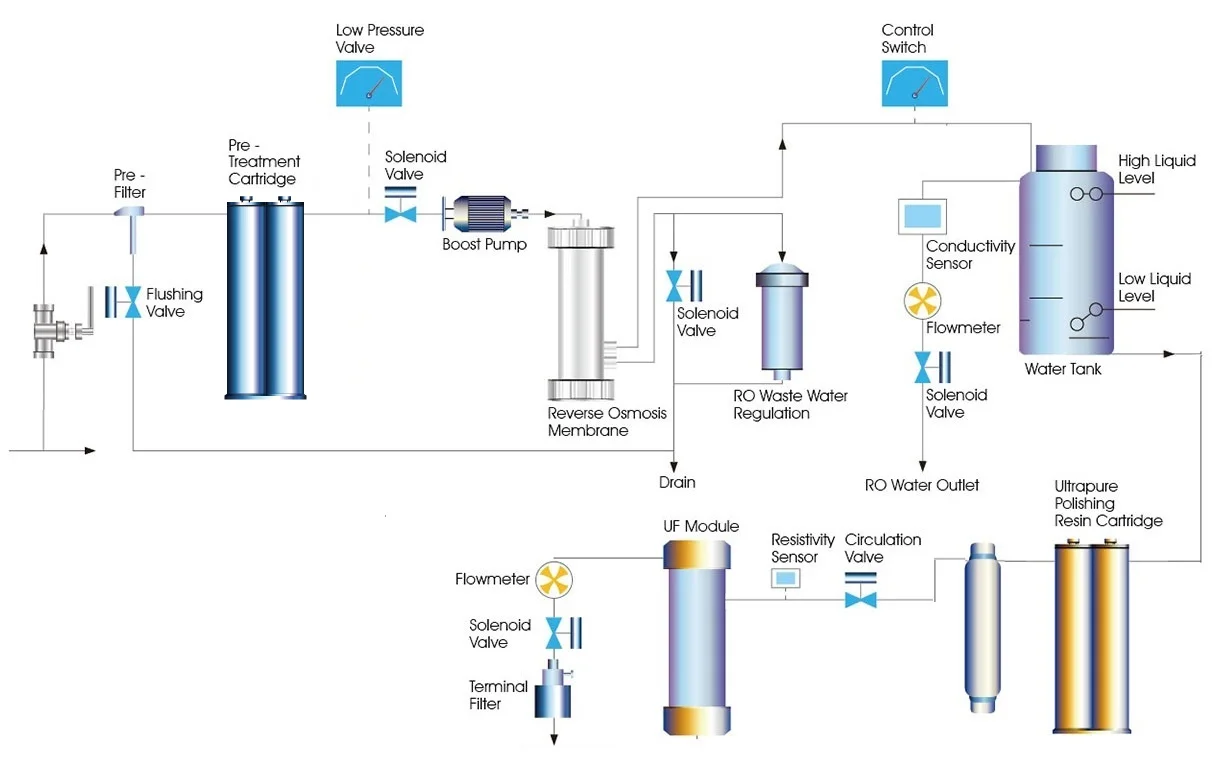

The process flow
The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter
(including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the
water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure
water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter
(including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the
water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure
water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.

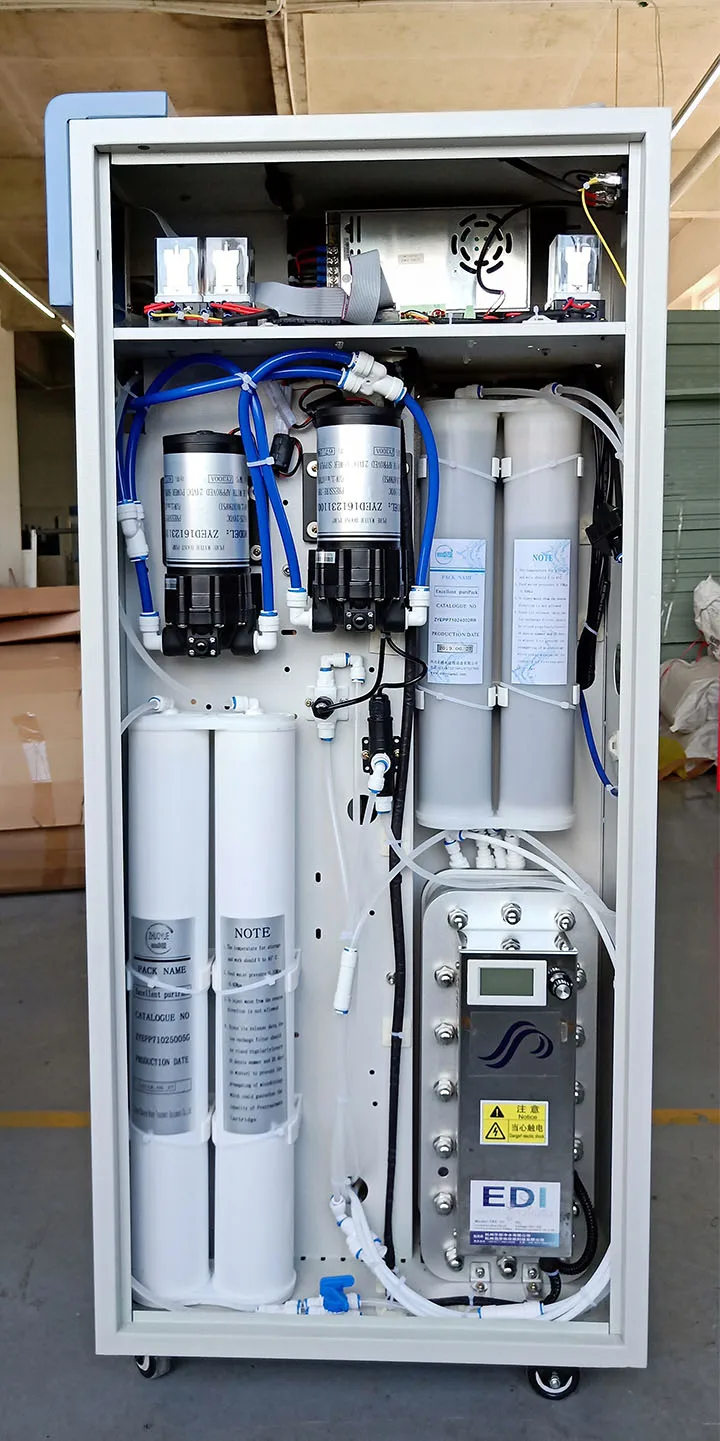

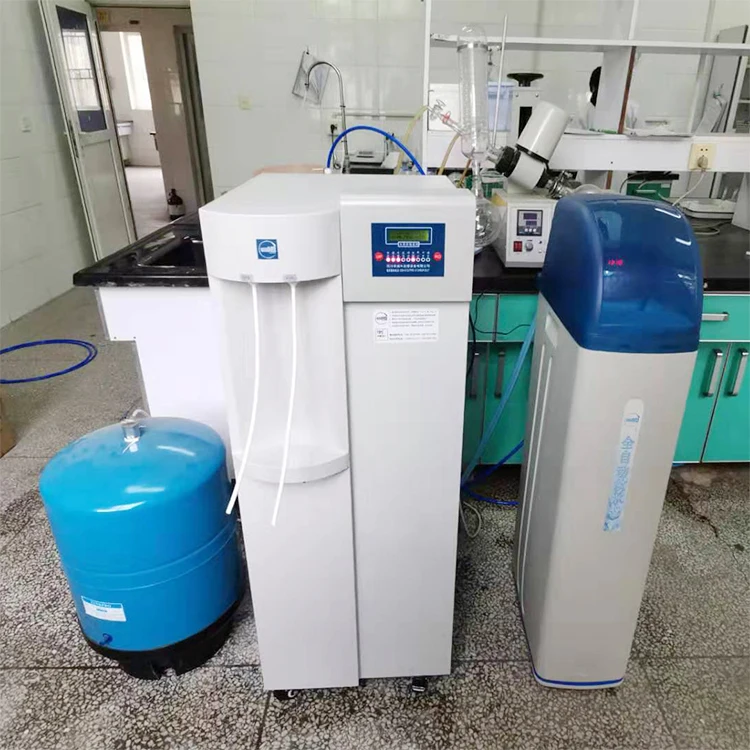

Product exhibition
