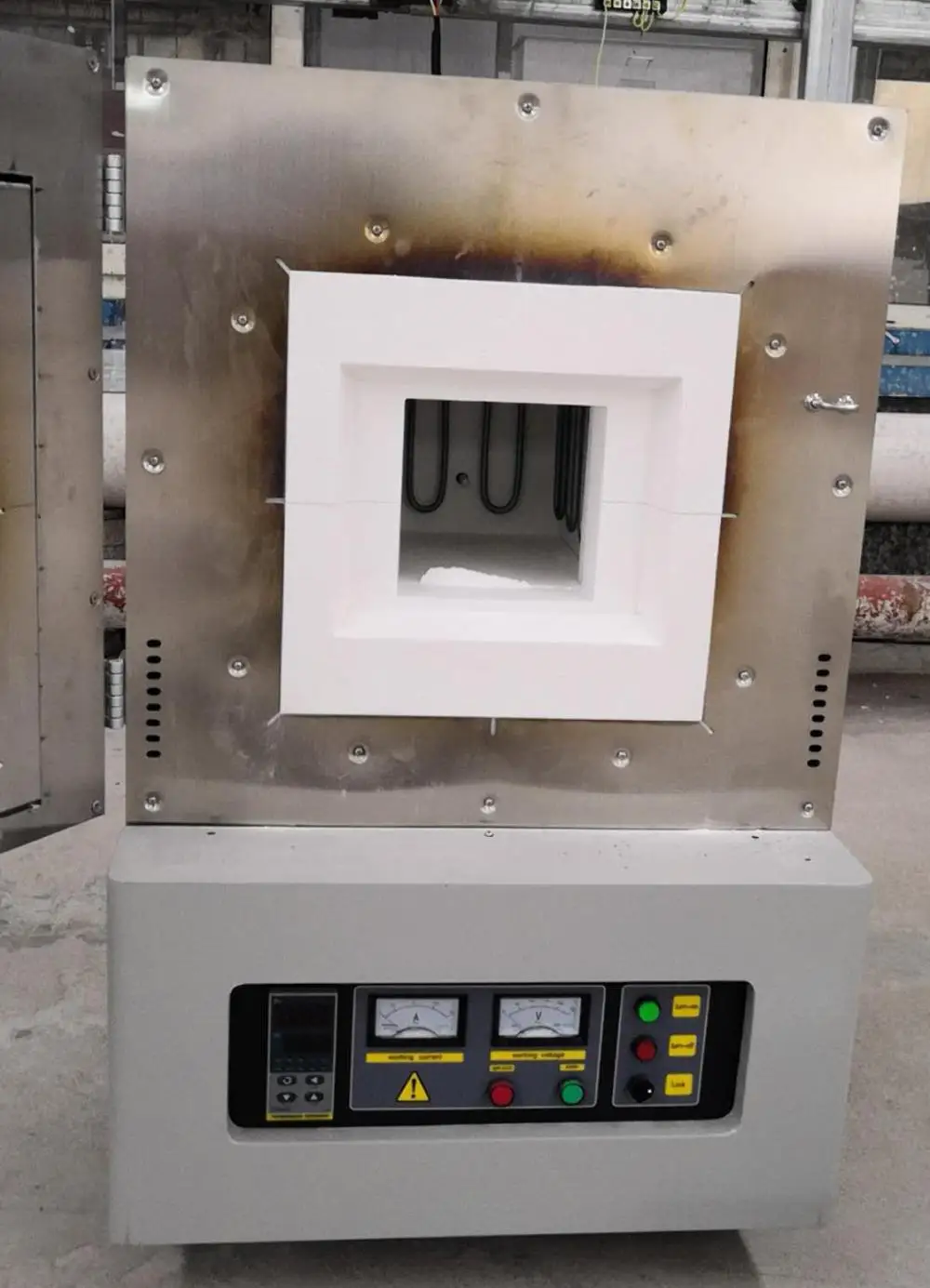

1750 Degree Operating Laboratory Sintering Muffle Furnace For Ceramic Zirconia Gem Nano Materials Heat Treatment
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60777967862):
Product Overview
Description
1750 Degree Operating Laboratory Sintering Muffle Furnace For Ceramic Zirconia Gem Nano Materials Heat Treatment
1750.C Sintering Muffle furnace Application:
Muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,
super hard materials (such as ceramic), Rare and precious metal smelting and purification,
metal heat treatment of sintering process research and other scientific experiments.
Universities and colleges, scientific research institutes, medical and health, petroleum chemical
industry, mining enterprise, quality and technology supervision agencies,
and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Product Description

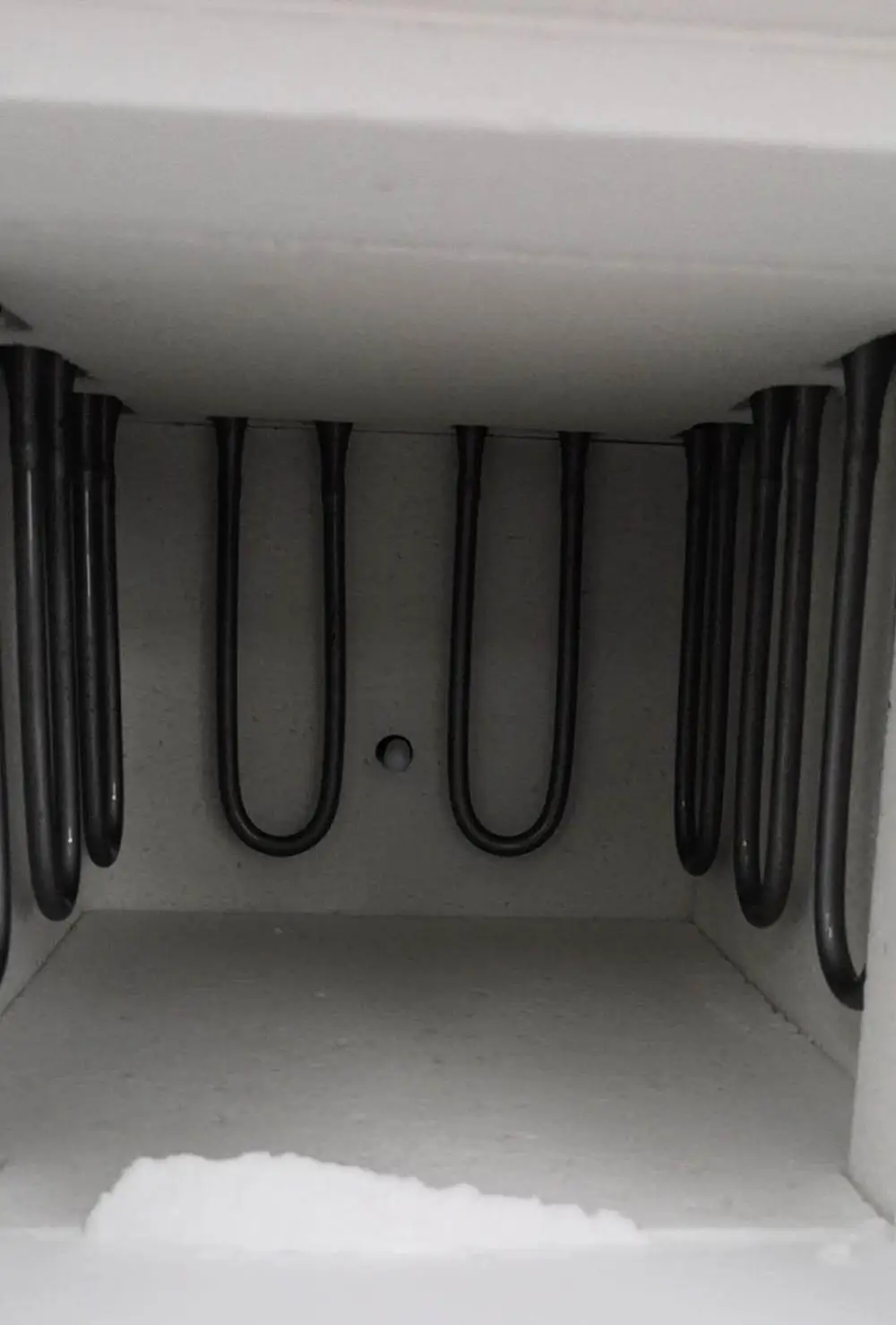

1750 degree ceramic electric sintering furnace is our main product-Muffle furnace.The Muffle furnace consists of high quality alumina fiber and MoSi2 heating elements with special design,and furnace temperature controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy ±1 degree and 50 segments programmable.
The furnace widely used for materials annealing,ceramic sintering ,melting and most heat treatment experiments in your research laboratory.
1750.C laboratory sintering muffle furnace technical details:
| Rated Voltage & Power: | AC 110V / 220V 50/60Hz, 2kw |
| Inner Chamber Size: | D200xW150xH150mm, 4.5 Liters. |
| Max. Temperature: | 1800.C for short time ; |
| Continuous Working Temperature: | 1750.C Max. |
| Chamber Materials: | Al2O3 plate + High quality Alumina ceramic fiber |
| Max. Heating Rate: | 0-30.C /min, suggest to be 10.C/Min under 1400.C,5.C/min at 1400.C-1600.C, 2.C/min >1600.C; |
| Temperature Controller: | PID automatic control and auto-tune function, 50 programmable segments for precise process. |
| Temperature Accuracy: | +/- 1 .C. |
| Heating Element: | High quality MoSi2 heater. |
| Thermocouple : | B type |
| Standard Parts: | Crucible tongs 1pc, High temperature gloves 1 pair , one user manual. |
| Optional parts: | PLC touch screen controller, paperless recorder,Remote communication control system, RS485 Communications Port , adding inlet gas hole or exhause gas hole . |
Spare parts for lab Sintering muffle furnace:

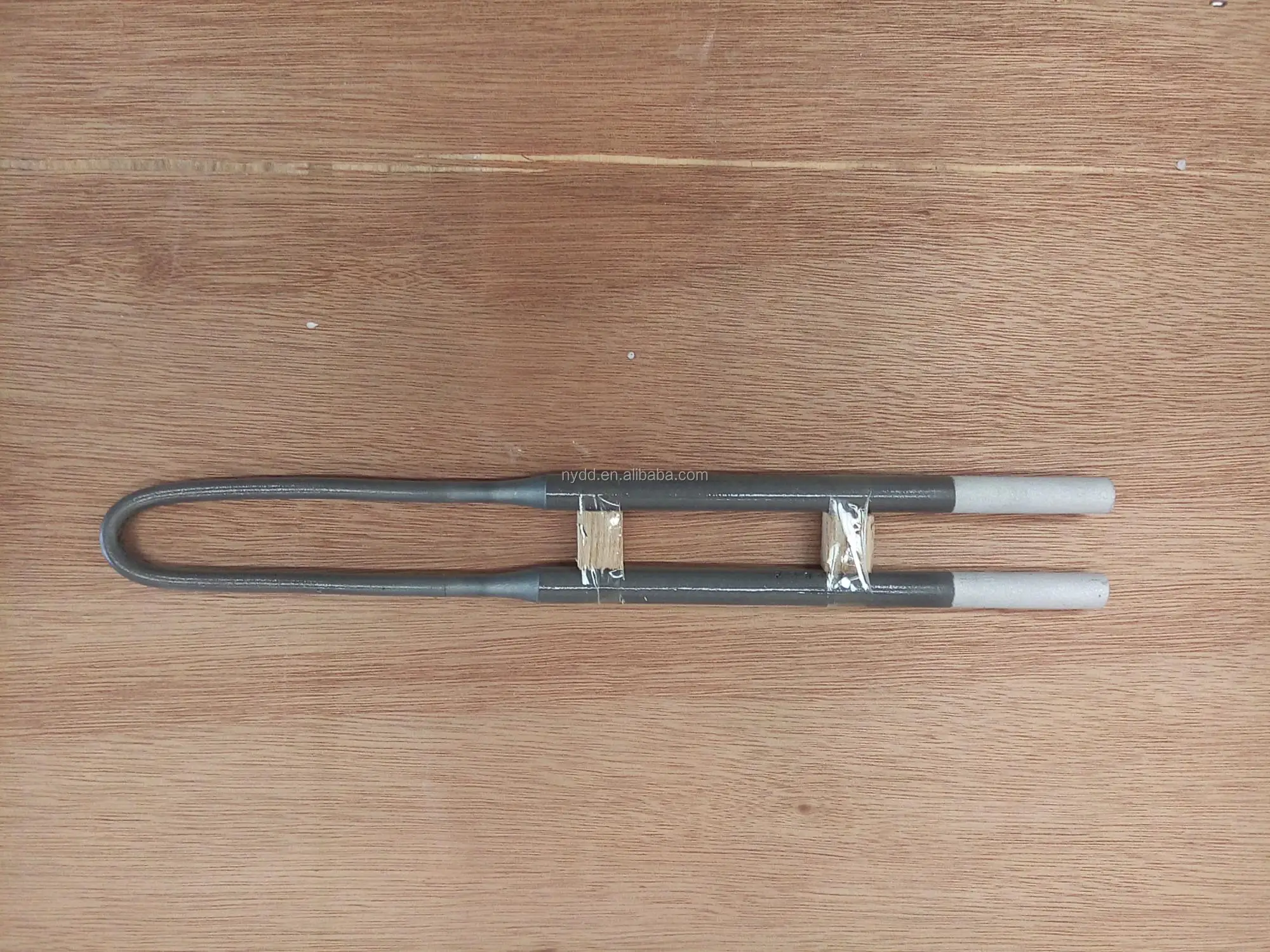

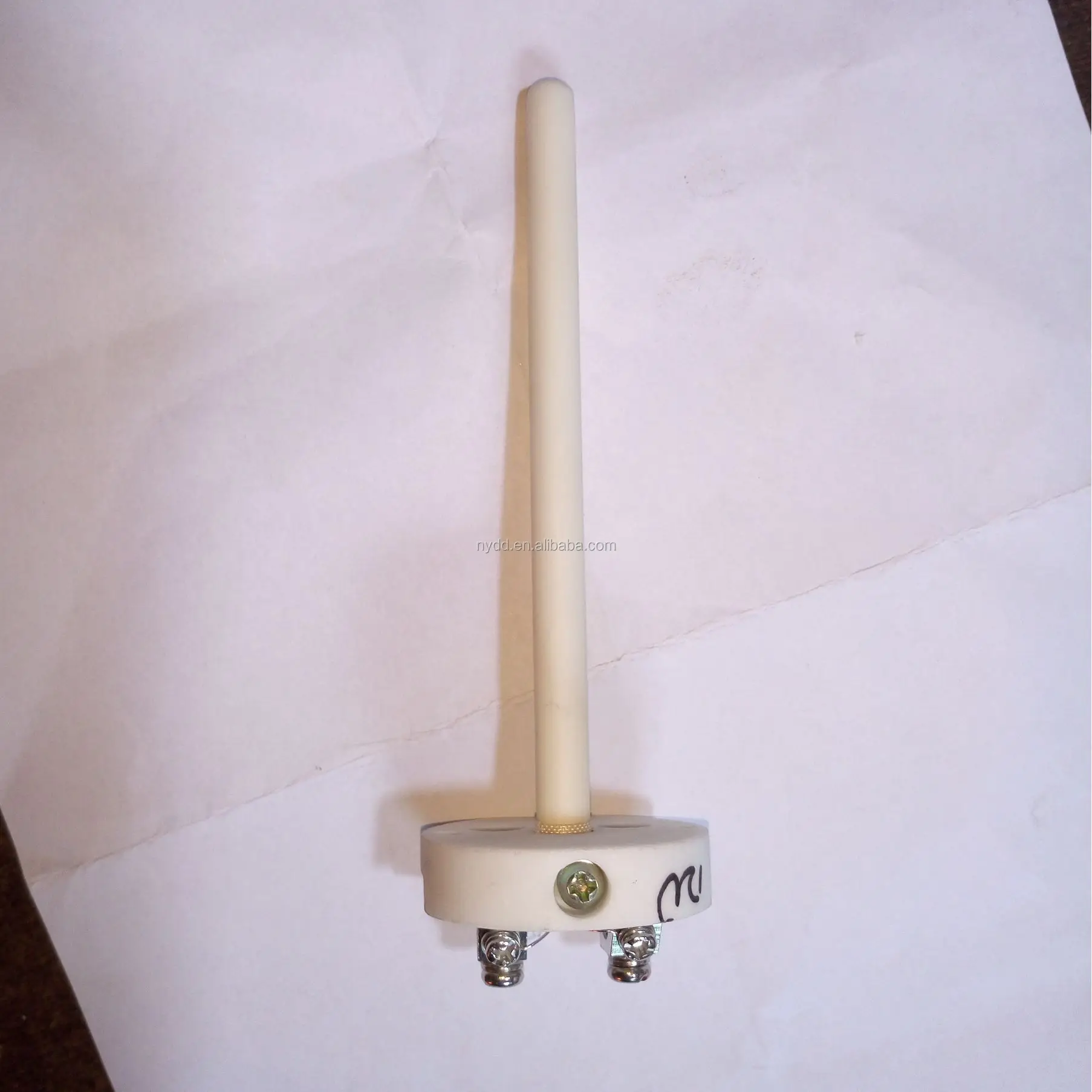

| MoSi heater |  | B type thermocouple |  |

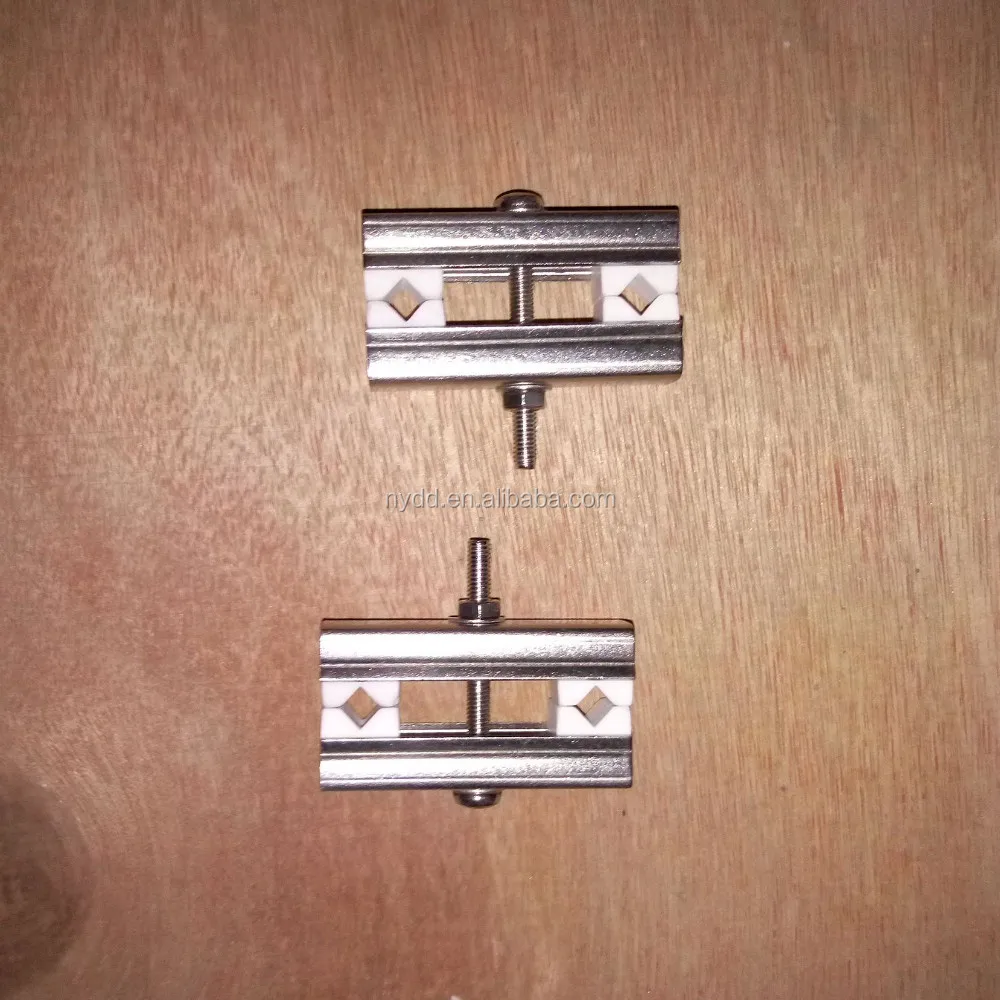

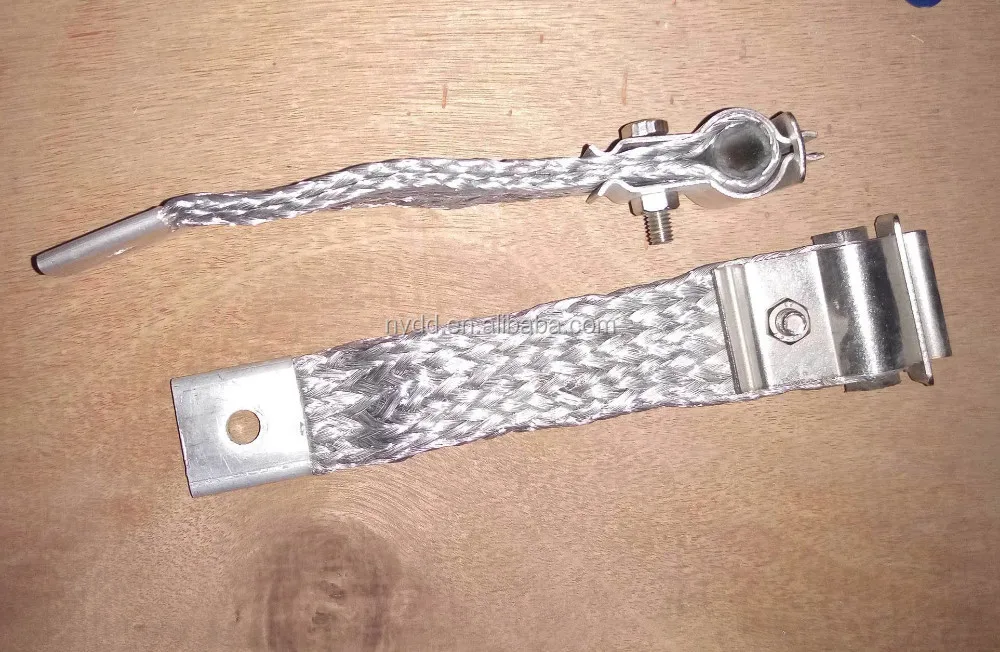

| Heater clamps |  | Connection straps |  |

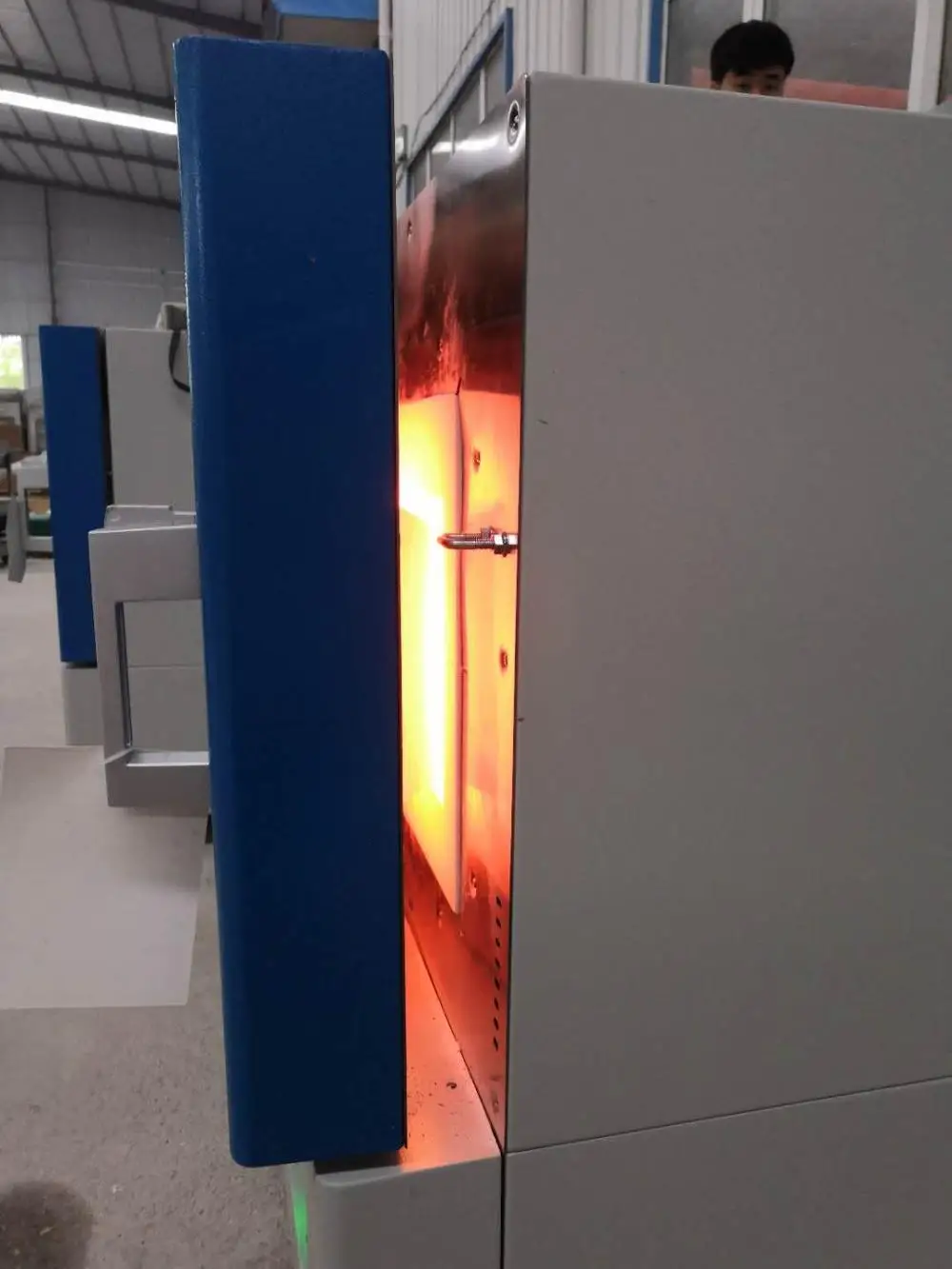

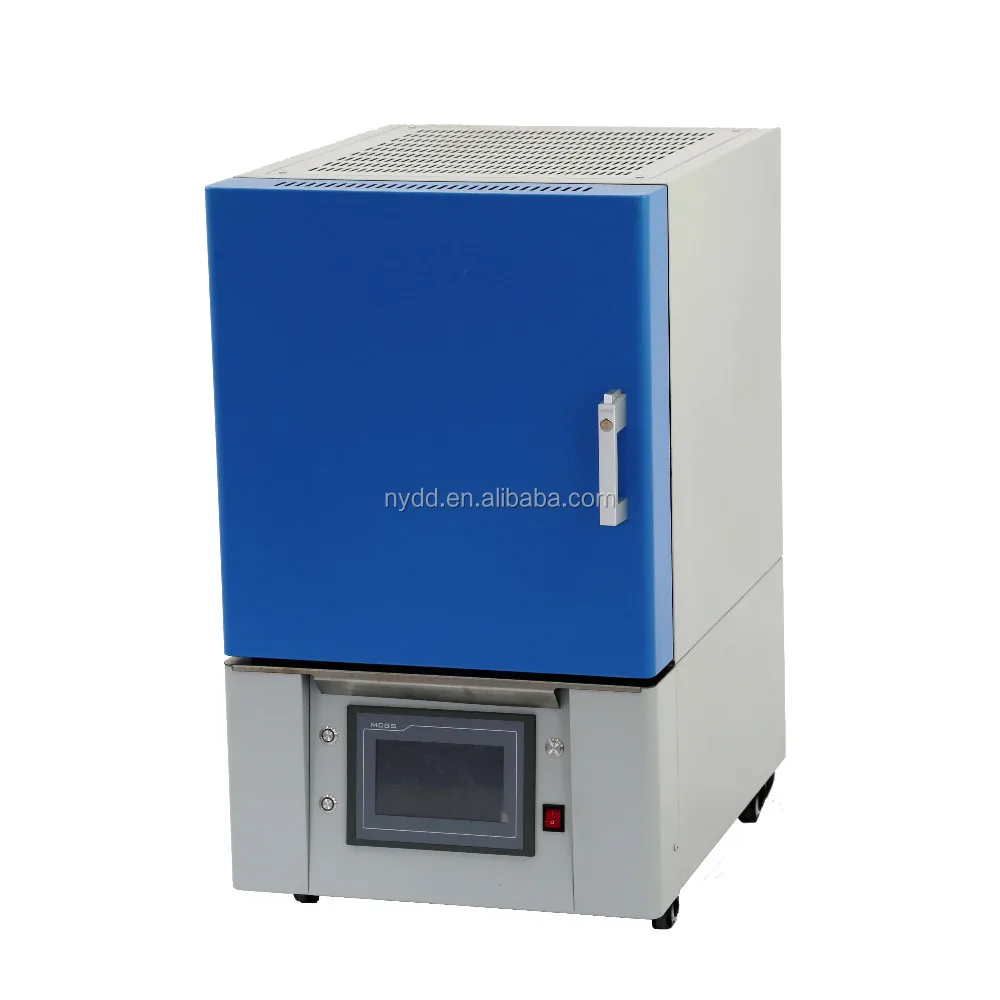

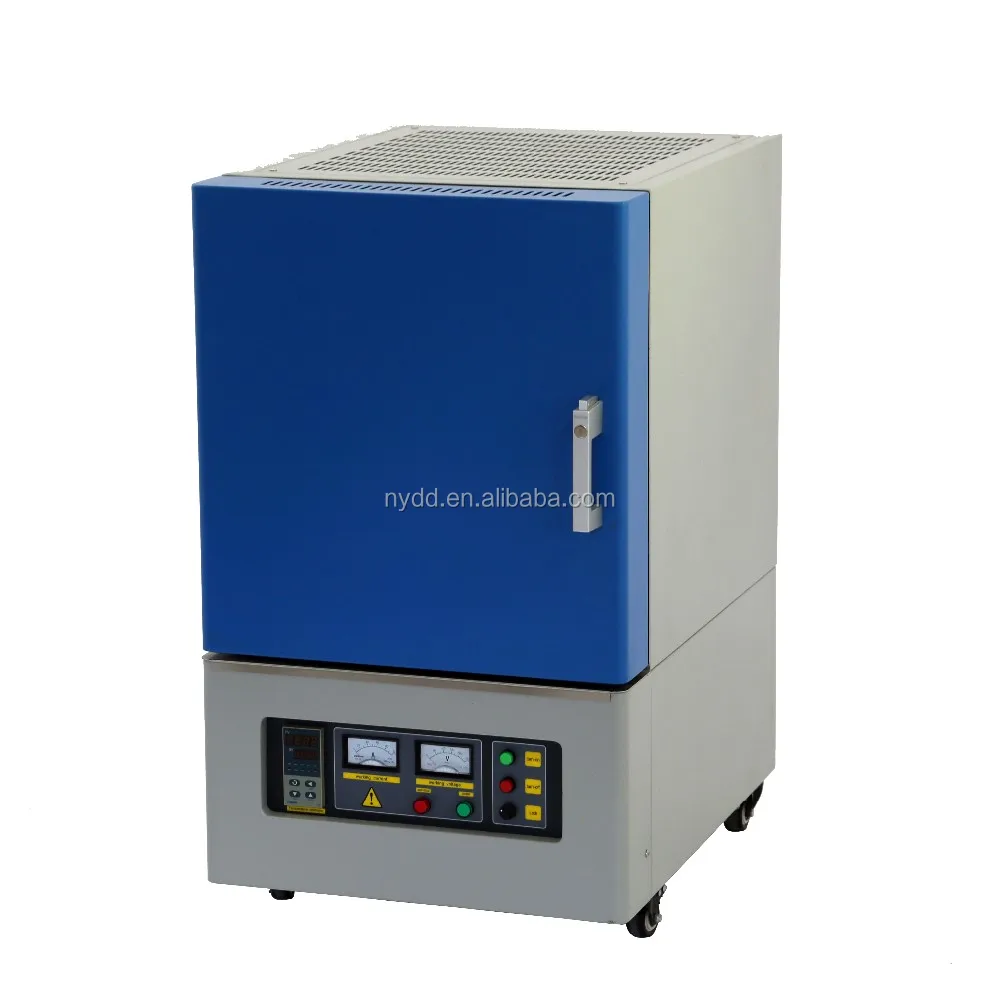

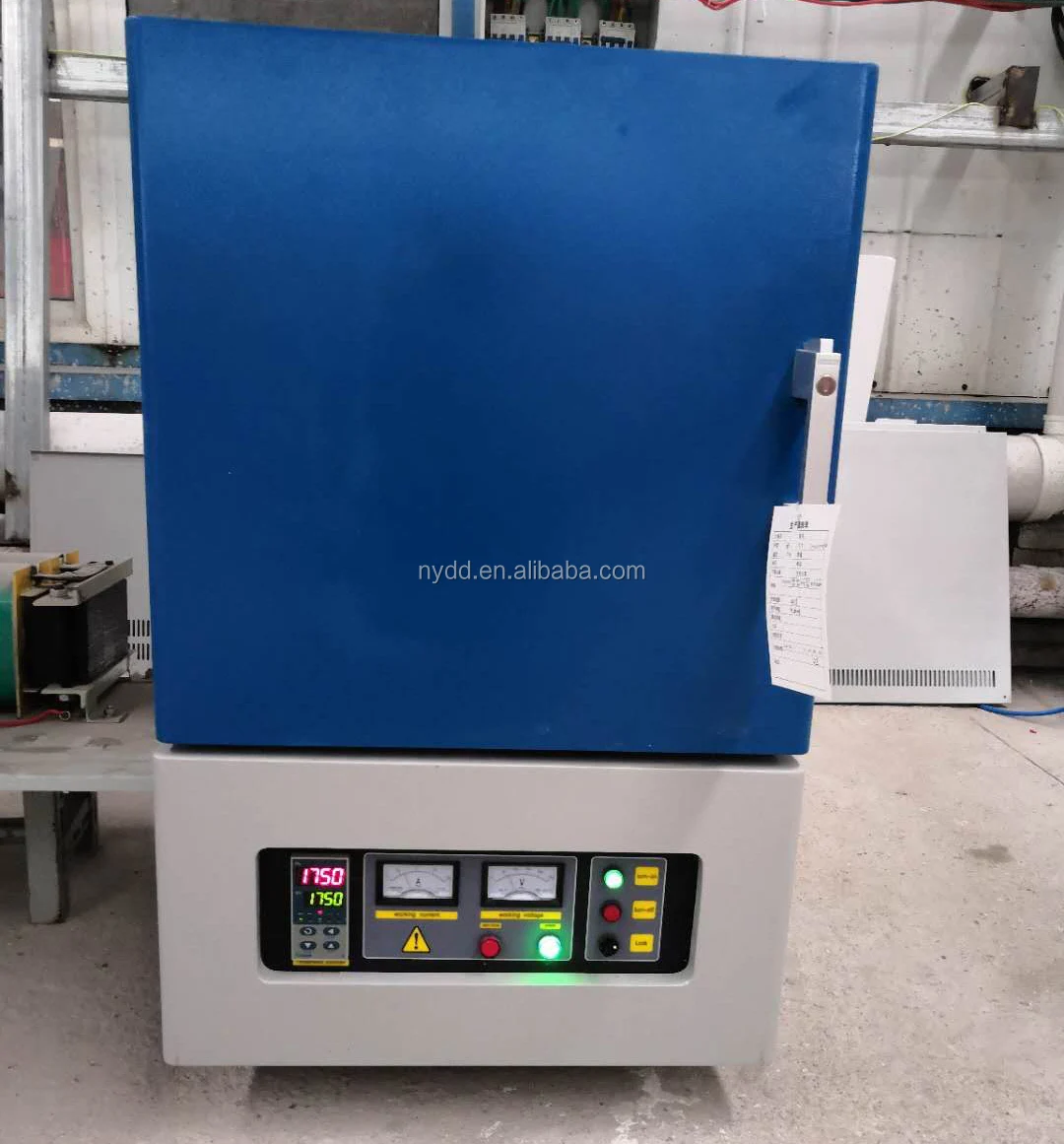

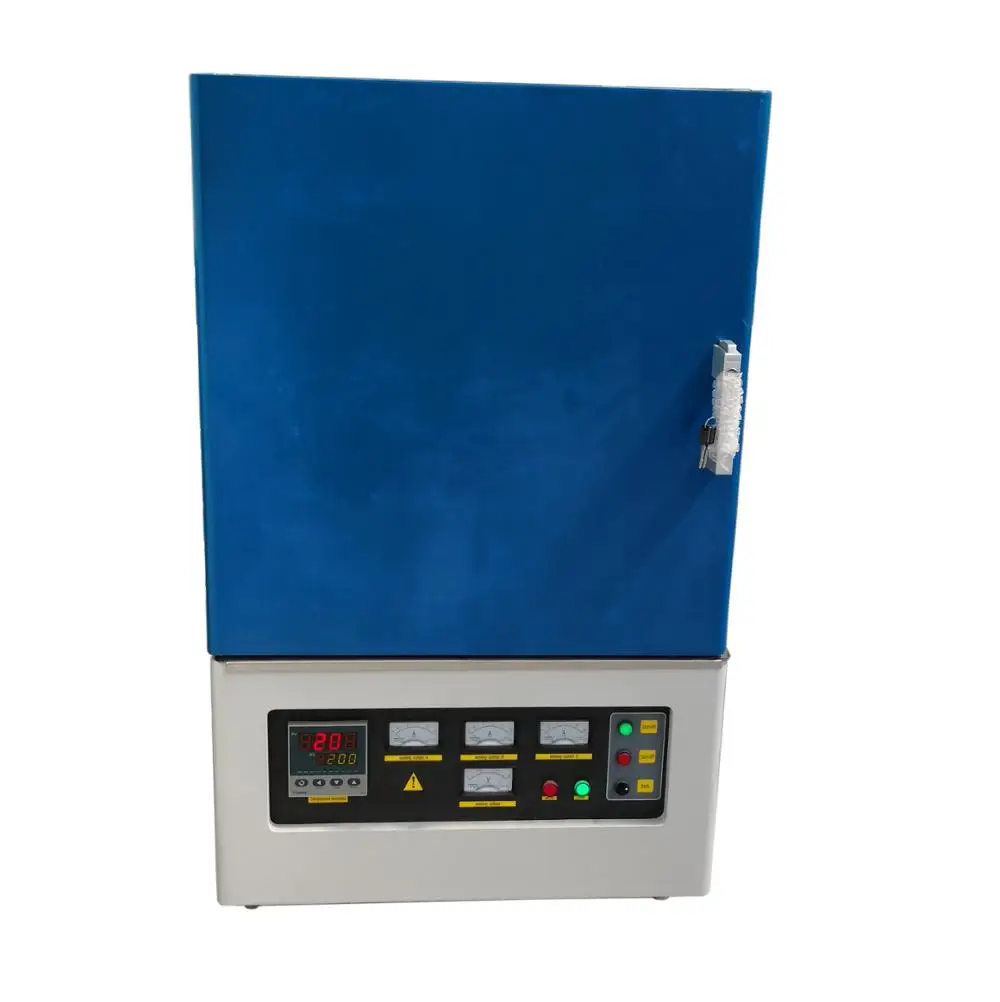

More pictures of 1750.C sintering muffle furnace:
Warranty: One year limited warranty with lifetime support, excluding heating element,cooling fans, thermocouple and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
1750.C sintering Muffle furnace Application Notes:
(1)The MoSi2 heating element must not be used at low temperatures (400°C-700°C) for a long time, otherwise the heating element may be damaged.
(2)This box furnace does not use a vacuum seal structure, so do no Use flammable or explosive gas.
(4)After Using a certain period of Muffle furnace, there will be minor cracks in the hearth. This is a normal phenomenon and will not affect the use. At the same time, it can be repaired with an alumina coating.
Related Products
You May need other muffle furnaces in the following:
| 1200.C laboratory muffle furnace | 1400.C muffle furnace pottery oven | 1700.C sintering muffle furnace |
 |  |  |

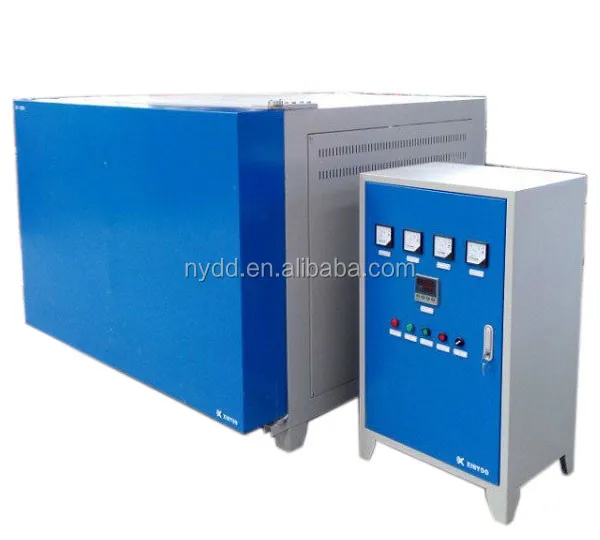

| 1800.C sintering muffle oven | Sintering furnace with Touch screen PLC controller | Large Industrial muffle furnace 500L Capacity |
 |  |  |
