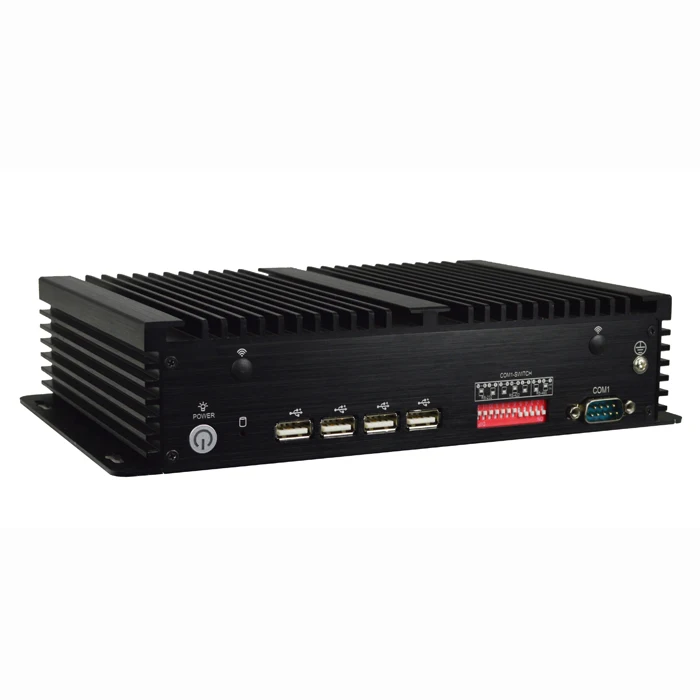

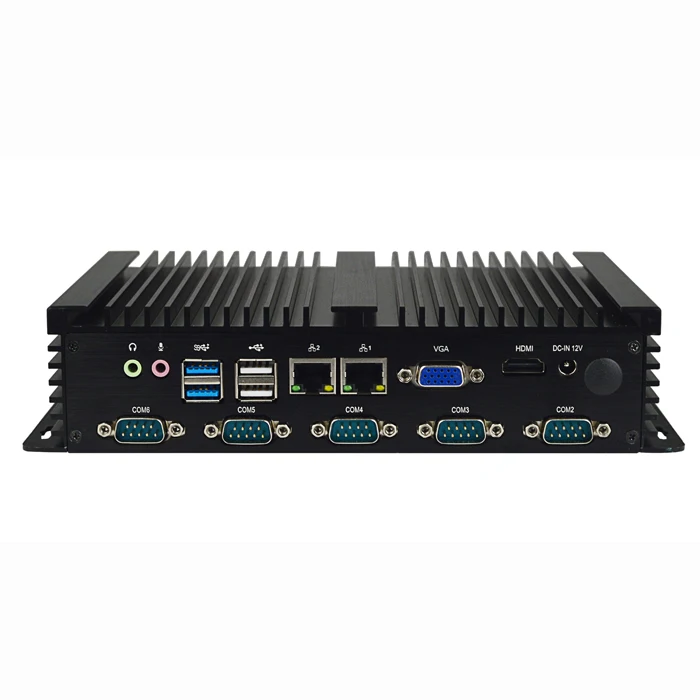

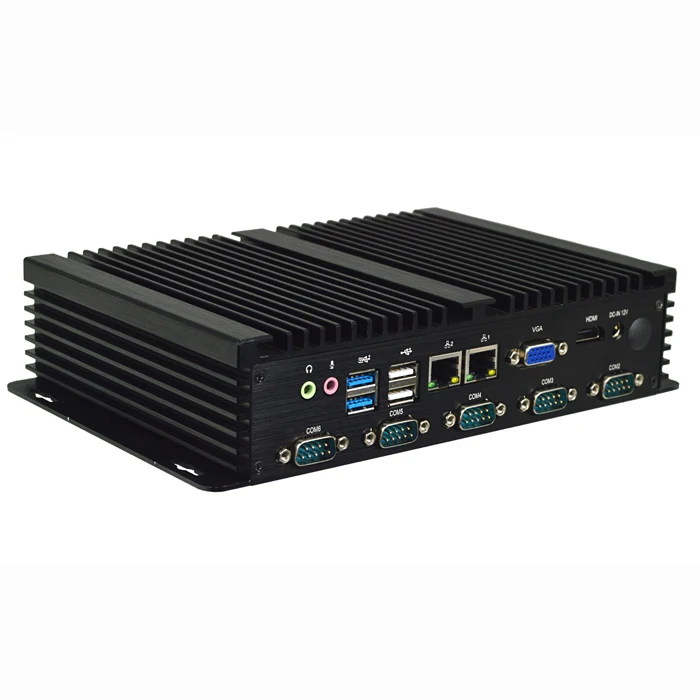

Embedded Fanless Mini PC x86 CPU J1900 Quad Core 3G/4G wifi industrial computer

Product Overview

Description





SD1907 6 COM 8 USB 2 LAN Fanless Mini

CPU: J1900

6xCOM

8xUSB

2xLAN

Audio In, Audio Out

Display Port: VGA and HDMI

AMT Optional



Product name	SD1907- 6 COM
Motherboard	integrated motherboard
Processor	Intel Celeron J1900 Quad Core 2.0G
Chipest	IntelBay Trail
RAM	One single-channel SODIMM slot supporting DDR3L1066 / 1333 / 1600MHz  Maximum support 8G
Hard disk	1x MSATA ,1x SATA
System	win7/win8/win10/Linux
Power	12V 5A power adapter
wifi	Can support dual antenna WiFi
Expansion slot	one mini pcle,support wifi/3G/4G
LAN	TWO Intel I211 Gigabit Ethernet port, support network wake-up
USB	1xUSB3.0 ,7xUSB2.0

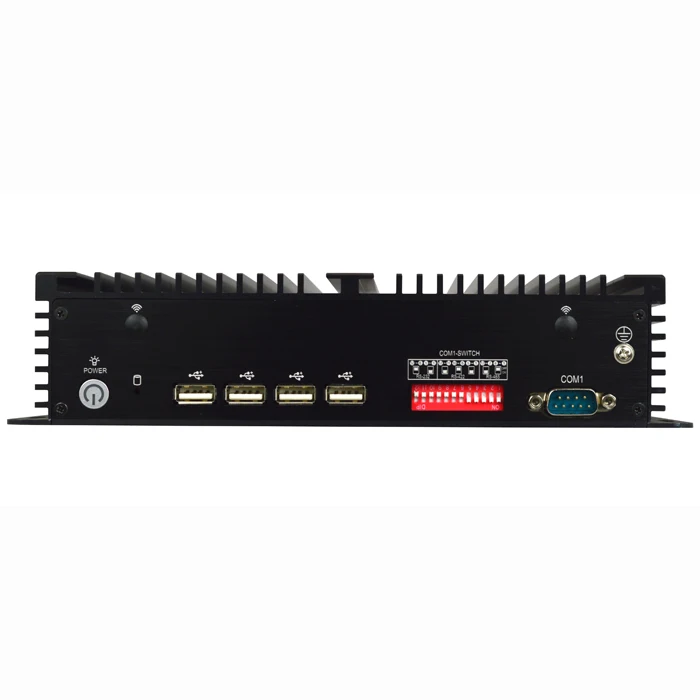

Serial port	6x RS-232 ,Among them COM1 supports RS-232/422/RS485 mode (direct adjustment of dial switch)
VGA	one
HDMI	one
BIOS	AMI EFI
Audio	Realtek ALC662 audio control chip with dual channel, stereo, Line_out,MIC in
Watchdog	255-level timer, resettable
Ambient temperature during operation	0~ +60°C
Storage/transport environment temperature	-40~ +80°C
Storage/transport humidity	5%-95% relative humidity, no condensation
Outline size	150x234x52mm(L,W,H)
Weight	around 2.0kg

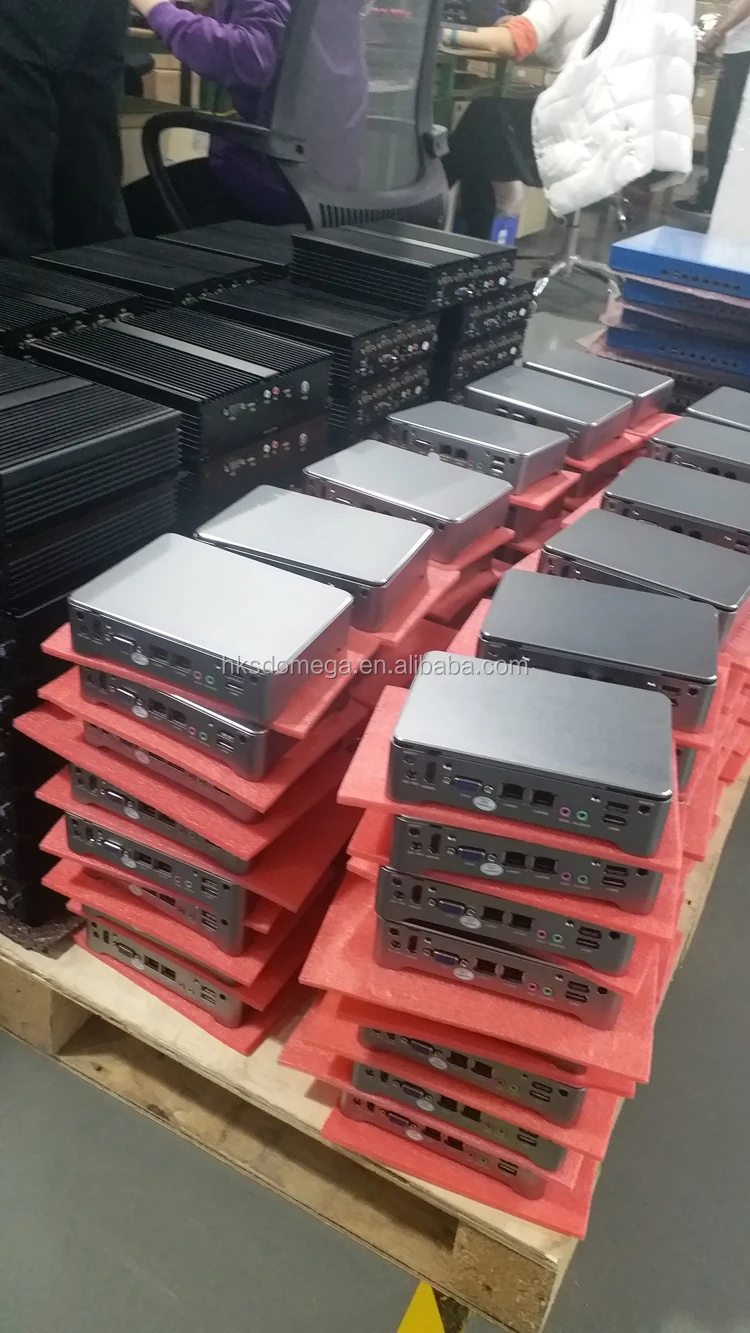

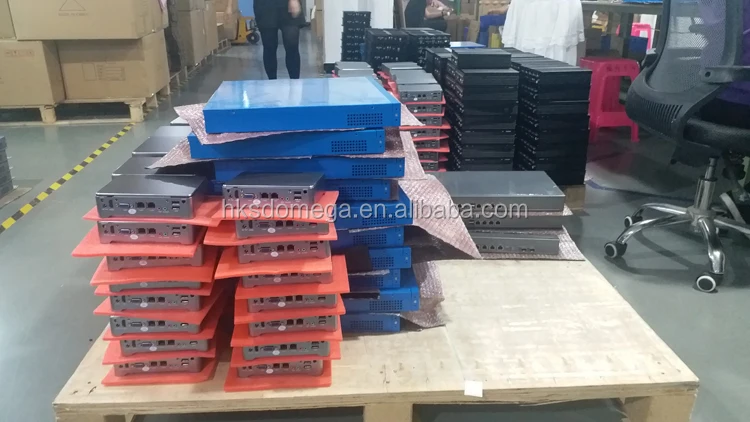

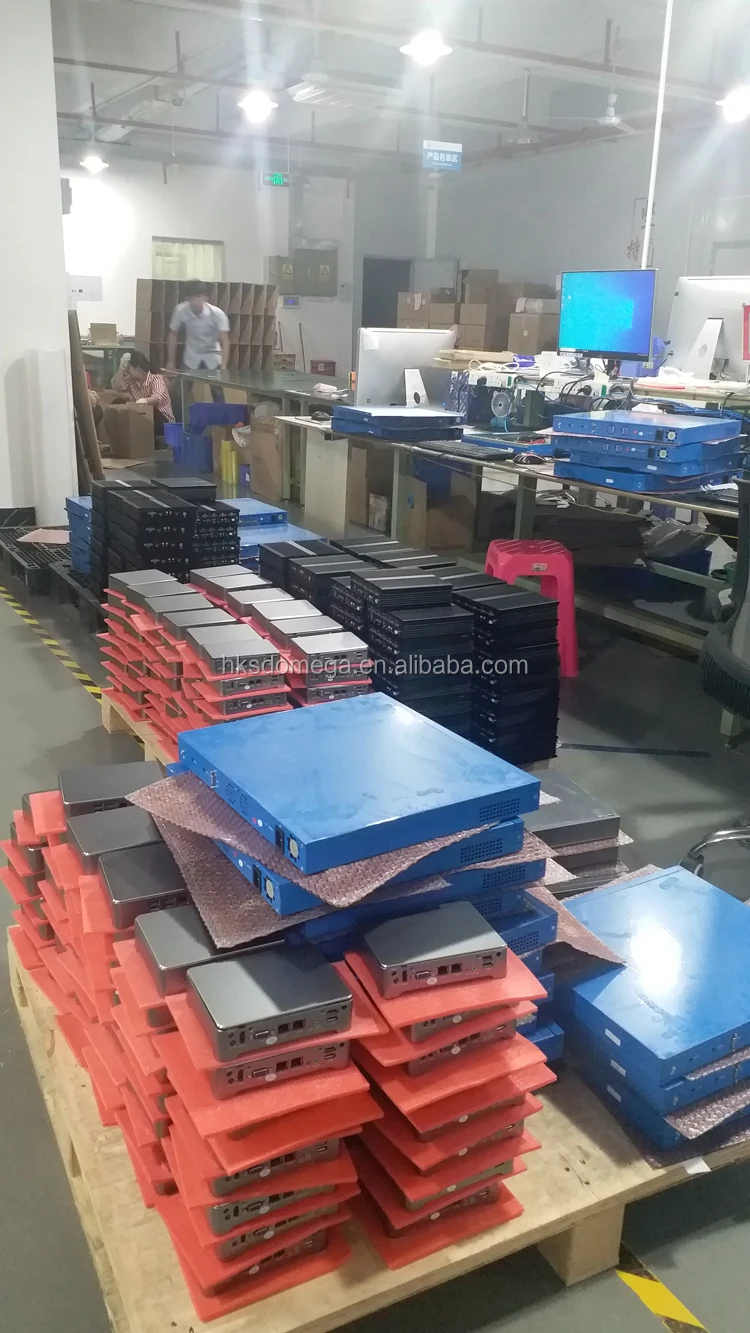

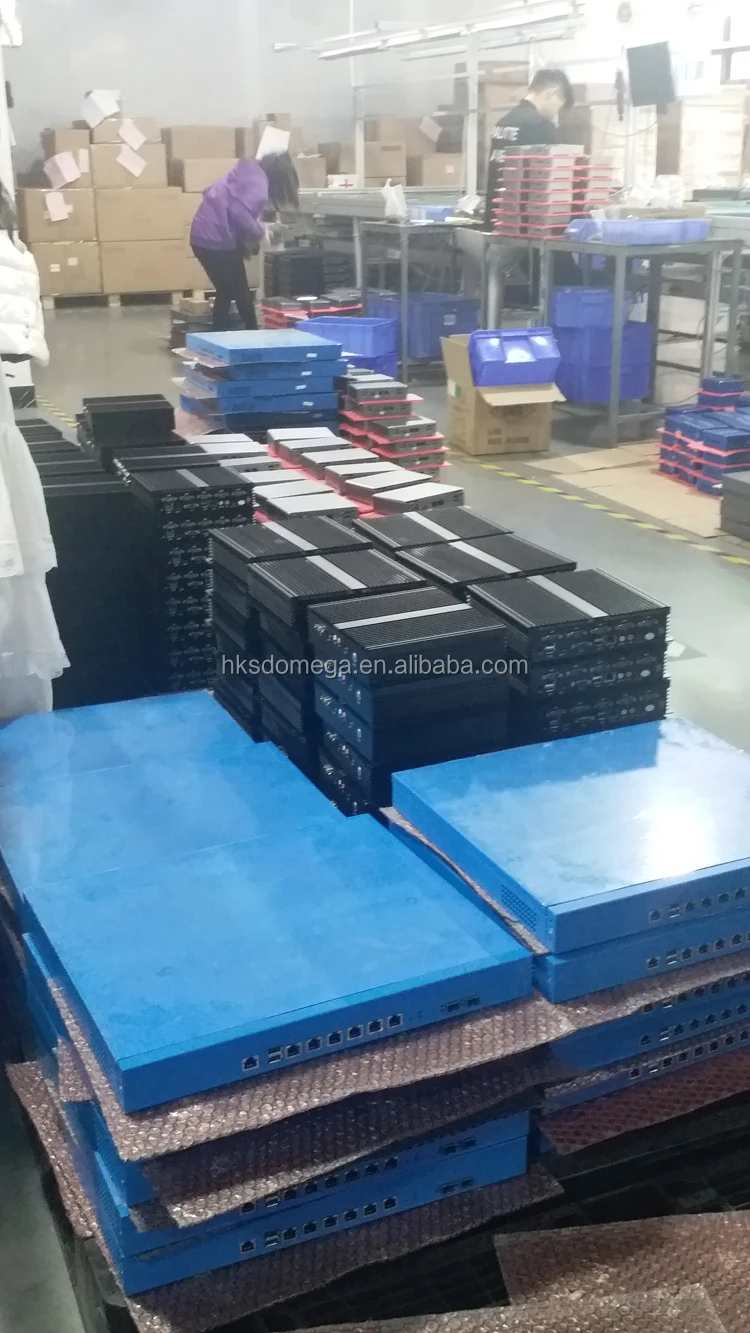

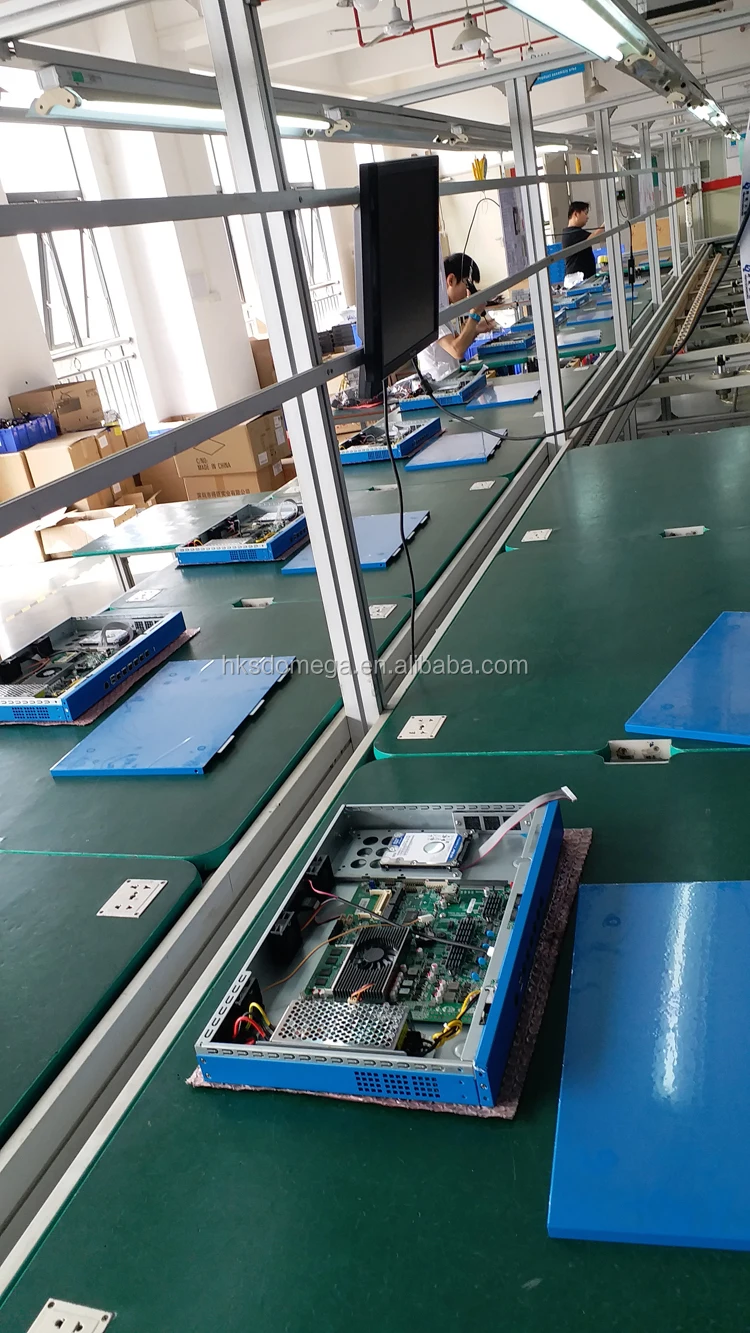

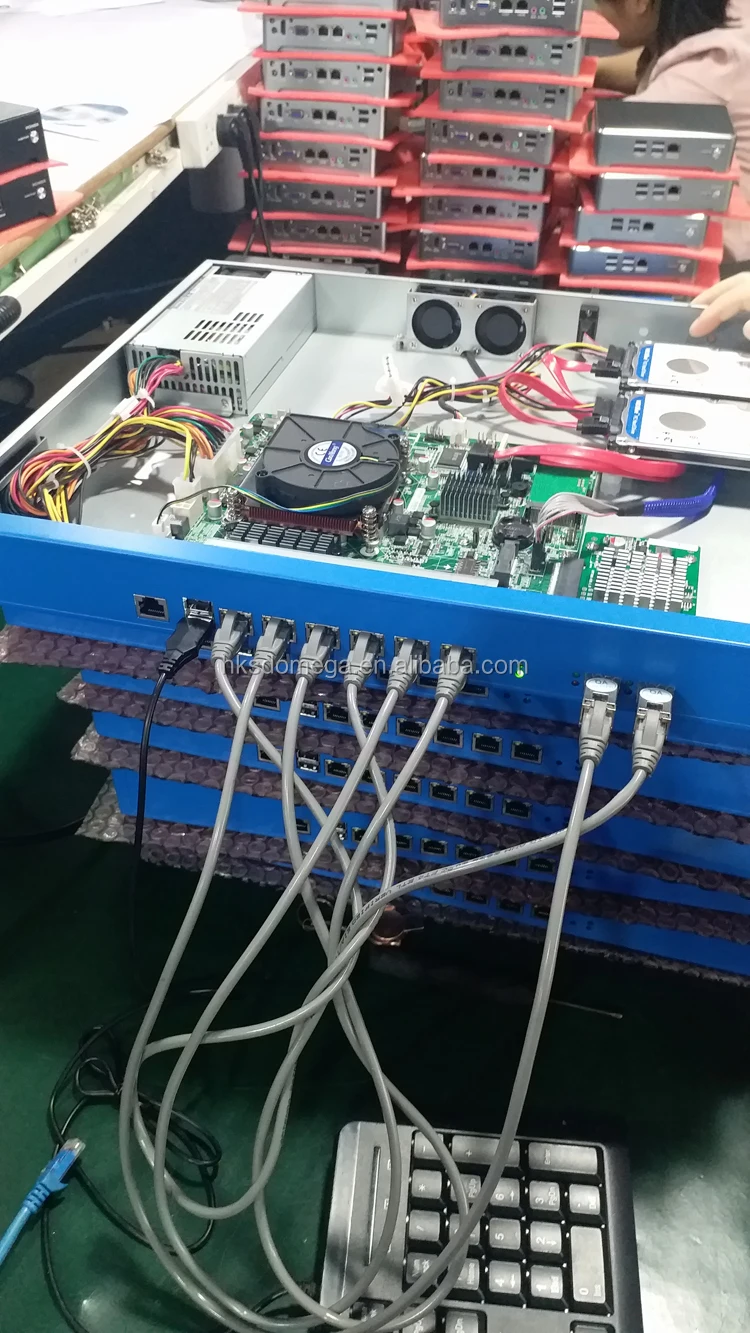

 Assembly Line:
