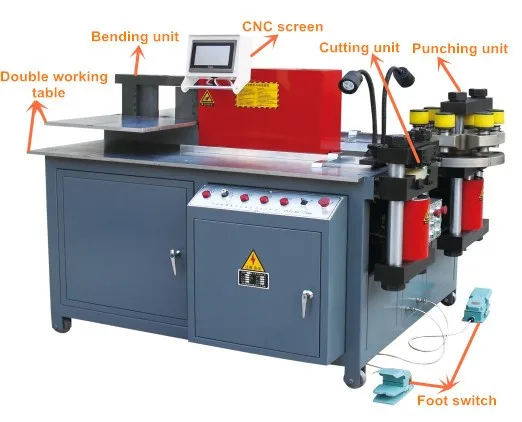

JPMX 503 ESK multipurpose bending cutting punching copper process busbar machine

 Main characteristics of busbar machine:

        1.  The cut surface is smooth and neat, no droop, no burrs, no waste

        2.  Rotary turret punch unit installed 6 dies, less replacing, high efficiency

        3.  More work space added by double work table, three work positions can be used at the same time.

        4.  Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree

        5.  Easily to be moved with four castors

        6.  Manual button and foot switch are optional

Functions of busbar processing machine:

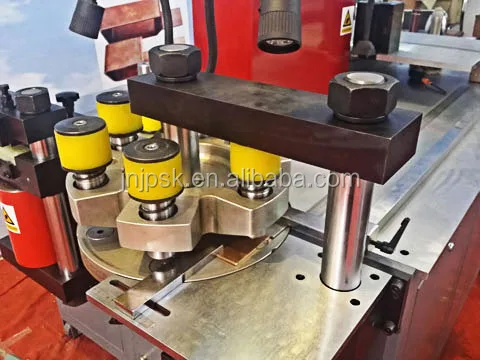

Punching station:

   Use an united six-mode turnplate in tooth shape to make sure the upper mold and the lower mold are absolutely in the center,improve the mold concentricity and longten the working life.

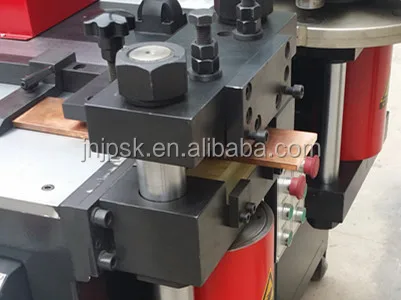

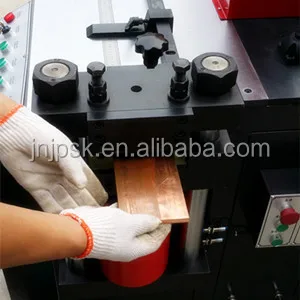

Cutting station:

     Use sharp shearing,the incision interface is flat,no droop and burrs and waste,beautiful shape.

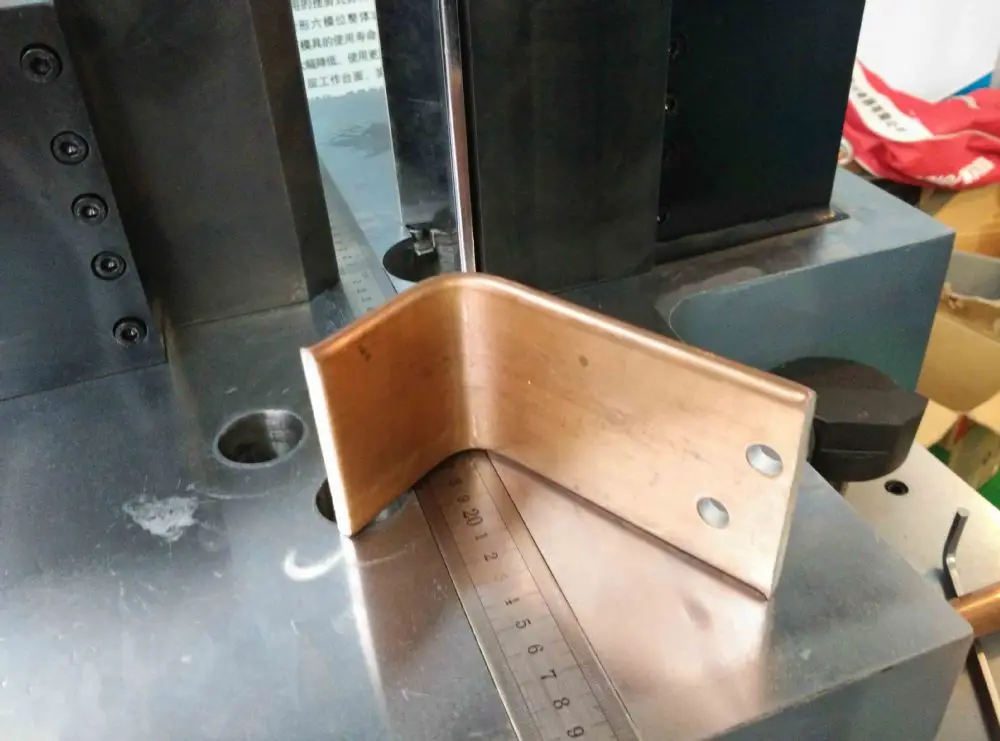

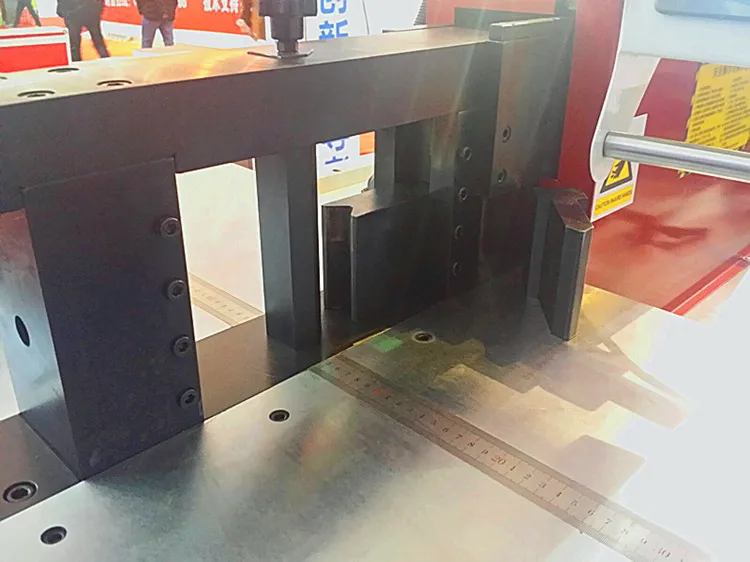

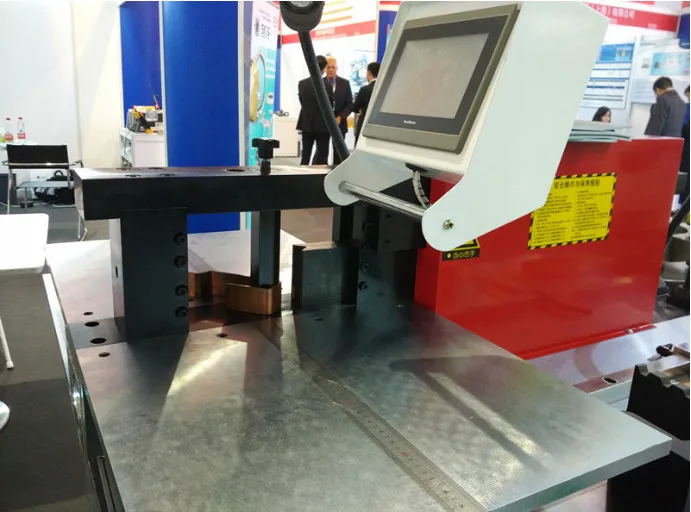

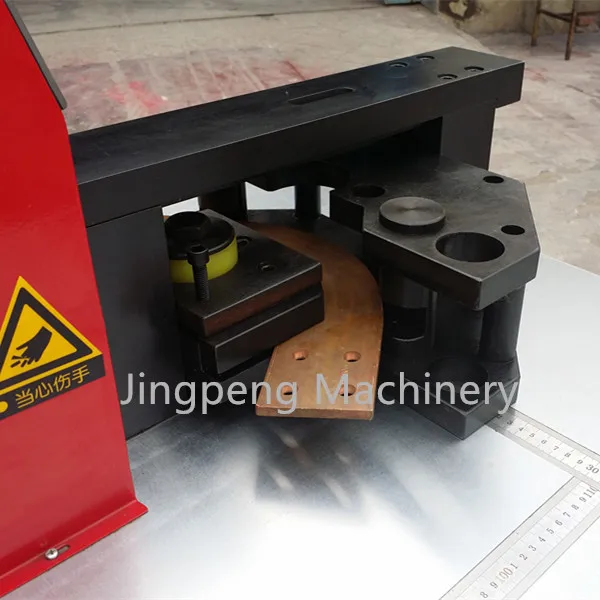

Bending station:

  By changing different mold it can do flat bending,and verticle bending.CNC controls the bending angle by an imported PLC  control system.

Technical  parameters of JPMX-503ESK busbar process machine:

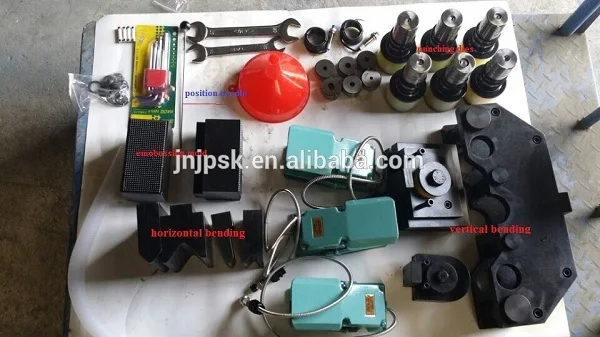

Accessories of busbar processing machine:

    punching mold ,       flat bending mold ,                      vertical bending mold,

    foot switches,          U type bending die,                    hydraulic system sealing ring,

    oil filler,                     inner hexagon spanner,

    limit switches,          punching location needle

      Machine will be sprayed and wrapped with plastic water proof film and then in standard export wooden box.

        We are professional manufacturer for busbar processing machine in China for more than ten years. Our busbar processing machine are approved by ISO & CE certificate, the machine quality is highly respected among customers in North America, Europe and most Asia countries.
Our certificate:

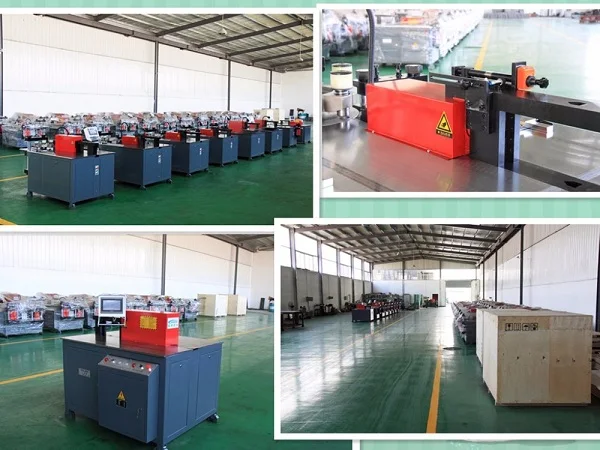

Our  factory:

 Our exhibitions:

Any questions, please don't hesitate to contact me.
