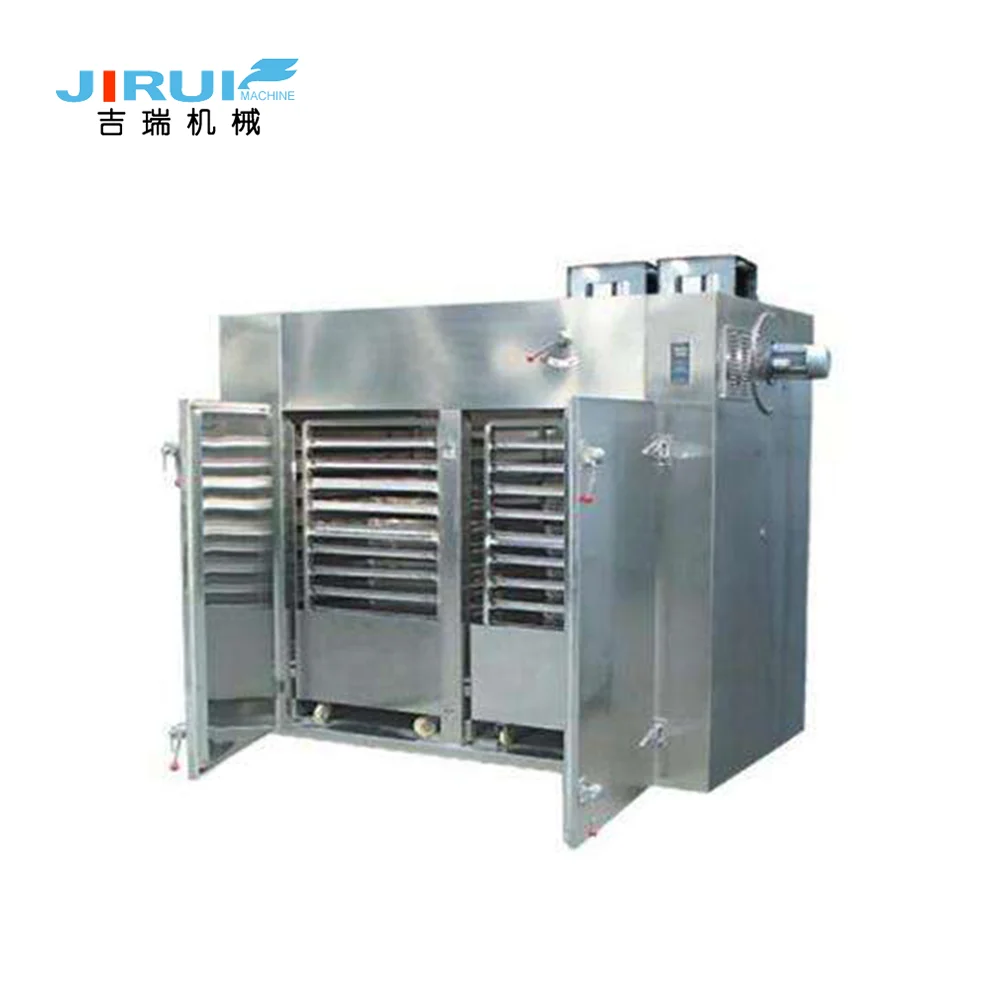

It is a general-purpose drying machine with a wide application range. It is widely used for heating, curing, drying and dehydrating of materials and products in such industries as medicine, chemical industry, food, light industry, heavy industry, etc., for example: pharmaceutical materials, crude drugs, sliced herbal medicines, powders, granules, medicinal granules, small and large honeyed pill packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking finishes, etc.
Features
•Most hot air circulates in the oven with high efficiency and energy saving.
•Forced ventilation is utilized. The oven is provided with the adjustable air distribution board to realize even material drying. The heat source can be steam, heat transfer oil, hot water, electricity, infrared ray, etc.
•The machine is featured by low noise, balanced running, automatic temperature control and convenient installation and maintenance.
•with a wide application range, it is a general-purpose drying machine for drying various materials.
Main technical parameters and relevant explanation
•The heating source includes steam, electricity, infrared ray, and dual use of steam and electricity.
•Working temperature: steam heating 50-140℃, maximum 150℃.
•Working temperature is 50-500℃ if electricity or infrared ray is adopted.
•Automatic control system and computer control system are available for selection by users.
•Common steam pressure is 0.02-0.8Mpa(0.2-8kg/cm²).
•For electric heating, 15kw if calculated according to I type, actual 5-8kw/h.
•Please indicate any special requirements when placing orders.
•The price of nonstandard ovens is negotiable.
•Please indicate if the working temperature is more than 140℃ or less then 60℃ when placing orders.

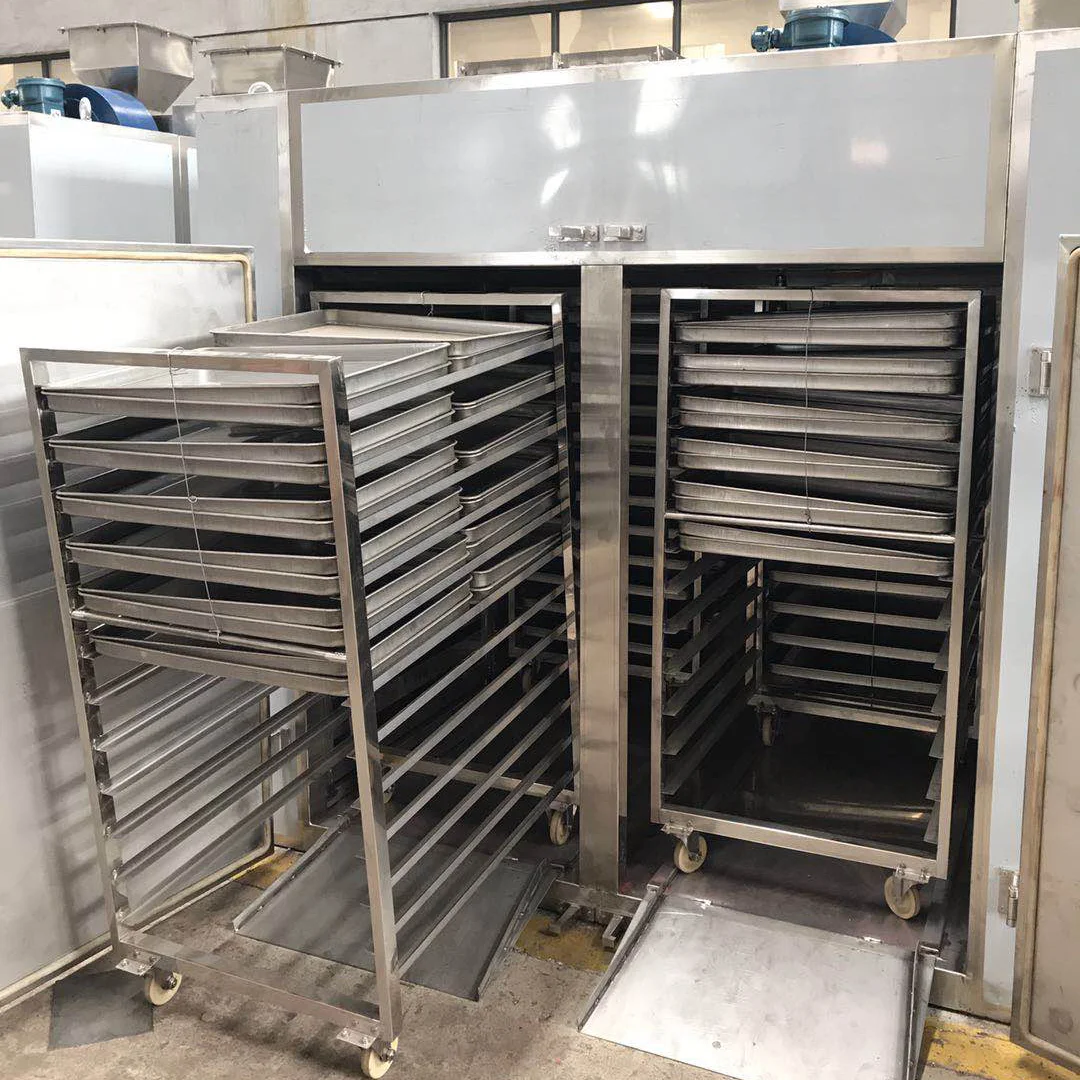

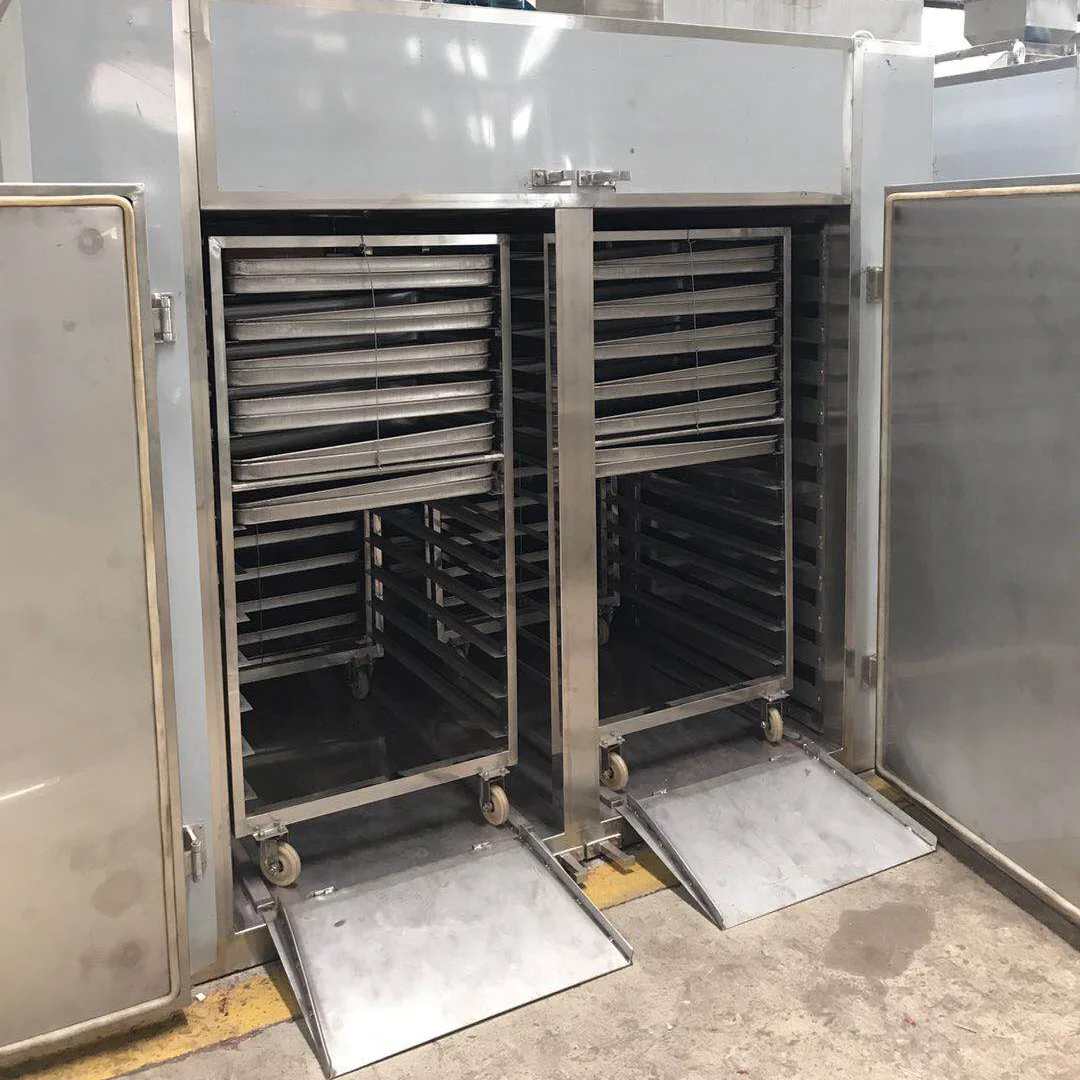

•The drying carts and drying discs have uniform dimensions at delivery and are interchangeable.
•Drying disc dimensions: 460*640*45(mm).

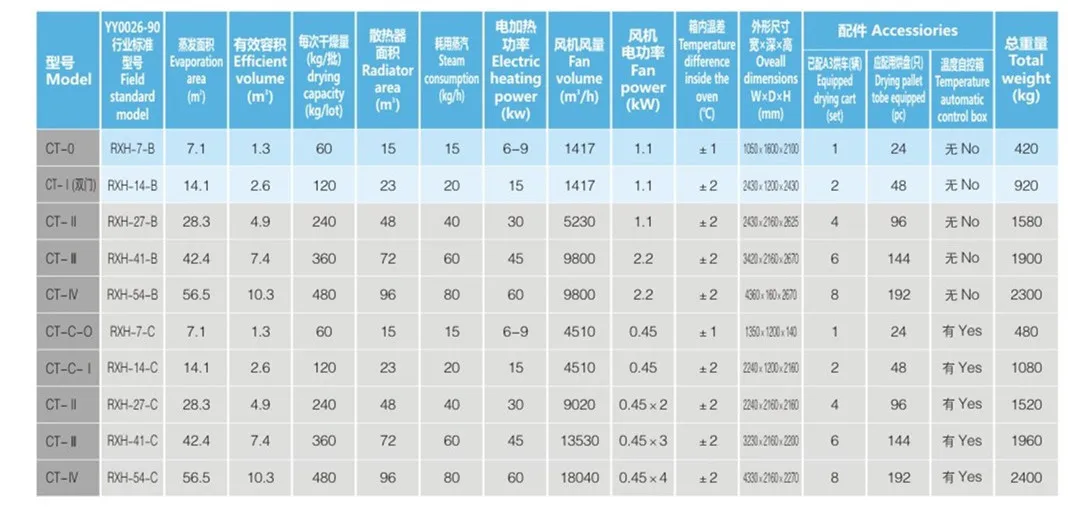

Technical parameter
Packaging & Shipping
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If you need, we can help you do custom clearance.
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Air bubble film and stretch film.
Delivery Details: about 40 workdays after payment.
Our Services
Pre-sales service
1) Professional advice and rich experience help to choose machine.
2) Inquiry and consulting support
3) View our factory
After-sales service
1) Training how to install and use the machine
2) Engineers available to service machinery overseas.
3)one year guarantee,whole life service.Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
