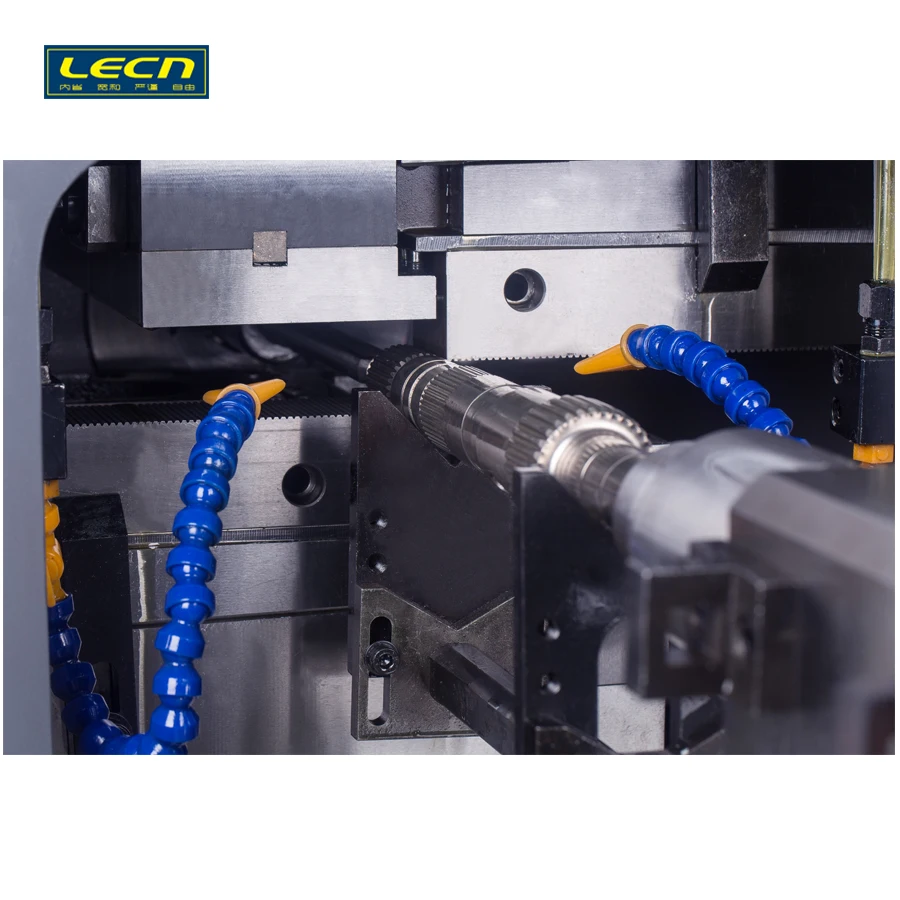

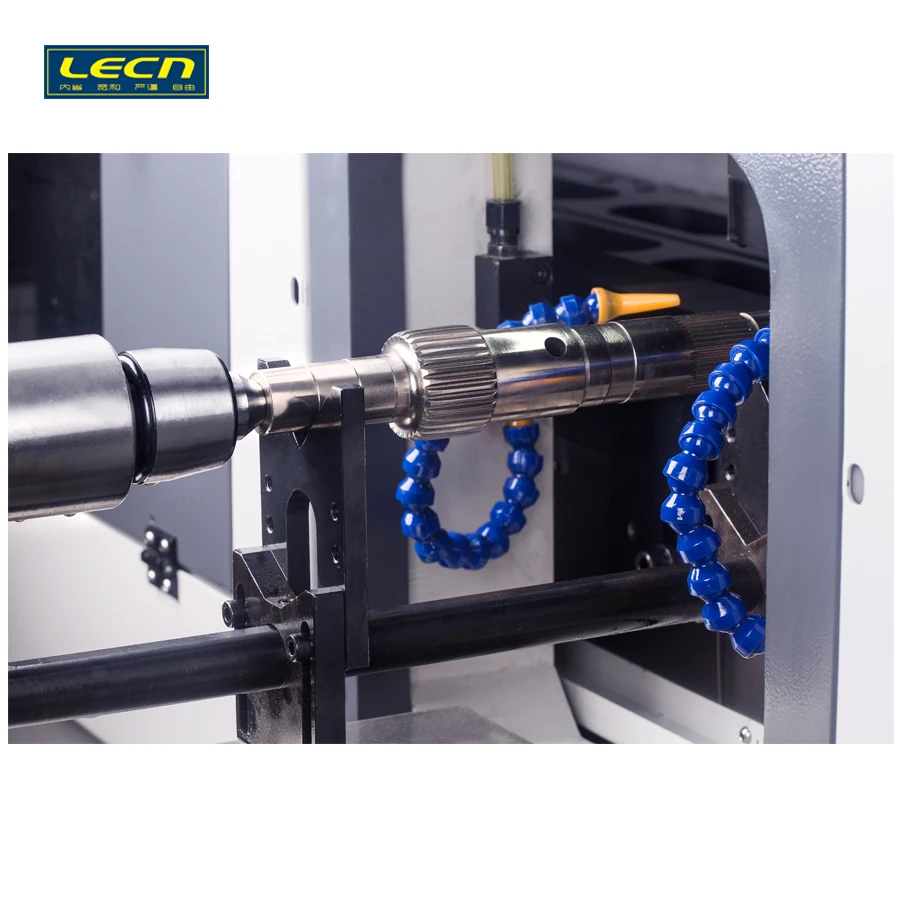

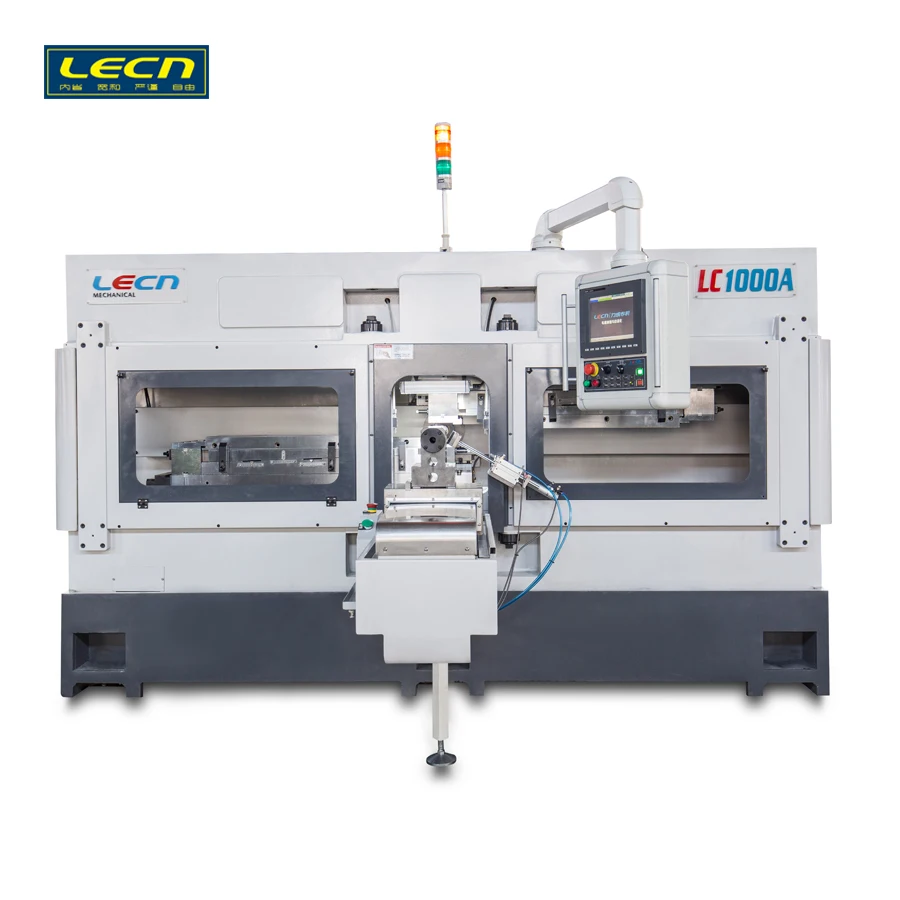

LC800A /LC1000A horizontal Spline shaft hobbing Machine for auto parts forming

Product Overview

Description

Main parameters

ITEM	UNIT	LC800A	LC1000A
Max  module	mm	1.3	1.5
Max out diameter	mm	ø40	ø50
Max tool width	mm	80	100
Max workpiece lenth	mm	1000	1000
Max installing tool width	mm	300	300
The open part size	mm	139.7	139.7
Tool size	mm	24or16or13	36or24,13
Max tavel	mm	800	1160
Weight	kg	10000	13000
Length × width	mm	2400×4100	3200×4100
Drive way		Hydraulic	Hydraulic







Function features

1)Using special materials wear-resistant castings and c clised frame body;

2)Rich mould combination,can revese forming and save moulds;

3)Clamping one time can forming few steps;

4)Intelligent rail lubrication detecting function,coolingflow;

5)Original hydraulic parts are imported,double cylinder driving,forming steady;

6)Reasonable structure design,pleasant operating heigh,small footprint;

7)Can carry with truss or joint robot and automatical line.

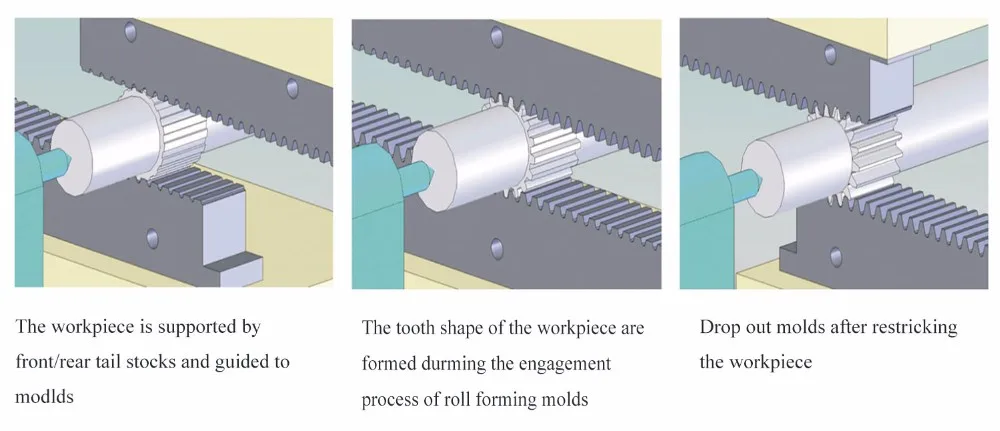

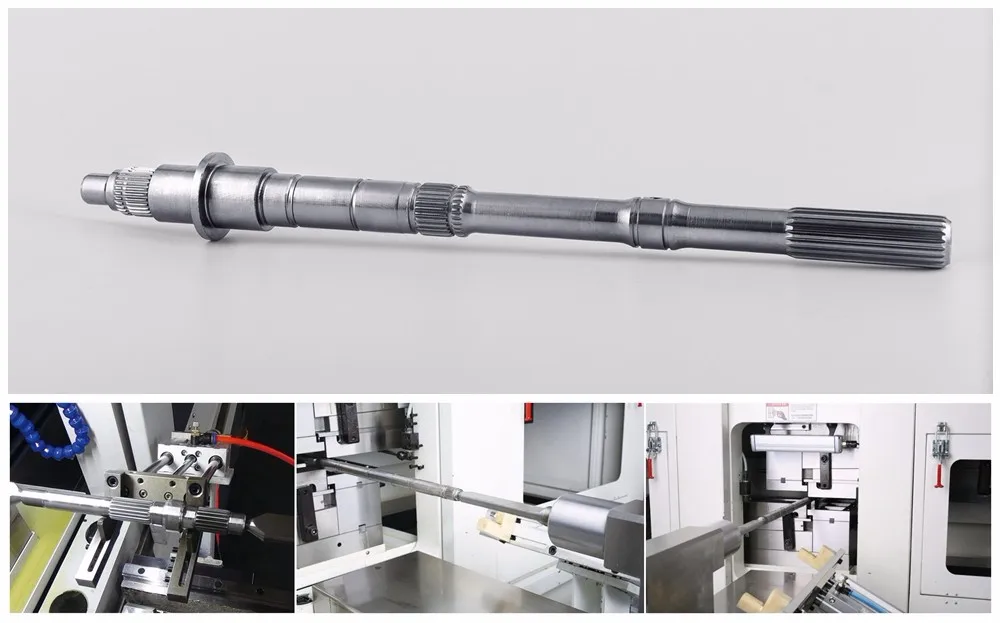

Spline shaping principles

The spline cold forming is actually a shaping process without stock removal,in which root materials are gradually extruded and replaced upto crest .



Through our computation procedure, you can easily figure out the theoretical diameter of materials necessary for shaping and you can get the final diameter after adjustment .





Advantages of cold forming: (compared with old cutting processing)

1) efficiency is increased up to more than 30 times ;

2) work piece bearing capacity is increased to 40%;

3)roughness can reach to below Ra0.4;

4)materials saved to 9%-15%;

5)fatigue strength,torsion strength and wear resistance are sharply improved.

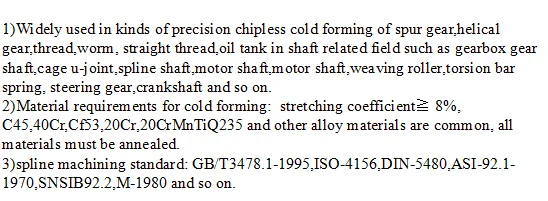

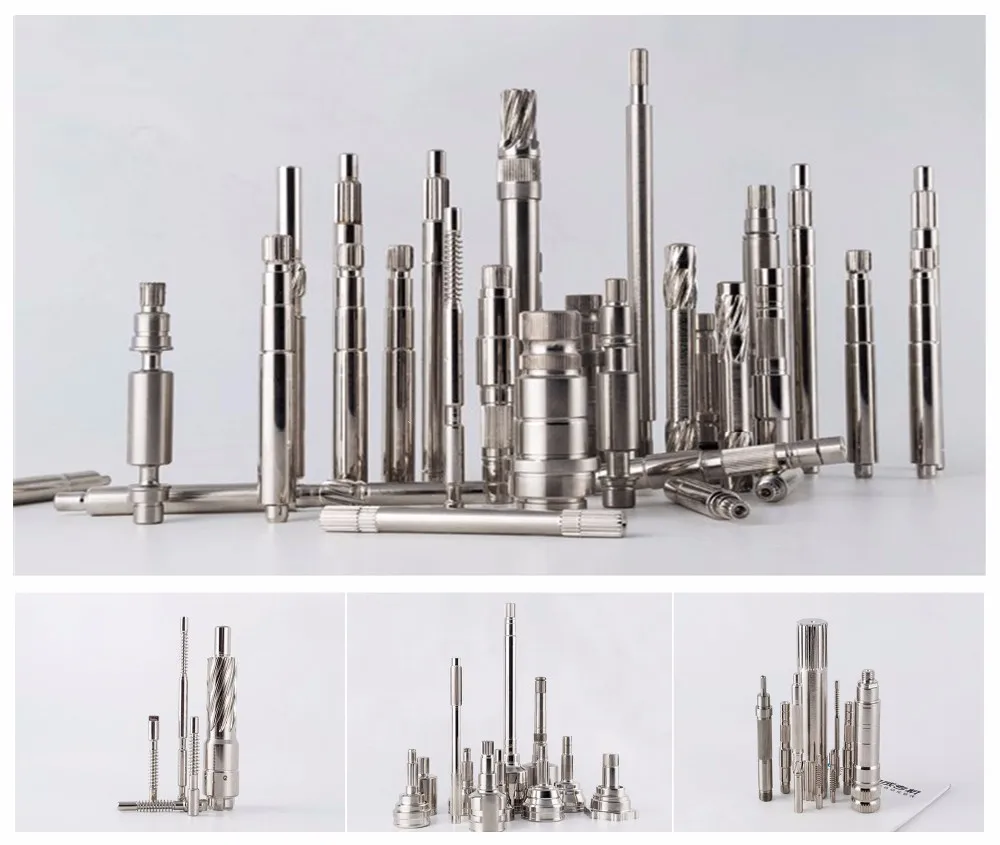

Application:







Related products







Advantanges on LECN rock rolling machine:

1)No matter verticl or horizontal, we have full series of machine for option which can carry with hydraulic driving or servo driving.

2) All the machines we choose synchronous gear system to ensure precision synchronization with LECN micro-adjustment patent.

3) All the servo rock rolling machines use patent technology of double servo, motor+ball screw and pionion and rack driving.

4)All the machines use special ball screw nut coolant technology.

5) We have special agency rights of Japanese famous mould manufacturerd and good cooperation with overseas spline mould manufacturers.

6)We have more than 10 year experiences in rock rolling processing and there comes a bright expert team for service.

7) We have many key technology patents on spline rolling.
