SS H2 High Output Double Extruder Hdpe/Ldpe Plastic Film Extrusion Blown Machine
- Category: >>>
- Supplier: Ruian Songsheng Machinery Co. Ltd.
Share on (60778043300):
Product Overview
Description
Product Description
Product Application
It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.
Main Technical Parameters | ||||
Model | SS-H2-60 | SS-H2-65 | ||
Dia. of Screw | Φ60 | Φ65 | ||
Ratio of Screw | 30:1 | 30:1 | ||
Speed of Screw | 10-90rpm | 10-90rpm | ||
Max. Output | 50-55kg/h | 65-70kg/h | ||
Power of Main Motor | 18.5Kw | 22Kw | ||
Die Model | Φ60mm * 2 | Φ80mm * 2 | ||
Thickness of Film | 0.008-0.12mm | 0.008-0.12mm | ||
Max Folding Width of Film | 100-500mm * 2 | 100-600mm * 2 | ||
Machine Weight | 2.5t | 3.0t | ||
Machine Dimension | 5000*3200* 4300mm | 5500*3400* 4300mm | ||

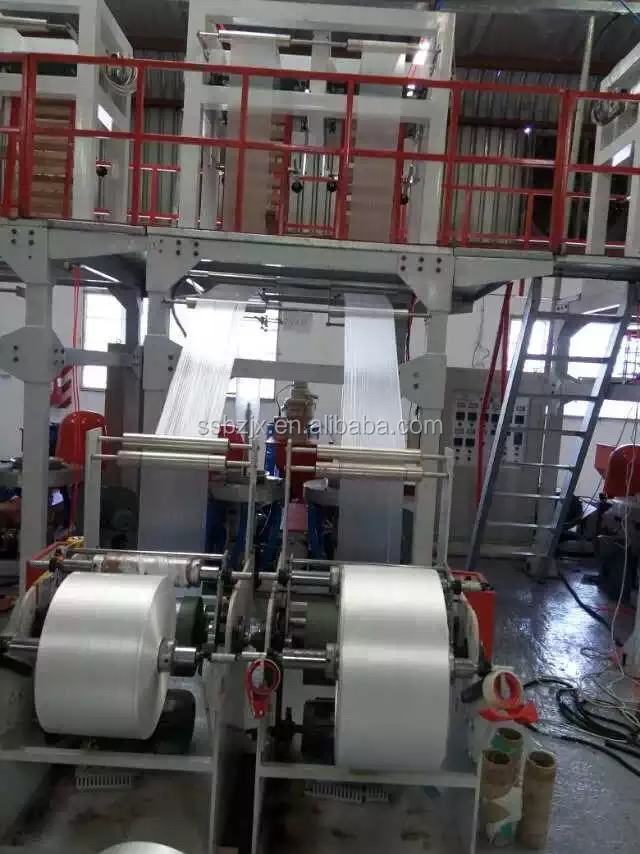

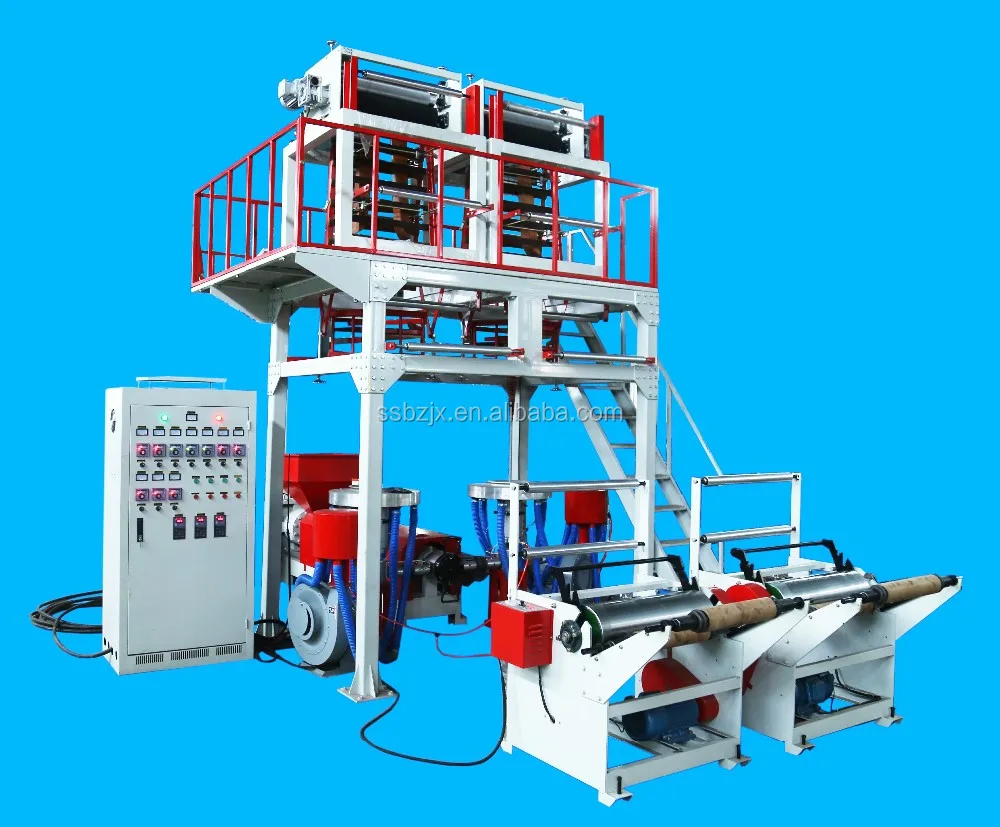

Main Machine Picture:
Detailed Images
Machine Parts

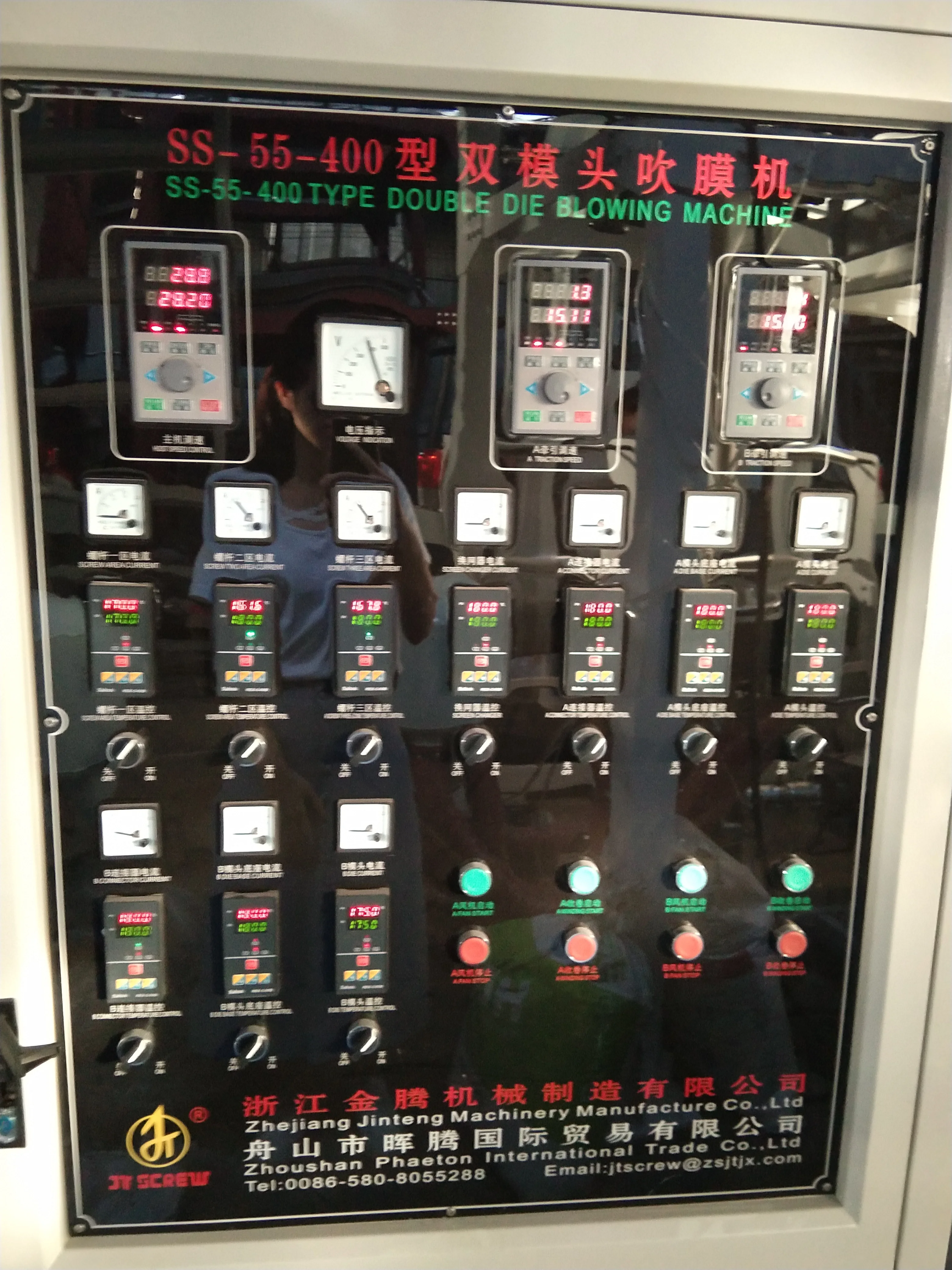

Name: Electic Box
Domestic famous brands, such as CHINT, people's electrical appliances
Main Features
One Screw with double die head
Which make double output.
Machine Parts

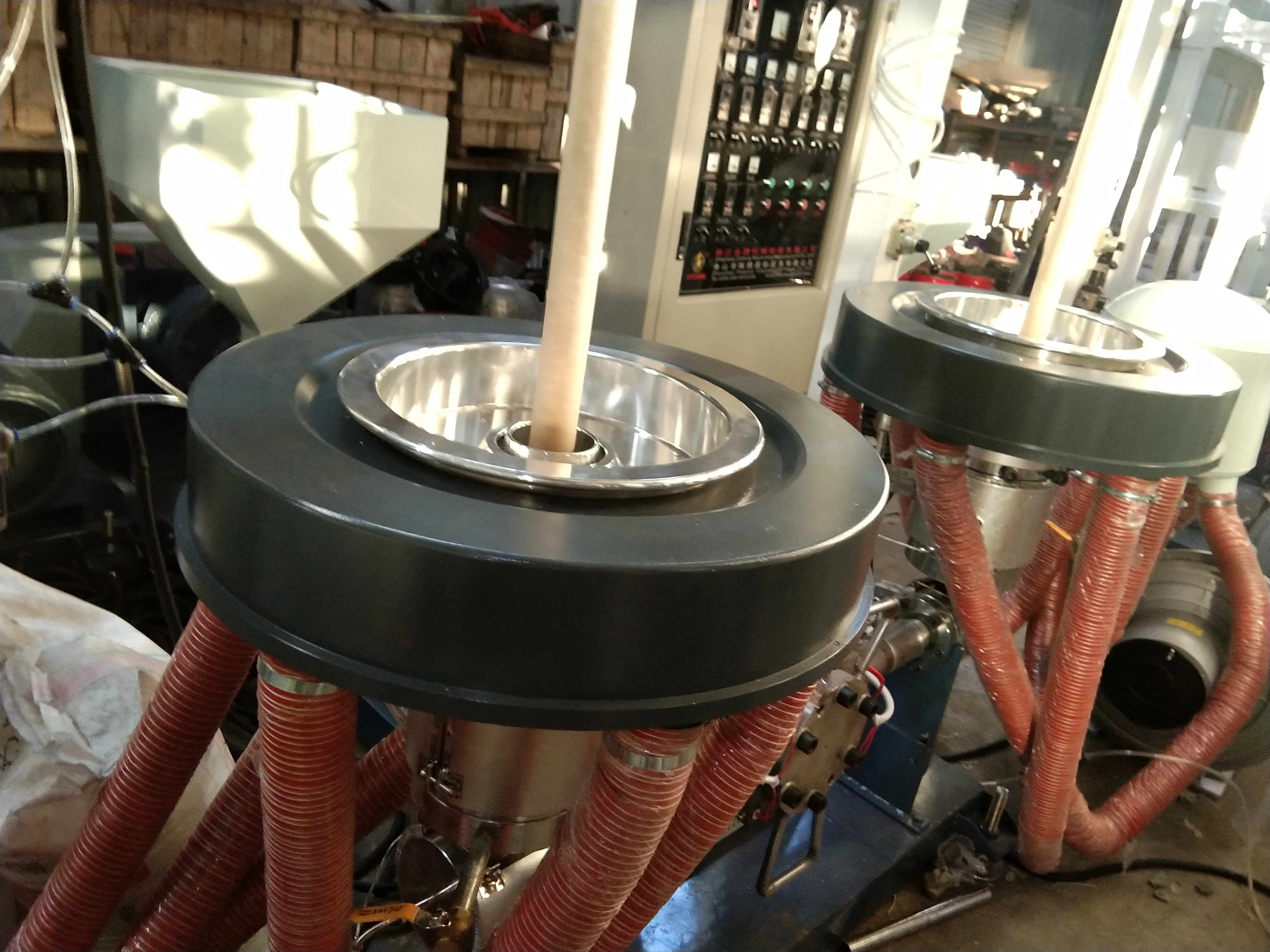

Name: Die Head
inside spiral, center feed
45C steel die runner hard chromium plating
fixed die or rotary die head
Die head
Normal: Fixed Die head
Choice: Rotary Die Head

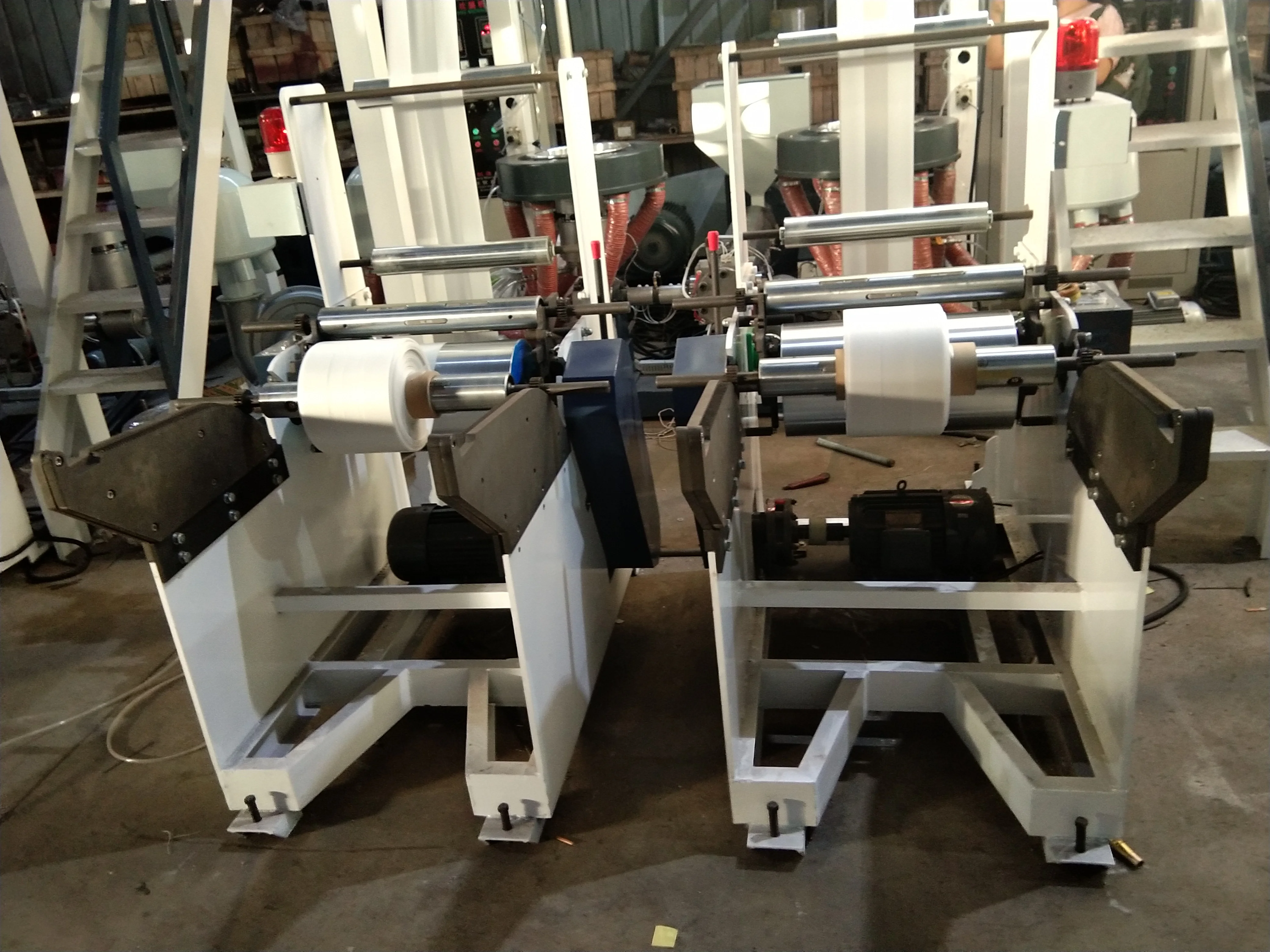

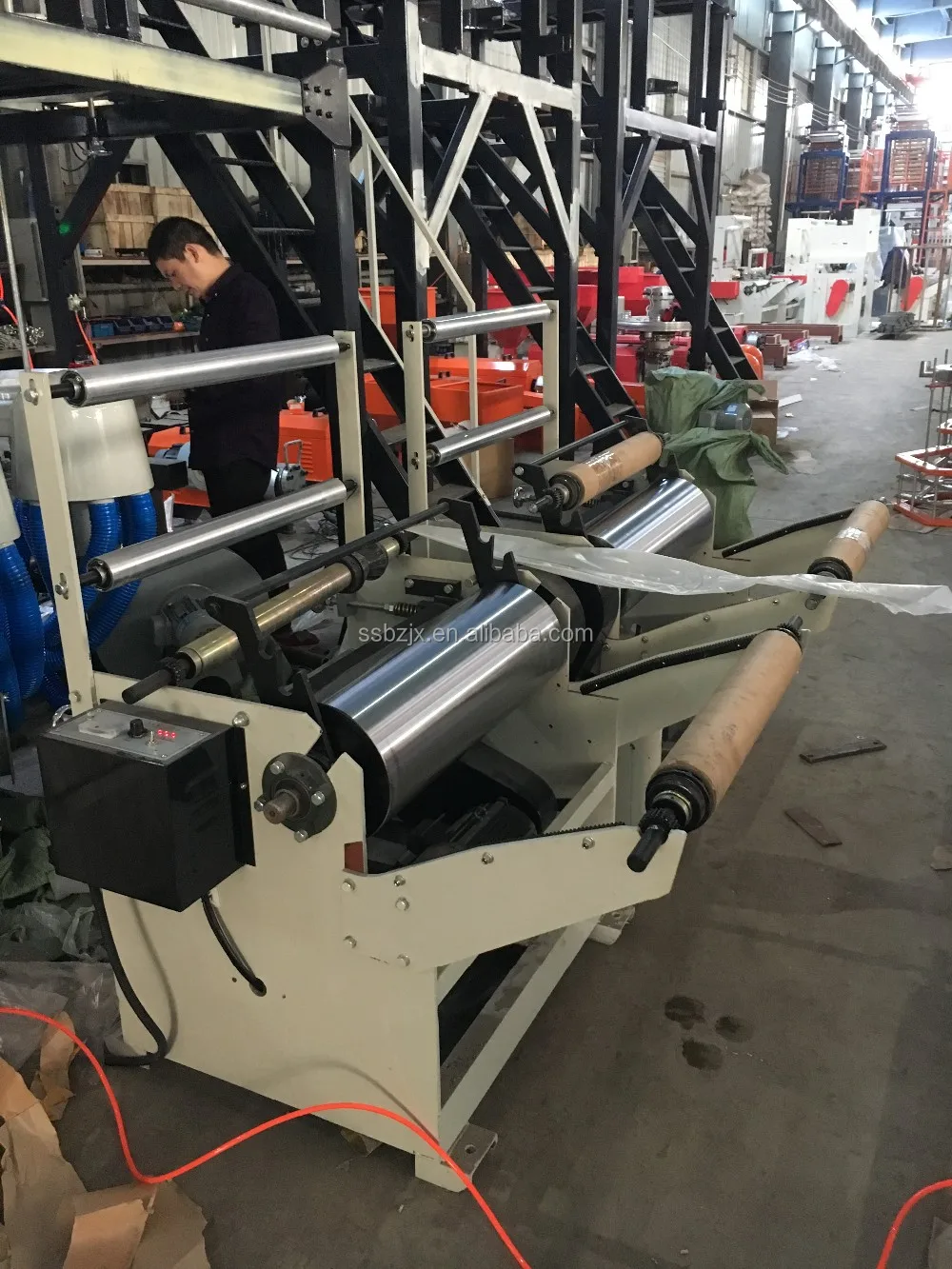

Rewinding
Normal: Single rewinding
Choice: Double rewinding
Single rewinding + drawing

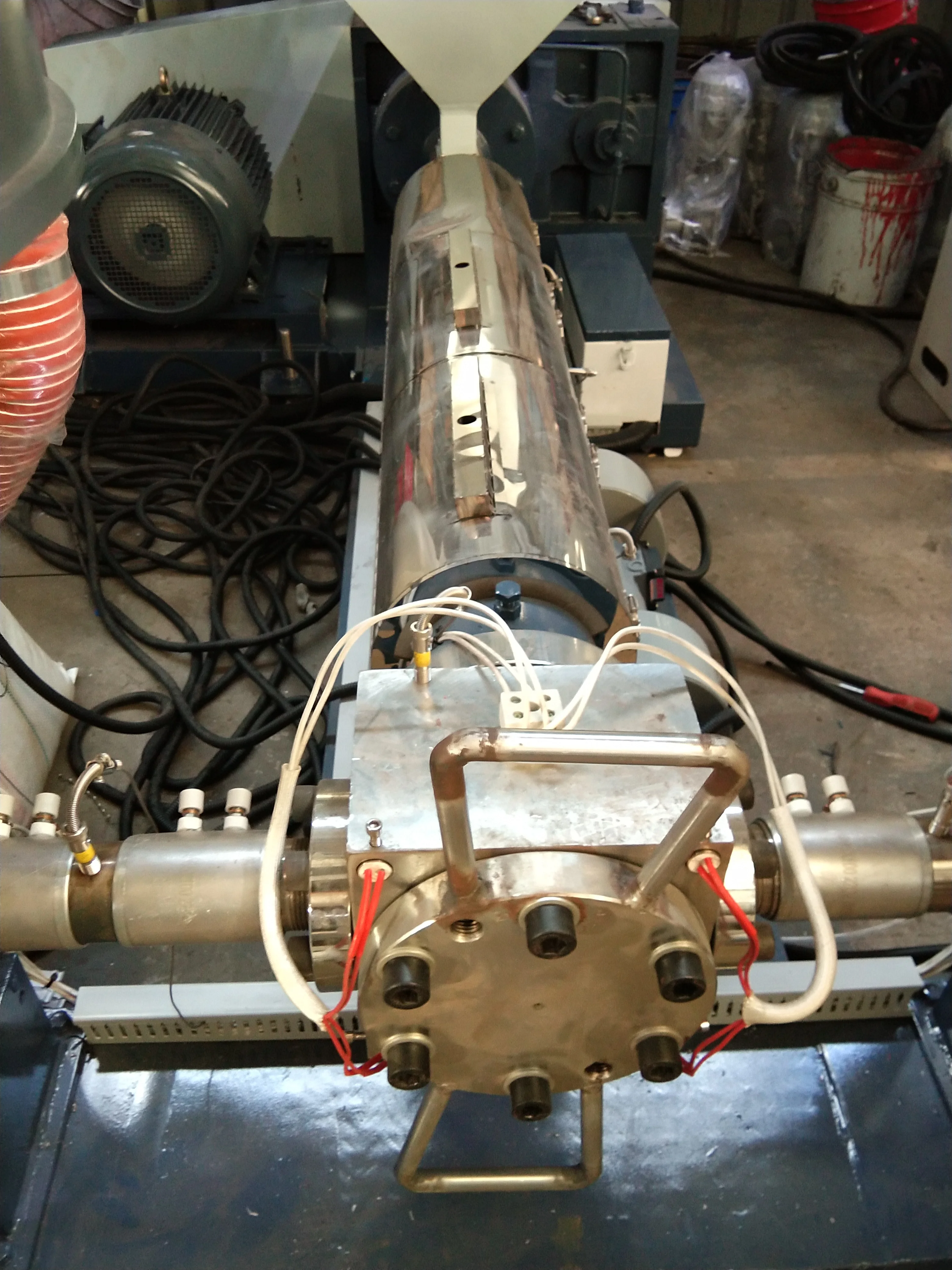

Net changing device
Normal: Manual net changing
Choice: Quick manual net changing
Hydraulic net changing
Our Company
Company Information:
Ruian Songsheng Machinery Co., Ltd is located in China's plastic machinery production base- Ruian city. Company specialized in manufacturing film blowing machine, plastic bag machines and other equiped machines in one line for more than 10 years. We strive for quality and innovation in machine. We export the machines to worldwide as Southeast Asia, the Middle East, South Asia, Russian, North Asia, North America, Eastern Europe, Africa etc. Most welcome from all country to visit our company.
Our Service
Pre-sales Service: After-sales Service
* Inquiry and consulting support. *Training how to instal the machine, training how to use
* Sample testing support. the machine.
* View our Factory. * Engineers available to service machinery overseas.
* Pick up customer from air-port and stations.
Factory Shows
Packing & Delivery
Related Products
SS-ABA Series Three Layers Film Co Extrusion Machine
High Speed SS-HL Series PE Film Blowing Machine
SS-2L double layers Plastic film extrusion machine
SS-CGS Fully Automatic Super High Speed Plastic Bag Making Machine
SS-DFR Series Automatic Plastic Bag Hot Sealing Machine
SS-GFQ series 2 layers 4 line plastic bag making /cold cutting machine
FAQ
Q: Are you factory or trading company?
we are the manufacturer/factory for film blowing machine, plastic bag machine & printing machine etc.
Q: How does your factory do quality control?
We have profession engineers' team to prove and ensure machine quality.
Q: Machine warranty?
one year since machines arrived your port.
Q: What's your delivery time?
Normally, it need 15 to 20 working days since get the deposit.
Q: How do you keep the after-sales service?
We do business based on faith, we insist on " quality is the first and most important" . We will carefully check the material, produce, test and adjust machines again and again. If have any doubts, please contact us online or by calling, we will reply ASAP.
Q: Where's your company located? how can we visit?
Our company located in Jingye Road, Ruian Economic Development Zone. You can by air to Wenzhou airport or by bullet train to Ruian Station. We welcome all friends from the world for future cooperation.
