Precision Mini Metal Lathe Metalworking Woodworking DIY Processing Drilling Milling

Product Overview

Description

Precision Mini Metal Lathe Metalworking Woodworking DIY Processing Drilling Milling

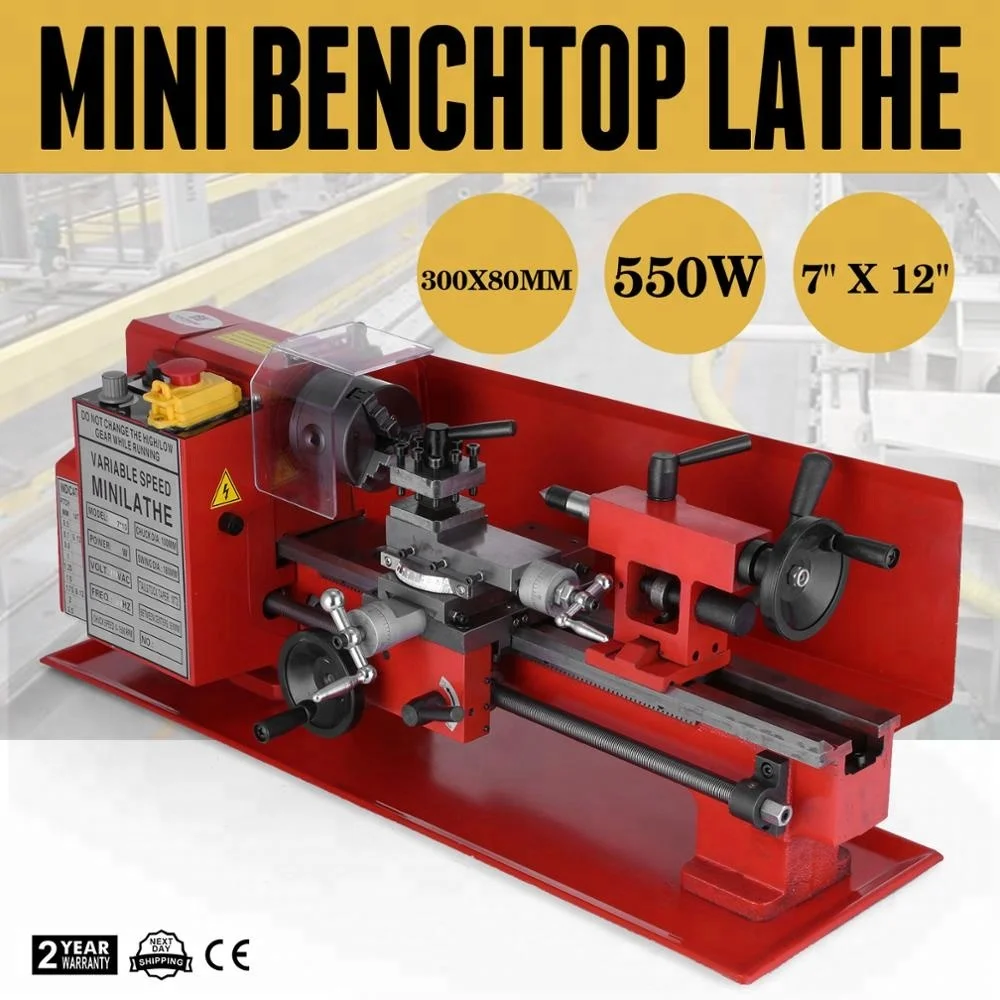

The 7 x 12 Inch Precision Mini Benchtop Lathe is designed to perform various types of metal turning. After high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Widely used, simple to operate, and a wide range of processing. The precision mini lathe is the best chioce for the hobbyist or modeler who is looking to add finite detail to their construction project.

Application

1. Whether you're turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge!
2. Can be used to turning cylindrical, face, drilling,boring and turning thread. Processing of precision parts, the sample processing and processing of themodel can also be used.
3. With 18 threads, automatic feed and a chuck guard with micro switch, this outstanding ETL listed mini lathe is ideal for use in labs, workshops, engineering and educational settings.
4. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works.





Features



• Brand new


• Stylish and practical


• Rugged and powerful


• Precision mini benchtop metal lathe


• Reversible automatic feed

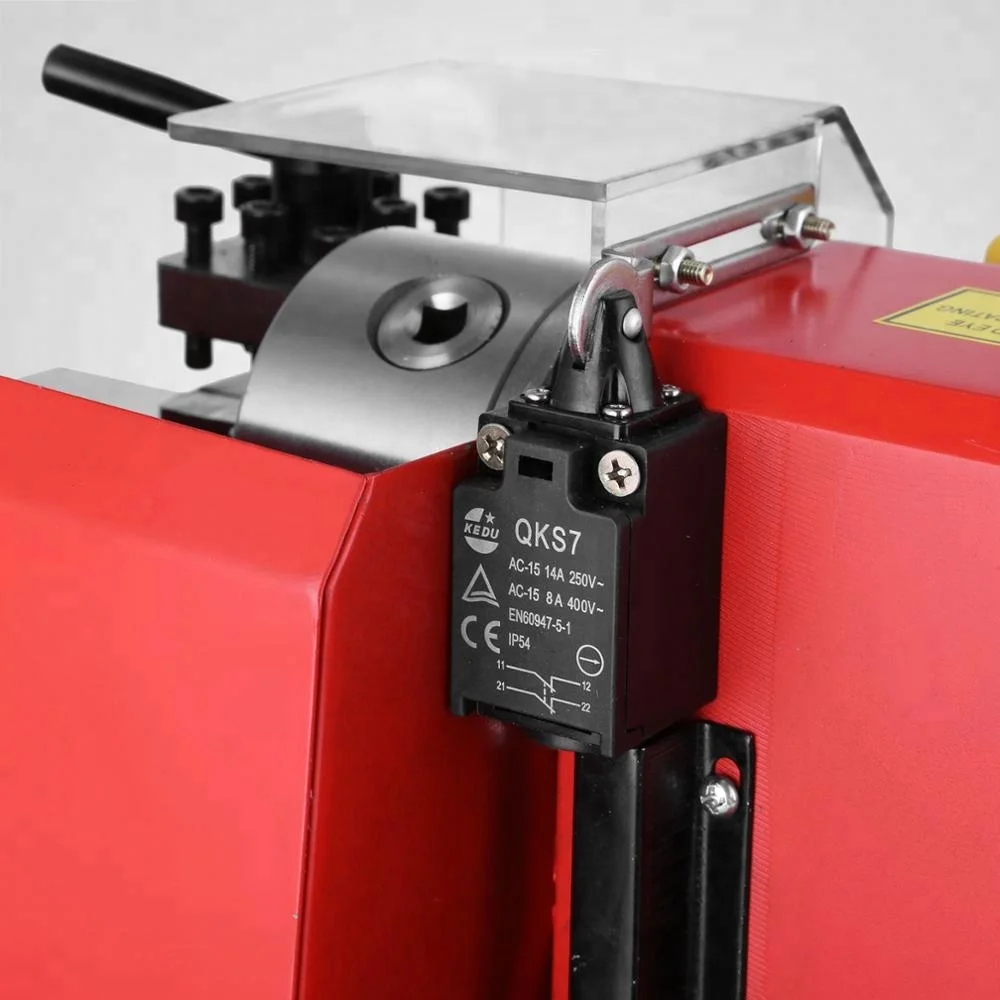

• Chuck guard with micro switch


• Continuously adjustable


• Simple to operate


• Professional standards


• A wide range of processing


• Perform various types of metal turning



Technical



• Name: 7 x 12 In precision mini lathe


• Color: Red


• Medium: Metal


• Certification: ETL


• Voltage: 220V


• Motor power: 550 W


• Variable speed gear: Plastic nylon


• Spindle taper: MT3


• Tail stock taper: MT2


• Distance between centers: 300 mm (12 inch)


• Swing over bed: 180 mm (7inch)


• Chuck diameter: 80 mm (3 inch)


• Hole thru spindle: φ21 mm (0.83 inch)


• Tailstock sleeve: φ22 mm (0.9 inch)


• Cross slide travel: 65 mm (2.56 inch)


• Top slide travel: 35 mm (1.38 inch)


• Range of metric threads: 12.7 ~ 63.5 mm (12 ~ 52 T.P.I range of imperial threads)


• Spindle accuracy: 0.01 mm (0.0004 inch)


• Spindle speed: 50~2500 RPM


• Net weight: 36 kg (77.2 lbs)


• Package size: 84 x 33 x 35 cm (34 x 13 x 14 inch)



Including



• 1 X Mini Lathe


• 1 X MS2 # Fix The Top


• 1 X Double-Headed Wrench


• 1 X Oil Can


• 1 X Set of Nylon Gears


• 1 X Chuck Claw


• 1 X Hexagon Bar Wrench


• 1 X Chuck Wrench


• 1 X Protecting Mask


• 4 X Shockproof Foot Cushion


• 1 X English Manual
