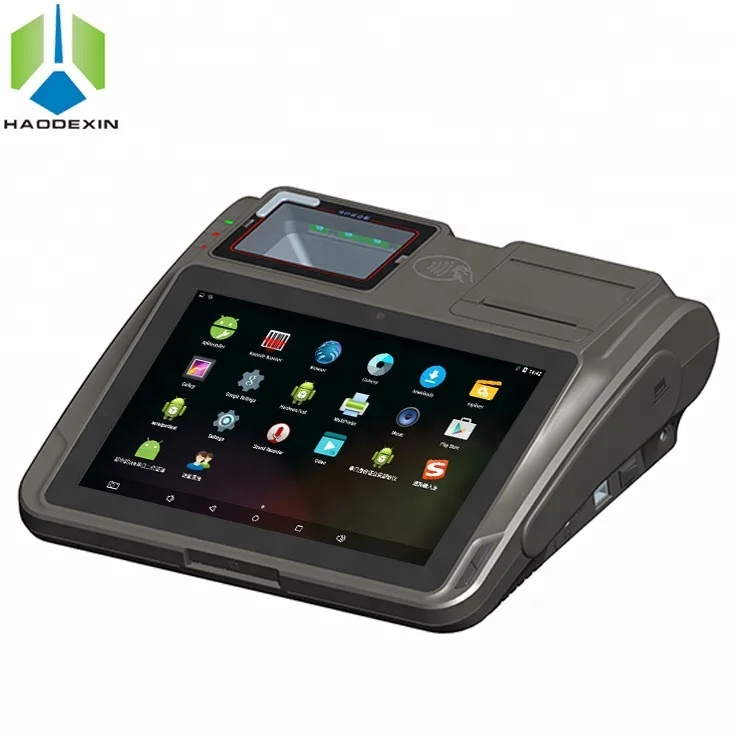

10.1 inch Android touch screen POS terminal HD screen POS system with thermal printer and fingerprint reader POS GC039G
- Category: >>>
- Supplier: Shenzhen Haodexin Electronic Technology Co. Limited
Share on (60778089135):
Product Overview
Description
Product Description

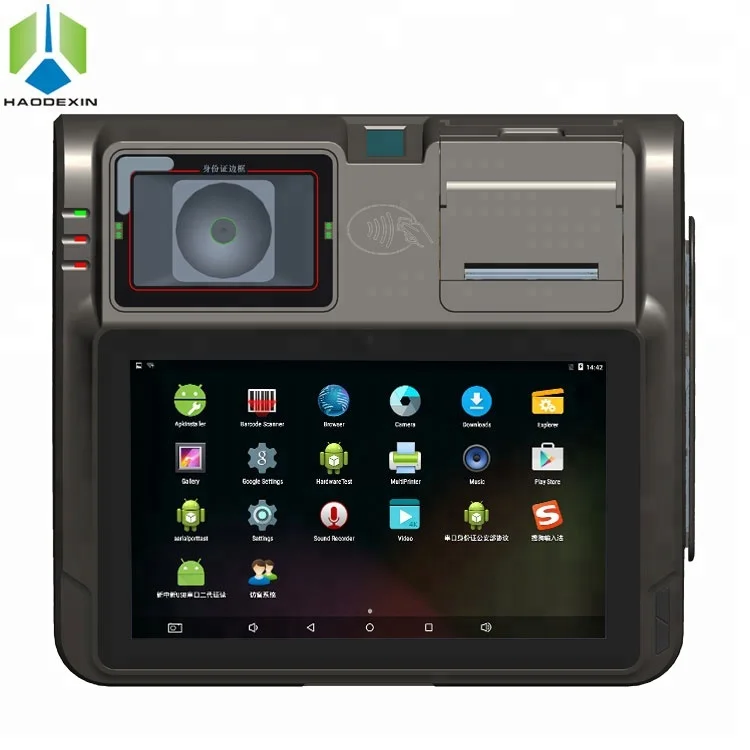

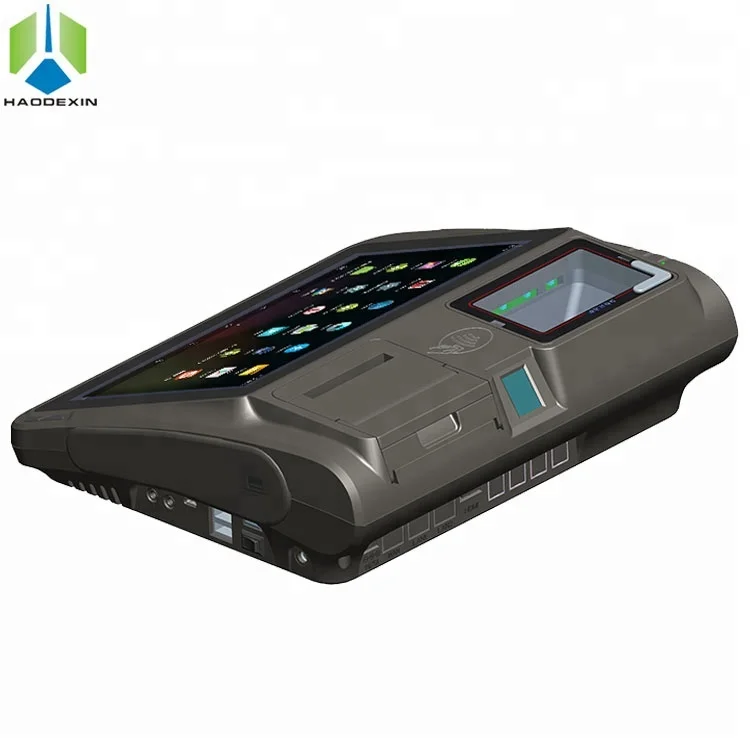

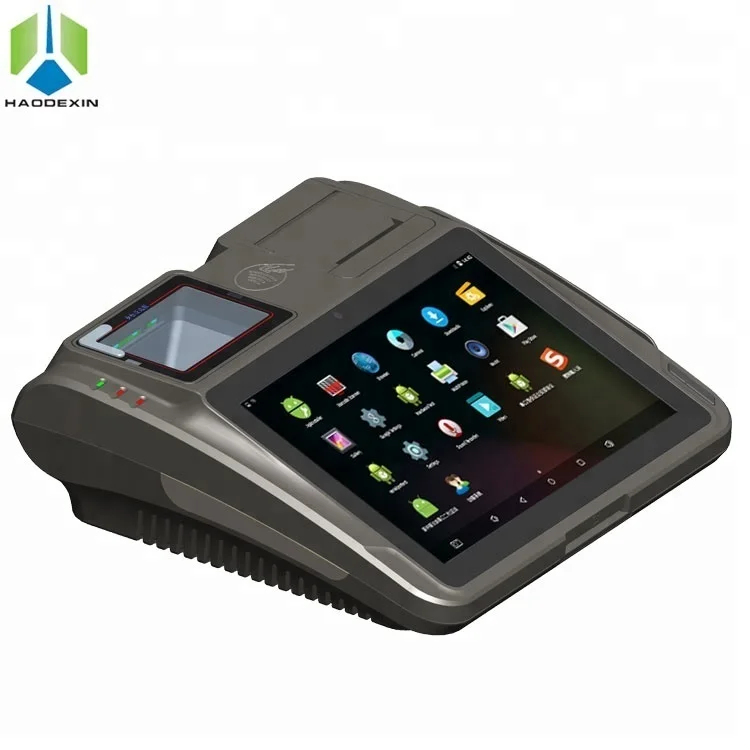

10.1 inch Android touch screen POS terminal HD screen POS system with thermal printer and fingerprint reader POS GC039G
Main configuration
| Specification/Features | |
| Item No. | GC-039G(Android, Rk3188) |
| Feature/Advantage | Wireless touch screen POS terminal with thermal printer, paper auto cutting, and fingerprinter recognizing |
| Casing/Material | ABS, PCBA, color:gray |
| Platform | Application firmware, apps to be developed by customers |
| Operation System | Android 4.4.4 |
| 2D code decoding | with built-in 2D code decoding software, based on Android 4.4 |
| CPU | 1.6GHz RK3188 ARM quad core Cortex-A9 processor |
| Memory | DDR3 1GB (16*256 high speed cache chip, 2 pcs) |
| EMMC 8GB , 16GB optional | |
| LCD panel | 10.1 inch RGB TFT,1280*800 pixel, Aspect ratio:16:10 |
| G+F capacitive multi-point touch, explosion-proof | |
| 2D code camera | 640X480 pixel(gray-scale)CMOS camera 2Mega pixel+LED backlight brightness adjustable, |
| Camera Range: 82×51mm, wide angle fixed focal length lens | |
| can read full ID card information with ORC software, low distortion lens | |
Optional functions, card reader, NFC, ICR, MSR and finger-printer recognizing
| NFC card reader(optional) | 13.56MHZ contactless, meet standard of philips Mifare 1K/4K, ISO/IEC14443A/B, ISO/IEC15693, Mifare DESfire, Sony Felica |
| MSR(optional) | support triple track magnetic stripe card read, |
| IC card reader | Optional,compatible encrypting IC card, smart IC card, meet ISO7816 standard |
| Finger printer module(optional) | Optical and live identification, certified by the ministry of public security |
Communication
| Commucation module | SIM card, meet almost all the telecom operator standard |
| 4G, 3G module, 850/900/1800/1900MHz, WCDMA/HSDPA/EDGE/GPRS | |
| Wifi module: IEEE802.11b/g/n compatible with wapi(optional) | |
| Ethernet(RJ45), support TCP/IP HTTP protocols |

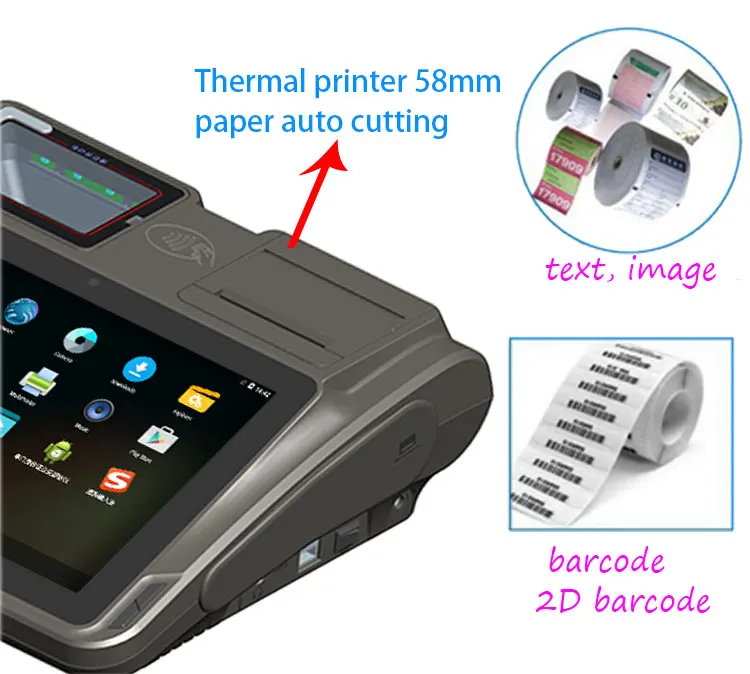

Printer: with built-in 58mm thermal printer, can printer receipt
| Printer | High speed automatical paper cutting thermal printer, |
| Paper width: 58mm, printing speed: upto 5cm/s | |
can print text, image, bar code with setting size and font |

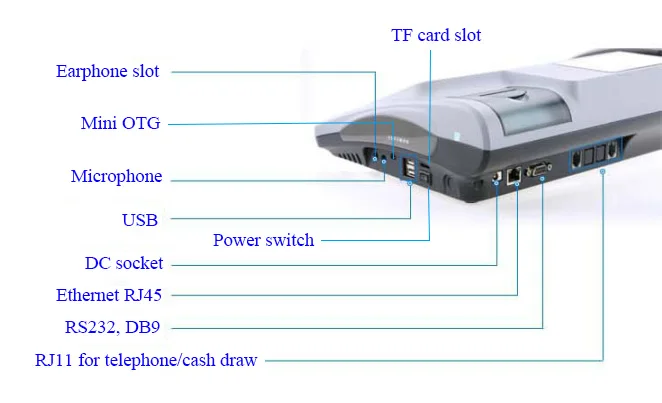

Interface
| External interface | USB 2.0 Host 1 pc, USB device, 1 pc, mini USB OTG pc |
| Rs232 serial port, standard DB 9 1pc | |
| TF card slot(support upto 32GB) 1 pc | |
| Power switch 1 pc | |
| DC power input socket(9V, 5A) 1 pc | |
| RJ11 cash drawer port(12V) 1 pc | |
| RJ11 Password keypad 1 pc | |

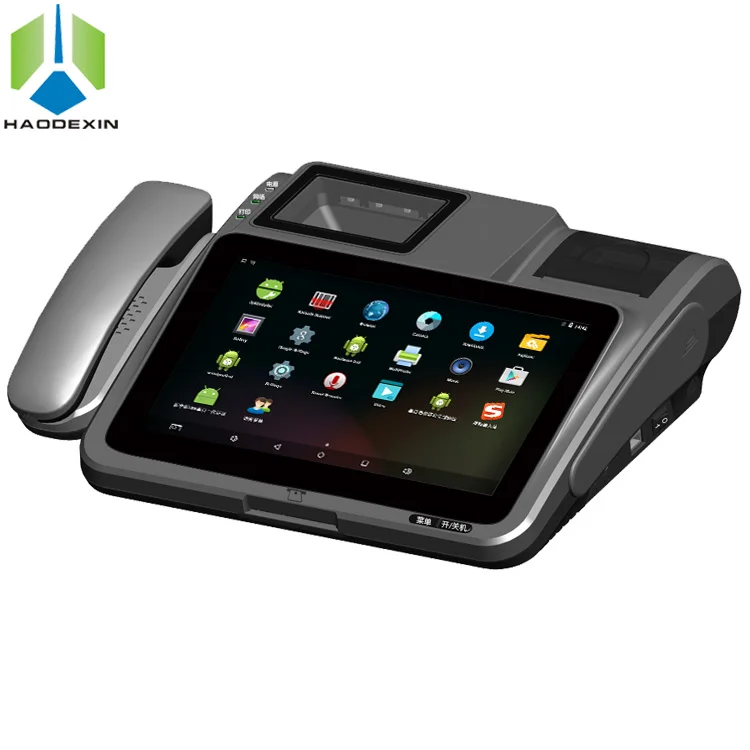

| Telphone, 3G internet phone or wired normal phone | |
| Earphone port, 1 pc, Microphone port, 1 pc | |
| Supoort 2×PSAM card + 2×SIM card(1standby) or 3×PSAM + 1×SIM card | |
| Accessories | DC power adaptor,input 100-240V, output, 9V, 5A |
| Built-in high gain antenna |
Related Products
------------->> More models <<-------------------
The advantage of this POS terminal
1. desktop 10.1 inch high definition panel, 1280*800 pixel, 16:10

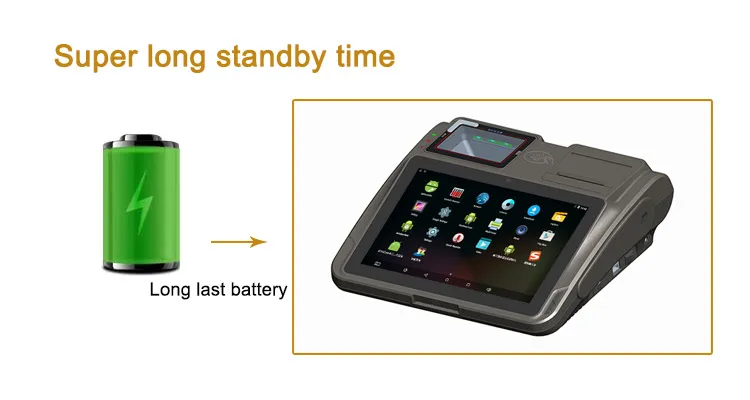

2. this POP terminal is with built-in rechargeable Li-ion battery, long standby time.
3. the pos machine is with built-in finger-printer module, can recognize live finger pinter very fast, so this machine can be used as time and attendance machine
4. The POP system screen is water-proof, can still work even with water splashed on
5. The POS terminal with an thermal printer that support paper auto cutting, no need to tear the receipt by hand
Main Function
With WIFI, Blue--tooth, 58mm paper thermal printer, NFC, ICR, MSR
This 10.1 inch POS terminal is with Wifi, can connect to internet, enjoy the internet surfing, and play music, movie from internet and so on
This POS machine is with 58mm paper thermal printer with paper auto cutting, can print text, image, barcode and 2D code, good assistance for store keepers and customers.

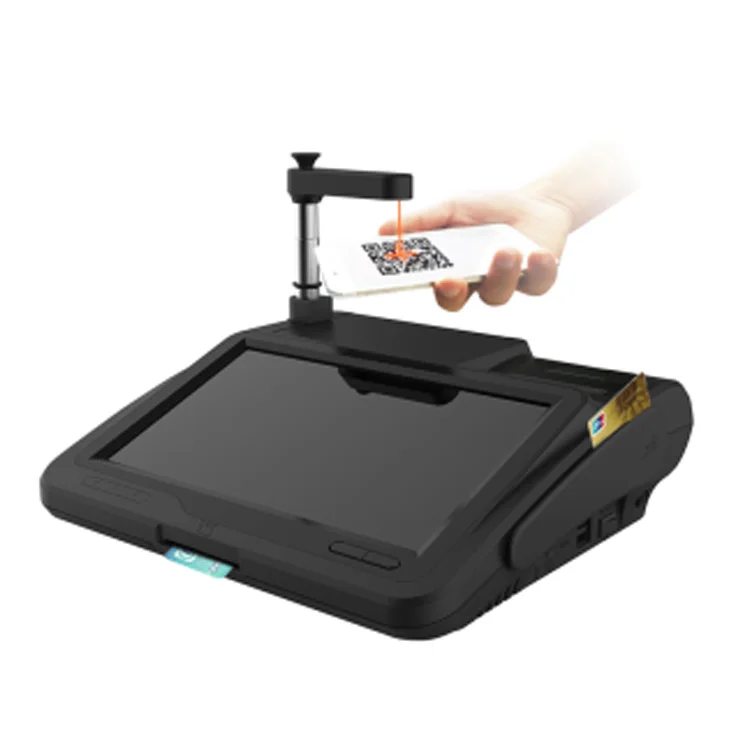

POS terminal, with scanning camera, can scan payment QR code, easy, fashion and safe way to make payment

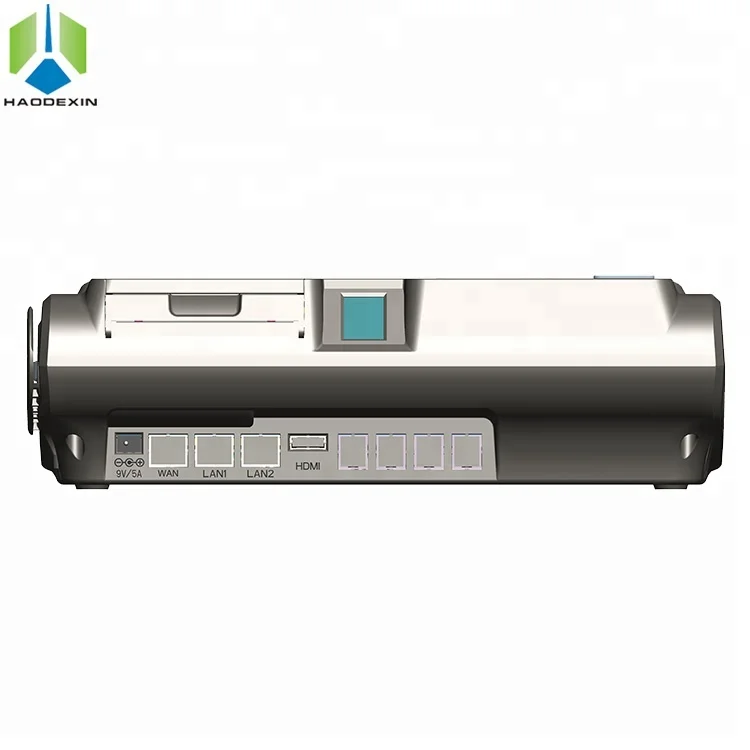

Main interface
many expansion interface, can expand the function, can connect to peripherals.
About our company
HAODEXIN was founded in 2008 and have nearly 10 years experience in windows pos terminal,android pos terminal,handled pos terminal, barcode, 2D cord pos terminal
Have great advantages in R&D and technical support providing
OEM/ODM order is totally available in HAODEXIN
Warmly welcome friends from all over the world to visit HAODEXIN
About Leading Time
For samples: we can delievery the samples for our existing model within one week,
For bulk order: 15-30 days upon sales order and deposit received.
About Shipment
we can delivery the good to the warehouse assigned by customers if you have your own forwarder;
And we can arrange shippment with our cooperated forwarder at best price;
We are VIP customer for DHL, UPS, FedEx, TNT and EMS, we accept any one upon your requirement.
Our Service
1 Warranty: 12 month.
2 Test and QC 4 times for the whole process, all our product are aging before delivery.
3 Provide technical support for all our products during its life time
4 Provide SDK if neccessory.
For more questions, please contact Luisa at any time.
FAQ
1.Q:Are you manufacturer?
A:Yes.our factory and headquarter located in Pingshan High-tech Zone, Shenzhen.China, we are professional POS terminal source supplier,
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year for all devices, anyhow man-made damage is not included.
4.Q:Could the device set default language?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on, we can set the boot language as requested.
5.Q:Can your device install the Android Apps that our customers provide?
A:Sure. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
6. Q: Can we have our logo and set boot screen in the product?
A:Yes, we accept OEM/ODM, just send your logo in .cdr format and clear boot screen, we can set for you, on body logo, we can print, stick and laser.
7. Q: What's the terms of payment?
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
8.Q: what is your sample policy?
A: Usually, customers should pay for the sample and the sample price will be a little higher than the bulk order.We will return the sample cost in the bulk order if the quantity is large enough. We warmly welcome you to come to our factory to test the sample.
9.Q: About Discount:
A: For discount, please contact Luisa. Contact us!
Skype: sophianie87 Whatsapp & WeChat: +86 13798585895
