Automatic cnc PIR insolution board cutting machine
- Category: >>>
- Supplier: Jinan Routerstar CNC Machinery Co. Ltd.
Share on (60778103801):
Product Overview
Description

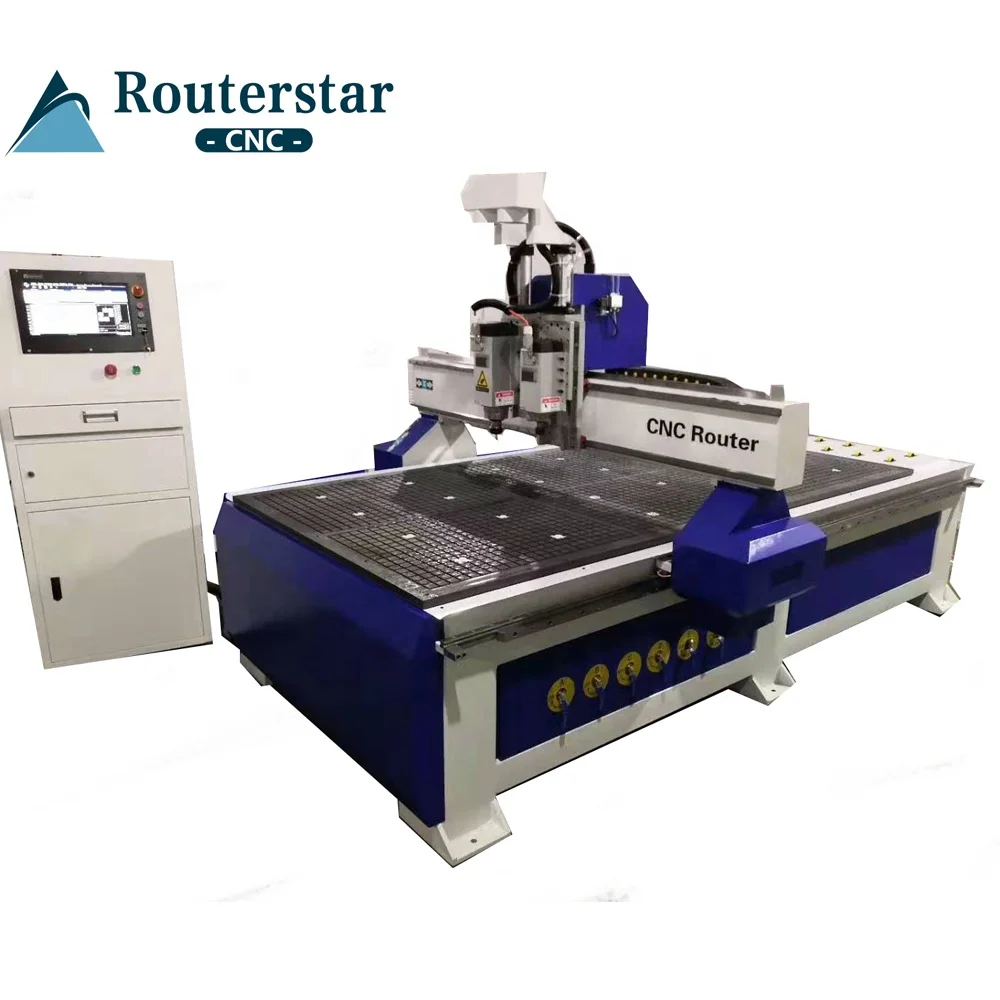

Automatic cnc PIR insolution board cutting machine
Product Description
1. pictures:
2. Application:
Wood furniture industry, furniture decoration industry, wood crafts making industry, large area plate plane carving, solid wood, Solid wood art murals, MDF Paint-free doors, composite doors, cabinet windows door, bedside cabinets, screen carving etc.
Mould industry: can engrave all kinds of molds, wooden molds, aviation wooden molds, propellers, automotive foam molds and other non-metallic.
Advertising industry: Acrylic cut, name plate make, photo frame making, foam model make,

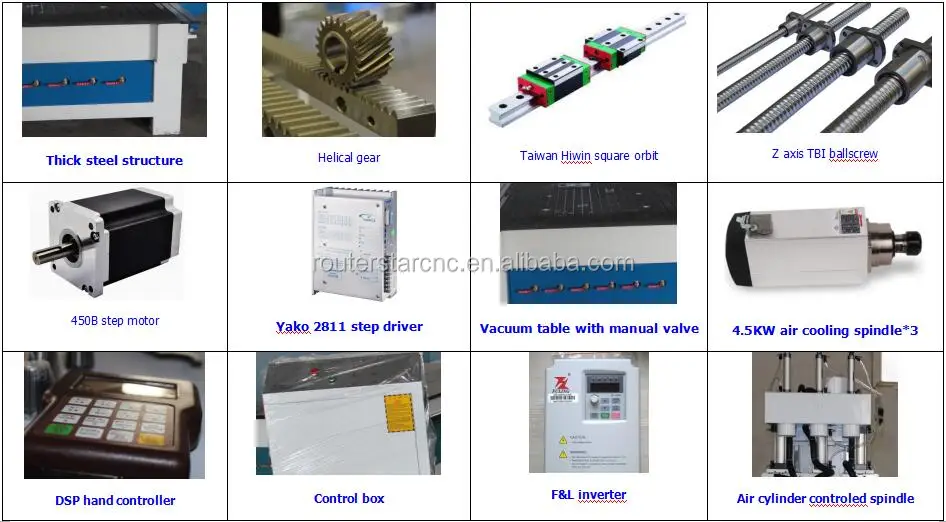

3.Machine parts details:
COnfiguration:
1300*2500*200mm size

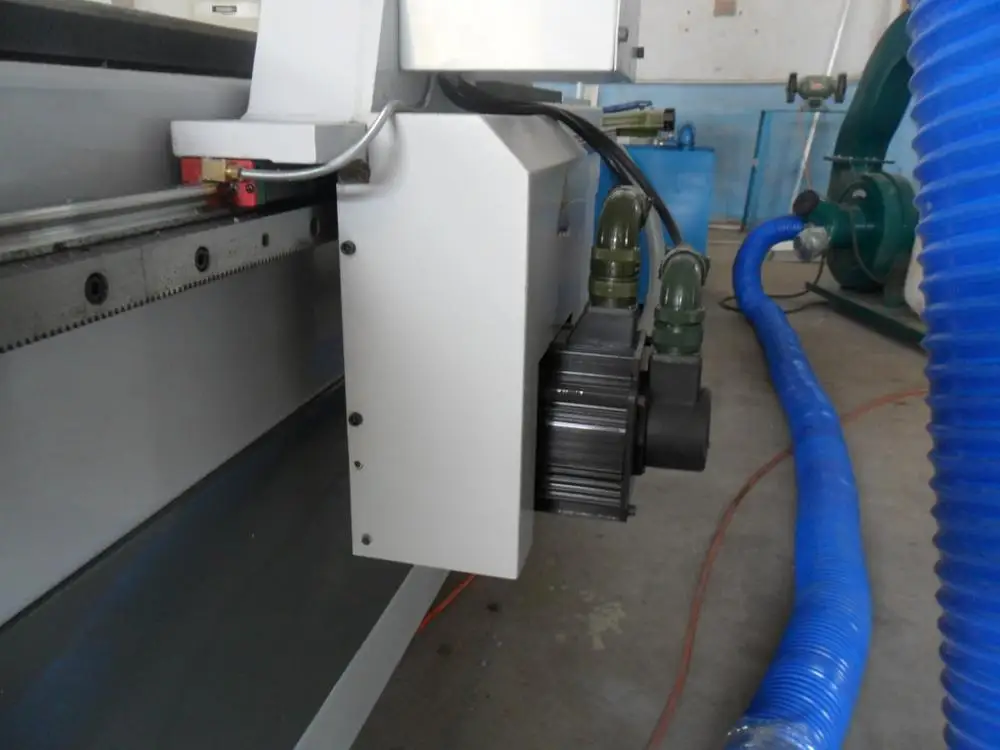

Helical gear for XY axis, Z axis TBI ballscrew
China servo motor and driver: higher precision , less working noise,
3.5kw air cooling spindle,*2:air cooling spindle more suitable for cold area which the water pump easy freeze
3.7kw F&L inverter
Vacuum table with 5.5kw water pump: suitable for large lots plate processing, more easier to stable the plate.
RichAuto control system

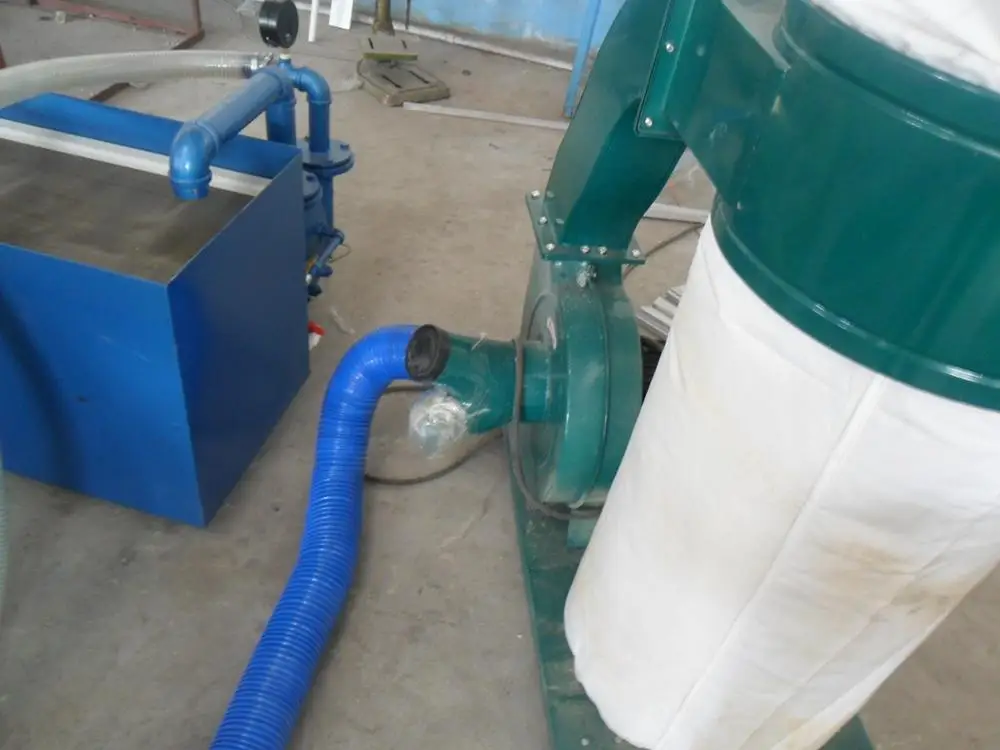

Dust collector 3kw double bag

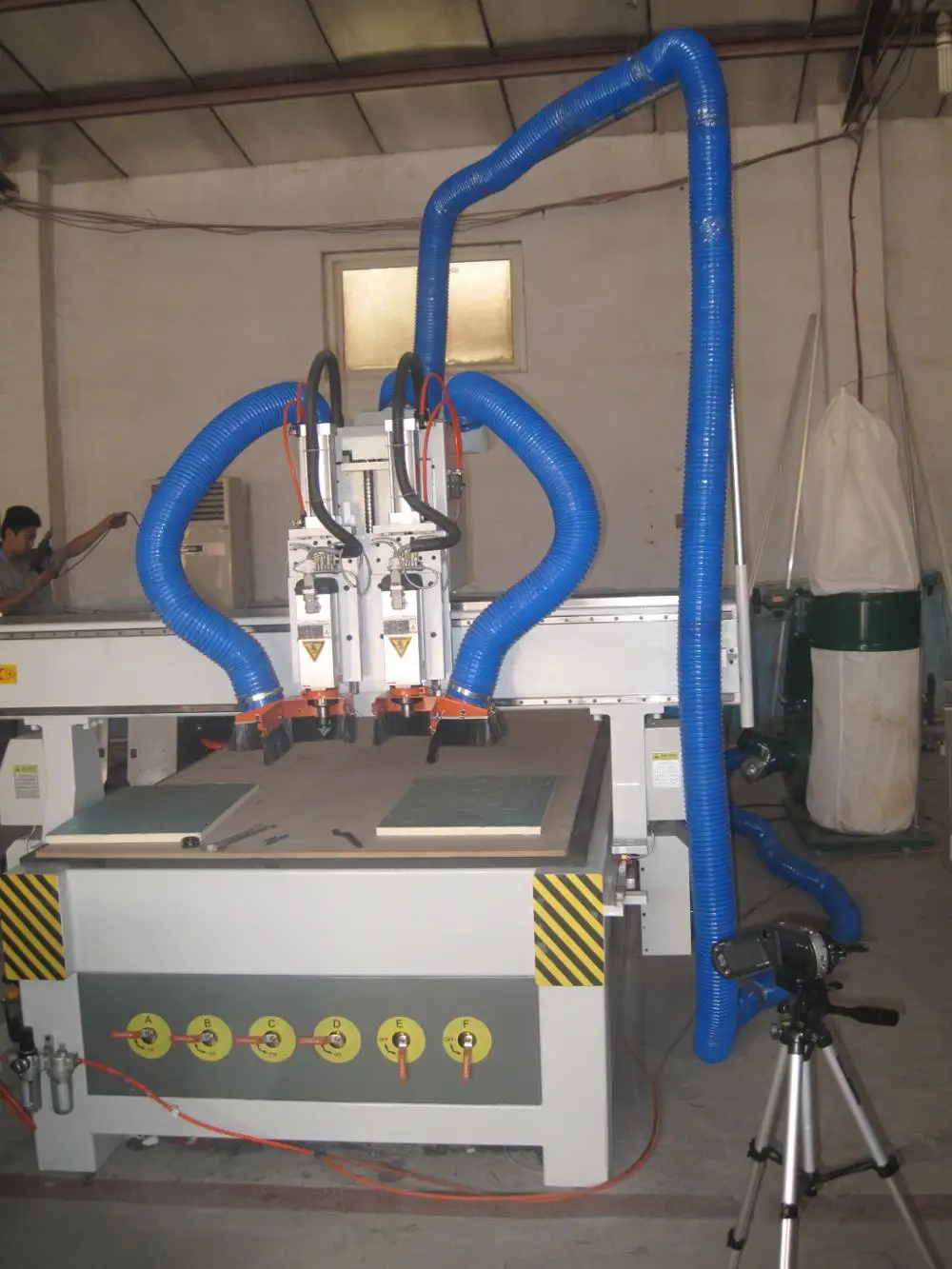

Highlight of this model:

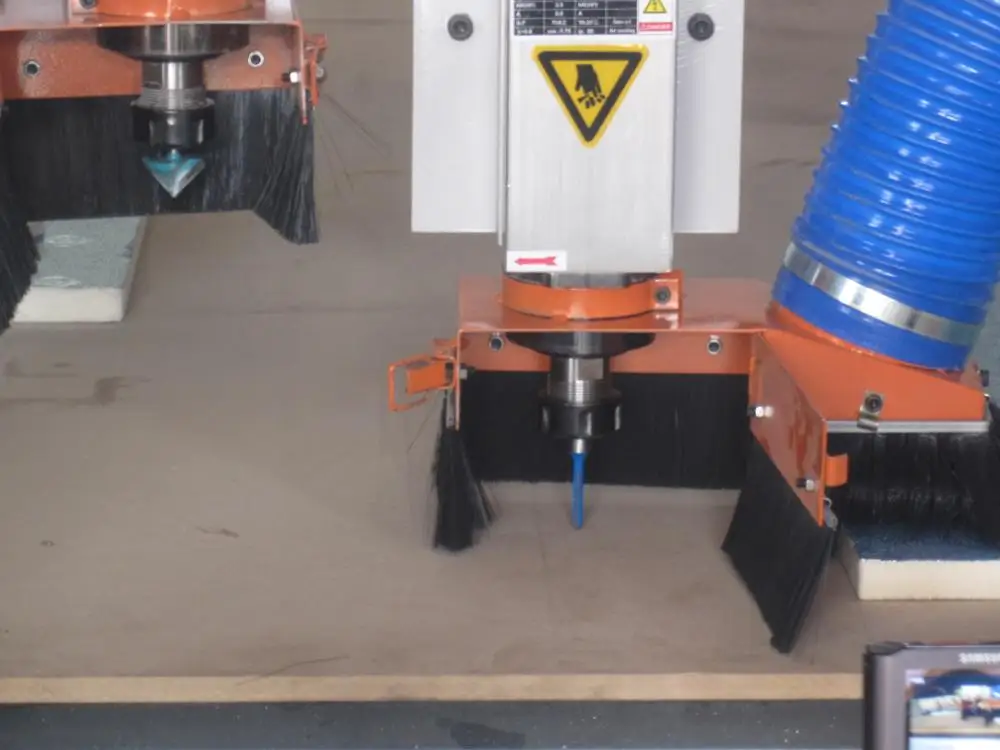

It is with 2 spindles which can automatic changing tools.
More suitable for making one drawing but need 3 kinds of cutter can complete.
Reduced the procedure that change the tools frequently with the single spindle cnc router machine, save time, do more work for you.
Meantime, it belong to an high cost-performance cnc router compared with the real ATC cnc router(Linear type and Disc type), save cost for you!

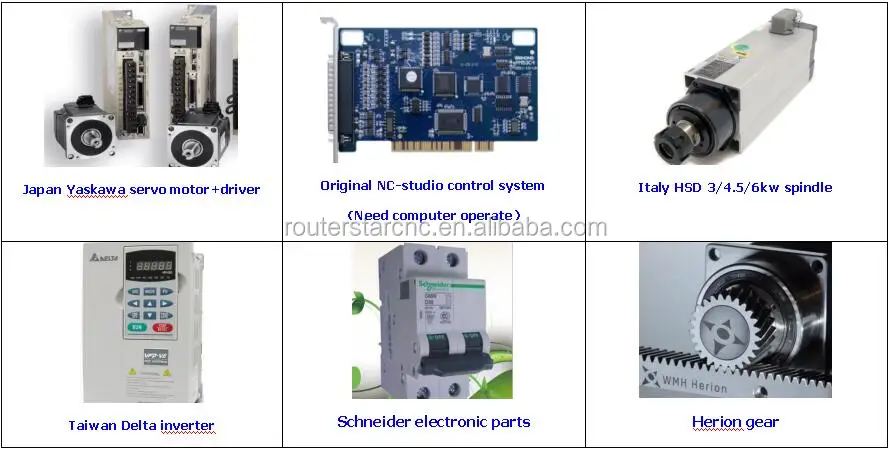

Optional parts:
4. Parameters:
Model Number | Processing length | Processing width | Machine size | Package size |
RS1325AT-2 cnc router | 2500mm | 1300mm | 3.1 *2.1*1.5m | 3.2*2.2*1.7m |
Driving motor | Driver | Table type |
| Control system |
Micro step motor 450B (Japan servo optional) | Step driver Yako 2811 (Japan servo optional) | Vacuum table with pump |
| DSP 3 axis
|
XY axis Transmission way | Z axis transmission way | Orbit | Machine body material | Dust collect |
Helical gear | TBI ballscrew | Taiwan Hiwin square orbit | Welding steel pipe | with |
Carving spindle power | Carving spindle speed | Frequency converter for carving spindle | Max moving speed | Max cuting speed |
3.5kw air cooling C&S brand | 0-18000r/min | China F&L brand 3.7kw | 35m/min | 15-25m/min |
Max carving speed | Working efficiency | Power supply | Net weight | Gross Weight |
15-20mm/min | 0.02mm | AC380V 50HZ (can custom 220V) | 1500kgs | 1600kgs |

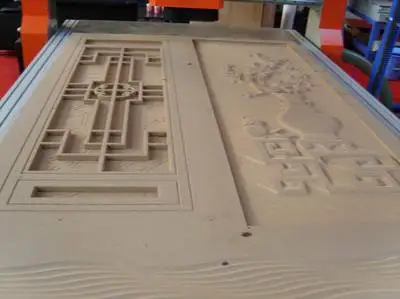

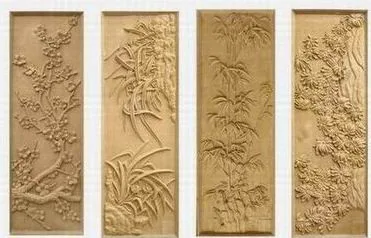

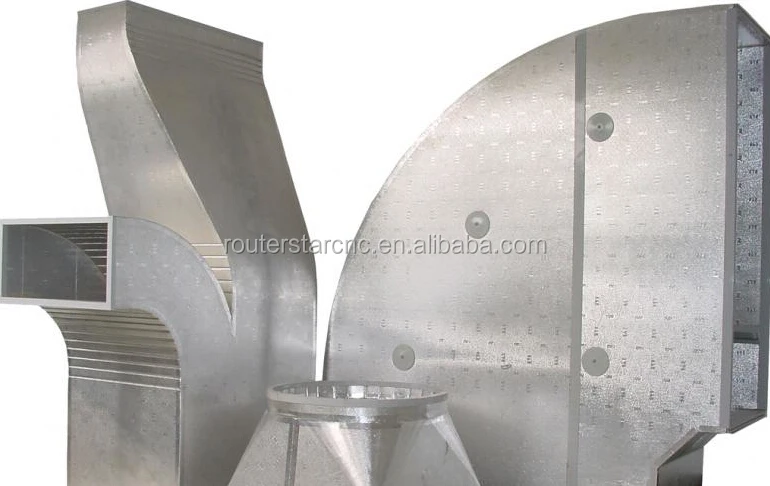

5. Working samples:

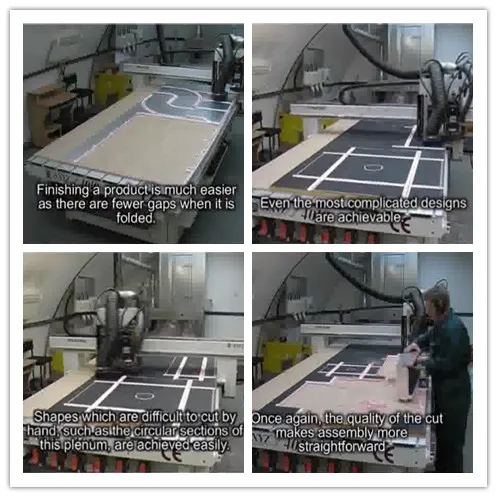

6. working videos:
Our Services
1. All detailed consulting service before sale.
2. 12 month quality guarantee time after sale, the machine main parts(excluding the consumable parts) broken which is not caused by manmade, we will send you a new one for free during the guarantee term(but need you help return back the old part).
3. Free training at our factory.
4. will supply you parts at cost price.
5. 24 hours on line service each day, free technique support all lifespan.
our staff can come to your place for training or adjust
