Custom Size universal tv mainboard pcb motherboard lcd tv main board PCM/BMS manufacturer shenzhen
- Category: >>>
- Supplier: Shenzhen Li-Ion Battery Bodyguard Technology Co. Ltd.
Share on (60778107958):
Product Overview
Description
Advantages
Custom Size universal tv mainboard pcb motherboard lcd tv main board PCM/BMS manufacturer shenzhen
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
5.ISO9001/ISO14001/CE/ROHS certificates
6.Fast delivery
About the battery BMS
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit
,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,
we will help to recomment the most suitable products for you. or we design for you!
Product Description
| Products | Custom Size universal tv mainboard pcb motherboard lcd tv main board PCM/BMS manufacturer shenzhen | |||

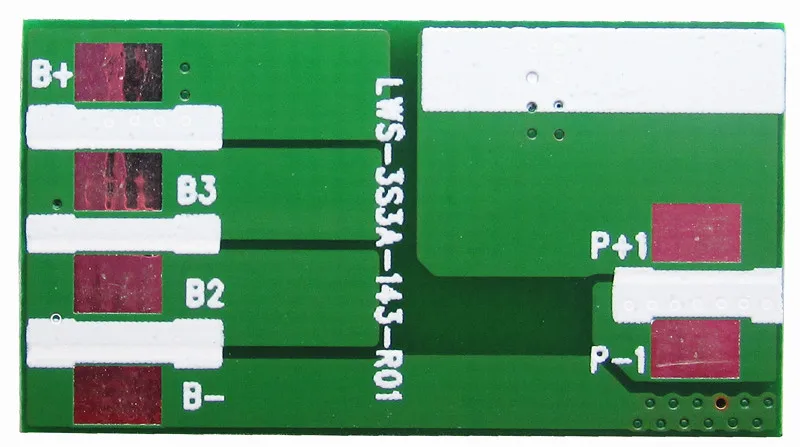

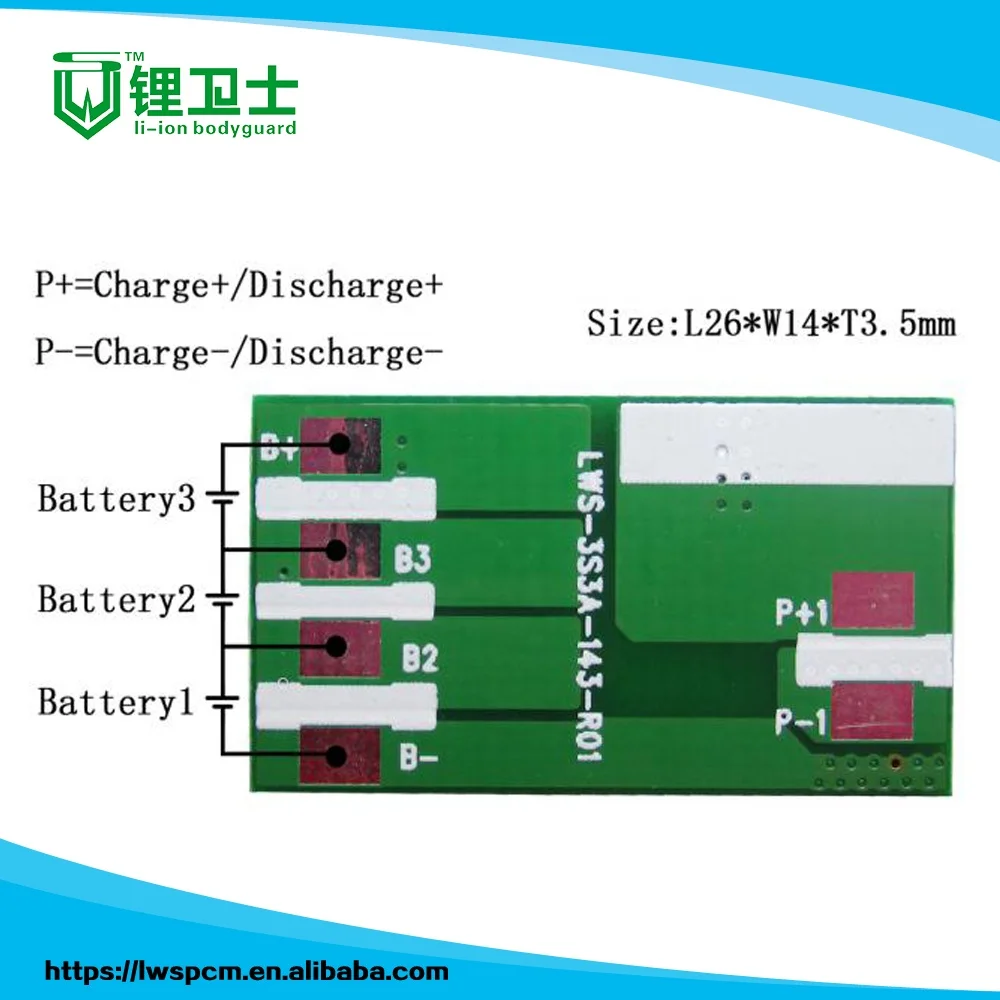

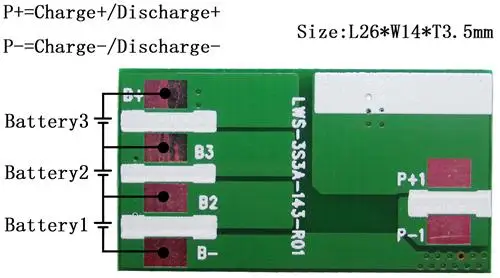

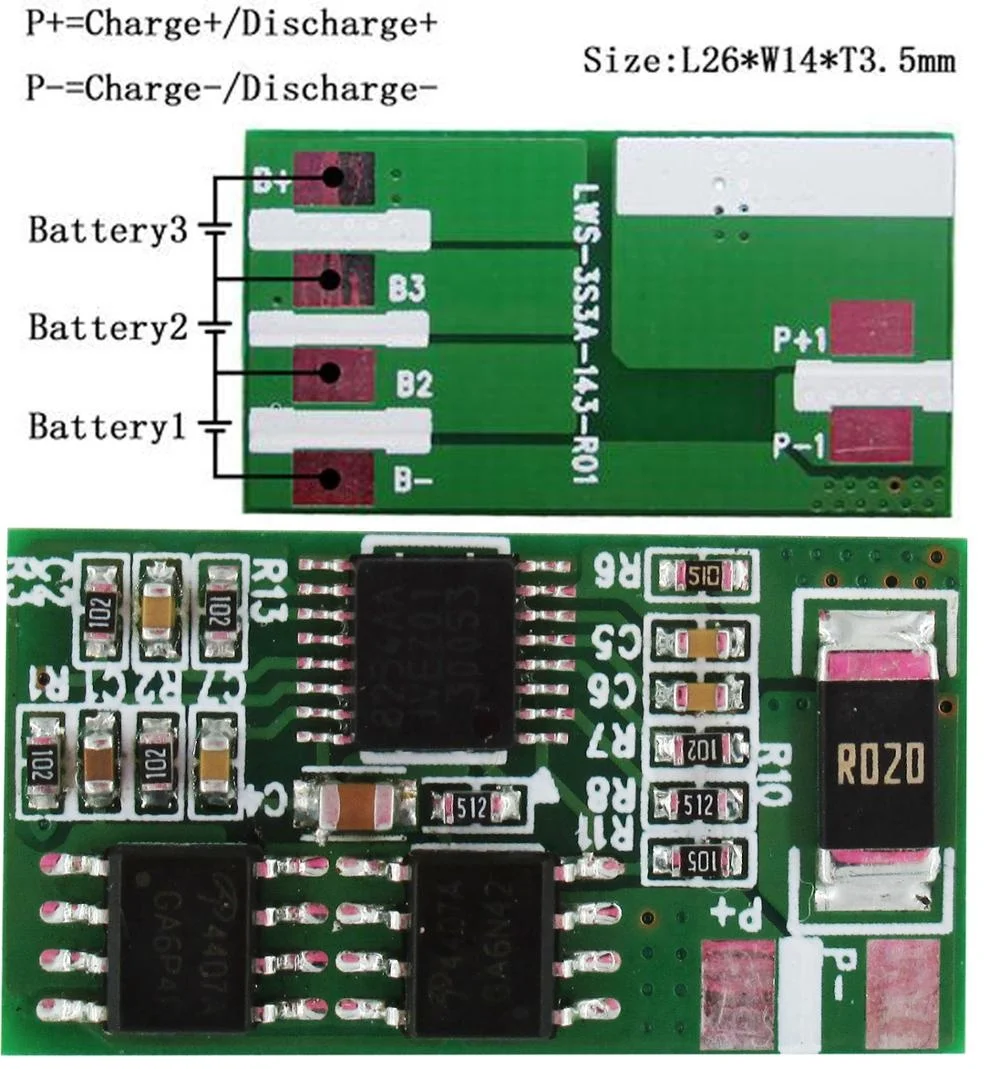

| Model | LWS-3S3A-143(3S) | |||
| Test No. | Test item | Details | Criterion | |
| 1 | Voltage | Charging voltage | DC:12.6V CC/CV | |
| Balance voltage for single cell | ||||
| 2 | Current | Balance current for single cell Current consumption |
≤50μA | |
| Maximal continuous charging current | 3A | |||
| Maximal continuous Discharging current | 3A | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.35V±0.025V | |
| Over charge detection delay time | 0.5S—1.5S | |||
| Over charge release voltage for single cell | 4.15±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.00±0.005V | |
| Over discharge detection delay time | 50mS—150mS | |||
| Over discharge release voltage for single cell | 2.5±0.05V | |||
| 5 | Over current protection | Over current detection voltage | 0.1±0.015mv | |
| Over current detection current | 20±5A | |||
| Detection delay time | 5mS—20mS | |||
| Release condition | Cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | Cut load | |||
| Resistance | Protection circuitry(MOSFET) | ≤20mΩ | ||
| 7 | Temperature | Operating Temperature Range | -40~+85℃ | |
| Storage Temperature Range | -40~+125℃ | |||

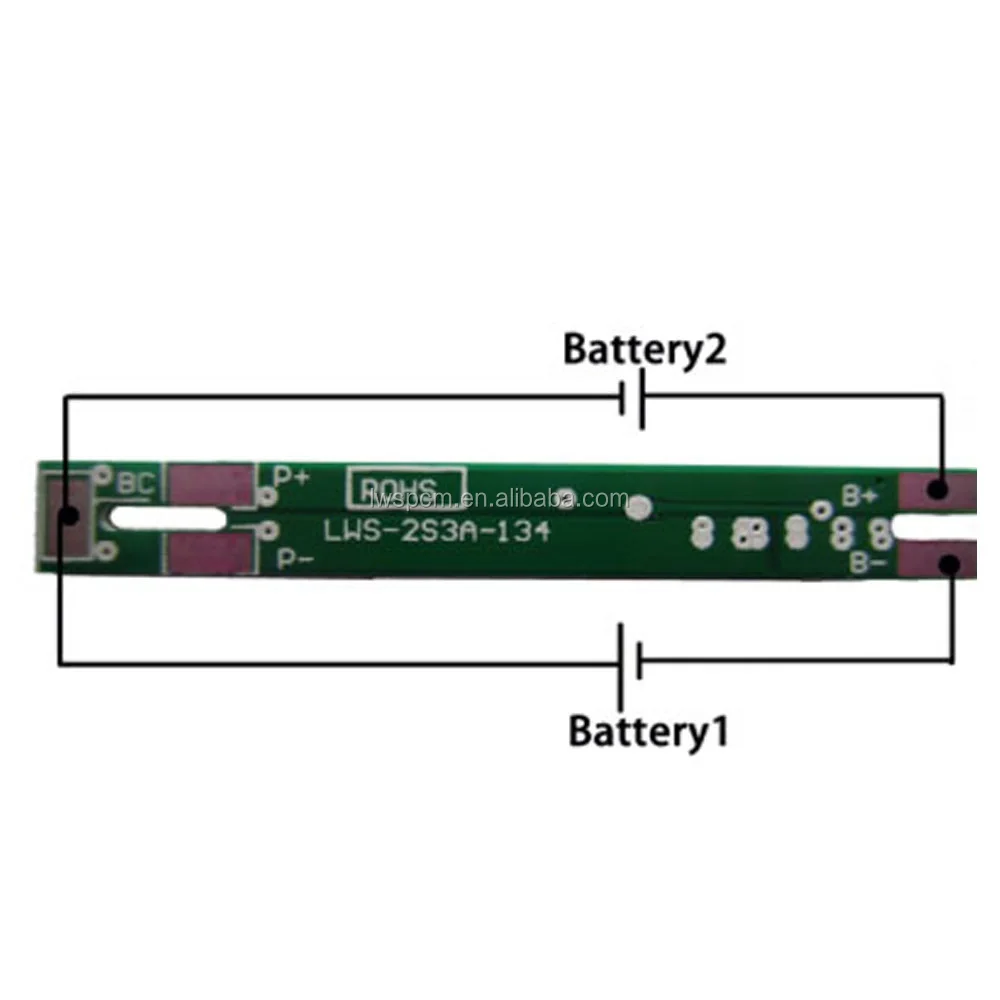

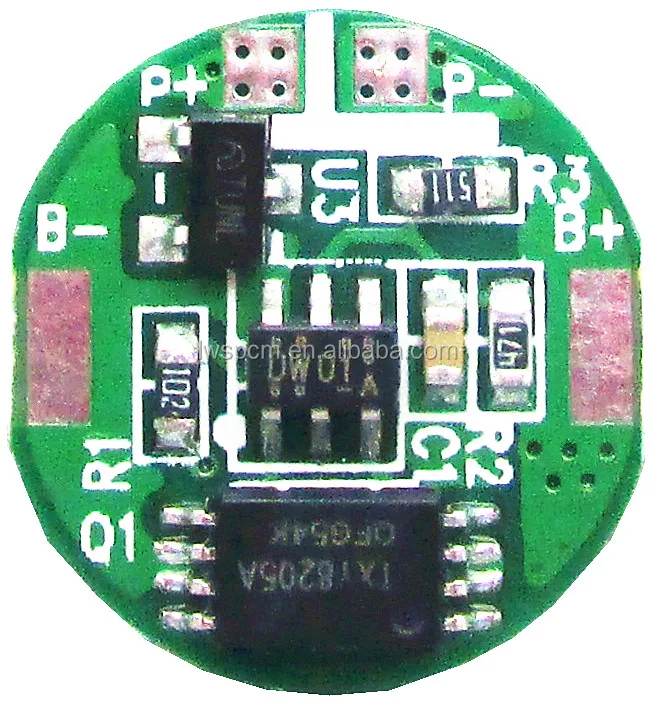

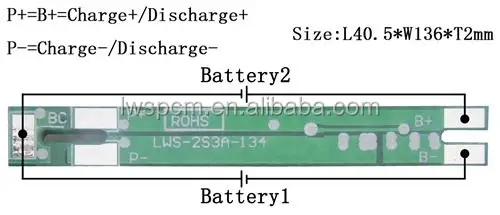

Similar model from the different size
About us
*Complete products contract PCB assembly and manufacturing services
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
ShenZhen LWSPCM Co;ltd -We are specialzed manufacturer in the lithium battery pack pcb/pcm/bms.
The usage ranges cover lithium battery pack (lithium metal batteries),power li-ion batteries(LiCoO2,LINiCoMnO2,LiMnO4 ,LiFePO4)
Applications for: mobile phone batteries,Laptop,Tablet PC,power tool,e-bike,electric buses,golf cart power bank etc,involved in digital products,electric vehicle,energy storing device,medical equipment and mobile illumination) and so on.
Of which,the LiFePO4 battery balanced protection board is our core products.
(2-24series cells product recommendendations for different application)
-Welcome for you oem/odm order
-Welcome for you oem/odm order
Packaging & Shipping
Packing: Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Outer packing:Standard carton packing or packing per customer's requirements.
Delivery type:by air such as TNT,UPS,FEDEX or by sea ,just depend on your convenient.
Payment:L/C,T/T,Western Union,PAYPAL etc.
Certifications
Company Information
Shenzhen Li-ion Battery Bodyguard Technology Co.,Ltd. is a collection of digital (single class), multi-cell power
BMS lithium battery protection board the R & D, production, sales and service of high-tech enterprises. The factory
was set up in the Industrial Zone, LongHua San Wei Third Industrial Zone, a beautiful environment, convenient
transportation, welcome new and old customers come to visit.
The company has developed a multi-string lithium battery pack protection board, power lithium battery packs
balanced protection board and LiFePO4 battery pack the balanced protection board nearly models, product
specifications covering the battery assembly in series 2-24 string, working current up to 100A protection of the
battery management system, the company's complete product specifications can also be customized according
tocustomer requirements.
The company's products are widely used in mobile phone batteries, laptop battery, Tablet PC battery, power tools
battery, batteries for electric bikes, electric bus battery, golf cart batteries, and other digital products, spare power
supply, etc., product market involves digital products, power in areas such as automotive, energy storage devices
,medical equipment and mobile lighting.
Our customers
We have cooperated with HP,Emerson tool,NIke,WD.
Factory
Return policy
We guarantee the product from us with a 12 months warranty against defects in quality, but we are not respon
sible for buyers' mistake or wrong handling, our product must be maintained in proper way. If Item is defective
and not working on arrival, please report the item to us within 7 days of receiving the defective product so we
can issue a RMA.
Please contact us to request a return authorization. Please include your name, auction number, and reason for
return when you contact us. All items returned must contain all original packaging materials. Please carefully
repack the item.Items returned will be tested and if found defective, the buyer will be shipped a new replacement
unit immediately. In the event that a suitable replacement is not available a refund will be issued.
The return shipment cost should be afforded by buyer if you can not accept our policy ,please do not buy the item
from us ,fair deal is importable for both of us .
FAQ
Q: How do I judge what material my battery is ?
A: Please take a look at the battery body.if the normal voltage of your battery shows as 3.2V,the battery will be
LiFePo4.If the normal voltage of your battery shows as 3.6V or 3.7V, the battery will be Li-ion or Li-polymer battery. you
can also ask battery manufacturer the material of battery.
Q: Can I use this protection circuit board for my battery?
A: Can use this protection circuit board, or not? There are 2 questions:How much cells in series is your battery
pack? The protection circuit board you need to buy must be same cells in series as your battery pack.What material
is your battery? Only the LiFePo4 battery has different electric parameter from other battery, so if you need buy the
protection circuit board for LiFePo4 battery , Please let us know firstly.
Q: Do we need cell balance or not?
A: The function of balance : Since battery is made of many pcs of cells in parallel and in series, the cells can't be
the same as no two people in the world is the same , so can only put in group with similar performance is not
consistent , which will lead to each cell voltage is not consistent as well after the completion of the charging if
without balance fun
Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size
is per your requirements,Also ODM / OEM is welcome.
Q: What is your term of payment?
A: PayPal, T/T, L/C,Western Union
