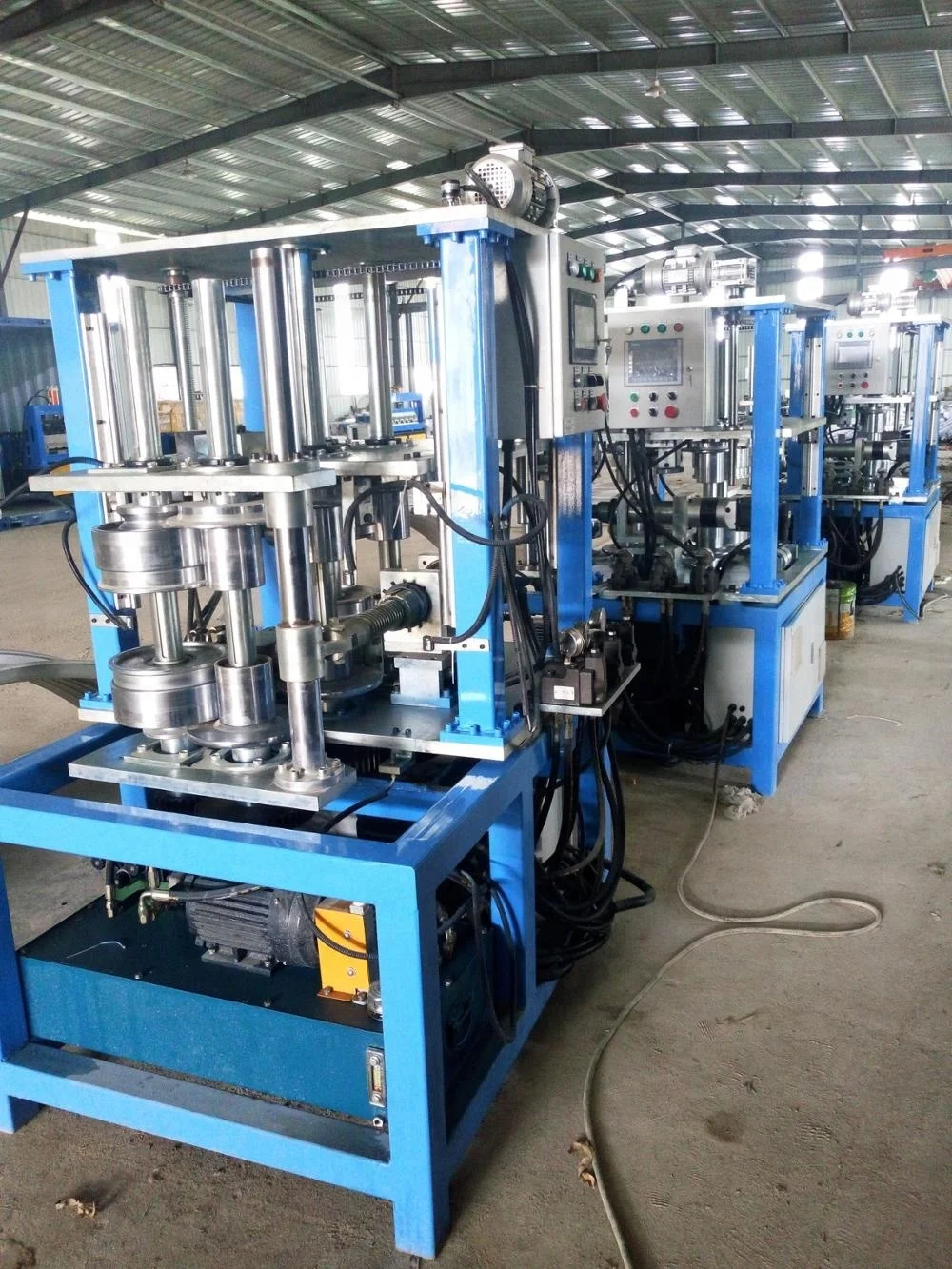

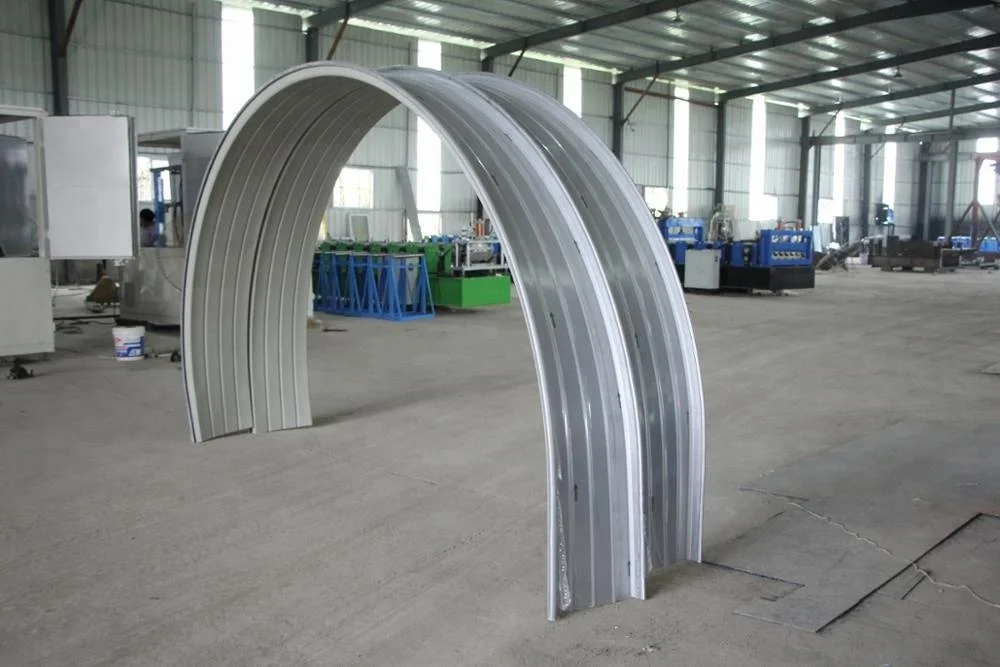

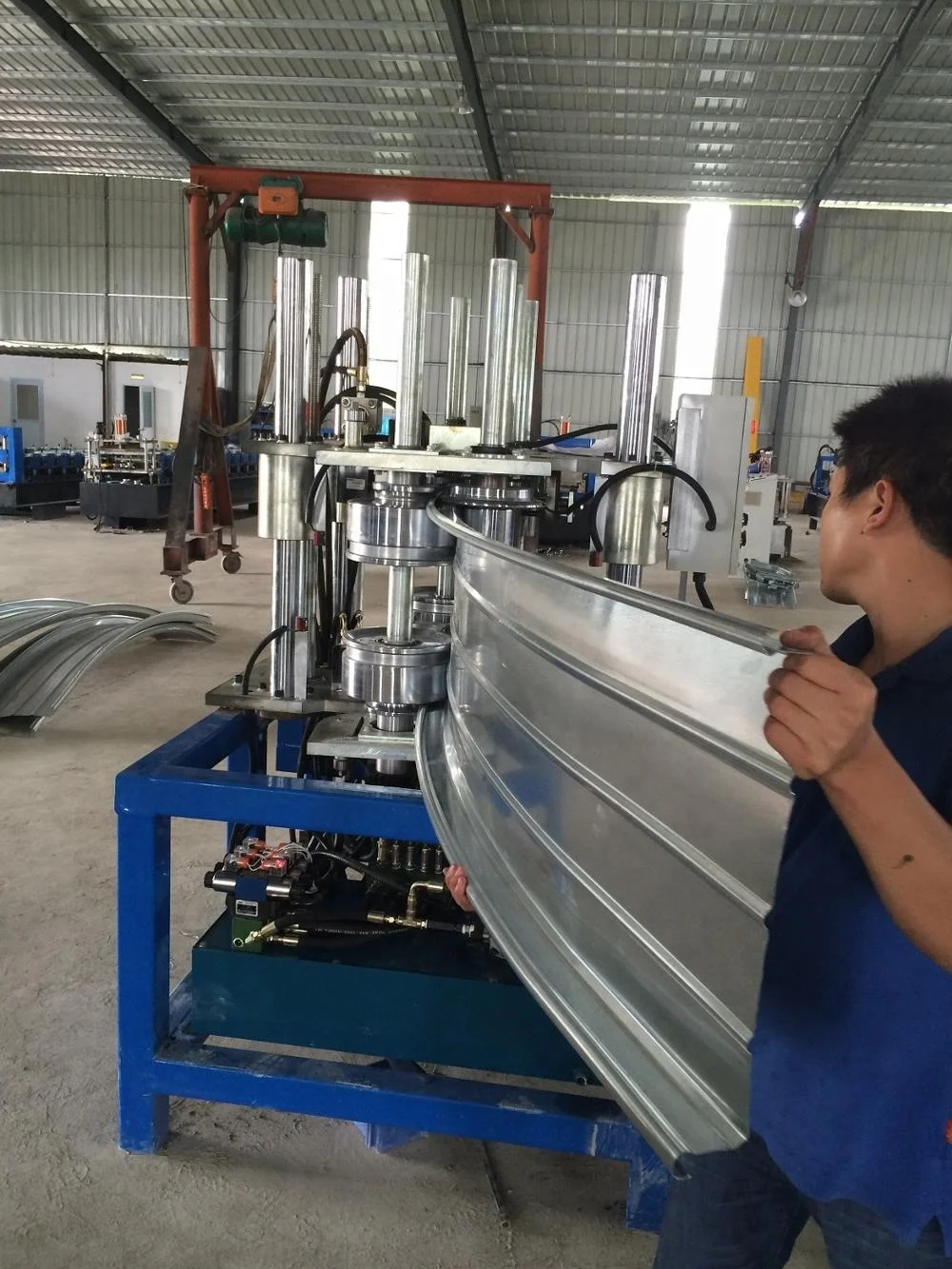

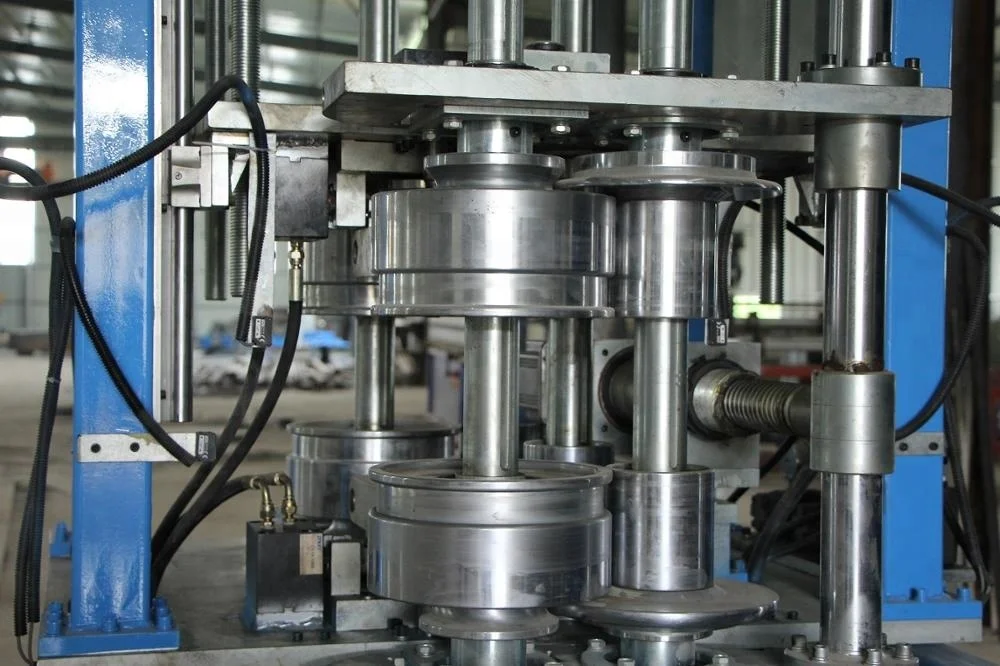

Kalzip style standing seam roof panel curving machine

Size

 1500*1000*2000mm

Model

 YX65-300-600

Voltage

 380V/50HZ/3PH Or base on customer

Motor Power

 4KW

Hydraulic Power

 3KW

Servo Motor for model changing

 0.37KW

Curved Thickness for Aluminum

 0.8-1.2mm

Curved Thickness for Steel

 0.7-1.0mm

Width of straight roofing to curve

 300mm to 600mm

Min.Width of Tapered Roofing to Curved

 250mm

Max.Width of Tapered   Roofing to Curved

 500mm

Working Speed

 10-16m/min

Forming Steps

 3 steps

Min. Curved Radius for Al Roof

 Convex Curved 1M, Concave Curved 6M

Min.Curved Radius for Steel Roof

 Convex Curved 3M, Concave Curved 7M

Min.Curved Radius for Tapered Al Roof

 Convex Curved 7M, Concave Curved 12M

Min.Curved Radius for Tapered Steel Roof

 Convex Curved 10M, Concave Curved 14M

Painted Color

 base on customer
