3S 4s 7s 8s 12v 24v w/ Balance LiFePo4 LiFe LFP 18650 Battery BMS Protection PCB Board

Product Overview

Description

3S 4s 7s 8s 12v 24v  w/ Balance LiFePo4 LiFe LFP 18650 Battery BMS Protection PCB Board

Features:

Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and damage.
It will protect battery pack from overcharging, over-discharging over-current and short circuit.
With equilibrium function to keep each cell in balance and good service life.

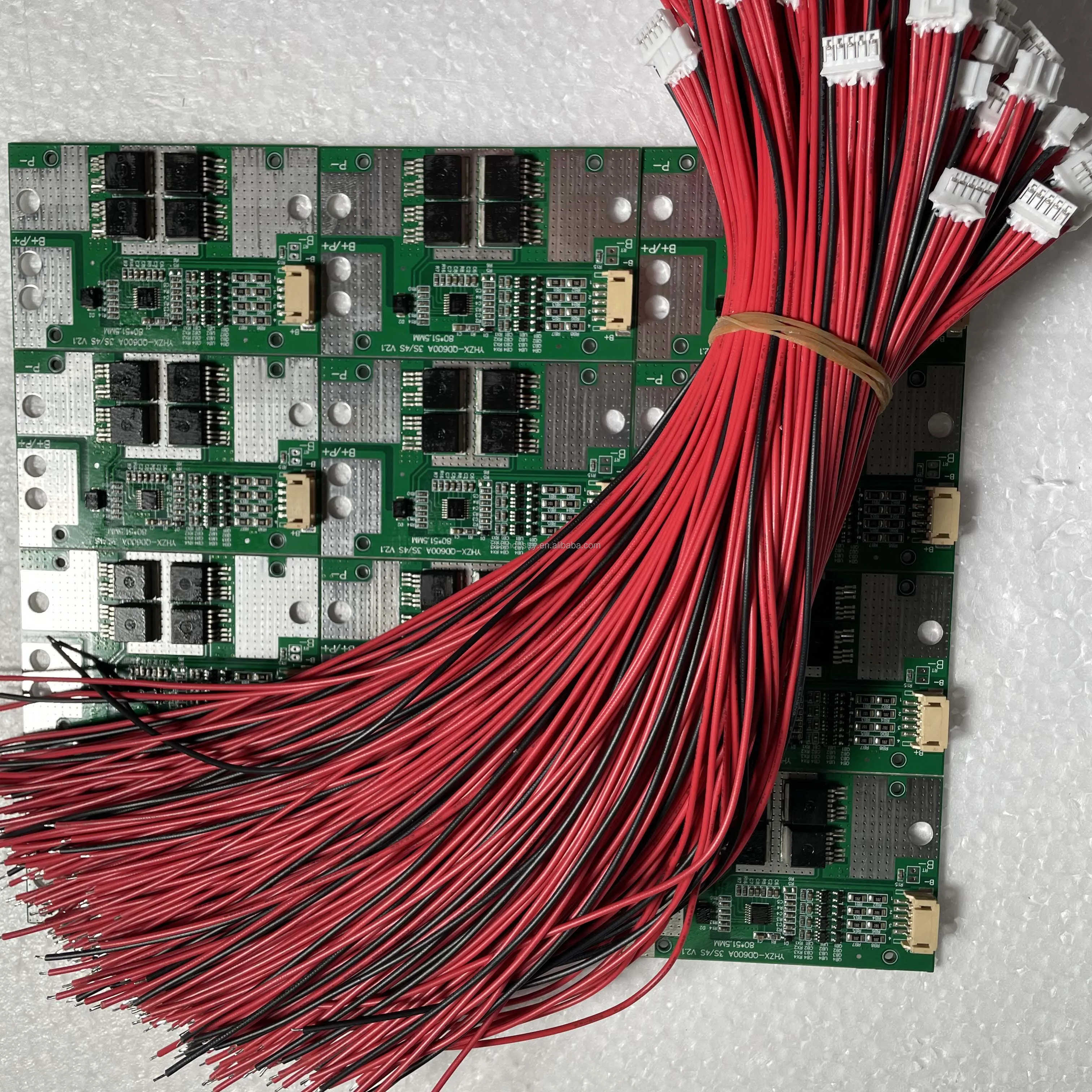

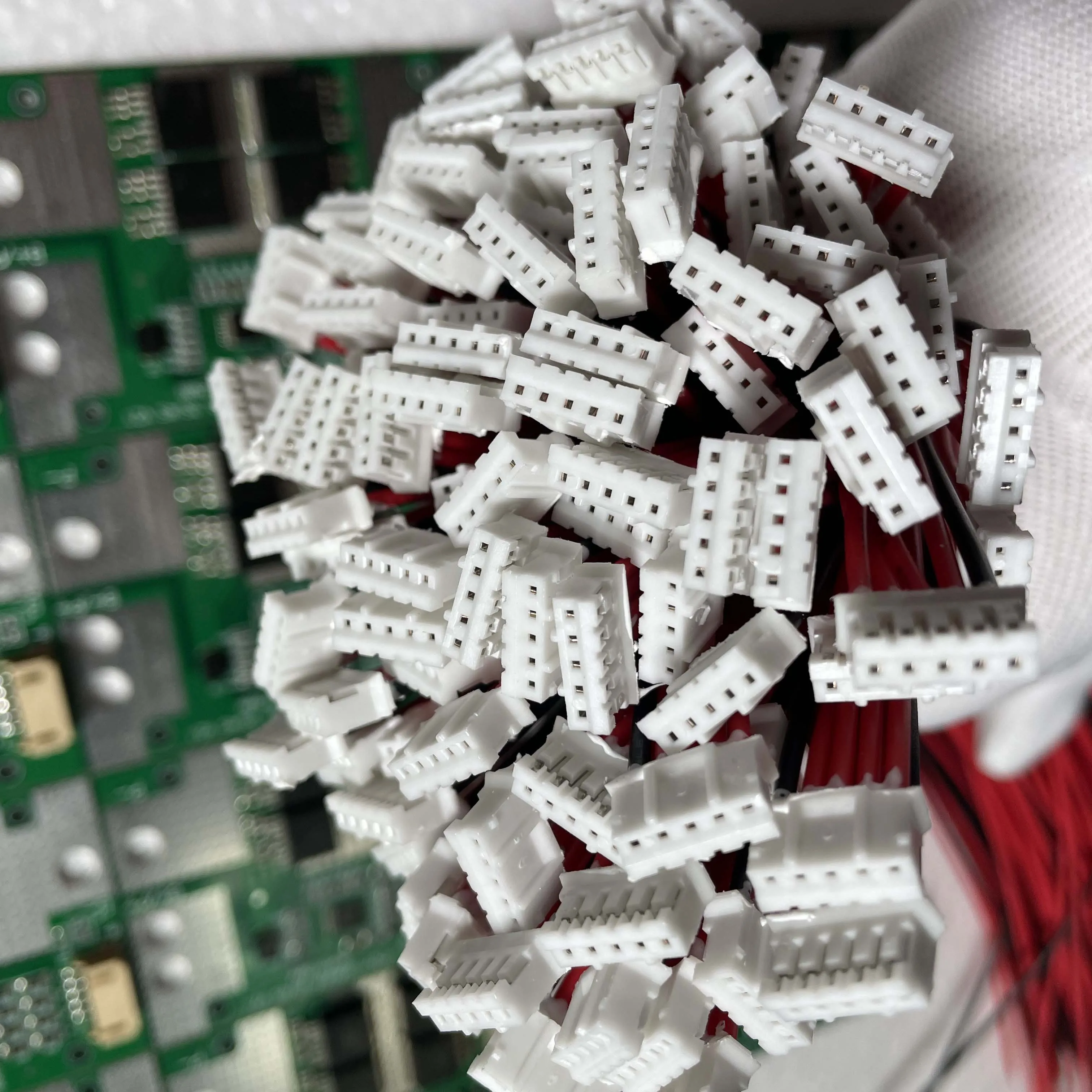

Used for 3 series 12V LiFePO4 batteries, comes with 5P-250mm wire.
Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.

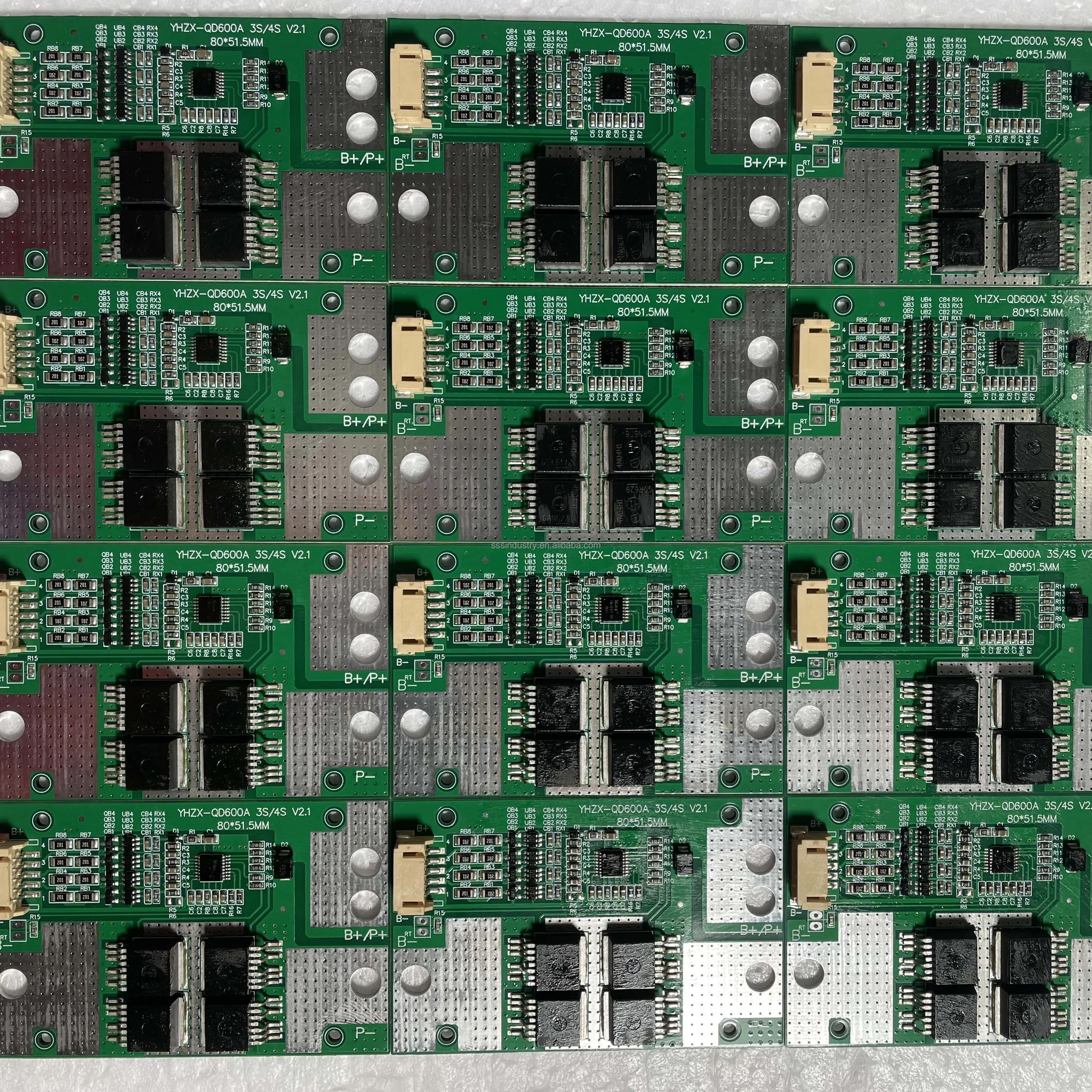

Name: 3 strings of startup boards 600A with the same port

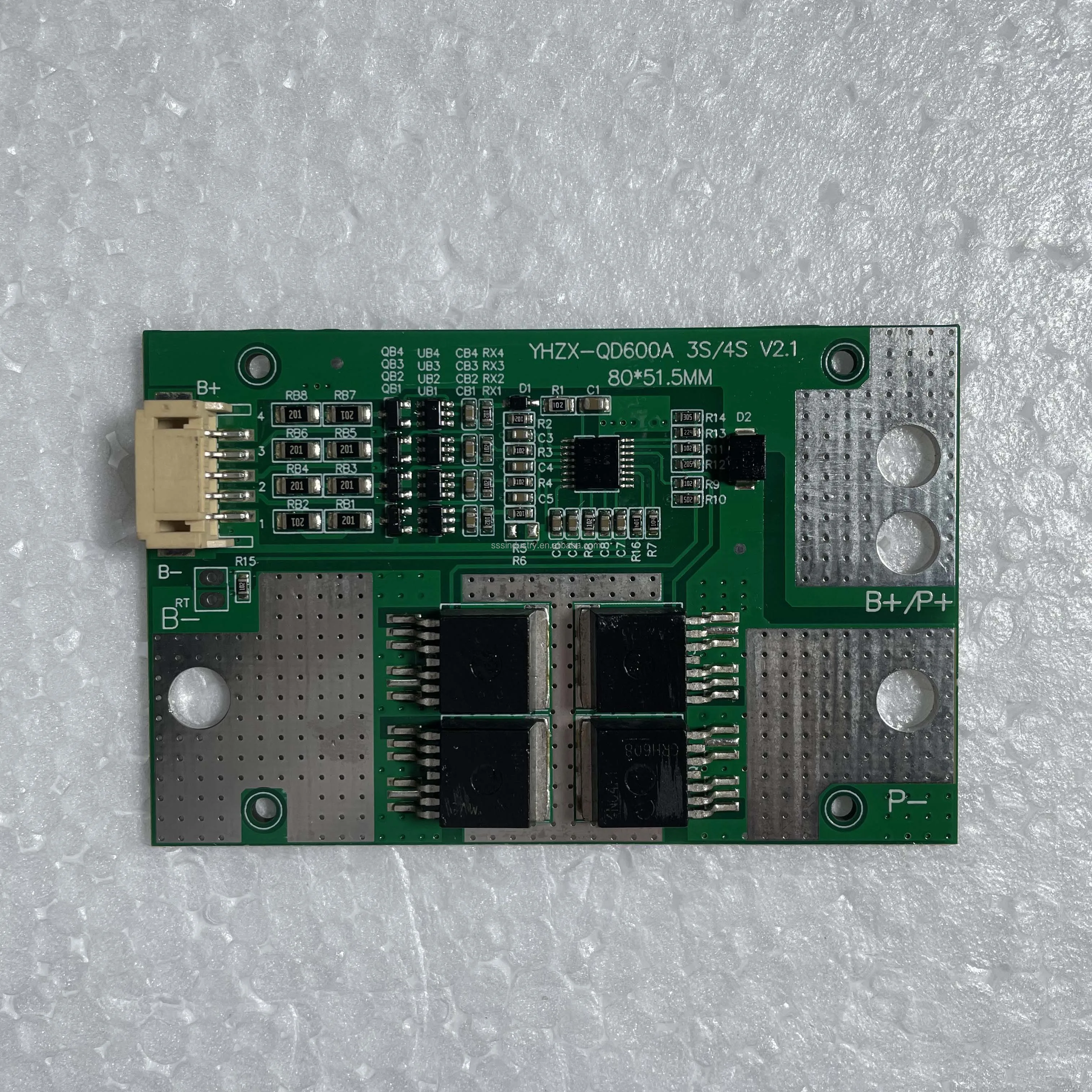

Model: LZ-QD600A-V1.0-3S

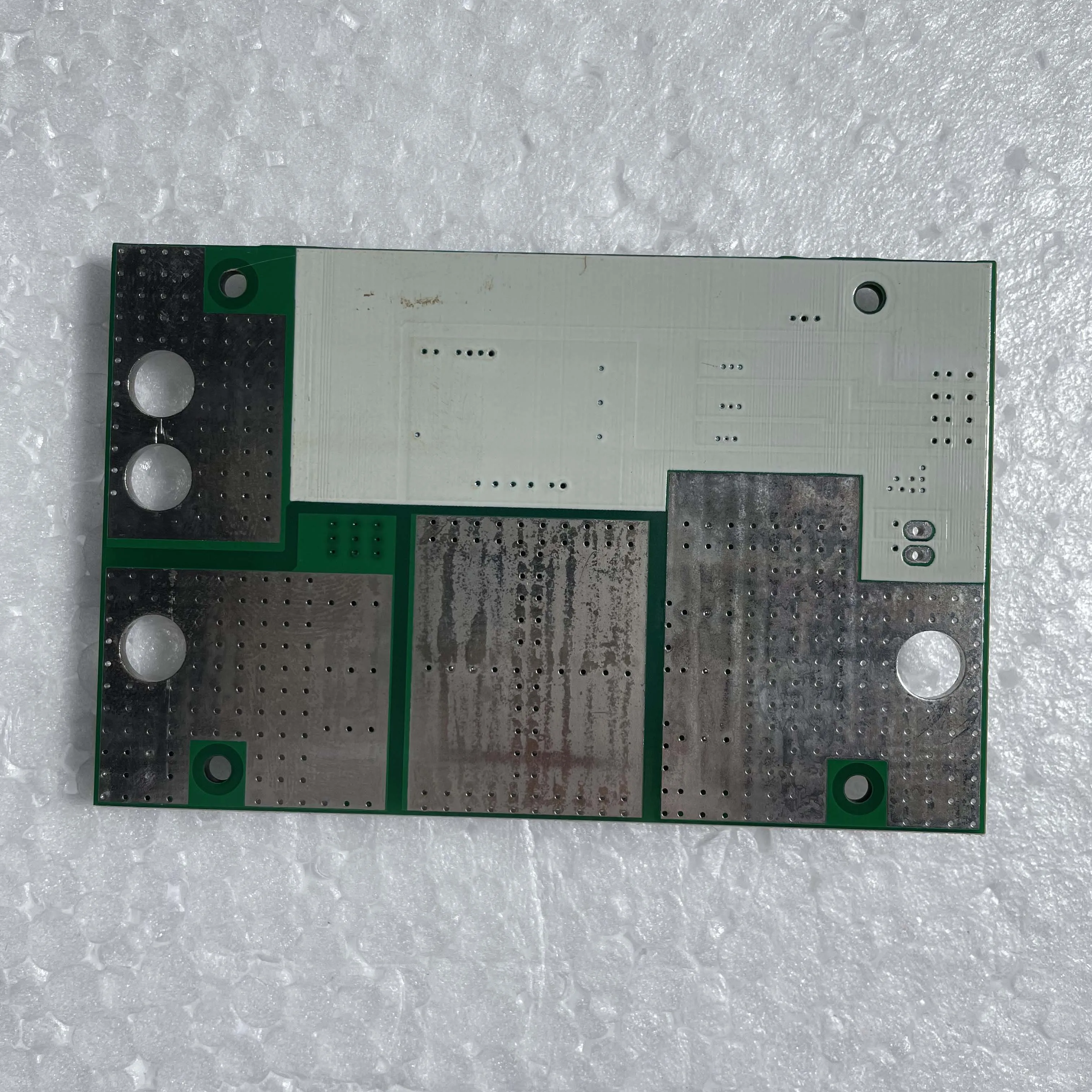

Size: 80*51.5*8.35MM
Overcharge: 4.25v+0.025V
Over discharge: 2.70v+0.08V
Charging voltage: 12.6V (three yuan)
Continuous current: <30A
Over discharge current: <600A
Interface type: same port
Application: Nominal 3.7V ternary lithium battery. Application range: electric tricycles, electric motorcycles, etc., which require high current when starting;
