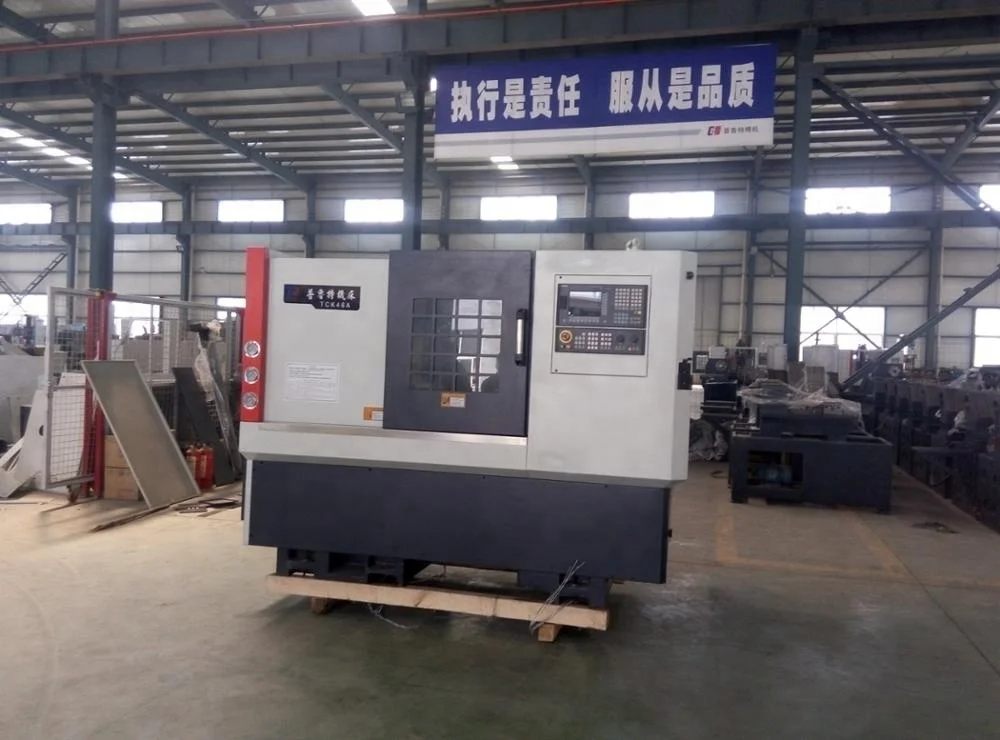

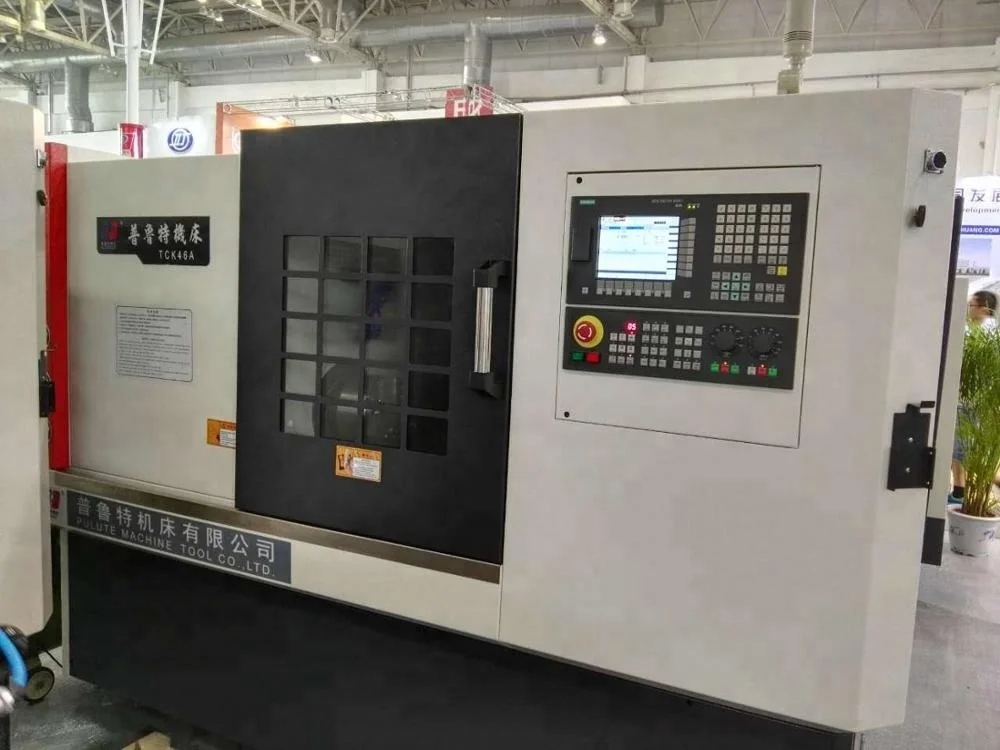

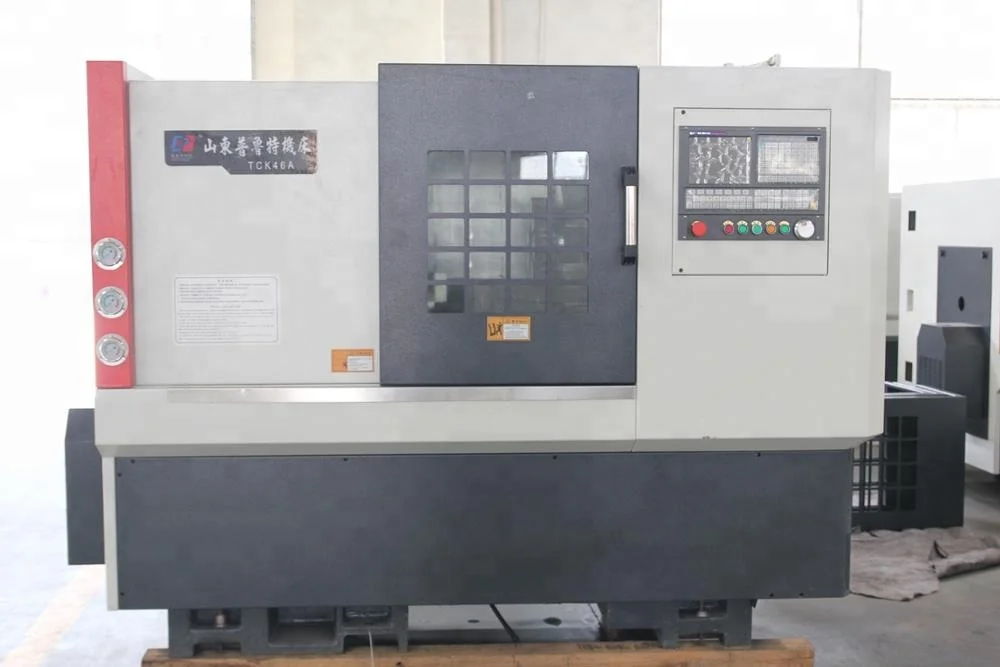

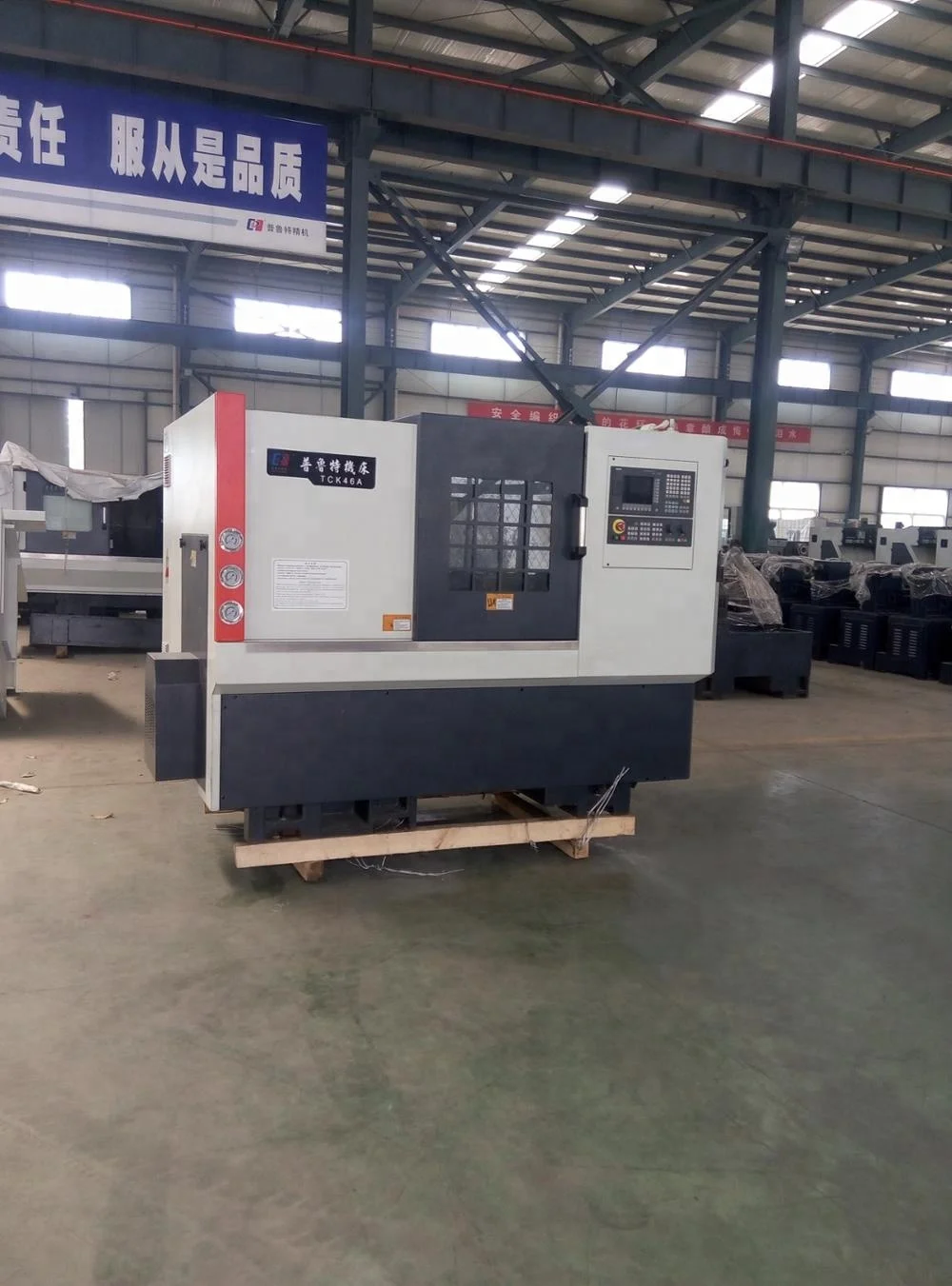

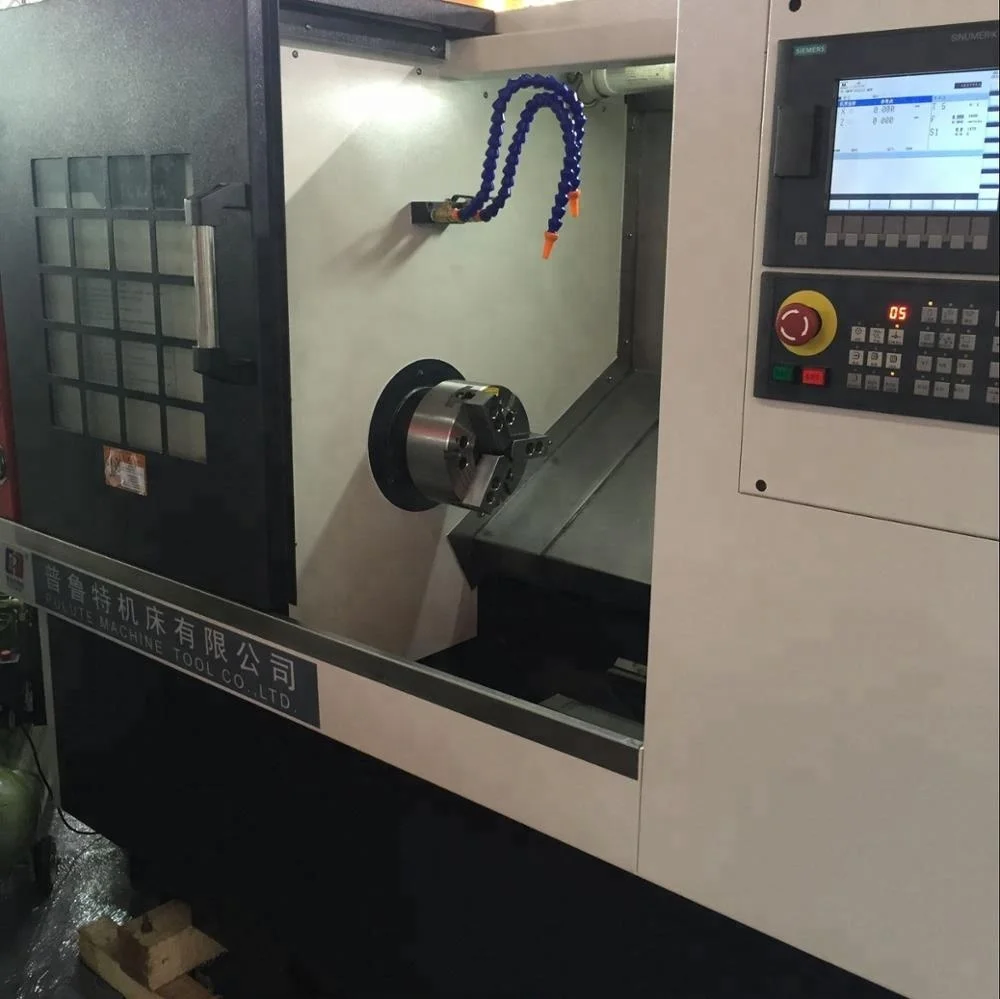

TCK46A High accuracy slant bed and linear guide way cnc lathe machine
- Category: >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (60778209755):
Product Overview
Description
CNC Lathe use
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various and outside surface of revolved body. This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearing and so on.
Product Description
specifications for cnc lathe machine TCK46A
| Max.swing over bed | mm | 460 |
| Max.swing over cross slide | mm | 170 |
| Maximum processing length | mm | 350 |
| spindle unit | mm | 170 |
| The spindle nose(optional chuck) | A2-5/A2-6 | |
| The spindle motor power | KW | 5.5 |
| Highest spindle speed | rpm | 3500 |
| Spindle bore | mm | 56 |
| Drawing hole diameter | mm | 45 |
| The x/z axis screw specifications | 3210/3210 | |
| The x-axis limit stroke | mm | 240 |
| The z axis stroke limit | mm | 400 |
| The x axis motor torque | N.m | 7.5 |
| The z axis motor torque | N.m | 7.5 |
| x/z axis repeatability | mm | ±0.003 |
| Tool turret | 80-8T/12T | |
| Turret center high dimension | mm | 80 |
| Hydraulic Quill dia | mm | 70 |
| Hydraulic Quill traverse | mm | 80 |
| Hydraulic Quill taper | # | MT5 |
| Hydraulic tailstock travel | mm | 200 |
| Machine dimension | mm | 2500*1700*1710 |
| Net.weight(about) | kg | 2600 |
CNC lathe features
(1)Higher accuracy Taiwan liner guideways
(2)Higher speed spindle unit,Optioal homemade spindle
(3)Integrated automatic lubrication
(4)One-piece Casting slant bed cnc lathe
one-piece machine bed, higher stability
30 degrees slant bed , easy to convey chip
higher spindle speed upto 3500 rpm
1. standard accessories of TCK66A taiwan cnc lathe machine price
11 KW servo spindle motor
8 station hydraulic turret
10 ″ through hole hydraulic chuck
Taiwan ball screw and Taiwan linear guide way
2. optional accessories of TCK66A taiwan cnc lathe machine price
universal type chip conveyor USD 1600 etc
Packaging & Shipping
Packaging Details PLY wooden case with steel base
Our Services
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Certifications
FAQ
Before order, please kindly inform the following,
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
