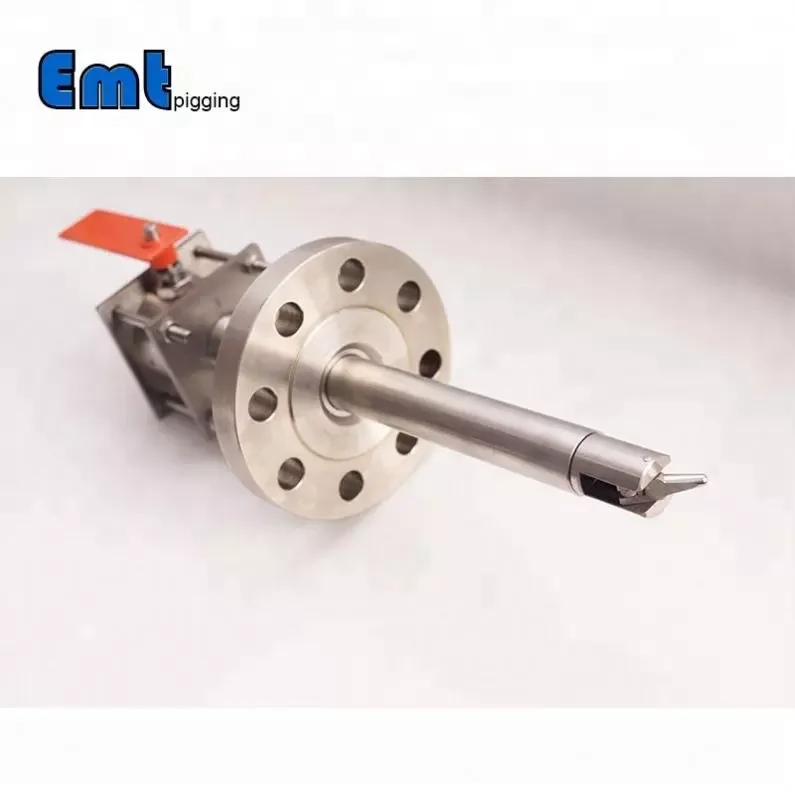

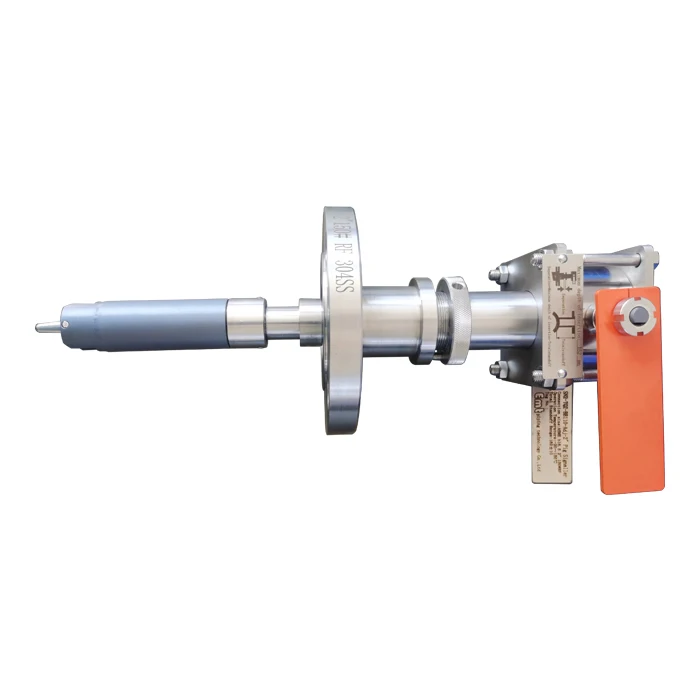

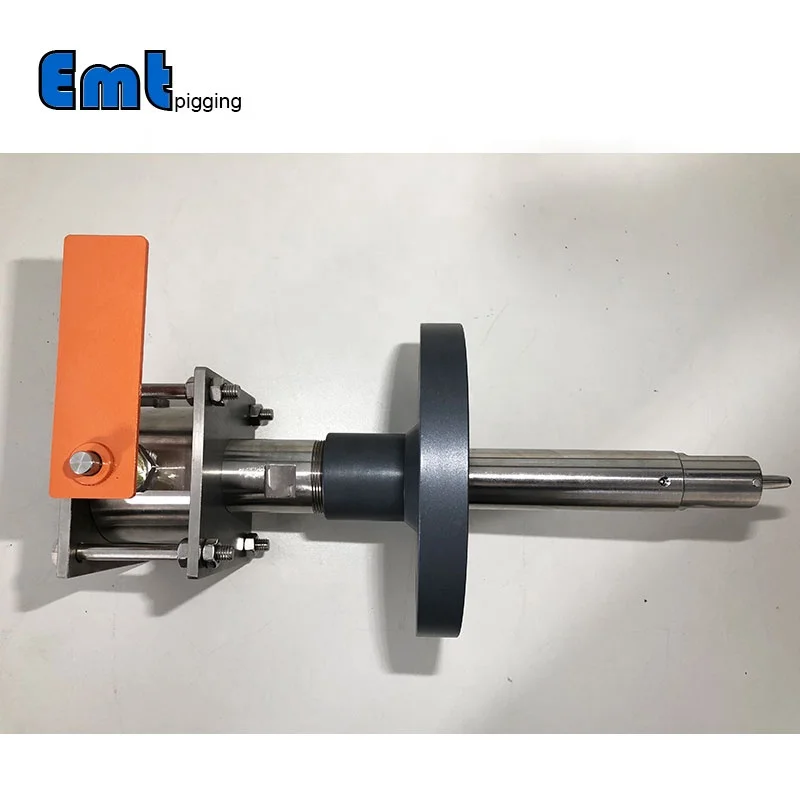

Pipe Pigging Machine Visual Flag Flange Mounted Engineering Pig Passage Indicator Detector

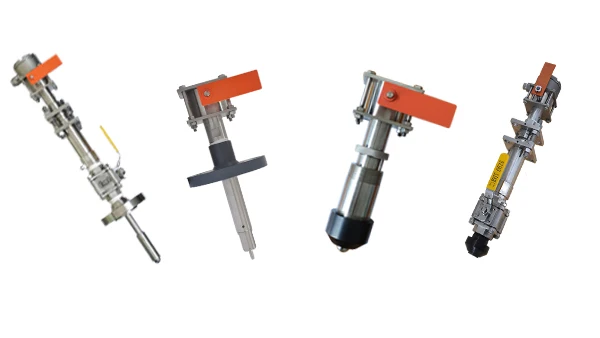

EMT Pig Signallers (Pig Passage Indicator):

EMT Pig signallers are used to provide confirmation of the movement of pipeline pigs through a pipeline.

They are normally positioned at both the pig launching and pig receiving stations and at key points along a pipeline.

EMT make pig detection simpler and more effective:

EMT’s range of intrusive pig signallers are detector instruments mounted on pig launcher and receiver stations to confirm the launch or arrival of a pig. They can also be mounted at any location on a pipeline and will detect the passage of all types of pipeline pigs. Our intrusive Pig Signaller uses a unique magnetic system to prevent fluid exchange blocked, therefore, it eliminates the risk of leakage from the action seal, also the trigger of the instrument is enhanced flexibility, reduces maintenance costs and is easy to install to pipelines.

If you have any request of pig signaller products,just contact us,we can design products as your require!

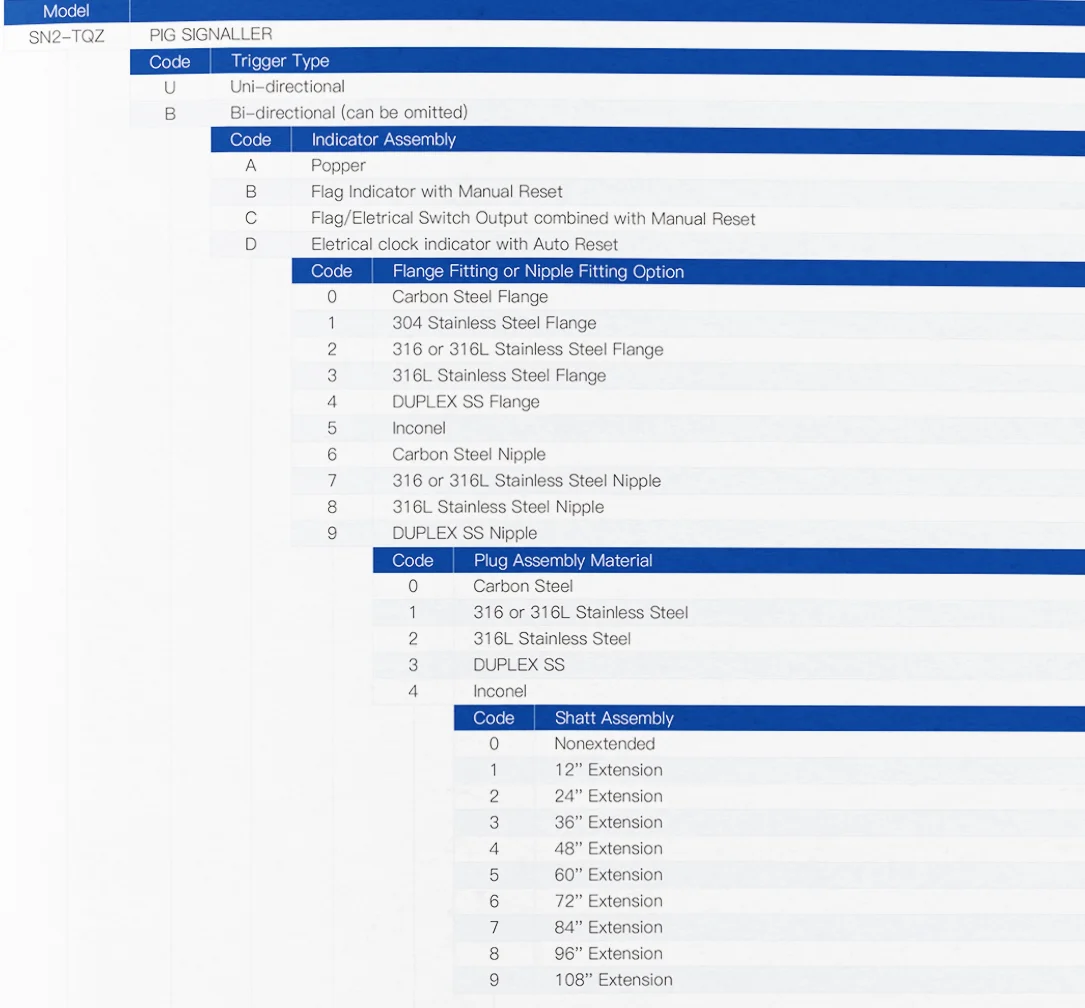

Specification:

Product Features

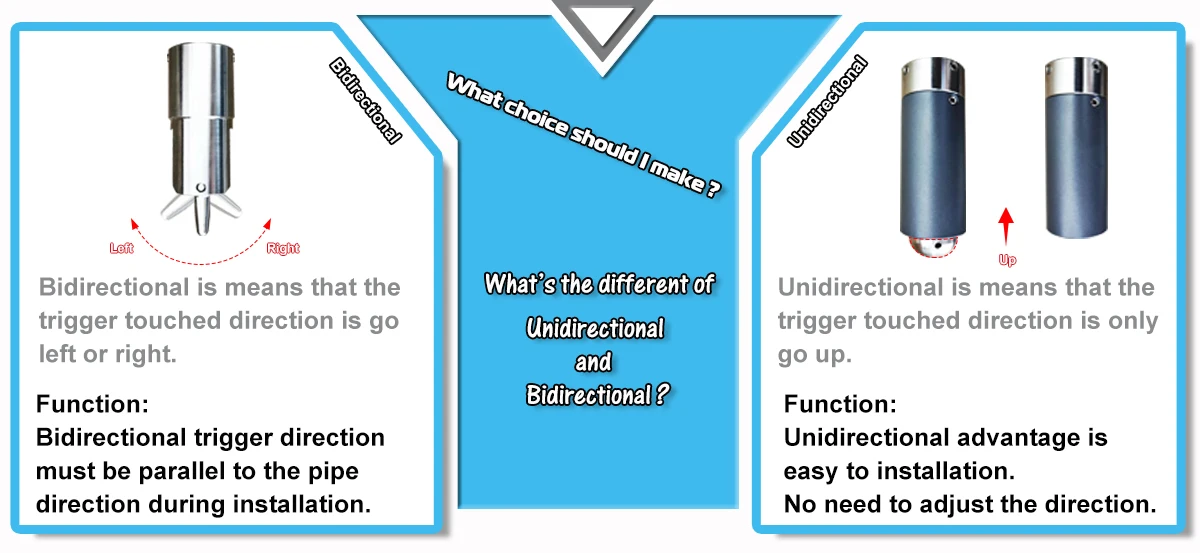

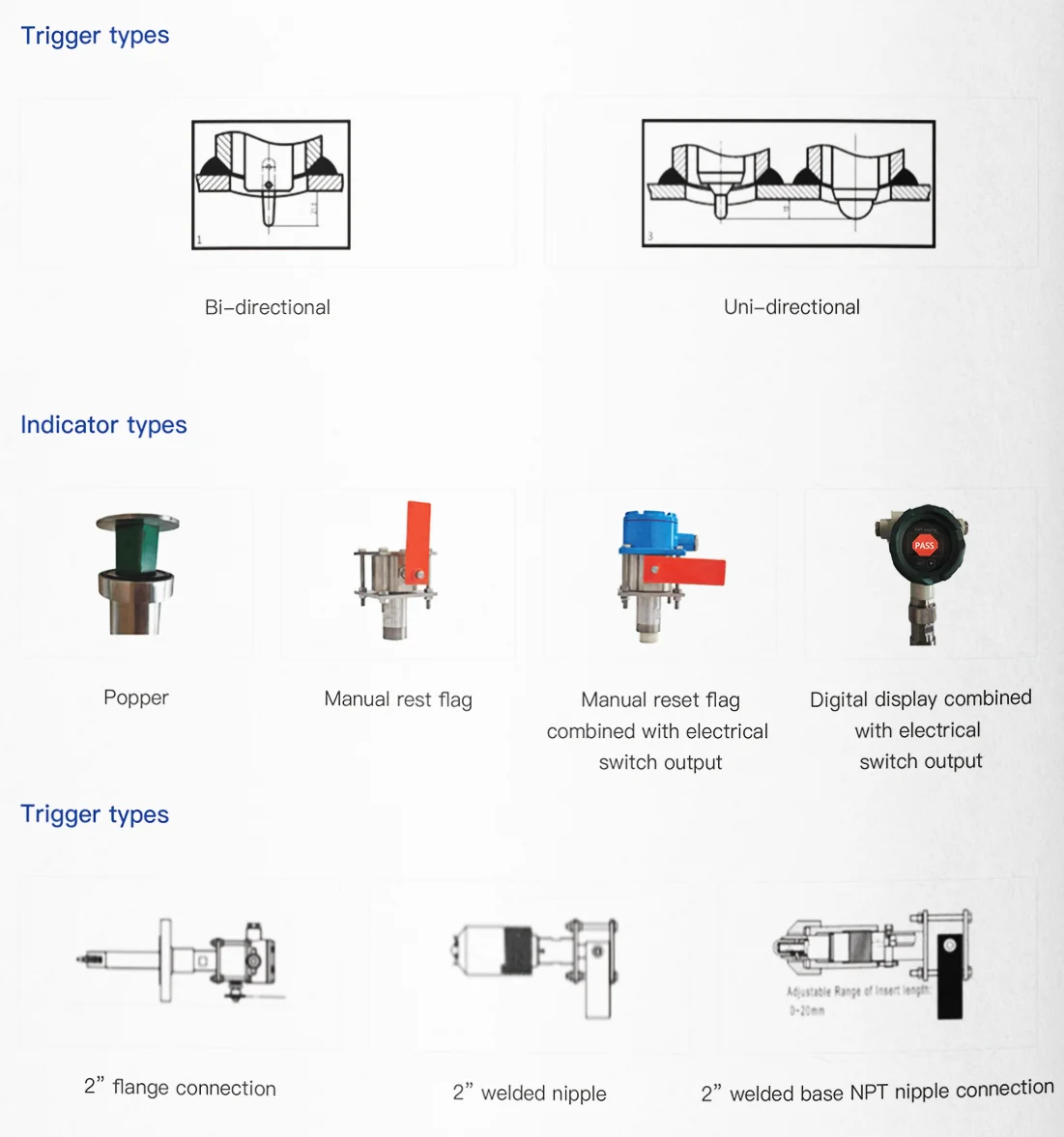

Three trigger type:

1). Bi-directional
2). Bi-directional Feather
3). Uni-directional

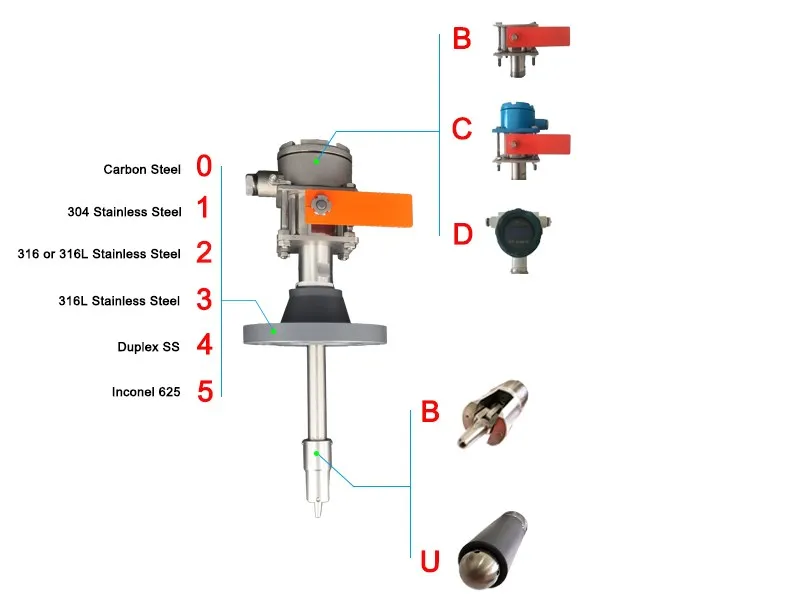

Three indicator types are available:
B_Manual reset flag
C­_Manual reset flag combined with electrical switch output
D_Digital display combined with electrical switch output

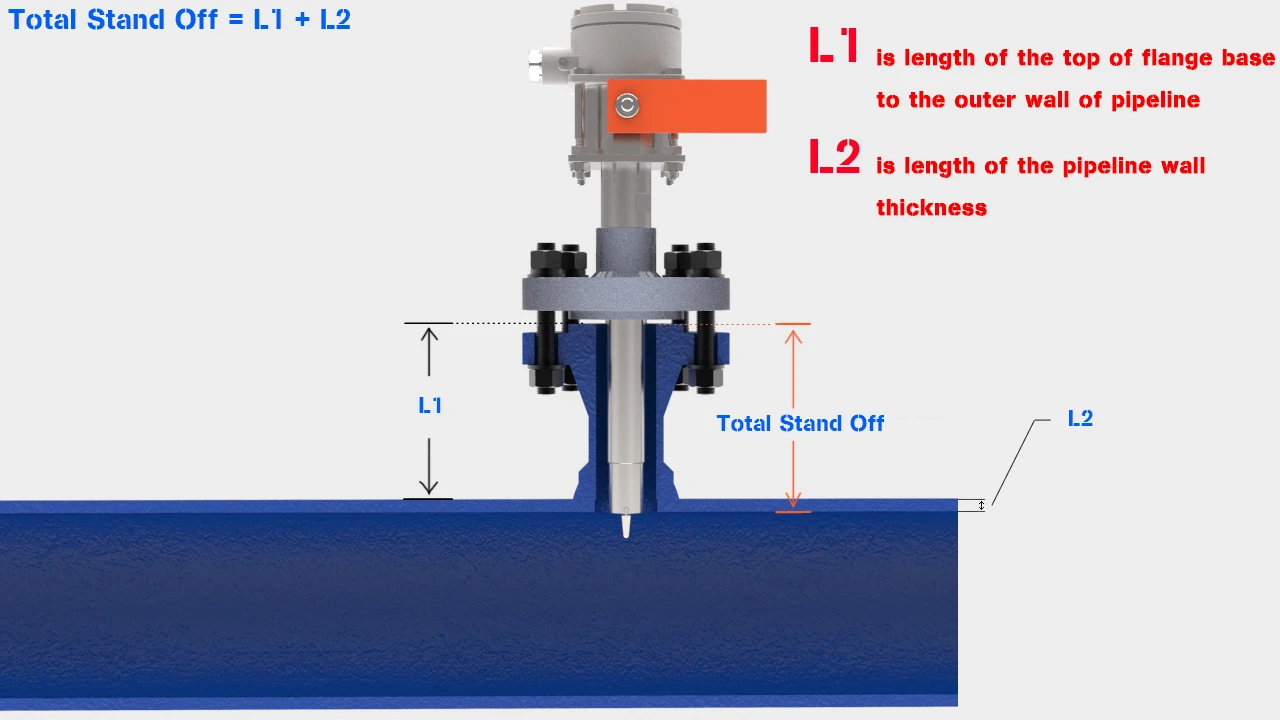

Three mounting types:
2″flange connection
2″welded nipple
2″welded base- NPT nipple connection

Packaging&Delivery

We use PLYWOOD CASE as packaging,it has the following advantages:

1.Light weight,clear lines,insulation,high strangth,not easy to deformation;

2.No fumigation required.

We cooperate with many express companies.That could ensure the fastest delivery time and lowest shipping cost.
