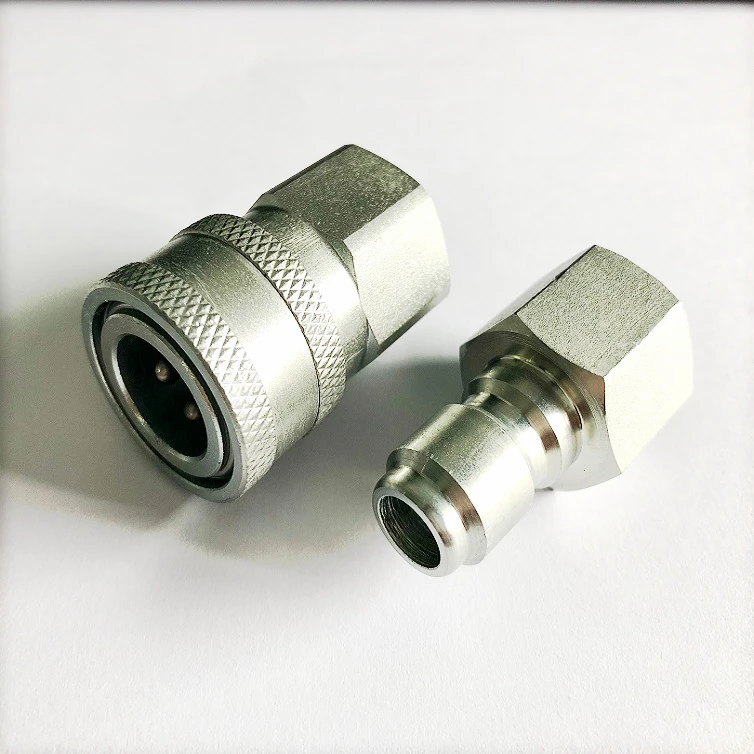

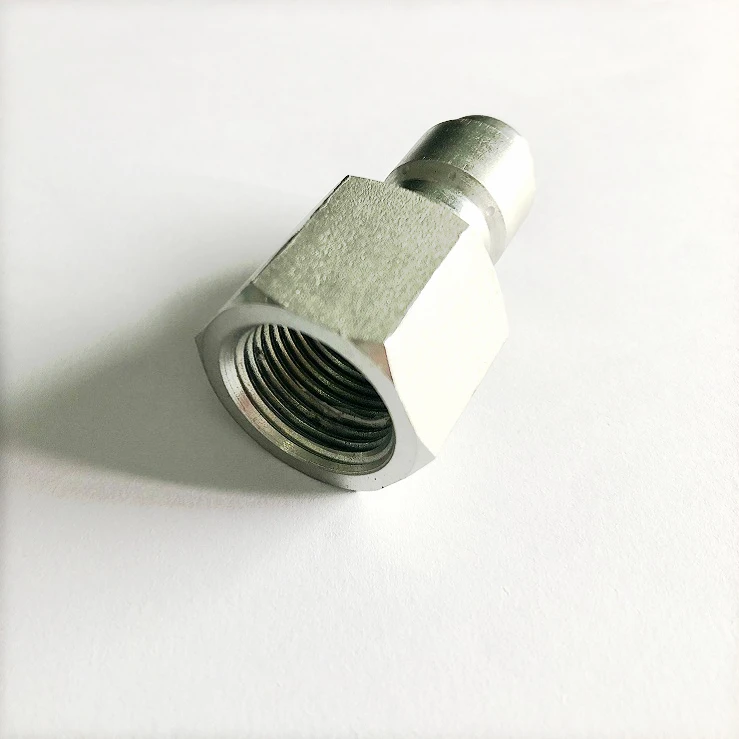

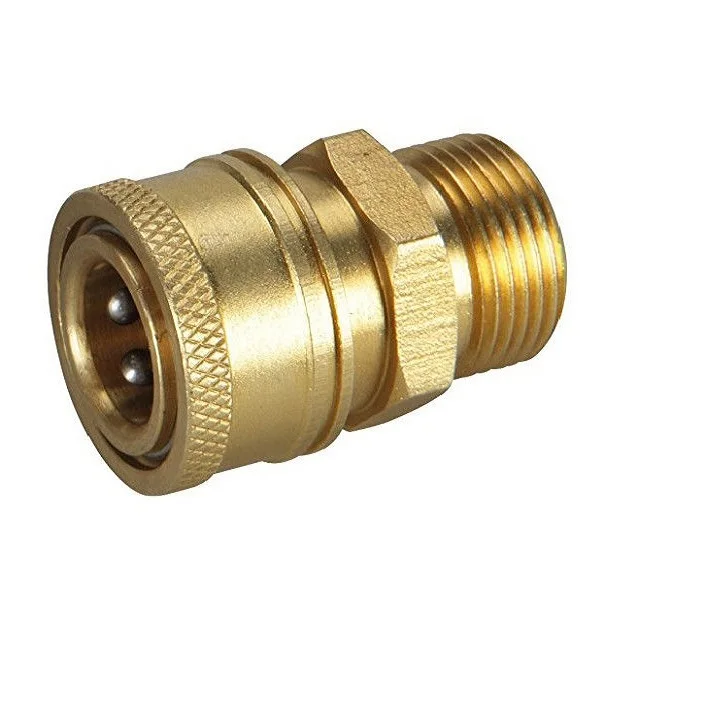

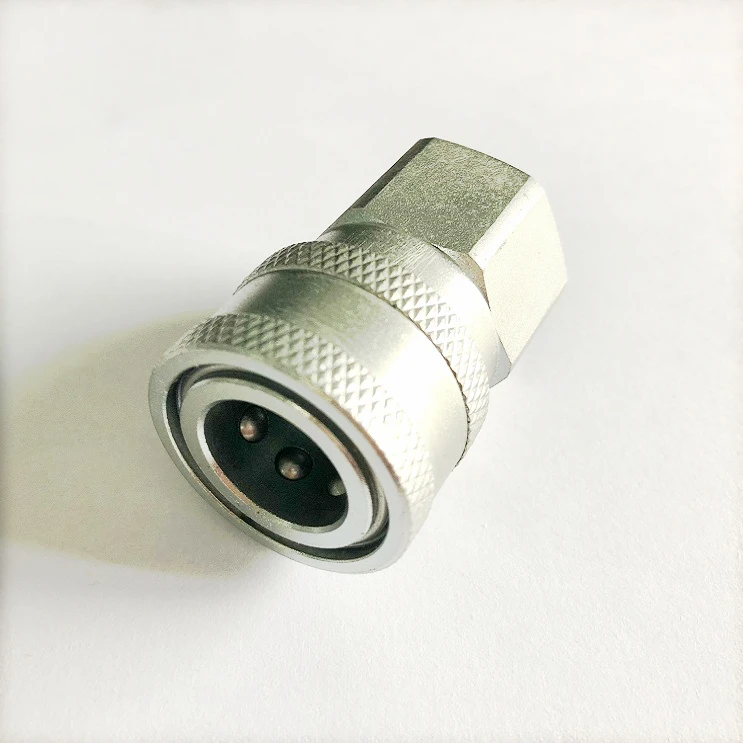

1. The AN601 Series are non-valced couplings for applications where maximum flow is required. Their so mooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high pressure water and steamwasshers, carper cleaners and mold coolant lines and manyother non-valved applications
2.The smooth, open bore with no valving in either half offers minimal pressure drop and allowseasy clesningin applications where the same lines areused for more than one media.

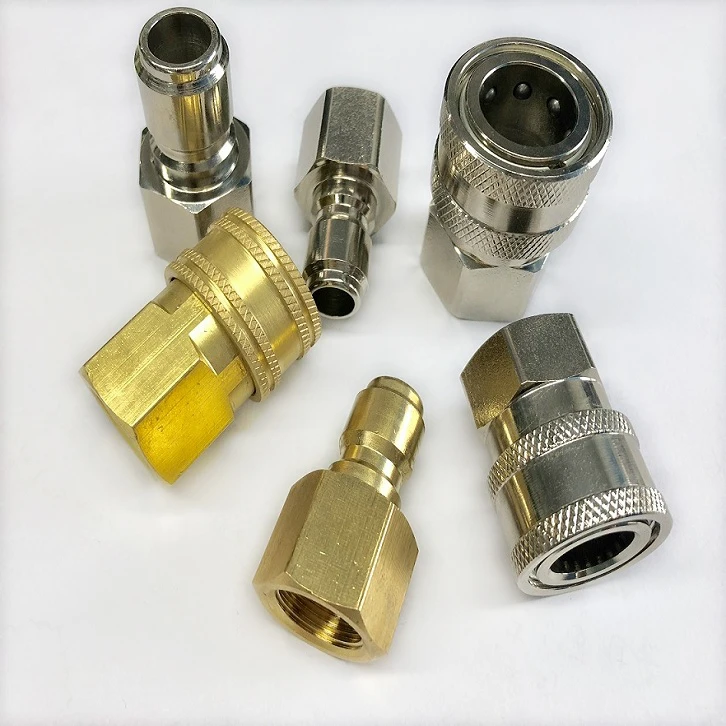

3.Materials Brass, Steel or Stainless steel
4.Compatible with PARKER FE ST Series, HANSEN ST Series , FOSTERF ST Series.

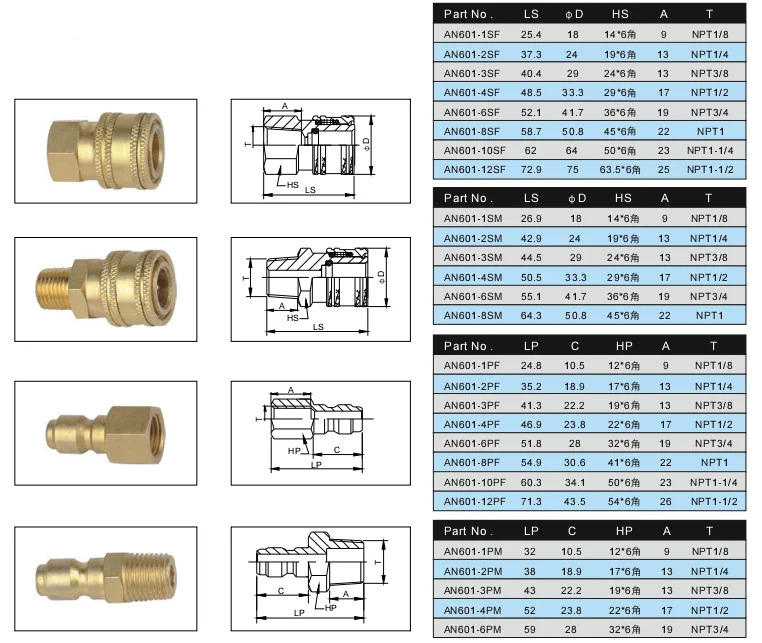

Specification:
Size
1/8
1/4
3/8
1/2
Rated pressure(psi)
Brass
1000
1000
1000
1000
Steel
2000
2000
1500
1500
Rated flow(GPM)
3
6
12
12
Temperature(℃)
-20 to 100

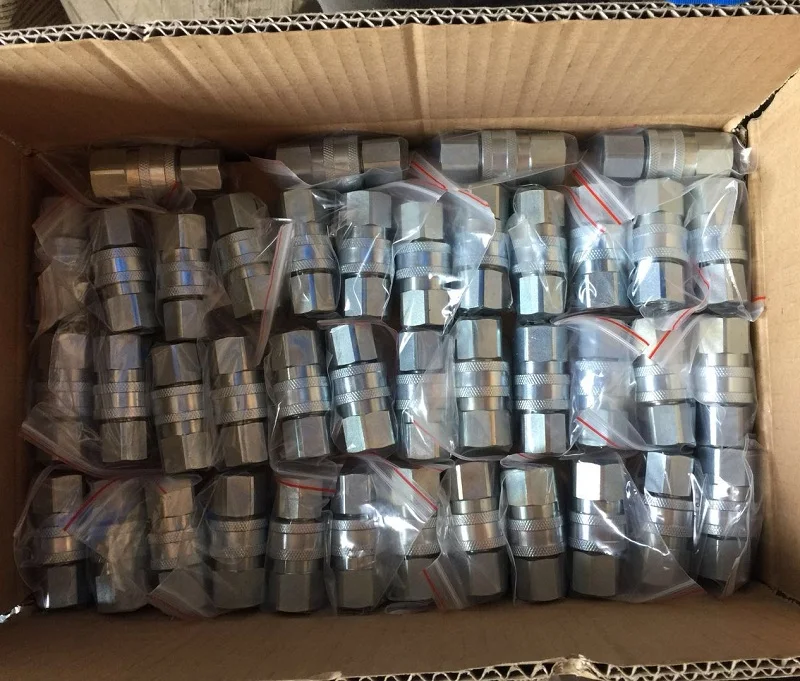

Packaging & Shipping
packing: carton/ pallet/ wooden box
shipping: express/ air/ sea
Our Services
Free samples.

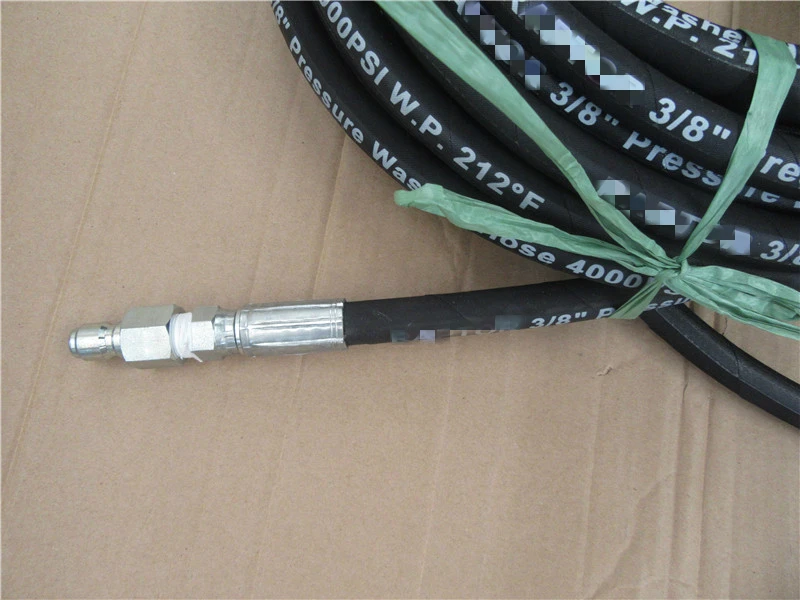

Hose assembly service.
Customzied logo.
Company Information
Gemflex has 10 years of experience in the production of pipe and joint products, and has different production plants in Hebei, Shandong, Zhejiang and Guangzhou. Total area is 6,000 square meters and the staff is about 150 people.
It has 40 production knitting machines, 15 extruders, 20 CNC machine tools and various testing equipment. Teflon's annual productivity reaches 1 million meters, resin tube productivity reaches 3 million meters, and joints are 3.5 million pieces.
