Factory Direct Sale Three Windings 100KVA Transformer Price
- Category: >>>
- Supplier: Chongqing Vision Star S&T Co. Ltd.
Share on (60778301427):
Product Overview
Description
Product Description
Factory Direct Sale Three Windings 100KVA Transformer Price
100KVA Transformer has three coils, and each coil has independent primary and secondary winding. The phase separation between each coil or winding is 120°. Three phase transformer is widely used in machine tools, industrial mechanical equipment, medical devices, lighting equipment and so on.
Specifications
| Input Voltage | Customization | Output Voltage | Customization |
| Noise | ≤50dB | Temperature Raise | ≤50℃(in -25-45℃ environment) |
| Cooling | Air Cooling | Winding Material | Pure Copper |
| Insulation Grade | F/H(can be customized) | Efficiency | ≥98% |
| Insulation Resistance | ≥150MΩ | Impedance Voltage | ≤4% |
| Structure | Vertical | Service Life | 30 years |
| Core Type | EI Type | Core Material | Cold Rolled Silicon Steel Sheet |
| Altitude Requirement | ≤2000M | Output Voltage Accuracy | ±1% |
| Overload Capacity | 1.2 times of rated power | Waveform Distortion | Distortionless |
| Working Temperature | -25-45℃ | Working Humidity | ≤95% Relative Humidity |
Application
Three phase transformer is mainly used for machine tools, laboratory equipment, meters and instruments, medical devices, imported or exported electrical equipment and so on.

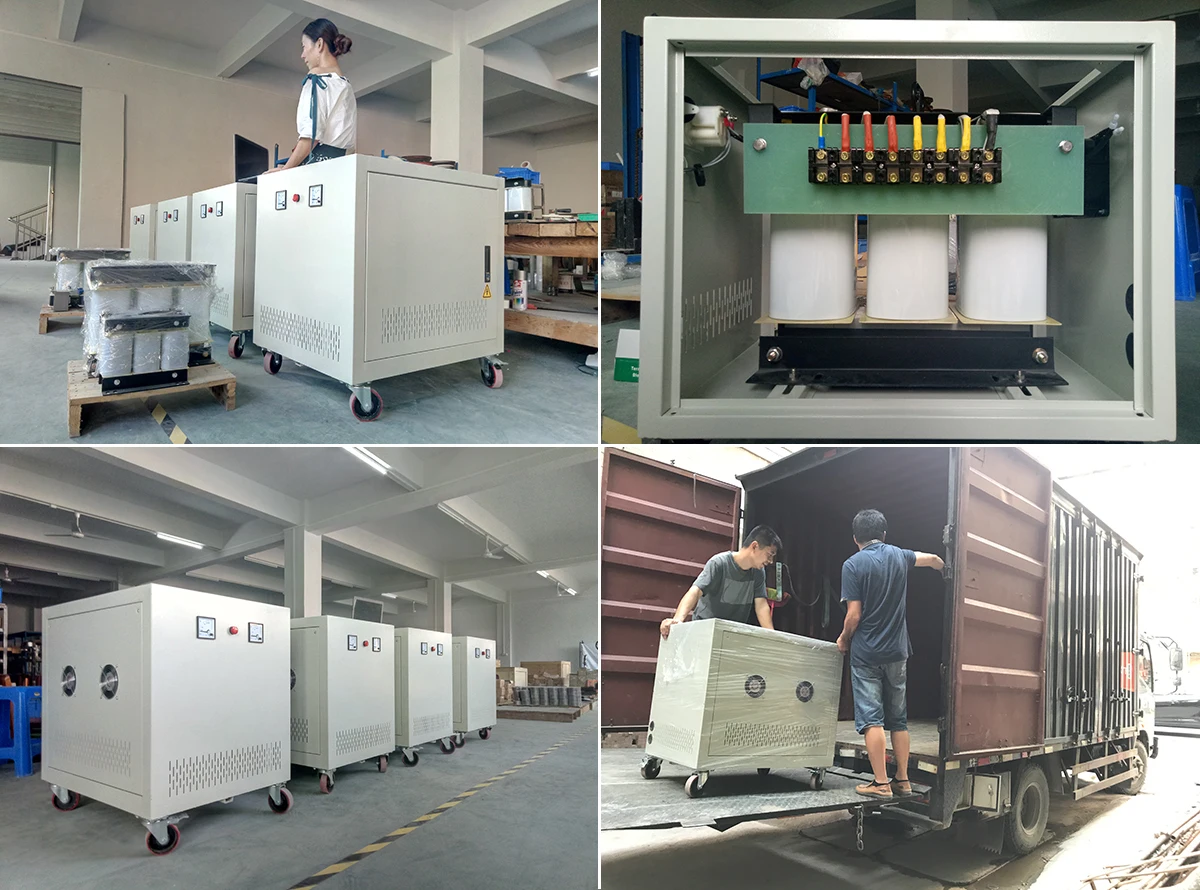

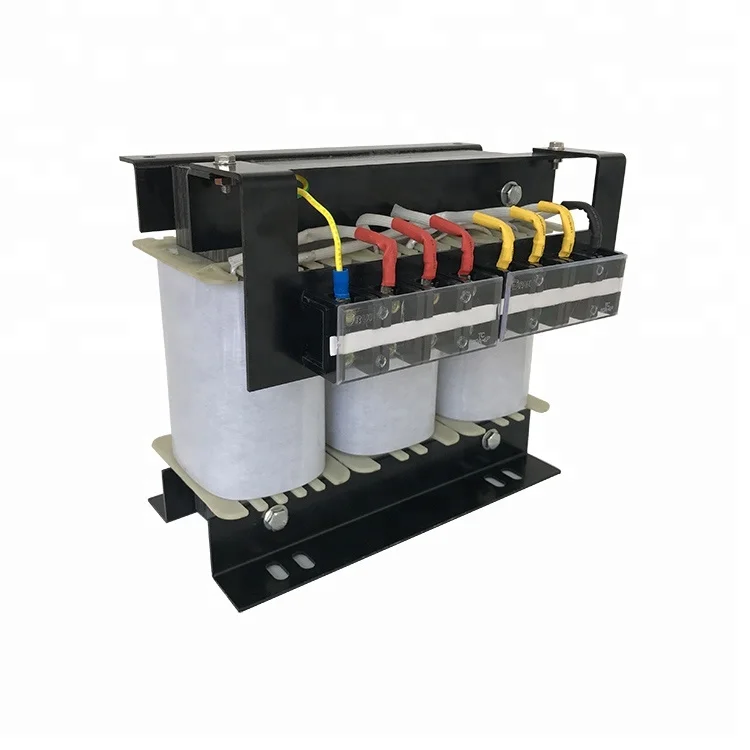

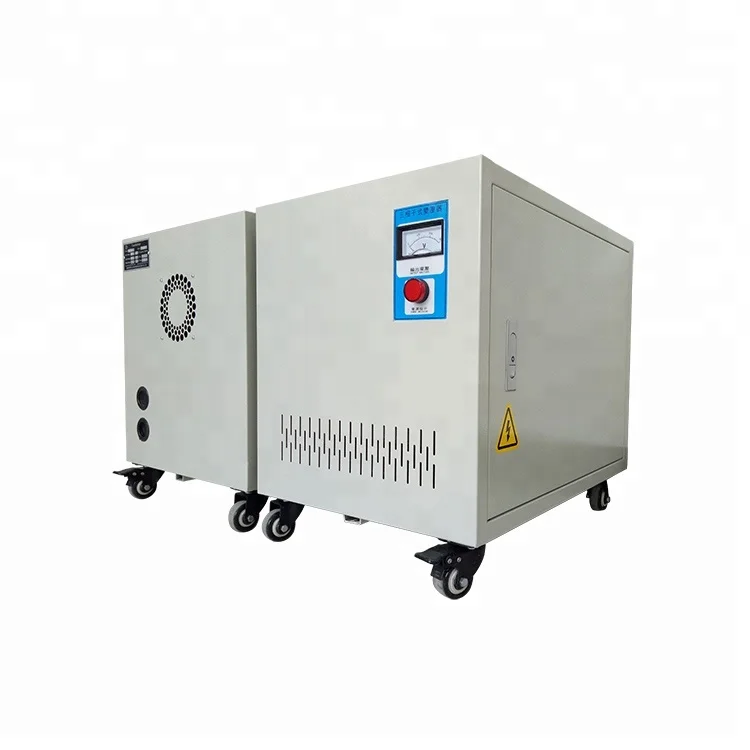

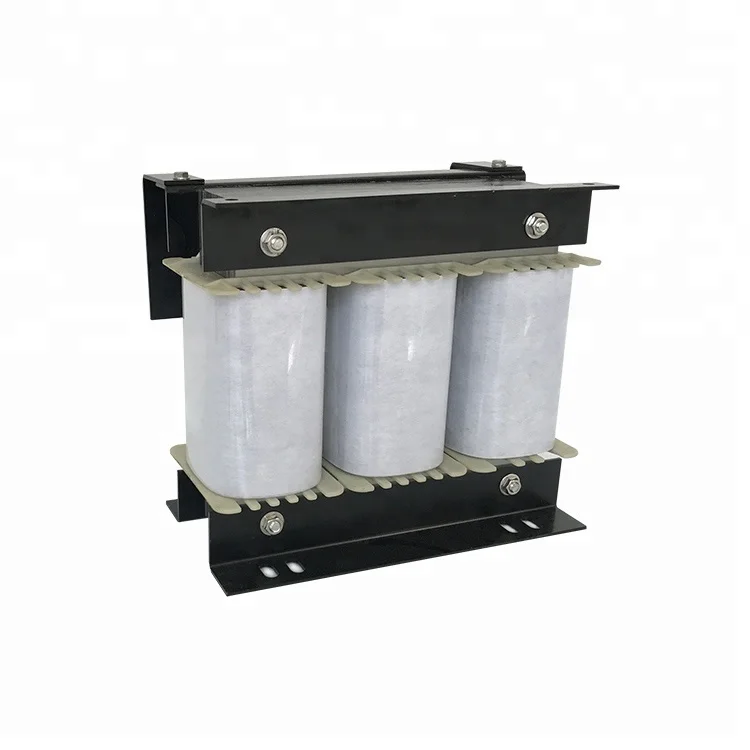

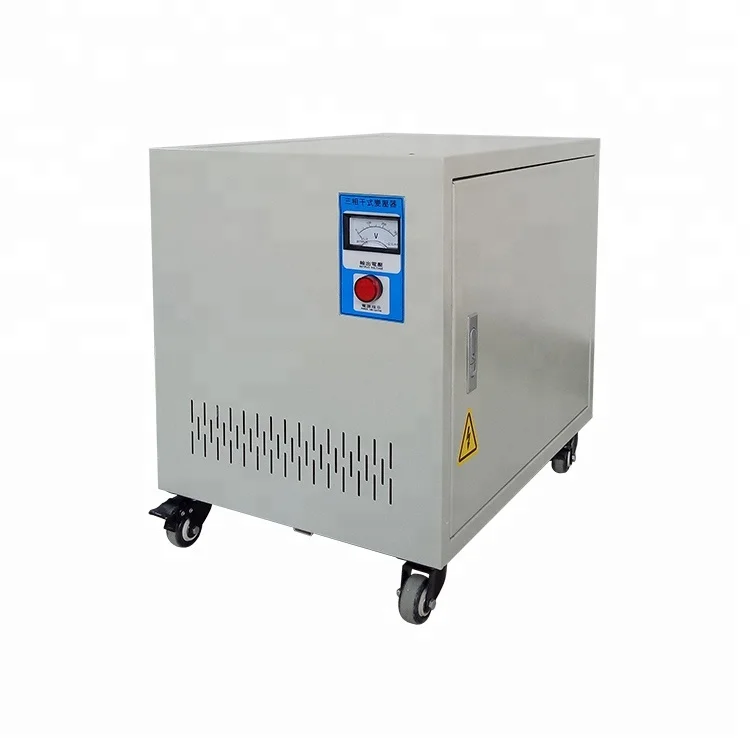

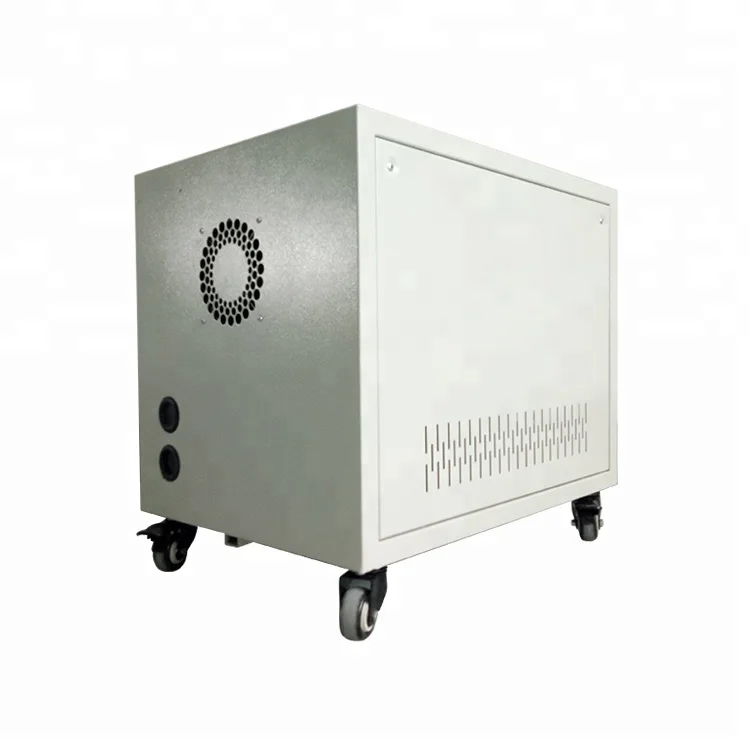

Product Pictures
