low price Split High Pressure High Temperature Solar Water Heater good quality manufacturer

Product Overview

Description

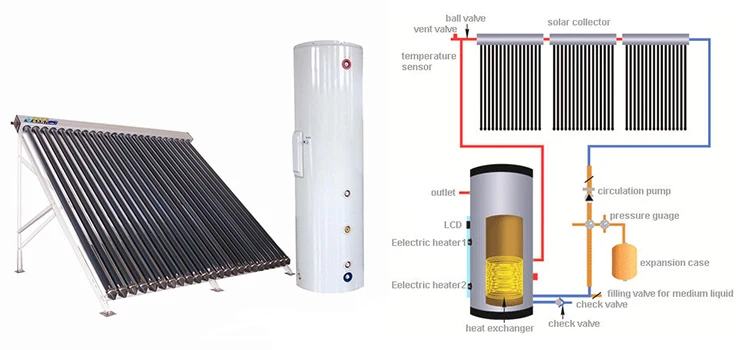

 Split pressurized solar water heater features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one .
3. The pressurized solar water heater collector and the split solar water heater tank is separated,
that makes the system combine with the building perfectly, which will reduce the sightseeing for the
building and environment around .
4. Back up with electric heater so that in the day without sunshine hot water can also be used.
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

Descripition Split pressurized solar water heating system
Material of out manifold 0.55mm thickness color steel/ fluorine carbon steel
0.55mm thickness color steel/ fluorine carbon steel SUS304 stainless steel
Tank insulating layer 50mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole Male G3/4
Max pressure 0.6 Mpa
Solar collector tube 3.3 Borosilicate glass with N/Al coating
Thickness of glass tube 1.6mm
Vacuum tube tightness P≤0.005 Pa
Absorption as=0.93-0.96 (AM1.5)
Idle sunning property parameters Y=220~260m2.C/KW
Average heat loss coefficient ULT=0.6~0.7W/(m2.C)
Bracket: 2.0mm thickness aluminum alloy
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Tank capacity 200L
Solar collector 1pcs 58x1800x20tube solar collector
Absorber area 1.875m²
Working station Normal pump station
Heat exchanger length 18m
Idle sunning property parameters Y=220~260m2.C/KW



Descripition	Split pressurized solar water heating system
Material of out manifold	0.55mm thickness color steel/ fluorine carbon steel
0.55mm thickness color steel/ fluorine carbon steel	Food grade 1.5mm thickness SUS304 stainless steel
Tank insulating layer	50mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole	Male G3/4
Max pressure	0.6 Mpa
Solar collector tube	3.3 Borosilicate glass with N/Al coating
Thickness of glass tube	1.6mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	as=0.93-0.96 (AM1.5)
Idle sunning property parameters	Y=220~260m2.C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2.C)
Bracket:	2.0mm thickness aluminum alloy
Welding:	Argon arc welding
Fastening pieces:	Made of stainless steel screw
Tank capacity	200L
Solar collector	1pcs 58x1800x20tube solar collector
Absorber area	1.875m²
Working station	Normal pump station
Heat exchanger length	18m
Idle sunning property parameters	Y=220~260m2.C/KW



                                                    Pipe Technical Data

Item	Measured value
Heat conduction coefficient	>99%
Axial heat transition auantity	0.93-2.49kw/cm²
Heat conduction speed	>200mm/s
Axial temperature difference	1-2centi-degree/m
Starting temperature	20centi-degree
Starting speed	2min
Working temperature range	30centi-degree~300centi-degree
Resistance to low temperature	-35C
Life	>10years
