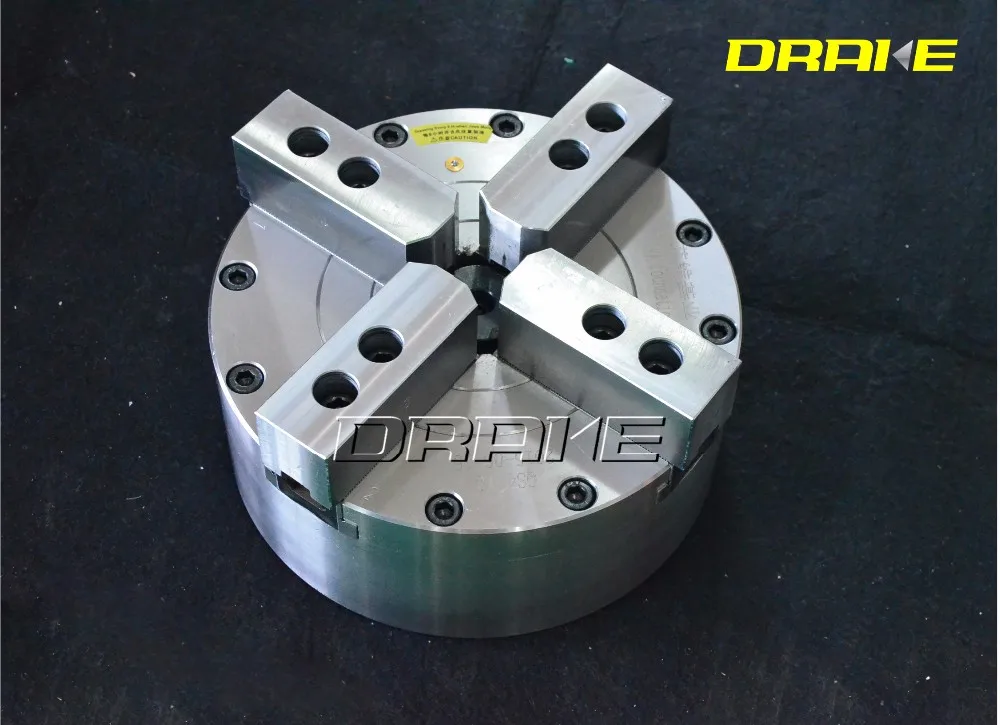

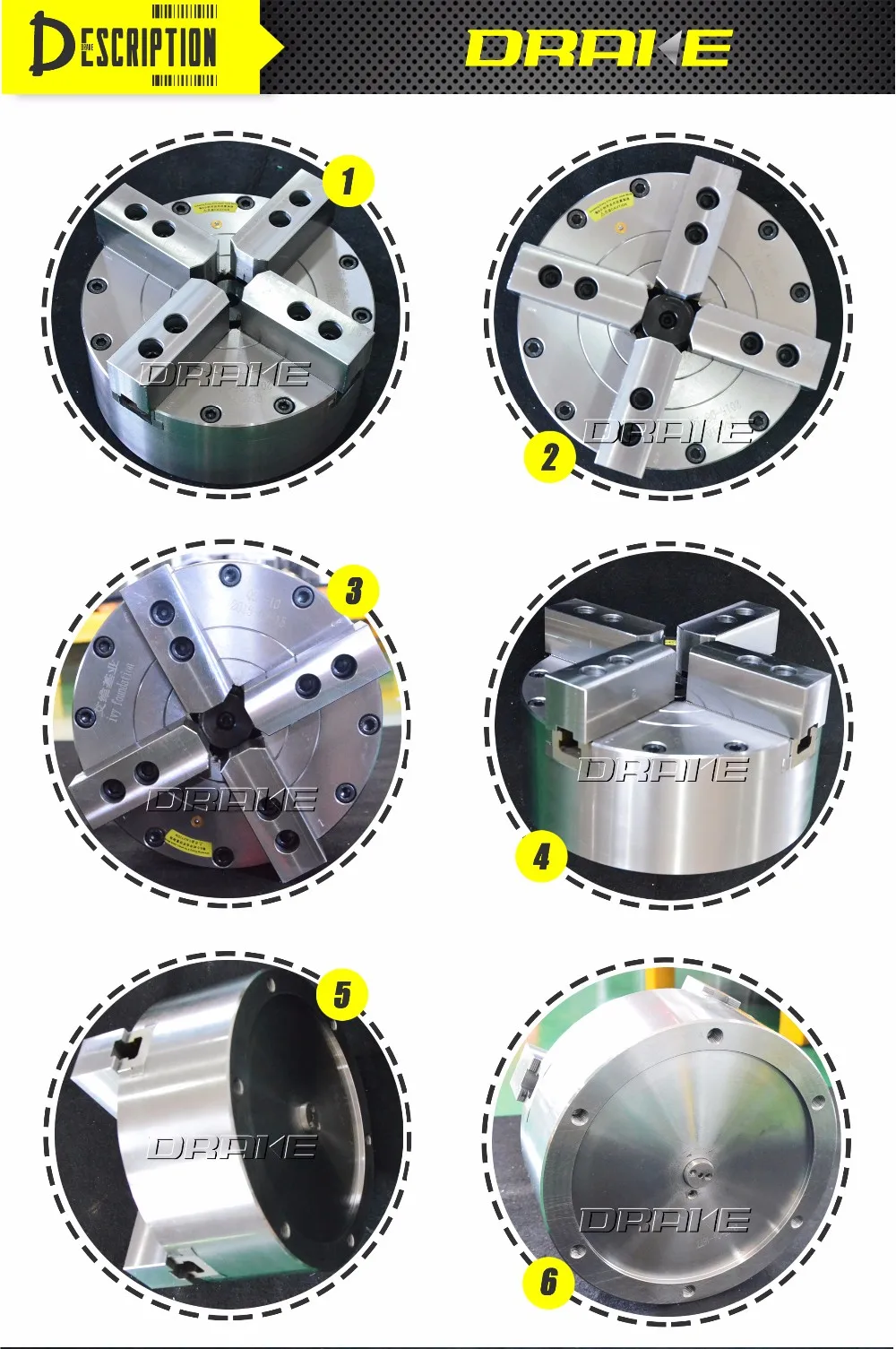

1. The chuck is a built-in cylinder with large clamping force, good sealing, high
precision, safety and reliability, nice economical and pracitical applicability
and long serve life.
2. The chuck can be used for precessing square parts and other special-shaped parts.
Parameters
There are three questions to answer to aid the correct choice of power chuck: 1. Type and model of CNC lathe. 2. Length of workpiece? 3. Outer diameter of workpiece? 4. Processing requirement?

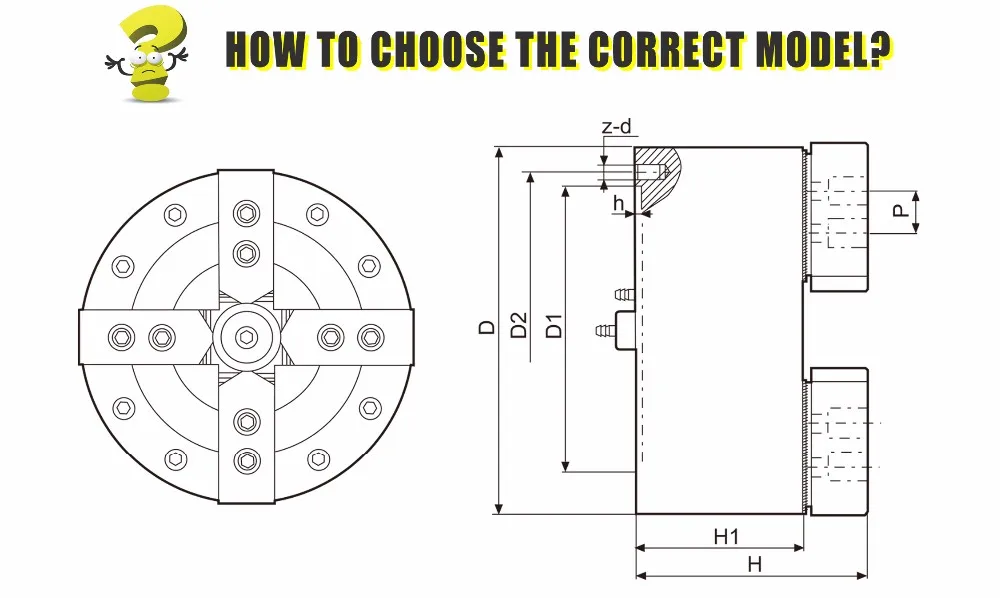

Size Parameters
Model/Spec.
D
D1
D2
H
H1
h
P
z-d
QS4-05"
135
95
108
118
85
4
18
3-M8
QS4-06"
180
130
142
130
93
4
20
3-M8
QS4-08"
208
165
180
136
100
5
25
3-M10
QS4-10"
252
206
226
143
102
5
30
3-M10
QS4-12"
322
270
290
160
115
6
30
6-M12
QS4-15"
400
340
368
168
118
6
43
6-M16
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
Model/Spec.
Jaw Stroke
(Diameter) (mm)
Maximum static
clamping force(kgf)
Maximum static
holding force(kgf)
Permissible
pressure(mm)
Limit speed
(r/min)
Clamping
range
Holding
range
Net weight
(Kg)
QS4-05"
3.7
2856
1836
0.4-0.8
4000
10-140
25-140
12
QS4-06"
4.2
4896
2652
0.4-0.8
3600
15-180
30-180
14
QS4-08"
5
7140
4284
0.4-0.8
3300
20-220
40-240
24
QS4-10"
6.5
9282
6120
0.4-0.8
3000
30-260
50-280
37
QS4-12"
8.5
14076
9486
0.4-0.8
2500
40-350
60-360
72
QS4-15"
12
19788
15096
0.4-0.8
2000
60-420
80-440
122

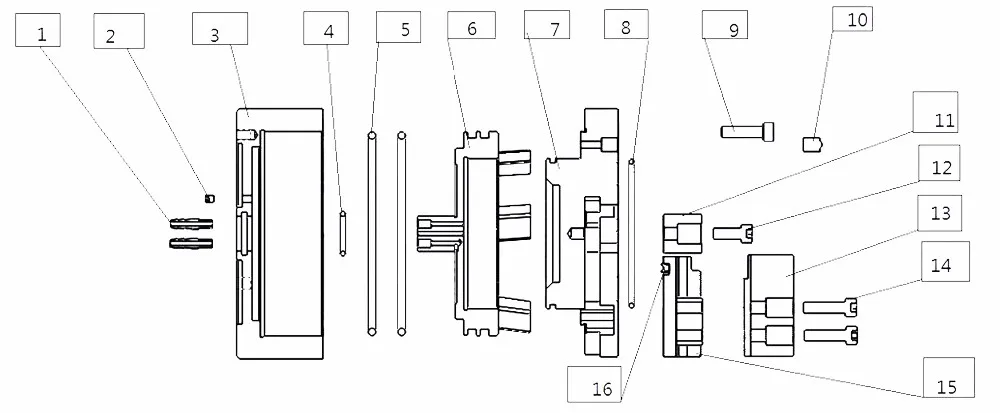

No.
Name
No.
Name
1
Hose fitting M6
9
Hex.socket head bolt
2
Hex.socket head bolt
10
Grease nipple
3
Body
11
Center fixed cap
4
O-type sealing ring
12
Center fixed cap connection screw
5
Cylinder O-type sealing ring
13
Soft jaw
6
Plunger
14
Chuck jaw connection screw
7
Cover plate
15
Master jaw
8
Cover plate O-type sealing ring
16
Y-type sealing ring

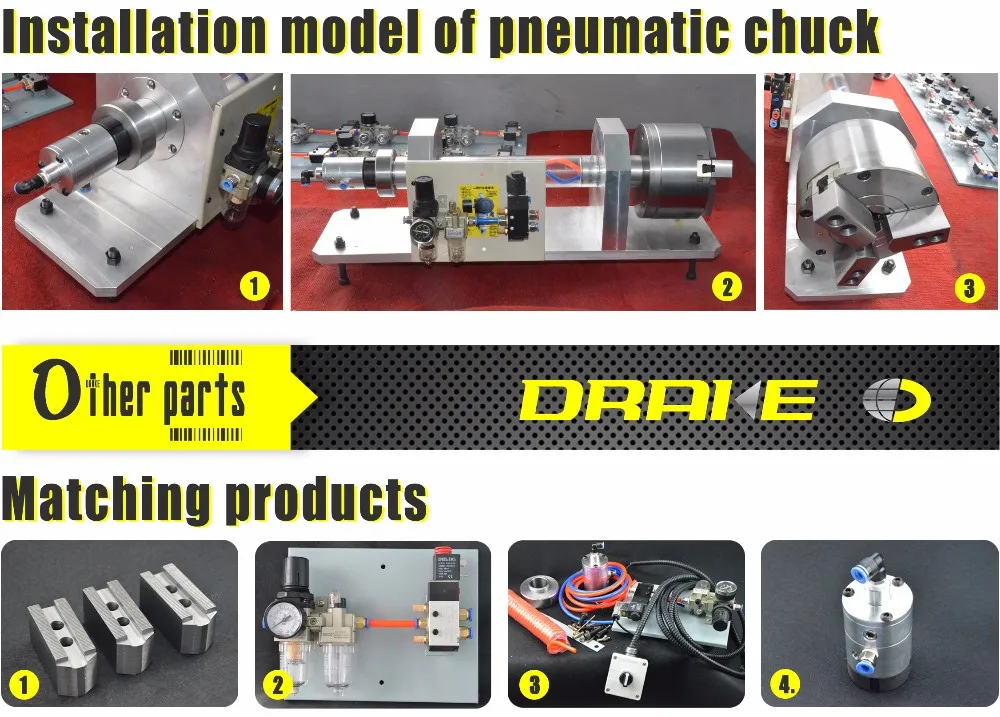

Matching products
The matching products including:
1. soft jaws.
2. Oil-water separator, manual solenoid valve.
3. Air hose, manual-switch, Hex. socket head bolt, axle sleeve.
