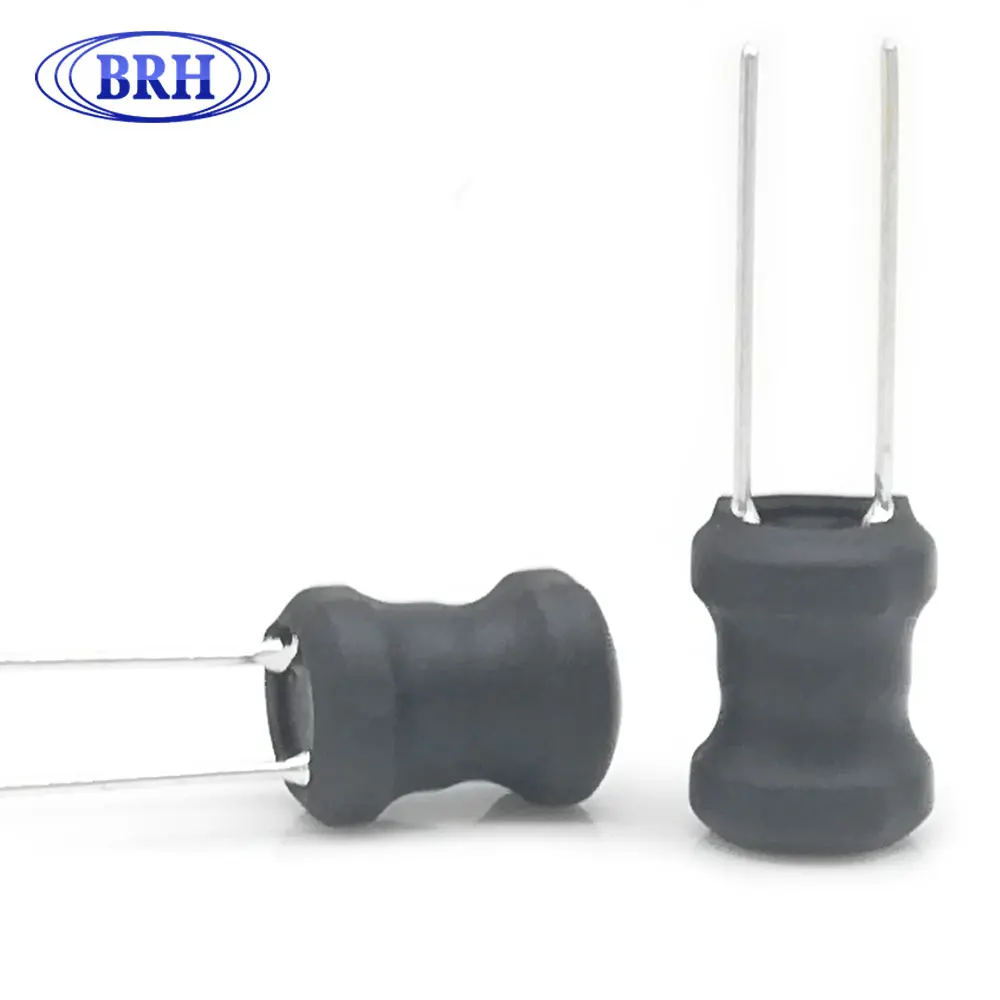

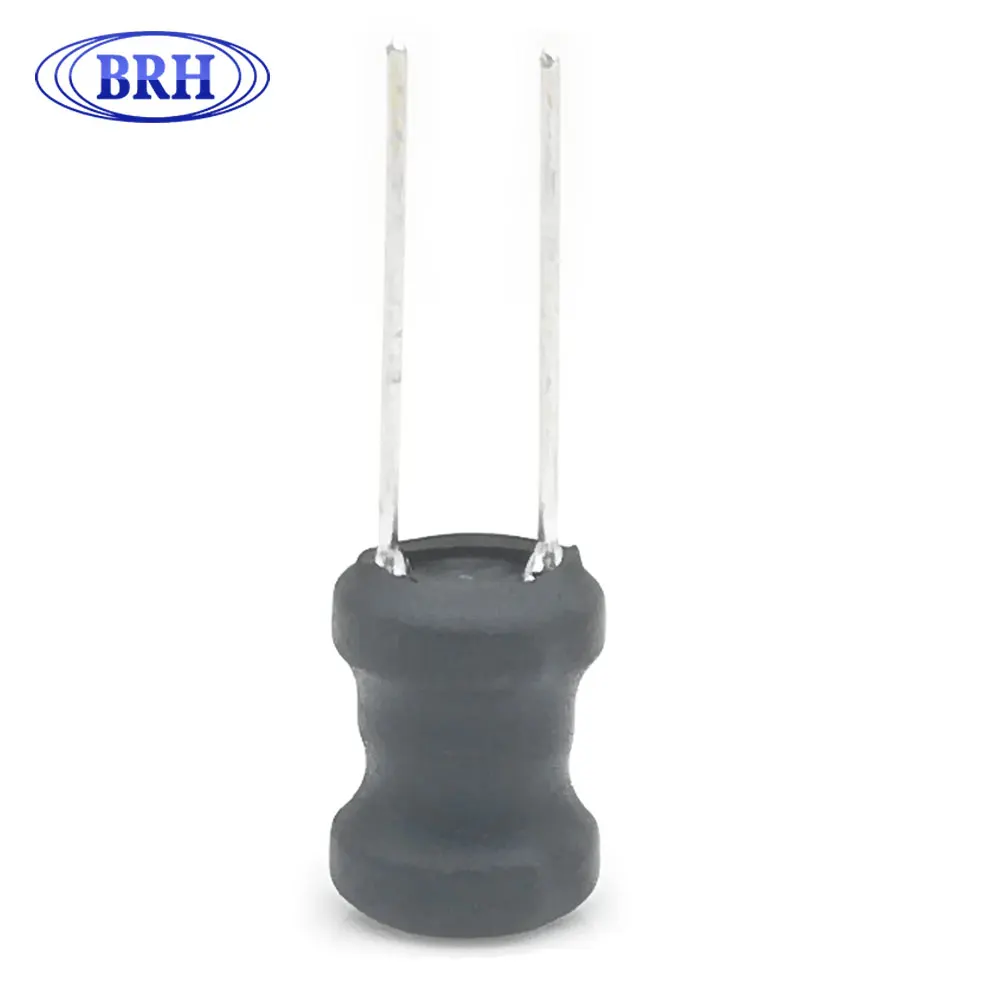

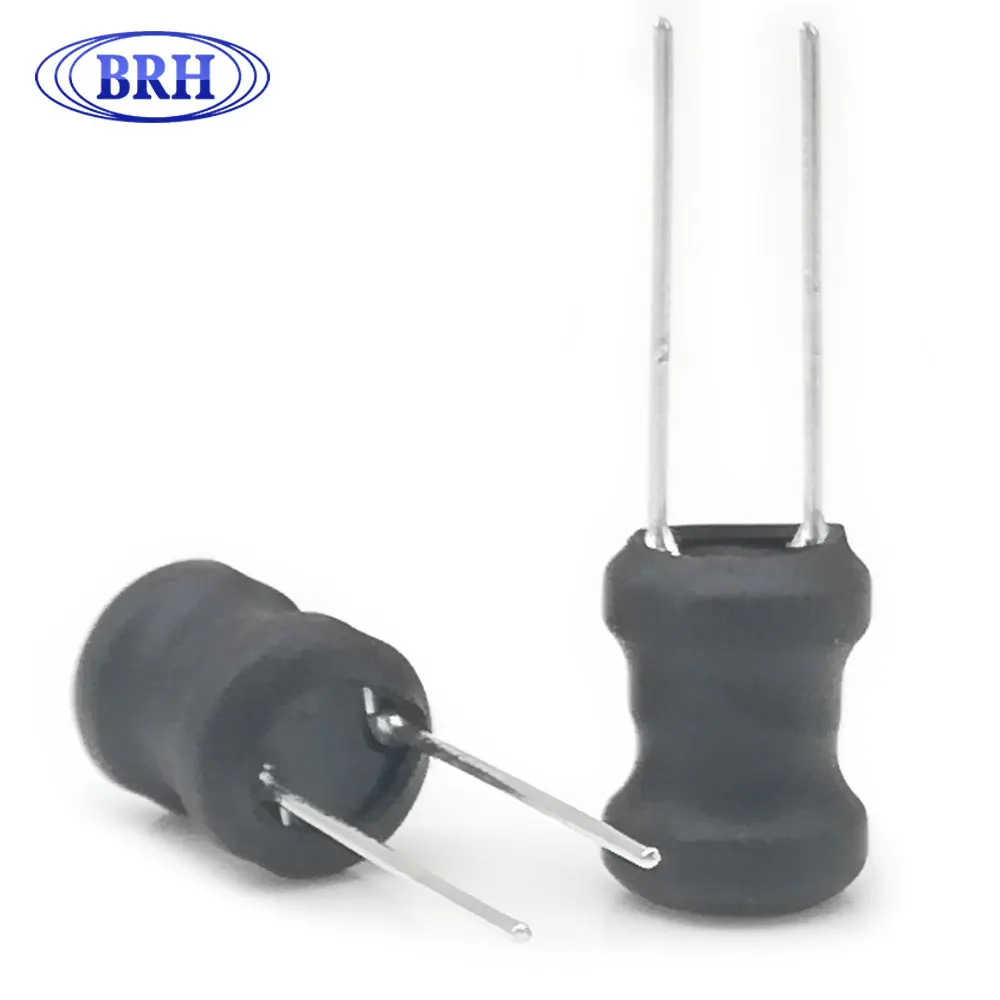

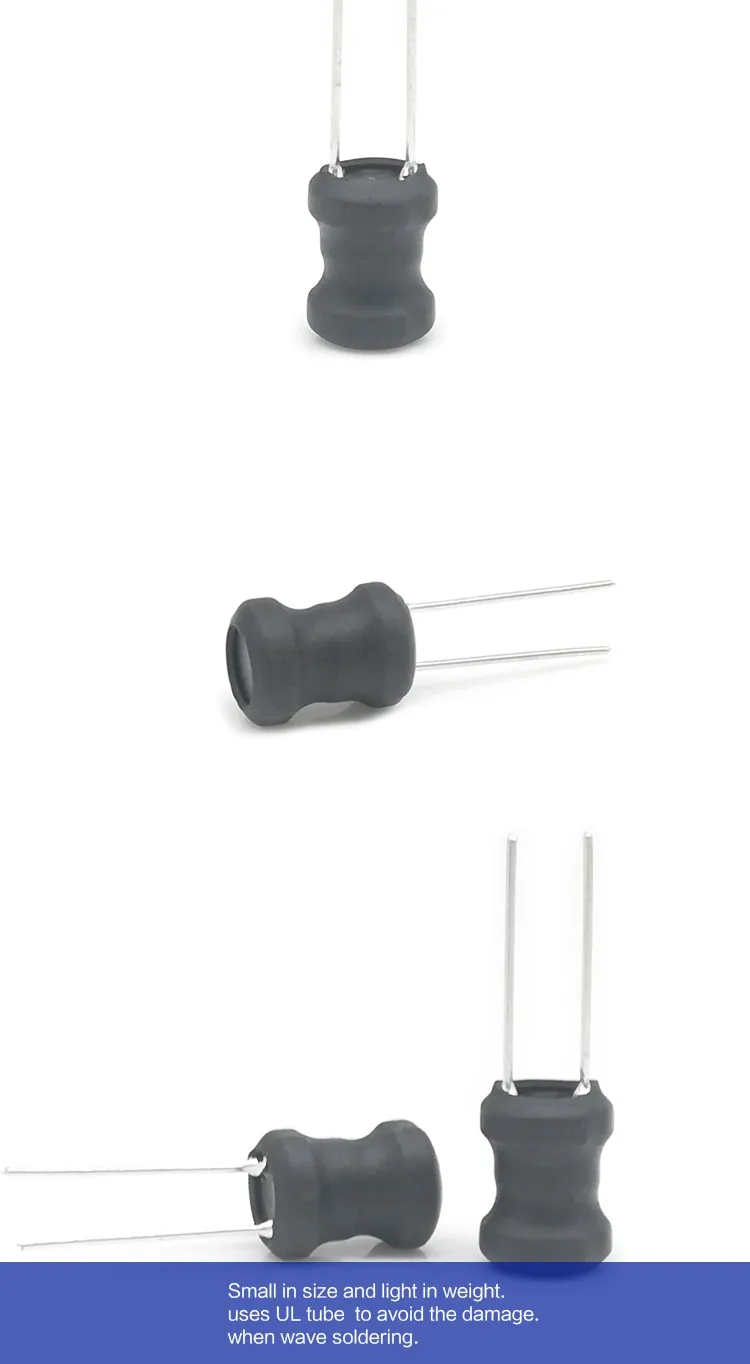

8*10 radial leaded drum inductor choke coil 47uh 1.5A
- Category: >>>
- Supplier: Shenzhen Yan Bai Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60778365506):
Product Overview
Description
Description

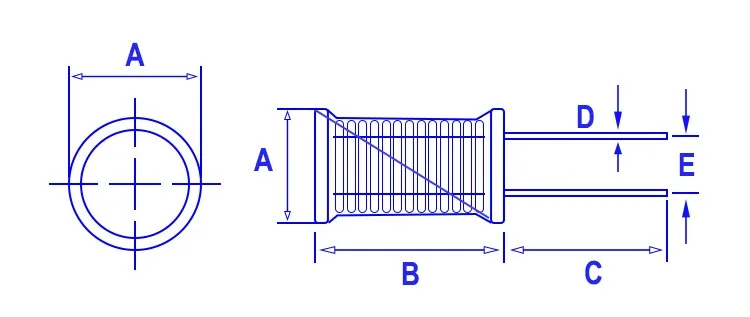

| DIMENSIONS(mm) | A | B | C | D | E |
| RI0810-470K | 10.5MAX | 12.5MAX | 15.0±2.0 | 0.6±0.1 | 5.0±0.5 |
| MATERIAL | ||
| CORE | WIRE | Sn |
| DR 8*10 FSO | 2UEW/φ0.35/36.5TS(REF) | |
Parameter
| ELECTRICAL CHARACTERISTIC | |||
| ITEM | SPEC | TEST EQUIPMENT | TEST CONDITION |
| L | 47±10% | TH2816A | 1KHz/0.25V |
| DCR | 0.15 MAX | 502BC | |
| IR | 1.5 MAX | TH1775 | |
| ELECTRICAL CHARACTERISTICS | |||
| ITEM | L(mH) | DCR(Ω) | L(uH)/0.48(A) |
| SPEC | 47±10% | 0.15(max) | Ir: 1.5A MAX |
| 1 | 46.1 | 0.0970 | 45.0 |
| 2 | 45.6 | 0.0963 | 44.0 |
| 3 | 45.8 | 0.0967 | 44.0 |
| 4 | 46.2 | 0.0965 | 45.0 |
| 5 | 46.0 | 0.0968 | 44.6 |
| 6 | 45.7 | 0.0966 | 44.3 |
| 7 | 45.6 | 0.0969 | 44.7 |
| 8 | 46.1 | 0.0970 | 44.9 |
| 9 | 45.8 | 0.0965 | 44.5 |
| 10 | 46.2 | 0.0963 | 44.8 |
| | | | |
| X-bar | 45.9 | 0.0967 | 44.6 |
| R | 0.6 | 0.0007 | 1.0 |
| RELIABILITY TEST | |
| STORAGE TEMPERATURE: | -40℃~85℃ |
| OPERATING TEMPERATURE RANGE : | -40℃~+125℃(CONTAIN HEATING COIL) |
| EXTERNAL APPEARANCE: | NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION. |
| TERMINAL STRENGTH: | FIXED INDUCTORS,ONE END OF THE ELECTRODE WITH 0.45KG PULLING FORCE,GUIDED THE NEEDLE DOES NOT FALL OFF. |
| INSULATING RESISTANCE: | THE INSULATION RESISTANCE SHOULD BE OVER 1000MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE. MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE. |
| HUMIDITY TEST: | INDUCTANCE DEVIATION IS WITHIN ±10.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96±2hours TEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90~95% AND TEMPERATURE OF 40±5℃. AND 1 HOUR STORAGE UNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH. |
| VIBRATION TEST: | INDUCTANCE DEVIATION IS WITHIN ±10.0% AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS. NAMELY, FREQUENCY IS10~55Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm . |
