Product Overview
Description
16x4 character lcd display module CM164-1
Product Description
Model No.: CM164-1SLYA
Number of character: 16*4
Size: 87*60*12.5mm
VA: 61.5*26m
Drive method: 1/16 duty, 1/5 bias
View angle: 6: 00
Display: STN yellow-green or blue model
Voltage: 5 or 3.3V
Controller: SPLC780

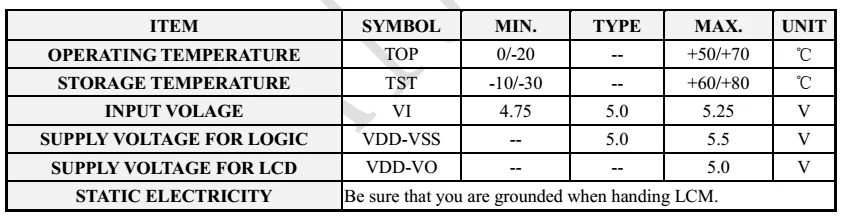

TOP: -20 - +70ºC
TST: -30 - +80ºC
16x4 character lcd display module CM164-1
16x4 character lcd display module CM164-1
16x4 character lcd display module
16x4 character lcd display module
Product Certificates
16x4 character lcd display module
Our Services
Our advantage and service
15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free sample for some styles
Contact Us
Shenzhen Brilliant Crystal Technologic Co.,ltd
Bella Zou
Skype:cjsz2002
QQ:2829642402
cjsz2002#hotmail.com
Celand whatsapp:+86-15889302786
Tel:+86-0755-29485608
Website:www.cjlcd.com & www.cj86.com
https://szcmlcd.1688.com/
Related Product
Related Product for 16x4 character lcd display module
About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.
| Display Content | Model No. | Outline Size(mm) | V.A(mm) | Dots Size | Controller | Voltage | Interface |
| 8x2 | CM802-1 | 40×35×7 | 28×14 | 0.5×0.5 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-2 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-6 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 12x1 | CM121-1 | 103×35×11 | 76×25 | 1×1.4 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-1 | 80×36×12 | 64×13.8 | 0.55×0.7 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-2 | 122×33×14 | 99×13 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-1 | 122×44×13.4 | 99×24 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-3 | 84×44×13.7 | 62×18 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-4 | 80×36×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-10 | 84×44×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-11 | 80×36×12.5 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-12 | 85×36×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-13 | 80×36×12.5 | 64.6×13.8 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |

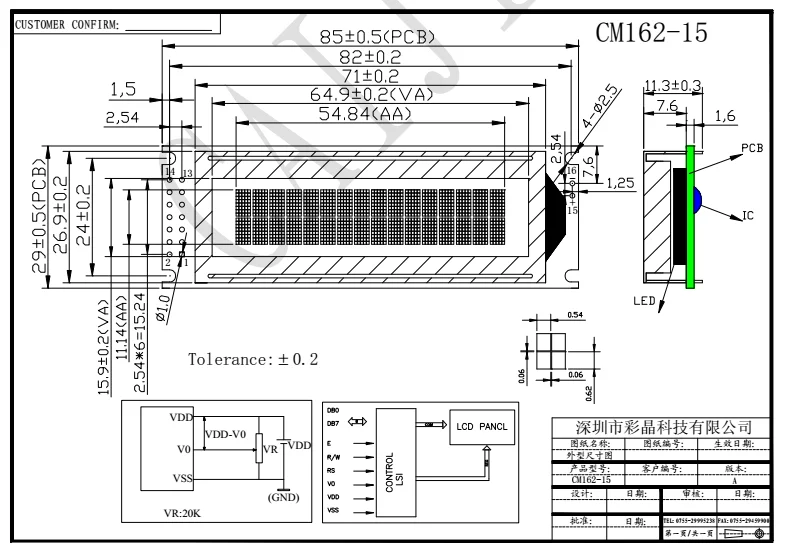

| 16x2 | CM162-15 | 85×29×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-17 | 85×36×14 | 62×16 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-36 | 80x36x11.3 | 64.9x15.9 | 0.54x0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-1 | 87×60×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-2 | 87×55×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-1 | 116×37×12.5 | 83×18.5 | 0.61×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-2 | 180×40×14.3 | 148×23 | 1.1×1.12 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-3 | 116×32.5×7.9 | 87.8×17.5 | 0.553×0.569 | SPLC780 | 5V | serial/parallel |
| 20x2 | CM9079 | 123×25×12.7 | 85×12.9 | 0.55×0.65 | SPLC780 | 5V | serial/parallel |
| 20x4 | CM204-1 | 98×60×14 | 76×26 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x4 | CM204-2 | 146×62.5×13 | 123×42.5 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 40x2 | CM402-1 | 182×33×11.5 | 154×15.8 | 0.6×0.65 | SPLC780 | 5V | serial/parallel |
| 40x4 | CM404-1 | 190×54×13.6 | 147×29.5 | 0.5×0.55 | SPLC780x2 | 5V/3V | serial/parallel |
