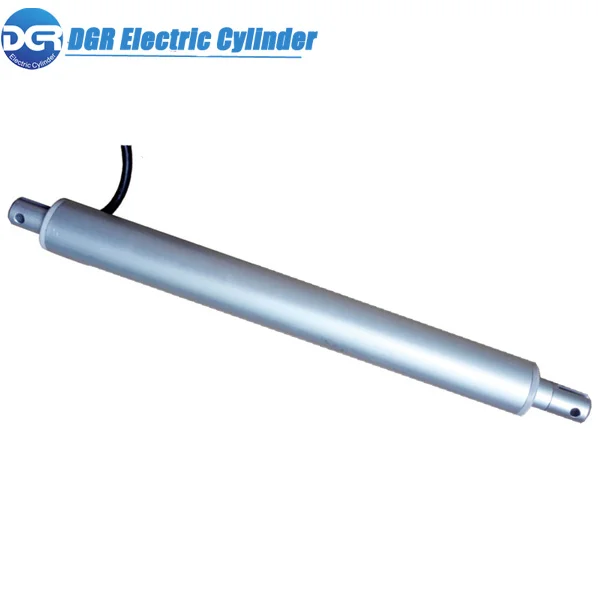

DC 12V 24V Electric Piston Linear Actuators For Opening Window Door Lock Roof Lifting
- Category: >>>
- Supplier: Shenzhen Superworker Technology Co. Ltd.
Share on (60778368300):
Product Overview
Description
Product Description
Mini electric linear actuator for tv lift Description:
Electric piston linear actuator combines a thrust tube and DC/AC motor to provide a push/pull force
Superworker eletric piston are available in many different sizes with variety of forces, voltage, speed or accessories, it is also available in both vertical and horizontal mode.
12v Small Rear Door Lock Linear Actuator Model designations: | ||||||||||||
DGR | EP | 45 | 24 | 300 | 20 | I | ||||||
Electric cylinder series | Electric piston series | Cylinder bore | Voltage 12=DC12V 24=DC24V 36=DC36V 48=DC48V | Stroke length | Speed 4 = 4mm/s 7 = 7mm/s 11= 11mm/s 13= 13mm/s 16 = 16mm/s 20 = 20mm/s 27 = 27mm/s | Motor mount Inline:I Parallel:U Vertical: L | ||||||
12v small rear door lock linear actuator Parameters: | ||||||||||||||||
Driving mode | Trapezoidal wire rod | |||||||||||||||
Position Repeatability(mm) | / | |||||||||||||||
Screw lead(mm) | 5 | |||||||||||||||
Max.Speed(mm/s) | 4 | 7 | 11 | 13 | 16 | 20 | 27 | |||||||||
Max.Thrust(KG) | 150 | 140 | 120 | 100 | 85 | 65 | 60 | |||||||||
Effective stroke length(mm) | 50 | 100 | 150 | 200 | 250 | 300 | ... | 1000 | ||||||||
Basic weight 0 stroke(KG) | ||||||||||||||||
Weight per 100mm stroke (KG) | ||||||||||||||||
Voltage DC(V) | 12/24/36/48 | |||||||||||||||
If your requirements are beyond the specification chart above, please contact us directly, we can able to customize according to customers' requirements on the load (up to 50ton), speed(up to 5000mm/s) and stroke (up to 3000mm).

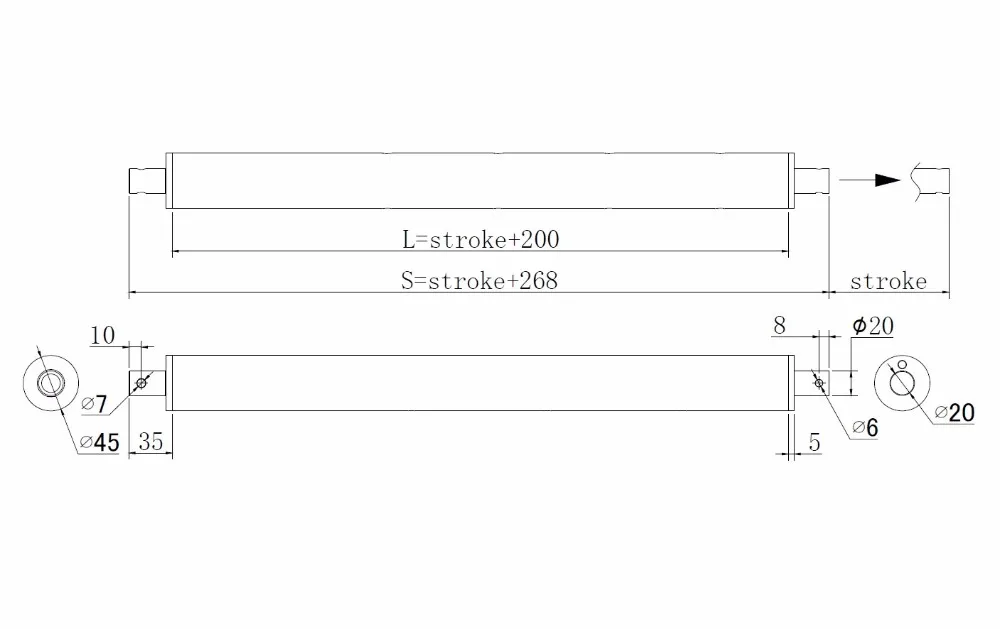

The dimensions of DGR-EP 12v small rear door lock linear actuator
Main Features of Mini linear actuator for tv lift | ||
Accuracy | High precision, repeatability up to 0.02mm. | |
Service life | Run over a distance of 100,000 km | |
Material Selection | 1.Aluminum alloy, Carbon Steel,Stainless Steel optional for cylinder body | |
2. Various surface treatment options (including: coating, azotizing, oxidation) | ||
3.Selected internationally-famous brands of motor, ball screws, bearings and gears | ||
Features | Rigid connection between the screw nut and the piston rod | |
Excellent Service | 1.DGR Electric cylinders can be fully customized for customer's particular application and requirements. | |
2. 1 year warranty and lifetime technical services | ||
Duty Cycle | The duty cycle is ensured to be greater than 50% or even 100% continuous operation. | |
Complete Testing | Professional inspection: including appearance, mechanical properties, stability, noise decibels, IP testing, etc. | |
Application Of Mini electric linear actuator for tv lift
Solar tracking system;
Industrial electric lifting system;
The medical electric bed, surgical bed, traction bed;
Sliding windows, opening doors, lifting roofs, lifting doors for cars and trucks
Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc;
Chair for medical use: Electric wheelchair, Massage Chair, dental chair
Certifications
Our Company
ABOUT SUPERWORKER | ||
Shenzhen DGR Electric Cylinder Technology Co., Ltd. is a high-tech innovative private enterprise specializing in design, manufacture and sales of linear actuators, including servo motor electric cylinders, stepper motor electric cylinders and AC/DC electric pistons. Since January 2014, Shenzhen DGR Electric Cylinder Technology Co., Ltd has introduced advanced technology and hired senior mechanical motion engineers for researching and developing linear motion system, the electric cylinder developed by the company featured high positioning accuracy, low noise, long life. It has received approvals and recognition from many famous enterprises. | ||
