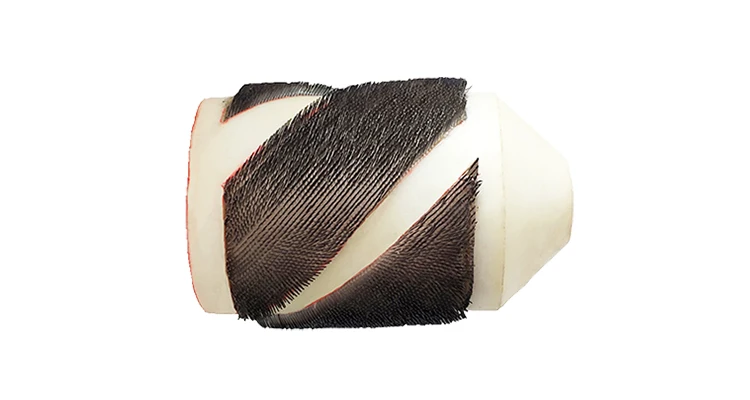

EMT Popular Selling Polyurethane Spiral Wire Brush Bare Foam Pig For Oil&gas Pipeline Cleaning,Customized Density Soft Polly Pig
- Category: >>>
- Supplier: Shenyang Emt Piping Technology Co. ltd.
Share on (60778377386):
Product Overview
Description
Product Description

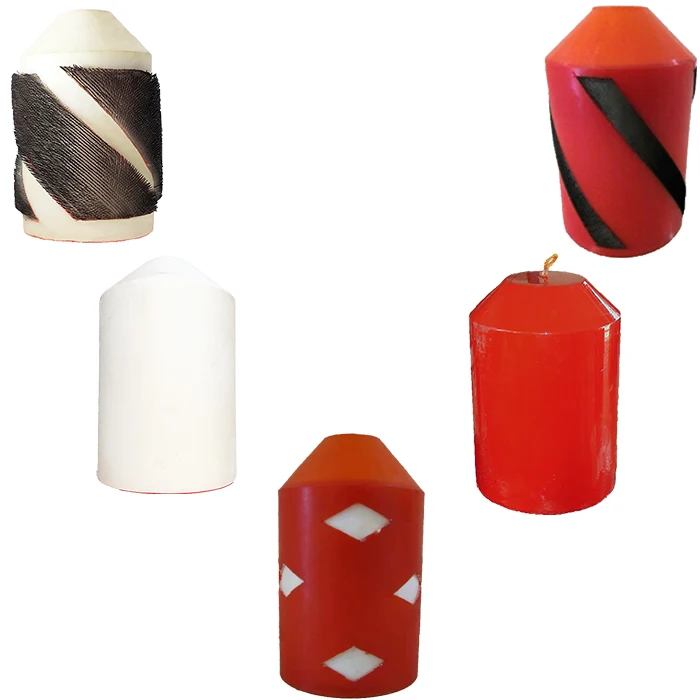

Foam pig mainly includes soft foam water absorbing pipe pigging, soft foam glue painted pipe pigging, soft foam steel brush pipe pigging. Soft foam water absorbing pipe scraper is made from polyurethane through foam formation(density 35-200g/m3, its end is painted with polyurethane material, shrink range is 3-5%, mainly used for the pipeline’s water absorbing, sealing, cleaning, and descaling.
LCQZ-RTB Foam Pigging
Starting pressure: 0.03 MPa
Density: 35 kg/m³~200 kg/m³
Withstand pressure: 7 MPa
Stretch rate: 320%
Compression ratio: 40
Flex life: 50,000 times
Attrition rate: 2 mm/100 km
Operating distance: 50 km~150 km
Operating temperature: -30℃~100℃
Polyurethane material specification:
| NO. | Factory inspection main indicators | Cup/DISC |
| 1 | 20℃Hardness(SHORE A) | 85±2 |
| 2 | Tensile strength (MPa) | 51.7 |
| 3 | 100%stress at definite elongation (MPa) | 4.8 |
| 4 | 300%stress at definite elongation (MPa) | 9.2 |
| 5 | Tensile set (%) | 780 |
| 6 | Tear strength (KN/m) | 73.0 |
| 7 | Impact resilience (%) | 32 |
| 8 | DIN abrasion (mm²) | 35 |
If you have any request of pigging products,just contact us,we can design products as your require!

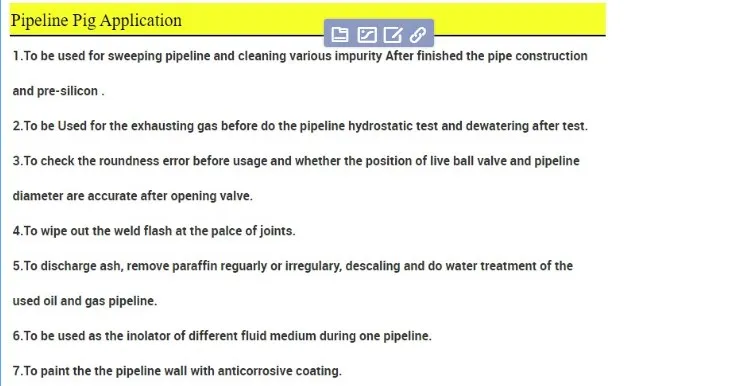

Foam Pig Application
Why Choose Us?
EMT has own factory and reliable raw material supplier, so you can enjoy no MOQ and prompt delivery!
