100kN 200kN 300kN tensile and elongation test machine
Materials Tensile Strength Testing equipment + Material Testing laboratory equipments
WDW-100E, WDW-200E, WDW-300E
(0.5 Class, Floor-standing type)
Product Description
1. Applications & functions
WDW-E series Floor-standing Computerized Electronic Universal Testing Machines are suitable for tensile, compression, bending test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They may add test methods or rules according to customers requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
2. Main Features
This machine equips alternating servomotor for driving crosshead and imported photoelectric encoder for displacement measure. Control software can automatically finger out routine data, such as tensile modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc. It can realize three close loops control and real time display many testing curves of force-displacement, force-time, and stress-strain.
Test standard: ASTM A370, ASTM E4, ASTM E9, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002, etc.
3. Main Technical Specifications:
Model
WDW-5/10/20E
WDW-50E
WDW-100E
WDW-200/300E
WDW-500/600E
Max Load Capacity
5kN/10kN/20Kn
50kN
100kN
200kN/300kN
500kN/600kN
Load amplification
no range
Class of Machine
0.5
Load Range
0.4%-100%FS
Load Accuracy
Within ±0.5% of indicating load
Load Resolution
1/300000
Range of Deformation
4%-100%FS
Resolution of Deformation
0.01mm
Accuracy of Displacement
Within ±0.5%of indicating load
Resolution of Displacement
0.01mm
Range of Testing Speed
0.005 mm/min -500 mm/min, stepless and arbitrary setting
Effective Tensile Space
600mm
Max Compression Space
600-800mm
Power supply
1-phase, 220V-240V, 50Hz/60Hz
Or specified by users
3-phase, 380V-415V, 50Hz/60Hz
Or specified by users
4. Photos for English Testing software and test report

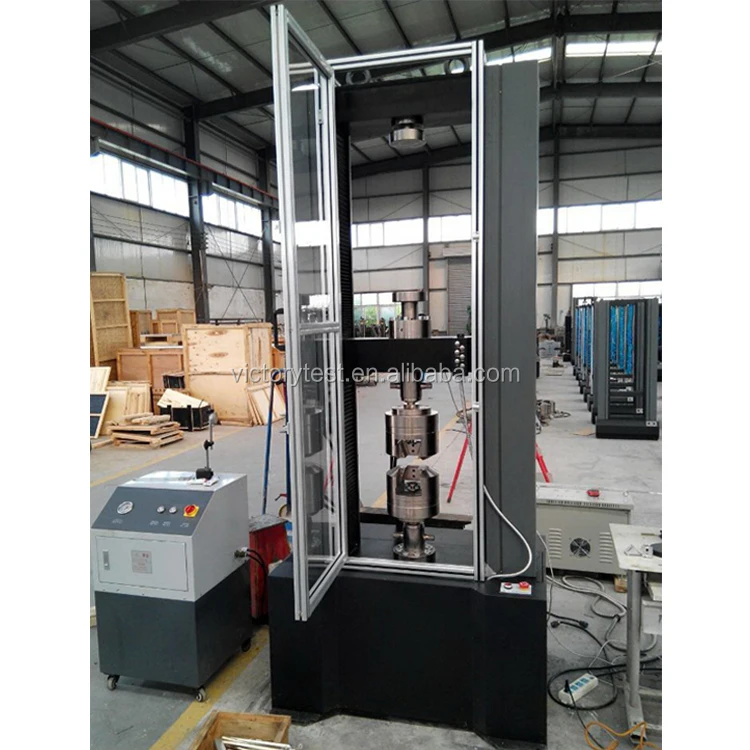

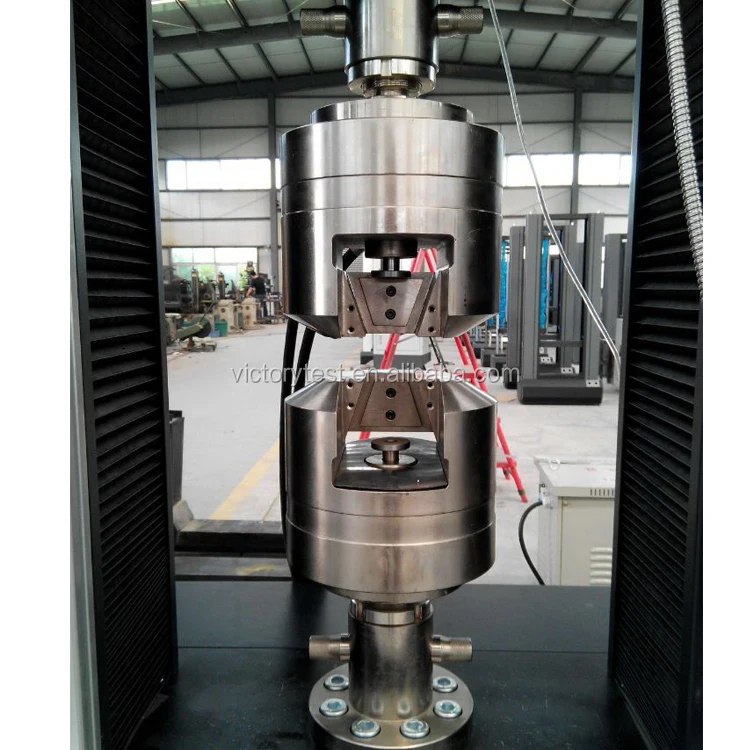

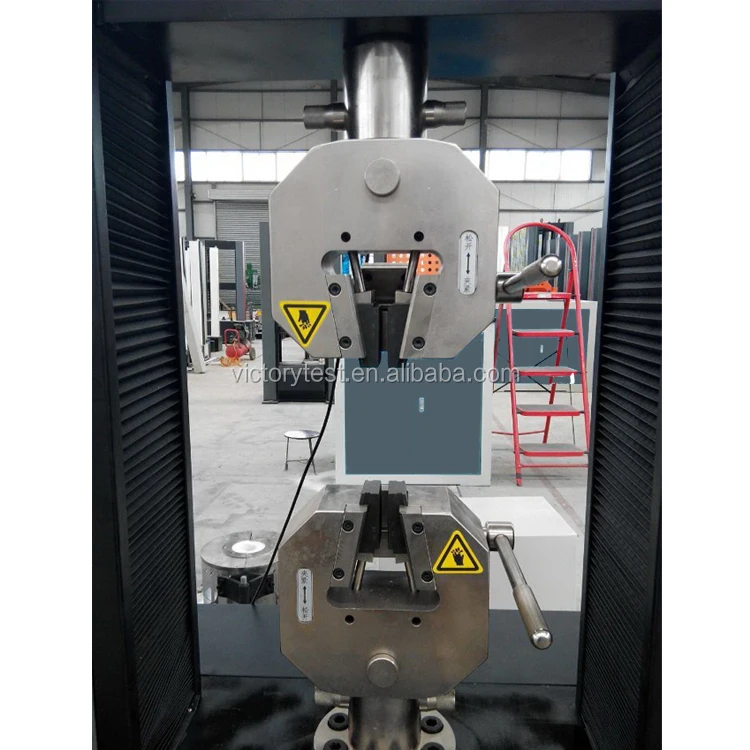

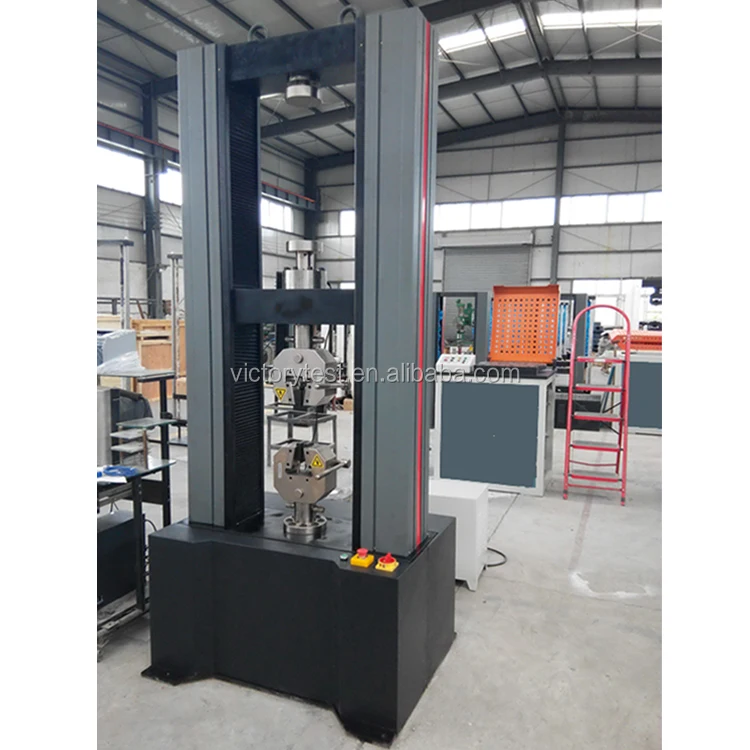

5. Photos in our factory
Packaging & Shipping
The package is Standard Export package-Plywooden case.
We can ship the machines 20 working days after order.
Our Services
Warranty Period is 13 months.
We can provide life-long after-sale service.
Company Information

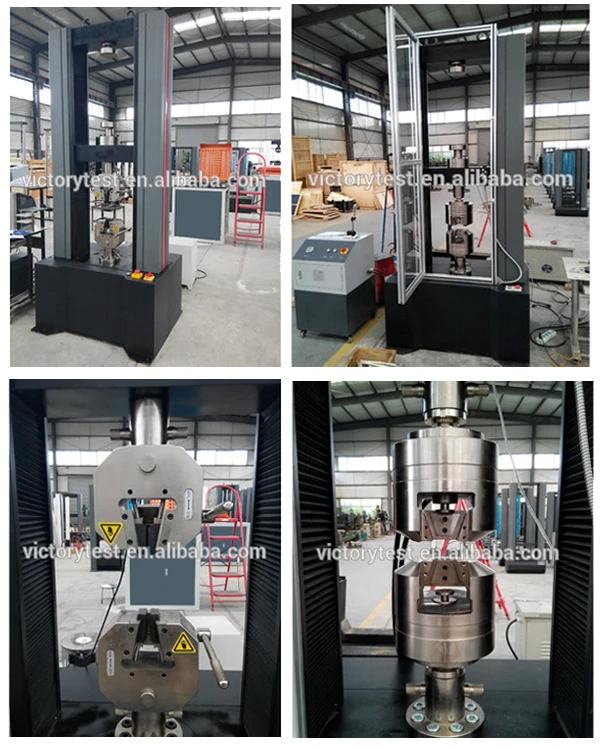

Our Factory photos for Materials Tensile Strength testing equipment
