Customized 12V 10A Power Supply 120W Regulated Transformer Power Supply With OCP/OVP For CCTV Camera/LED/SET BOX
- Category: >>>
- Supplier: Shenzhen Yidashun Technology Co. Ltd.
Share on (60778378650):
Product Overview
Description
Product Description
Customized 12V 10A Power Supply 120W Regulated Transformer Power Supply With OCP/OVP For CCTV Camera/LED/SET BOX

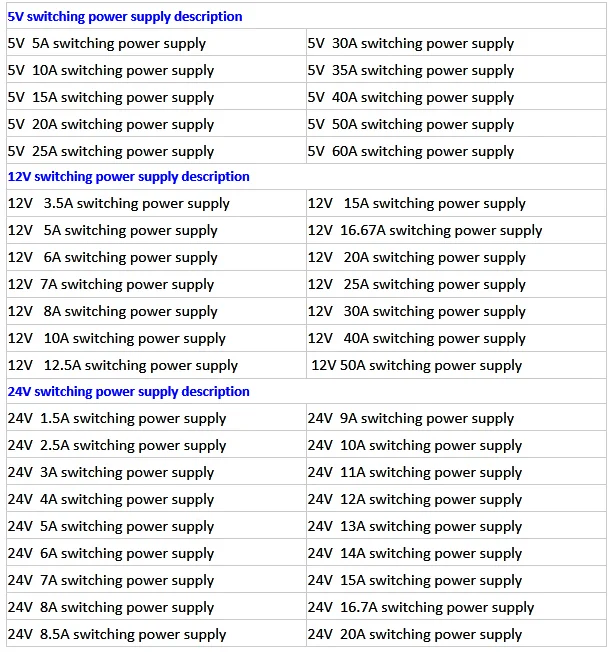

This kind of power supply is also called industrial switching mode power supplies (SMPS) – It is a type of AC to DC, it obtains energy from the power grid, a DC high voltage is obtained through high voltage rectifier filtering, DC/DC converter obtains one or more stable DC voltage at the output end, and the power can be produced from several watts to several kilowatts for different occasions. The specifications of switching power supply are various, the standard are 5V 12V 24V led power supply, including single output, dual output and triple output power supply. They are widely used for LED strip, led module, led lamp and CCTV camera.
Feature>>>
1, Low price and high reliability
2, 105 centidegree output capacitor
3, AC input power suitable for the world
4, High efficiency and low operation temperature
5, Soft-start current can reduce the AC input impact effectively
6, With short-circuit and overload protection
7, Compact size, light weight
8, 100% full-load burning test
Specification>>>
12V 10A Technical Specification | ||
Model No. | YDS12-120 | |
Input | Voltage | AC 100-240v |
Frequency | 50-60Hz | |
Output | Voltage | DC 12V |
Current | 10A | |
Power | 120W | |
Typical Efficiency | 73% | |
Adjustable Range of Voltage | DC 12V-12.5V | |
Max. Ripple & Noise | 250mV | |
Protection | Over Load | 105-115% of Rated Output Power |
Short Circuit | Protection Type: Auto Recovery | |
Electric Strength | High-pot test | 3KV AC |
Environment | Working temperature and humidity | -10°C~+60°C,20~90%RH |
Store temperature and humidity | 20°C~+85°C,10~95%RH | |
MTBF | >200K hrs.@25°C(MIL-HDBK-217F) | |
Warranty | 1 year | |
Feature | Dimension(L*W*H) | 199*98*41mm |
Weight | 390g | |
Inner box size | 209*102*47mm | |
Inner box weight | 36g | |
PCS/CTN | 50pcs | |
CTN size | 53*25*43cm | |
GW/CTN | 22.5kg | |
Safety & EMC | Safety Standards | EN55015/EN61000-3-2/EN61000-3-3 |

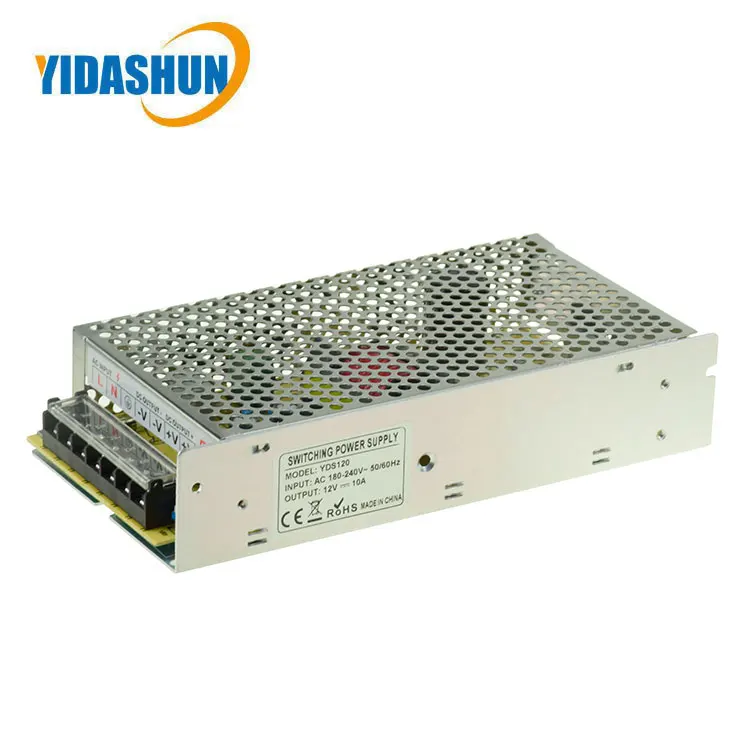

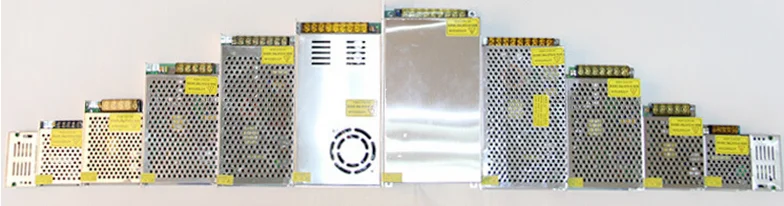

Product picture >>>

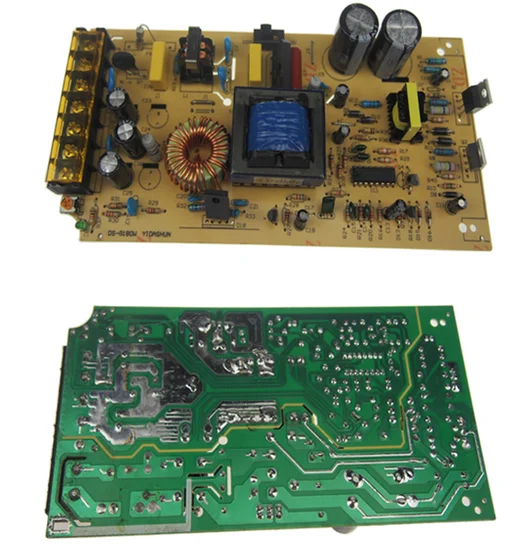

High quality PCB
Full capacity
More stable working condition
Strong heat spreading performance
100% raw materials testing
Customized power supply accepted within 1000w
1. 9 year professional manufacturer with factory direct sales prices.
2. Short and timely delivery period:1-5 days, depend on the quantity.
3.Every process through strict testing,we can ensure product quality.
4.Our product are very popular with buyers from various regions,and
can provide very competitive and wholesale price for you.
5. Our products are mostly certified by CE&RoHS&FCC&CB cetification.
Widely application>>>

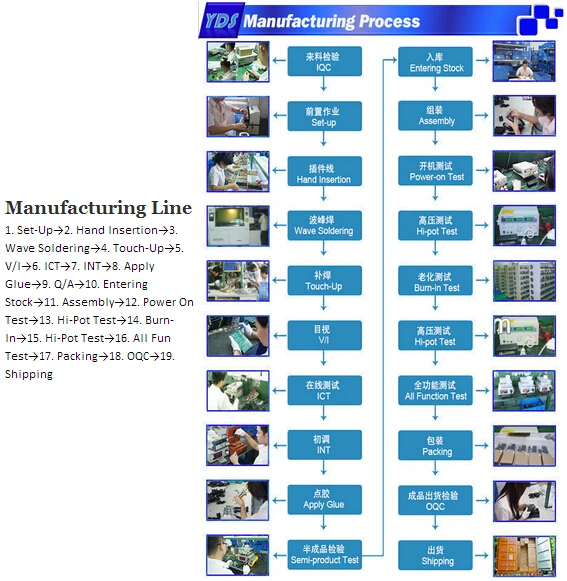

Manufacturing
Packaging & Shipping
1.We have long term cooperation express partners:DHL,Fedex,TNT,UPS,EMS...DHL/UPS/Fedex express
usually take 3-6 days to the destination.
2.Factory will arrange shipment immediately once full payment collected.
3.We can accept T/T, Western Union and Paypal for small order,the best way is direct payment,you can
choose by yourself. If you want other payment terms, please let us know before you place an order.
4. 30% deposit should be made as deposit before mass production and pay off balance before shipment.
Company Information

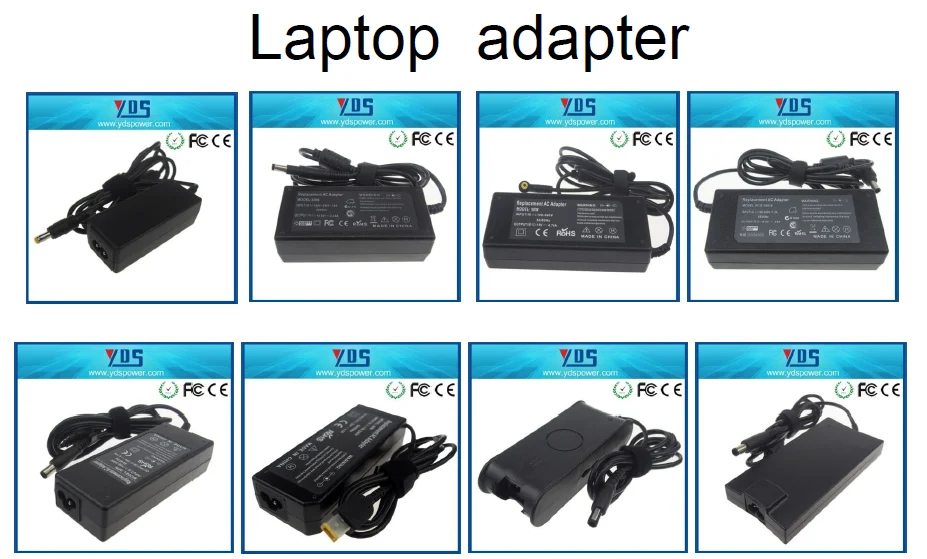

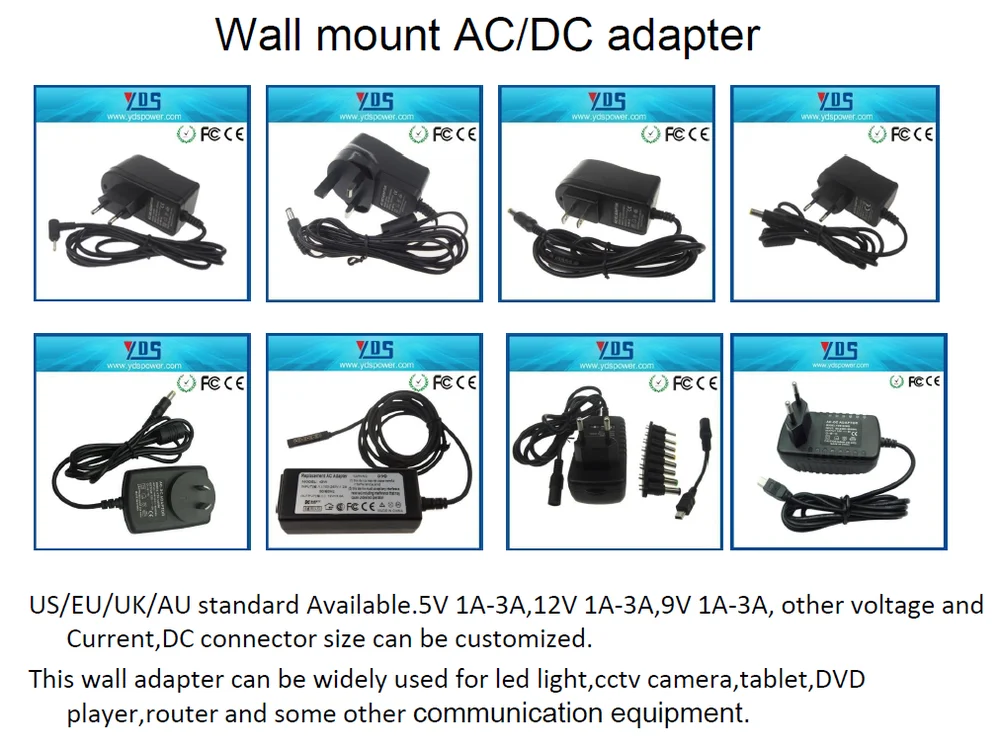

Related Product>>>
