450/750V YCW Rubber EPR/CPE Oil Resistant Cable
- Category: >>>
- Supplier: Zhengzhou Hesheng Cable Co. Ltd.
Share on (60778394666):
Product Overview
Description
Product Description
450/750V YCW Rubber EPR/CPE Oil Resistant Cable
1. Service Conditions
This product is suitable for A.C voltage 450/750V or below domestic appliances,power-operated tlls and various portable electric equipments.
2. Performance Characteristics
1) YZ model rated voltage U0/U is 300/500 V, YC model is 450/750 V .
2) Long time allow working temperature of wire core is not more than 60 .
3) W model cable has the property of durability , so it is suitable for outdoor work touching oil pollution .
4) ZR-model cable has the property of fire-resistance.
3. Model Name and Usage
Model | Name | Main Usage |
YQ YQW | Light Model Rubber Sheath Flexible Cable | Used for light portable electric equipment and tools |
YZ YZW | Middle Model Rubber Sheath Flexible Cable | Used for various portable electric equipment and tools |
YC YCW | Heavy Model Rubber Sheath Flexible Cable | Used for various portable electric equipment which can bear larger mechnical force effect . |
1x300mm2 1x240mm2 1x185mm2 1x150mm2 1x120mm2 1x95mm2 1x70mm2 1x50mm2 1x35mm2 1x25mm2 1x16mm2 1x10mm2 1x6mm2
3x150+1x50mm2 3x120+1x35mm2 3x95+1x35mm2 3x70+1x25mm2 3x50+1x16mm2 3x35+1x10mm2 3x25+1x10mm2
3x16+1x6mm2 3x10+1x6mm2 3x6+1x4mm2 3x4+1x2.5mm2 3x2.5+1x1.5mm2

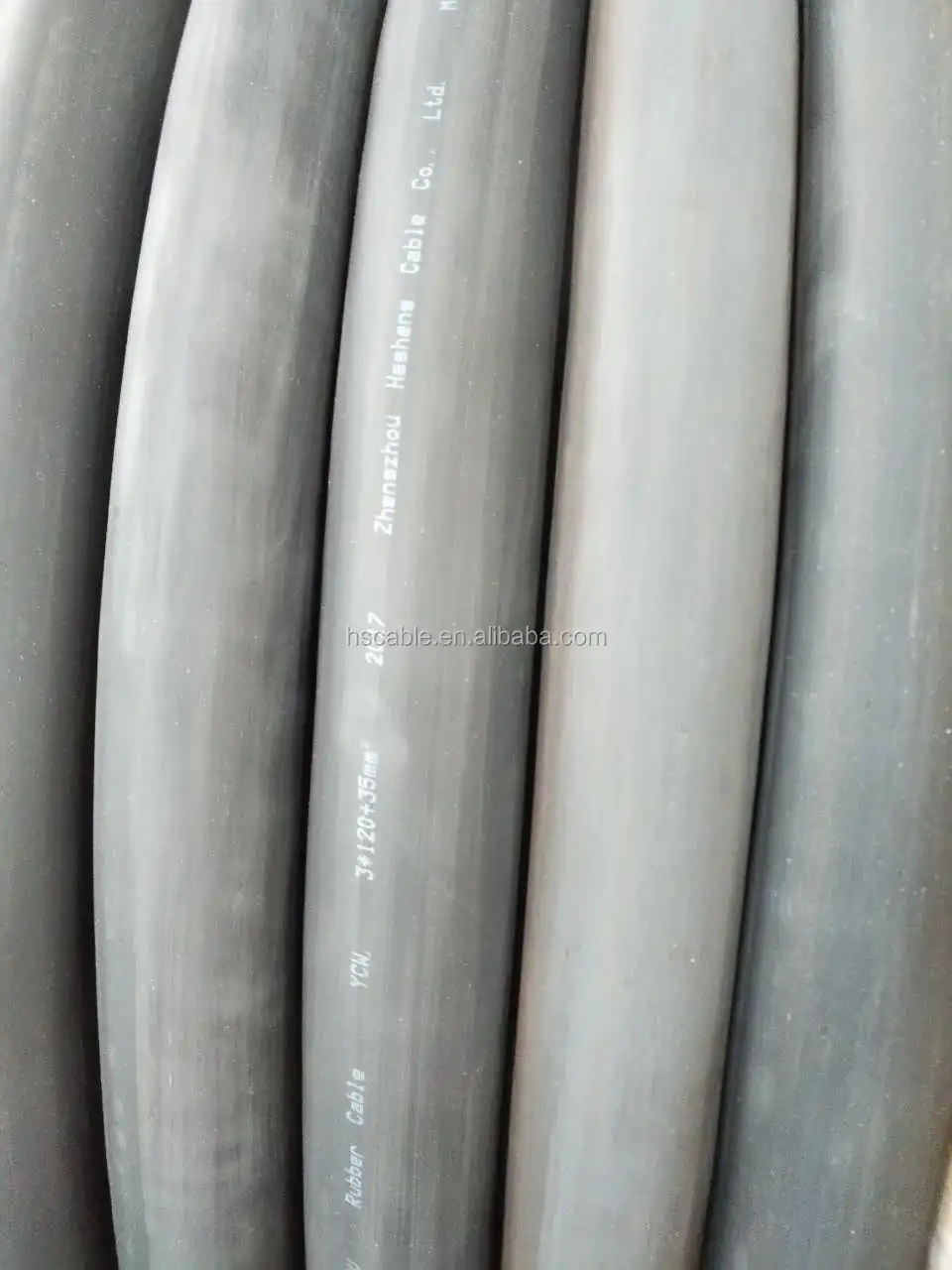

450/750V YCW Rubber Cable 3x120+1x35 mm2
