Heavy duty amphibious transport truck amphibious truck
US $46200-$50820
Dongfeng 10 м популярная пустыня 4x4 внедорожная экскурсионная машина
- Category: Other Trucks >>>
- Supplier: Shiyan Rockrich Industry & Trade Co. Ltd.
Share on (60778401749):
Product Overview
Description
Product Description

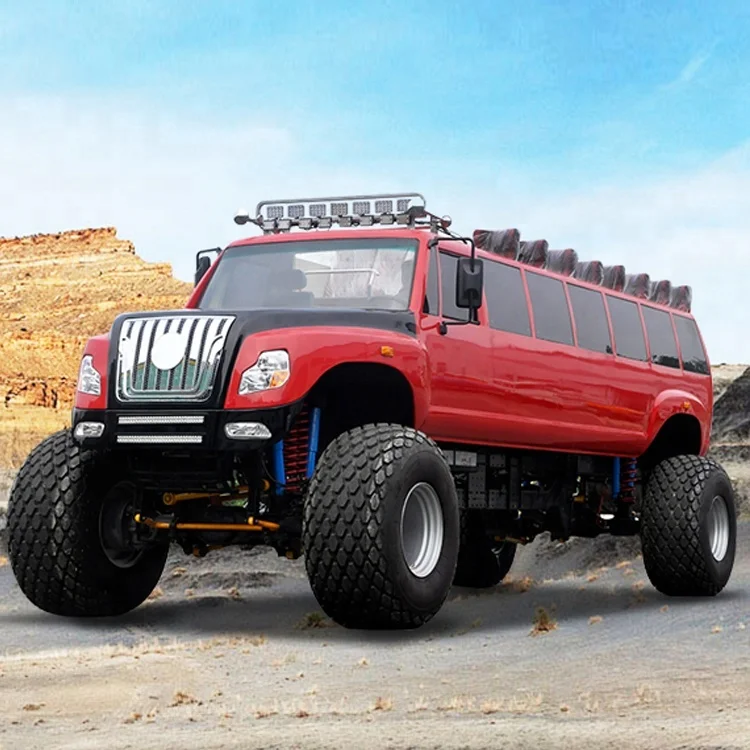

Dongfeng 10m popular desert 4x4 off-road sightseeing vehicle
| Overall dimension (LxWxH)mm | 10200x3400x3580 |
| Whell base(mm) | 7600 |
| Front overhang / rear overhang(mm) | 1090/1380 |
| Track (front/middle/rear)mm | 2690/2670 |
| Approach / departure angle(°) | 50/34 |
| Loading capacity(people) | 2+22 |
| Curb Weight(kg) | 8000 |
| Chassis allows maximum mass(kg) | 22000 |
| Maximum allowable axle loading(kg) | Front axle 9000,rear axle13000 |
| Power(Kw/r/min) | 276/2200 |
| Maximum torque(N/m/min) | 1480/1400-1600 |
| Displacement (L) | 8.9 |
| Max economical speed(km/h) | 95 |
| Lowest stable speed(km/h) | 3.5 |
| Maximum gradabilit(%) | 60 |
| Camp slope capacity(%) | 40 |
| Minimum ground clearance(mm) | 605 (Lower end of front axle housing) |
| Bottom turning radius(m) | 9 |
| Maximum vertical obstacle height(mm) | 1000 |
| Maximum crossed trench width(mm) | 1000 |
| Fuel tank(L) | 180 |
| Maximum cruising range(km) | 550 |

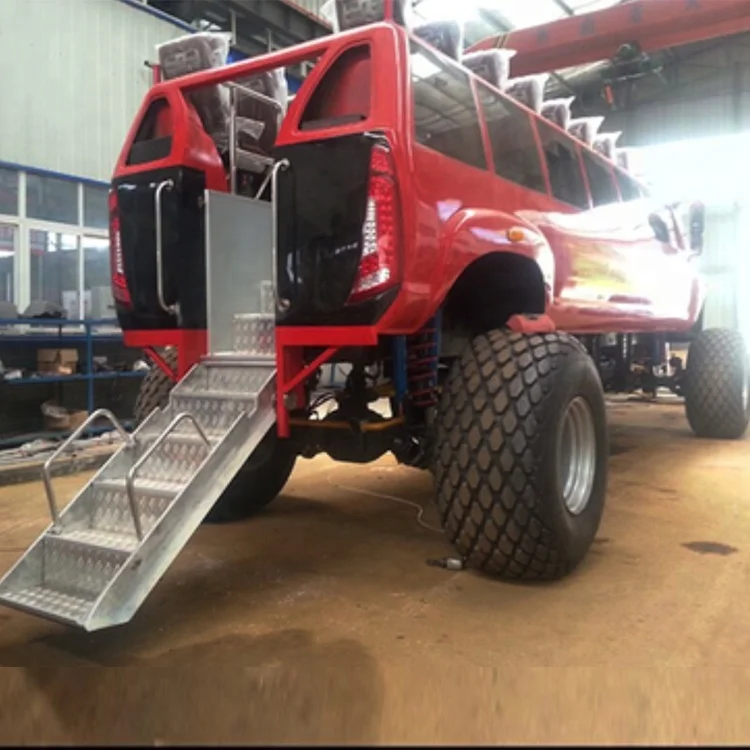

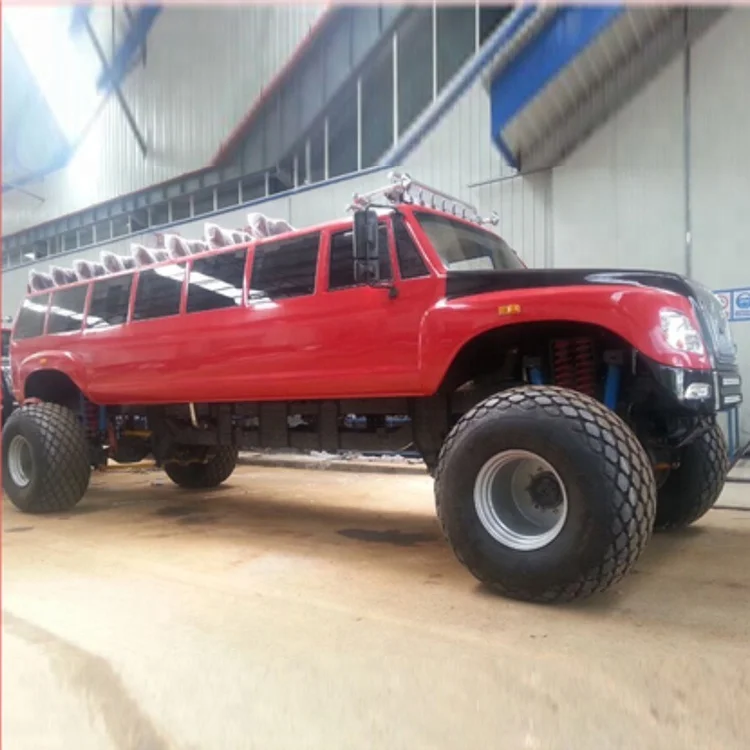

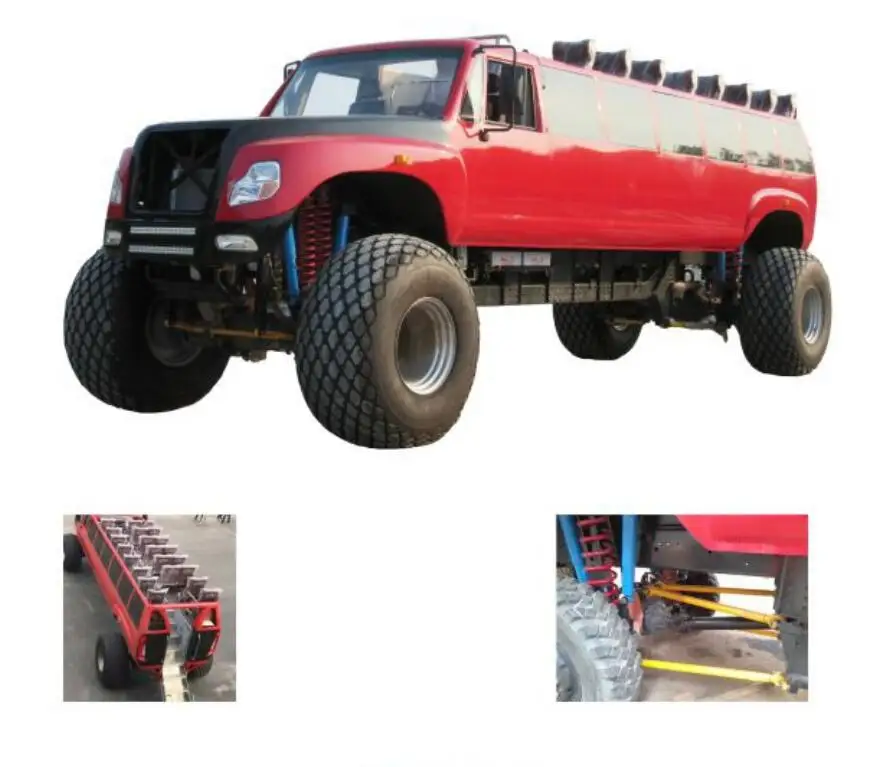

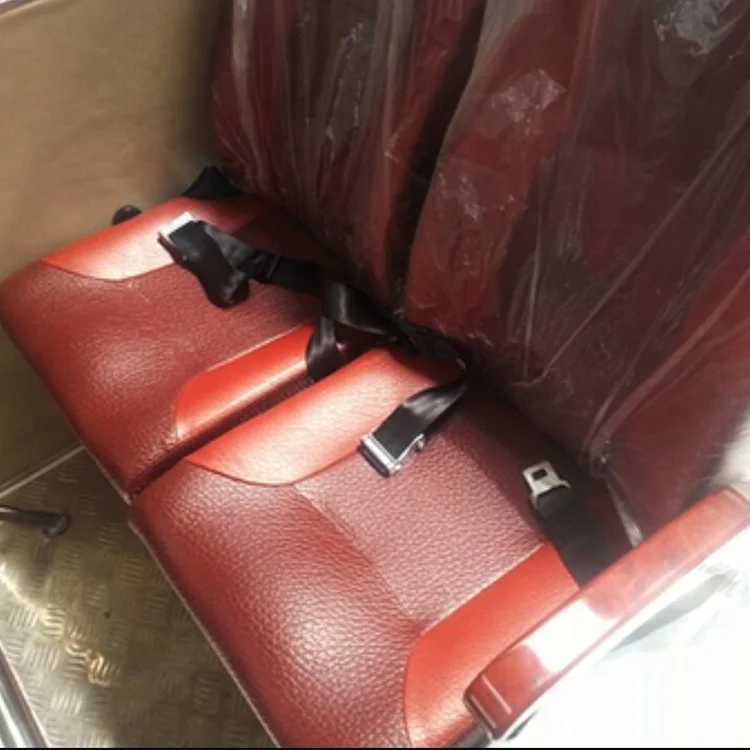

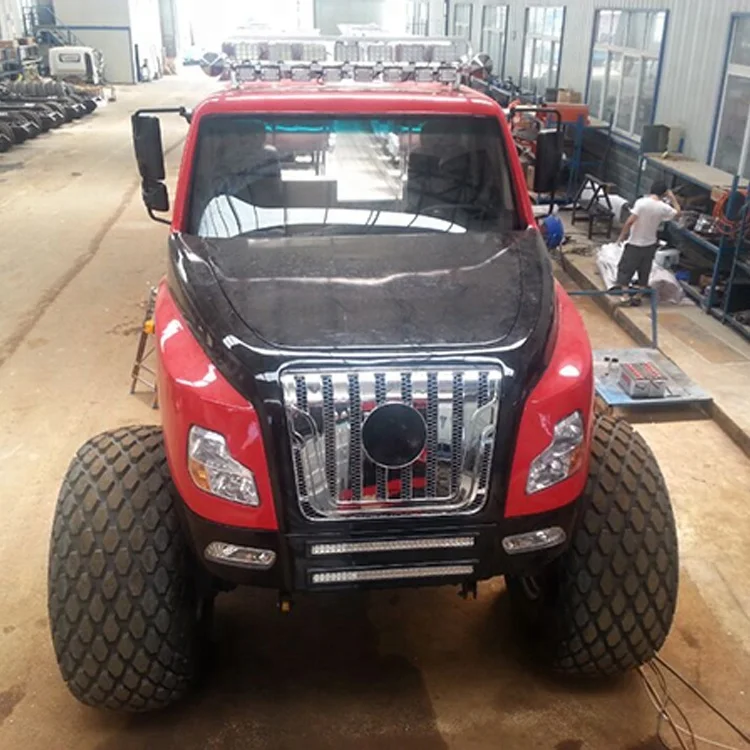

Detail picture
Customer Visit
Company Profile
ShiYan RockRich
Shiyan RockRich Industry & Trade Co., Ltd. is a professional exporter of trucks,buses, special vehicles and parts. Our company is located in the Wudang Mountain Scenic Area and Shiyan Dongfeng commercial vehicle production base.We can provide 4X2,6X4,8X4 dumper truck ,tractor head truck, cargo truck and special trucks. Also provide 6 m to 12m city buses, coach buses, professional school buses, 4X4 off-road buses, trailer type RV, self-propelled RV etc. Currently, Our products have been sold to 20 overseas countries and regions, Marketing service network coverage Africa, Southeast Asia, Oceania, Latin America and Central and South America etc.
Packing & Delivey
FAQ
1. What is the warranty?
You can enjoy technical support by phone or email forever . We will provide a prompt solution. We also , offer the most convenient and efficient spare parts support with competitive price.
2. What is the delivery time?
The delivery time is usually within 15 workdays after we received your prepayment.
3. Do you provide customized service?
Yes. We offer customized service as you needs for the performance , included special requirements .
4. What is the payment method?
By TT ,L/C at sight and Trade Assurance , etc.
5. Why us ?
We guarantee professional one-stop service, competitive price with high performance and prompt response.
