Shanghai Venttech make up air handling unit
- Category: >>>
- Supplier: Shanghai Venttech Refrigeration Equipment Co. Ltd.
Share on (60778418294):
Product Overview
Description
2018 Shanghai Venttech make up air units
Company Information
Our Company
Best quality and best price is what we pursued. Customer`s meet is what we cared.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.

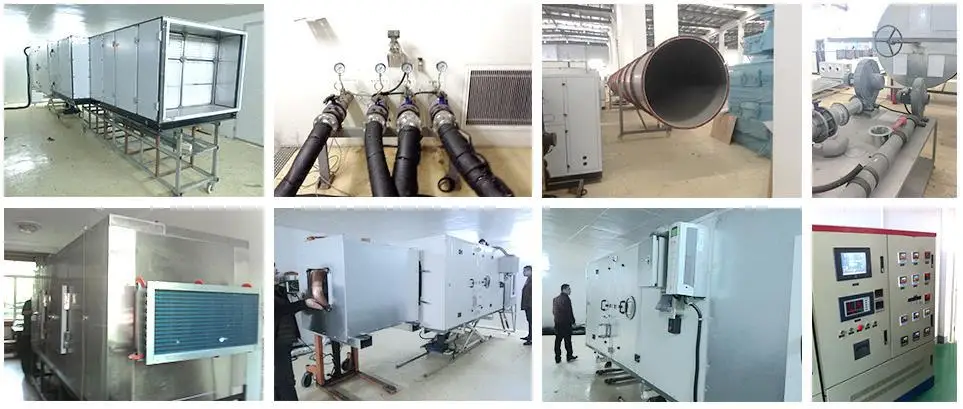

Our Laboratories
we have our own laboratories,professional equipment.
A variety of performance testing of product can be finished by ourselves.
We have complete quality testing system .
5 more years experienced team strictly control production process.

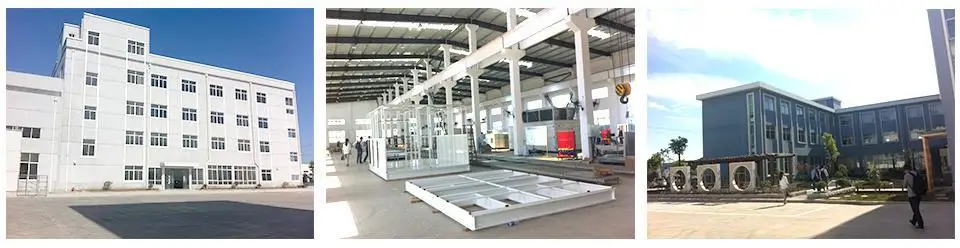

Our Factory
A variety of performance testing of product can be finished by ourselves.
We have complete quality testing system .
5 more years experienced team strictly control production process.
Our Factory
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, welding machines and other area. We can only only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in +-1C and humidity in +-5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our Service Team
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in +-1C and humidity in +-5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our Service Team
We ensure brand quality and good reputation.Our company can provide high quality service, consistent service warm for the majority of customers.
Product Description
Description:
1. Air cooled rooftop air conditioner.
2. Cooling capacity: 8kw to 90kw, a variety of choices.
3. High external pressure.
4. Applicable to residential and commercial buildings, hotels, and scientific research units, factories and enterprises and so on.
Feature:
1. Evaporator: Type Inner grooved copper tube and aluminum fin
2. Fin Type 5* :Slotted fin hydrophilic aluminum fin
3. Condenser: Type Inner grooved copper tube and aluminum fin
4. Fin Type 5* :Rippled hydrophilic aluminum fin
5. Condenser Fan Type: Low noise axial type

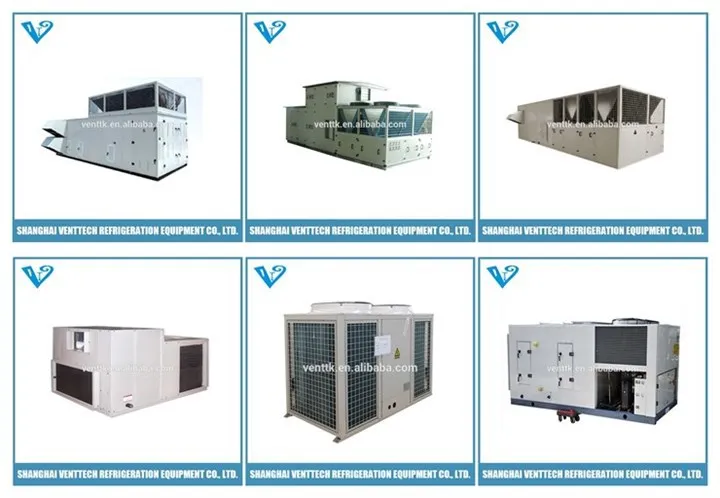

Pictures:
Specification:
| GT-WKR Series-Roof Top AC Specifiaction 1 | ||||||||||
| Model GT-WKR- | 10 | 15 | 18 | 20 | 25 | 30 | 35 | |||
| Specification | Cooling capacity 1* | kW | 10.5 | 15.0 | 18.5 | 21.0 | 26.3 | 29.8 | 35.0 | |
| Heating capacity 2* | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 | ||
| Supply air 3* | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 | ||
| Static pressure 3* | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 | ||
| Noise 4* | dB(A) | 60 | 60 | 62 | 62 | 65 | 65 | 68 | ||
| Power | 3N-380V-60Hz | |||||||||
| Total capacity | 3.9 | 5.74 | 7.0 | 8.27 | 9.96 | 11.0 | 14.15 | |||
| Color | White | |||||||||
| cooling system | Compressor | Type | Efficient scroll closed | |||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
| Supply air fan | Type | Low noise centrifugal type | ||||||||
| Capacity | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | ||
| Evaporator | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Slotted fin hydrophilic aluminum fin | |||||||||
| Condenser | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Rippled hydrophilic aluminum fin | |||||||||
| Condenser fan | Type | Low noise axial type | ||||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
| Refrigerant | Refrigerant | R22/R407C | ||||||||
| Refrigerant control | External balance type thermal expansion valve | |||||||||
| Air filter | Initially effect plate filter | |||||||||
| Dimensions | L | mm | 1400 | 1400 | 1600 | 1600 | 1850 | 1850 | 2200 | |
| W | mm | 1050 | 1050 | 1200 | 1200 | 1400 | 1400 | 1800 | ||
| H | mm | 1050 | 1050 | 1050 | 1050 | 1200 | 1200 | 1520 | ||
| Weight | kg | 200 | 230 | 260 | 300 | 550 | 600 | 850 | ||
| GT-WKR Series-Roof Top AC Specifiaction 2 | ||||||||||
| Model GT-WKR- | 40 | 50 | 60 | 70 | 90 | 110 | 120 | |||
| Specification | Cooling capacity 1* | kW | 42.0 | 52.8 | 61.2 | 70.2 | 87.5 | 105.1 | 122.5 | |
| Heating capacity 2* | kW | 44.1 | 55.4 | 62.5 | 73.8 | 92.8 | 112.0 | 130.0 | ||
| Supply air 3* | m3/h | 7000 | 8600 | 10000 | 12000 | 14500 | 17000 | 20000 | ||
| Static pressure 3* | Pa | 300 | 300 | 300 | 350 | 350 | 400 | 400 | ||
| Noise 4* | dB(A) | 68 | 69 | 69 | 70 | 71 | 72 | 72 | ||
| Power | 3N-380V-60Hz | |||||||||
| Total capacity | 17.24 | 20.72 | 23.0 | 29.76 | 39.1 | 44.66 | 51.58 | |||
| Color | White | |||||||||
| cooling system | Compressor | Type | Efficient scroll closed | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 4 | 4 | |||
| Supply air fan | Type | Low noise centrifugal type | ||||||||
| Capacity | kW | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 | ||
| Evaporator | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Slotted fin hydrophilic aluminum fin | |||||||||
| Condenser | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Rippled hydrophilic aluminum fin | |||||||||
| Condenser fan | Type | Low noise axial type | ||||||||
| Quantity | 2 | 2 | 2 | 4 | 4 | 4 | 4 | |||
| Refrigerant | Refrigerant | R22/R407C | ||||||||
| Refrigerant control | External balance type thermal expansion valve | |||||||||
| Air filter | Initially effect plate filter | |||||||||
| Dimensions | L | mm | 2200 | 2600 | 2600 | 3200 | 3200 | 6000 | 6000 | |
| W | mm | 1800 | 2200 | 2200 | 2200 | 2200 | 2300 | 2300 | ||
| H | mm | 1520 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 | ||
| Weight | kg | 850 | 1100 | 1250 | 1400 | 1650 | 1850 | 2200 | ||
