Manual Hydraulic Roll and Reel Work stacker

Share on (60778426667):


Price:

Quantity:


Product Overview

Description


Product Description

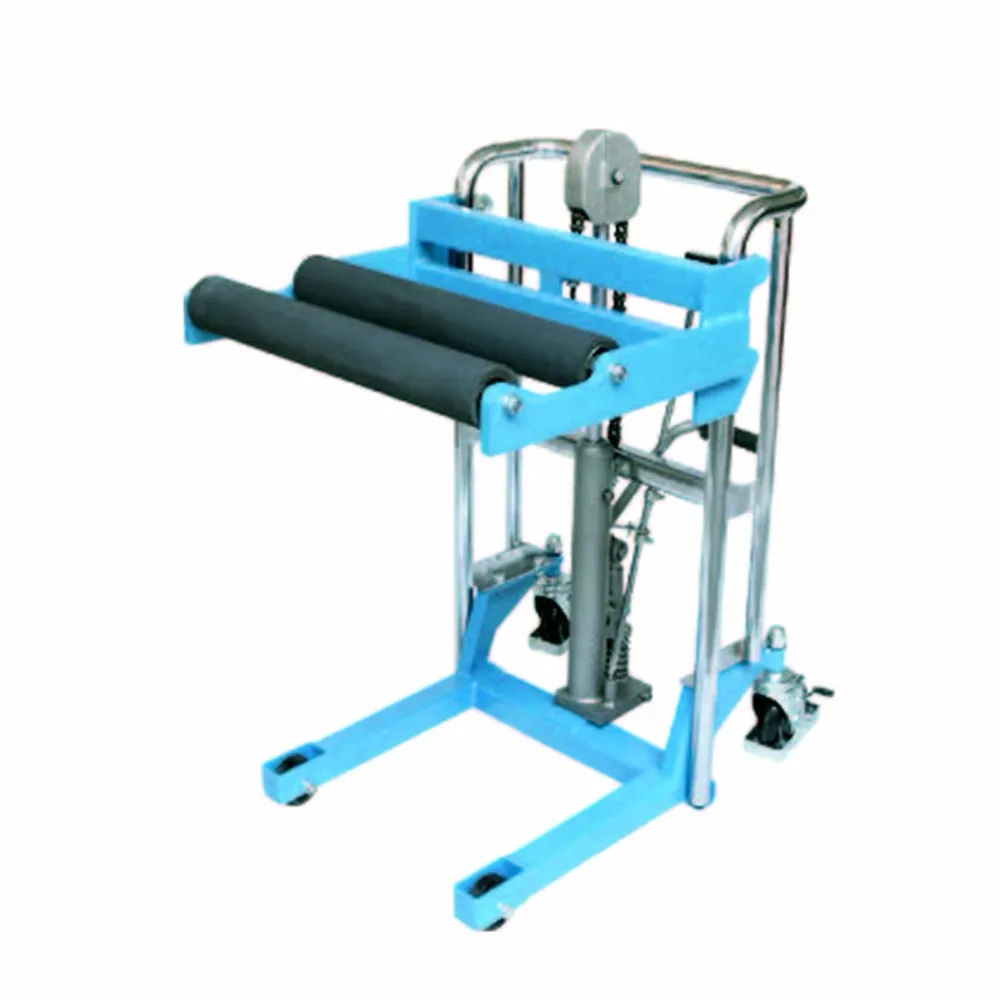

Roller Hand Stacker PFG series

▲ Suitable for printing, paper, textile industry
▲ Roller length could be OEM, max is 800mm

Detailed Images
Packing & Delivery
\t
Model
\t

\t
PFG4085
\t
PFG4120
\t
PFG4150
\t
Lifting Capacity
\t
(kg)
\t
400
\t
400
\t
400
\t
Diameter of Volume
\t
(mm)
\t
Φ300~550
\t
Φ300~550
\t
Φ300~550
\t
Maximum Length
\t
(mm)
\t
≤1200
\t
≤1200
\t
≤1200
\t
Lifting Height (Maxima)
\t
(mm)
\t
930
\t
1305
\t
1610
\t
Lifting Height (Minium)
\t
(mm)
\t
130
\t
130
\t
130
\t
Roller Dimension
\t
(mm)
\t
Φ70×500~800
\t
Φ70×500~800
\t
Φ70×500~800
\t
Distance of Roller
\t
(mm)
\t
180
\t
180
\t
180
\t
Fork Width (Inside/Outside)
\t
(mm)
\t
340/500
\t
340/500
\t
340/500
\t
Dia of Front Wheel
\t
(mm)
\t
Φ75
\t
Φ75
\t
Φ75
\t
Dia of Rear Wheel
\t
(mm)
\t
Φ125
\t
Φ125
\t
Φ125
\t
Overall Dimension
\t
(mm)
\t
820×630×965
\t
820×630×1295
\t
820×630×1620
\t
Net Weight
\t
(kg)
\t
71
\t
77
\t
85
