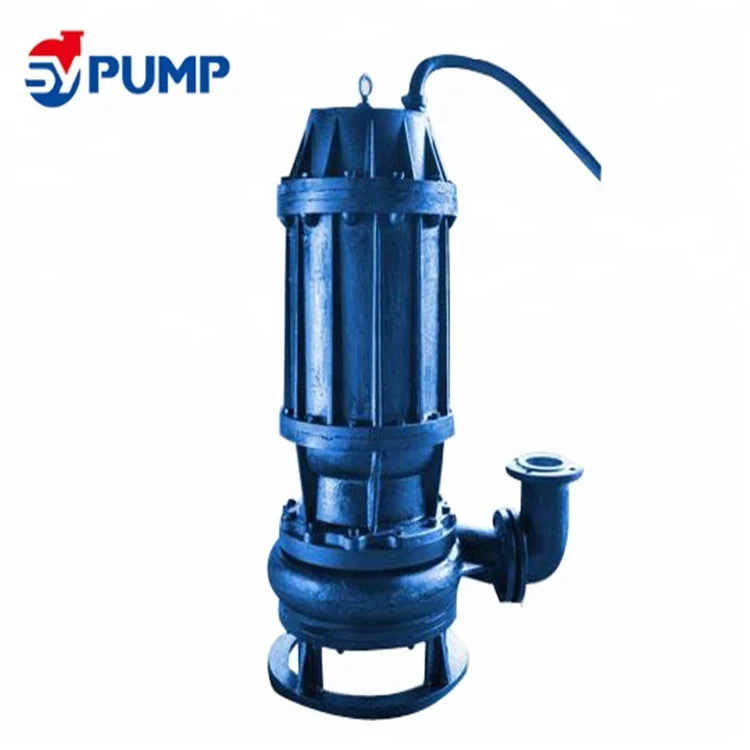

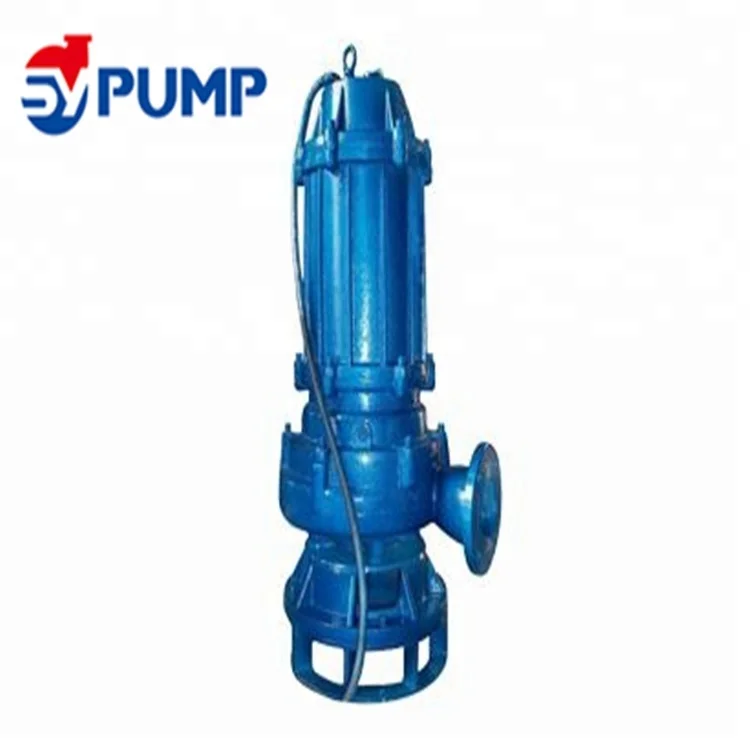

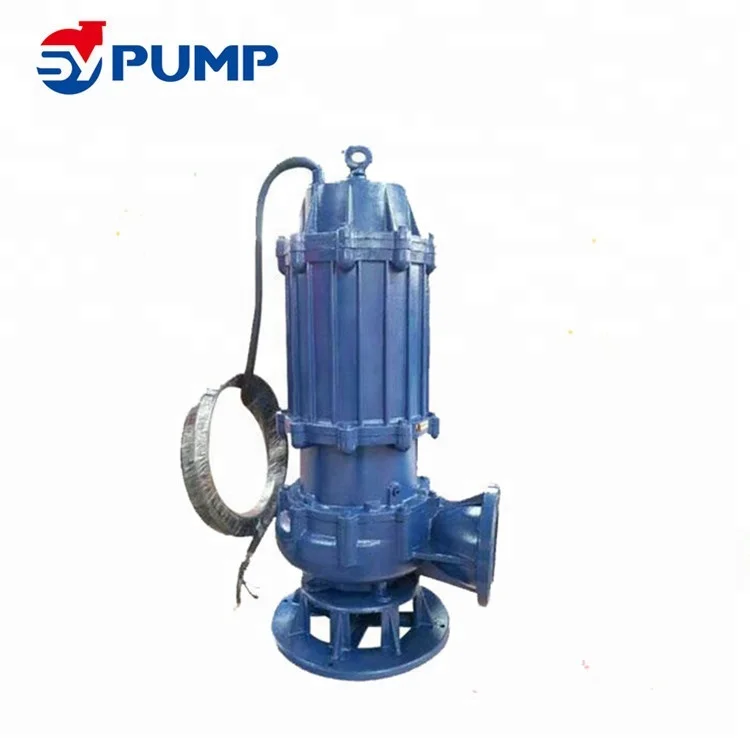

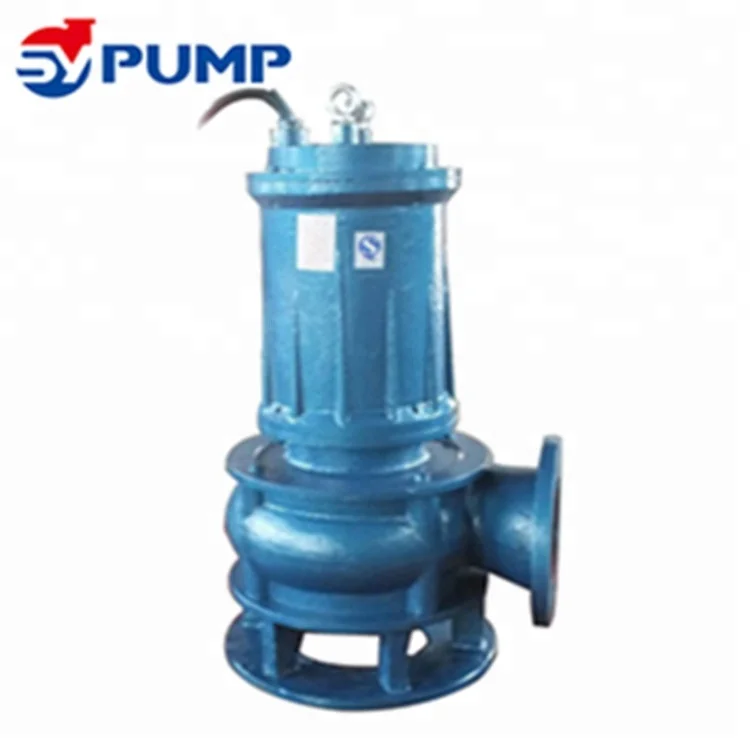

ZJQ submersible slurry pump is improved, and overcome the deficiency existing in the development, the hydraulic model, sealing technology, the mechanical structure and control to protect the integrated design optimization and innovation, this product is simple in structure, easy installation, use of safe and reliable, long life.There is no need to build complex ground pump house and fixed device for pump submerging under water.

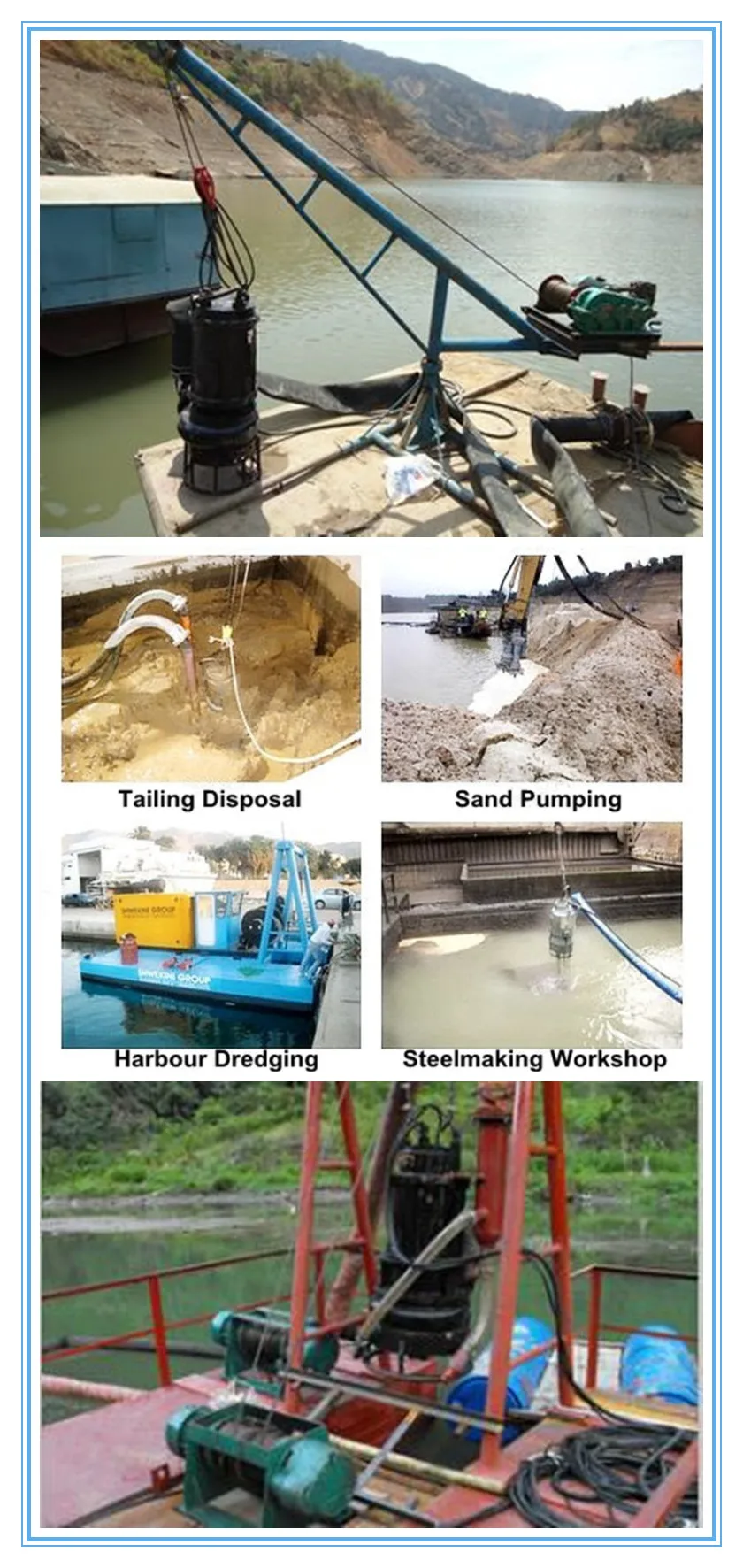

ZJQ submersible slurry pump is suitable for conveying contains sand, coal cinder, tailings slurry, such as abrasive particles are mainly used in metallurgy, mining, electricity, chemical industry.
Conditions of Use
Power supply 380v, three phase, 50HZ
Medium is generally not more than 60 ° C temperature, PH value of 4 to 10.
Suitable for highly abrasive solid particles and mildly corrosive sewage slurry.
The diameter of solids in the medium is not more than 80% of the minimum airway size of the pump.

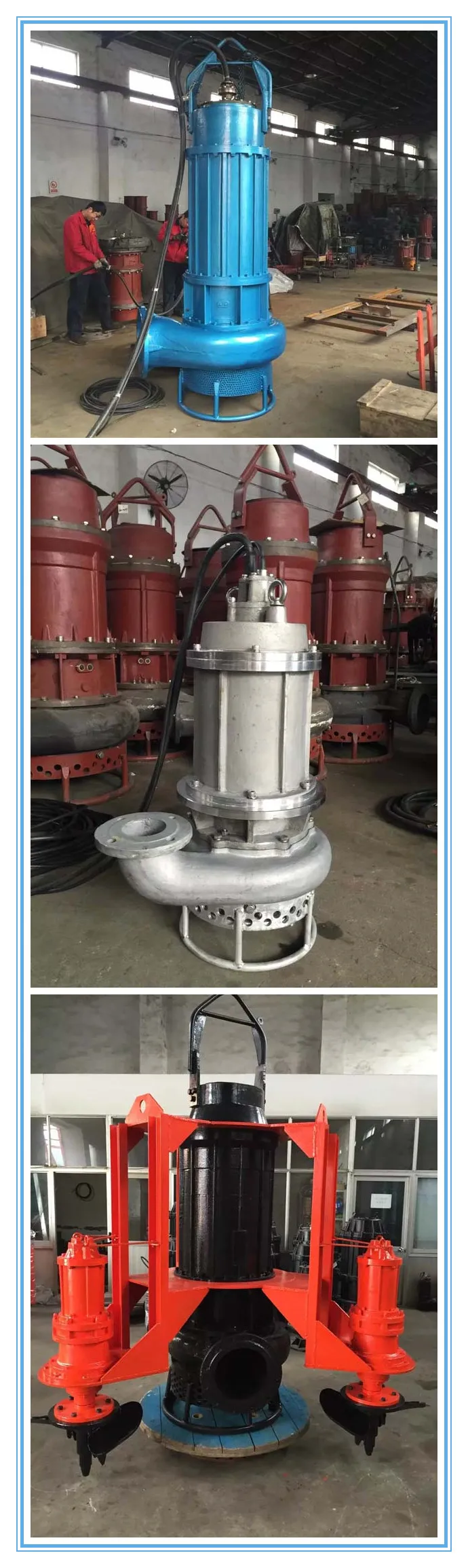

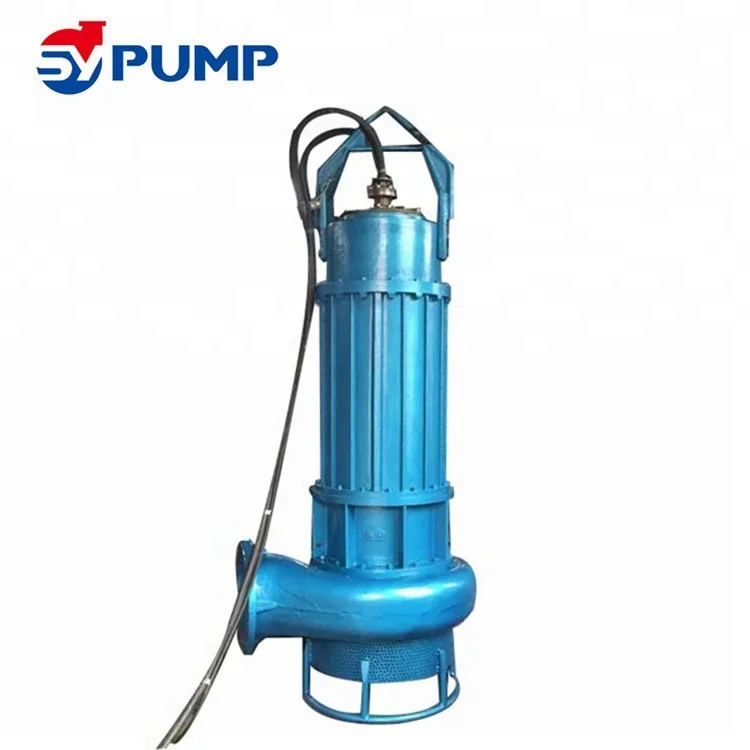

Product Display
Advantages of Use

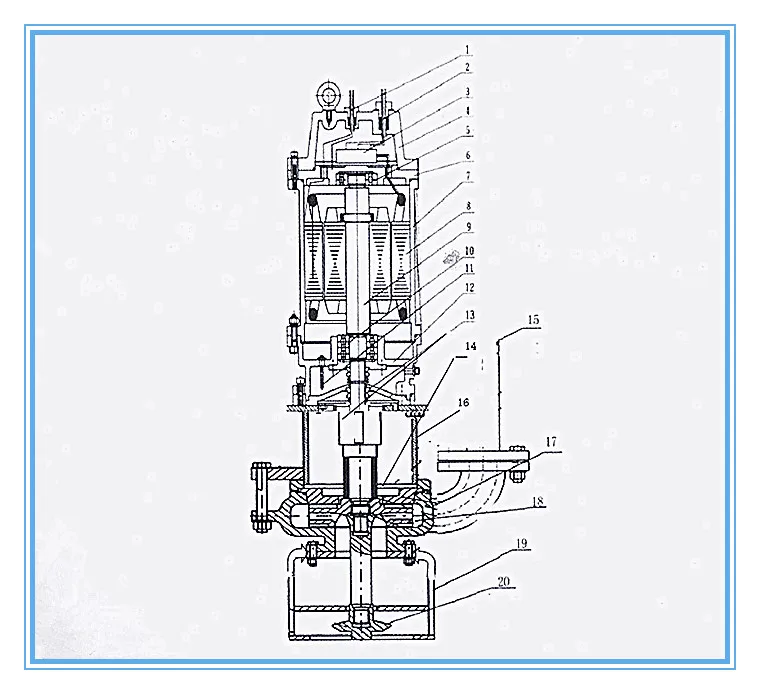

1. The whole machine is a pump structure under a dry motor.The motor adopts mechanical seal protection, which can effectively prevent high pressure water and impurities from entering the inner cavity of the motor.
2. In addition to the main impeller, there is also a stirring impeller, which can stir the sludge deposited in the bottom of the water into a turbulent flow and extract it out.
3. The main over-current components such as impeller and agitator impeller are made of high abrasion-resistant materials. They are wear-resistant, corrosion-resistant, non-clogging and pollution-free, and can effectively pass through large solid particles.
4. Free from the limitation of suction process, high slag absorption efficiency and more thorough dredging.
5. No auxiliary vacuum pump is required and the investment is lower.
6. It is more convenient to operate without auxiliary mixing or spraying device.
7. The motor submerges into the water, making it easier to manage without building complex ground protection and fixing devices.
8. The impeller is directly in contact with the sedimentary surface, and the concentration is controlled by the depth of diving, so the concentration control is more convenient.
9. The equipment will work directly under the water without noise and vibration, and the site will be cleaner.
10. The rotation direction of the pump is seen from the driving end and is clockwise.
