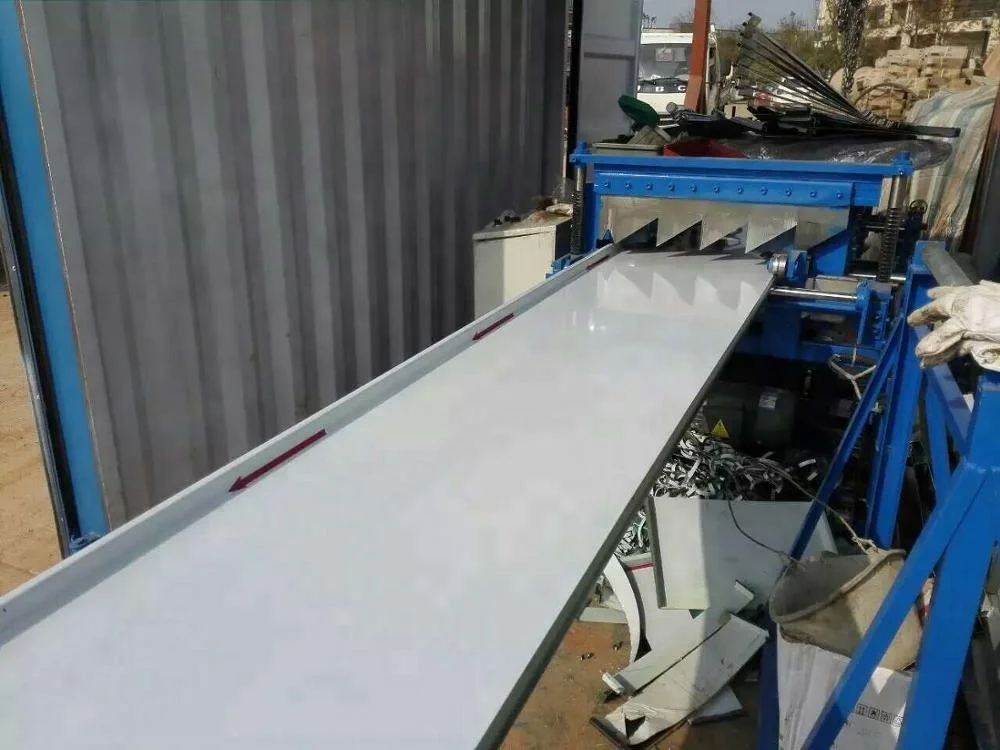

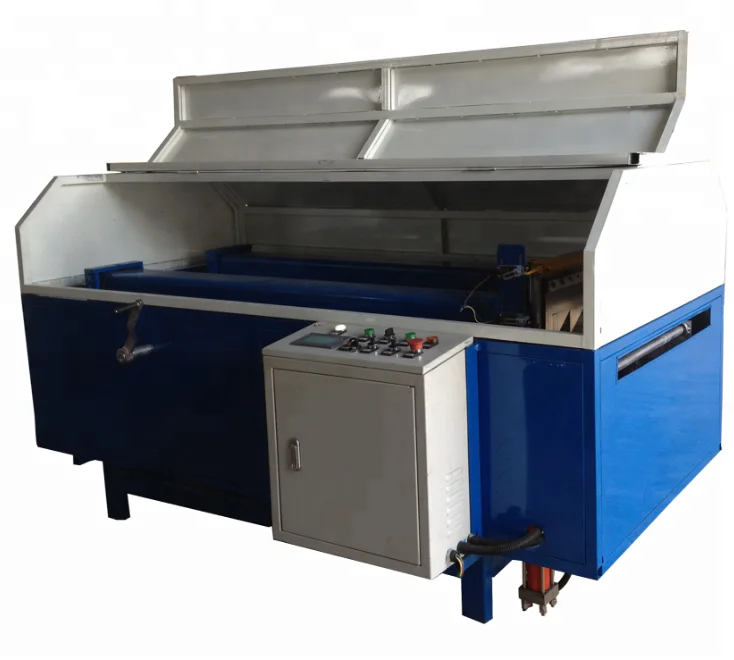

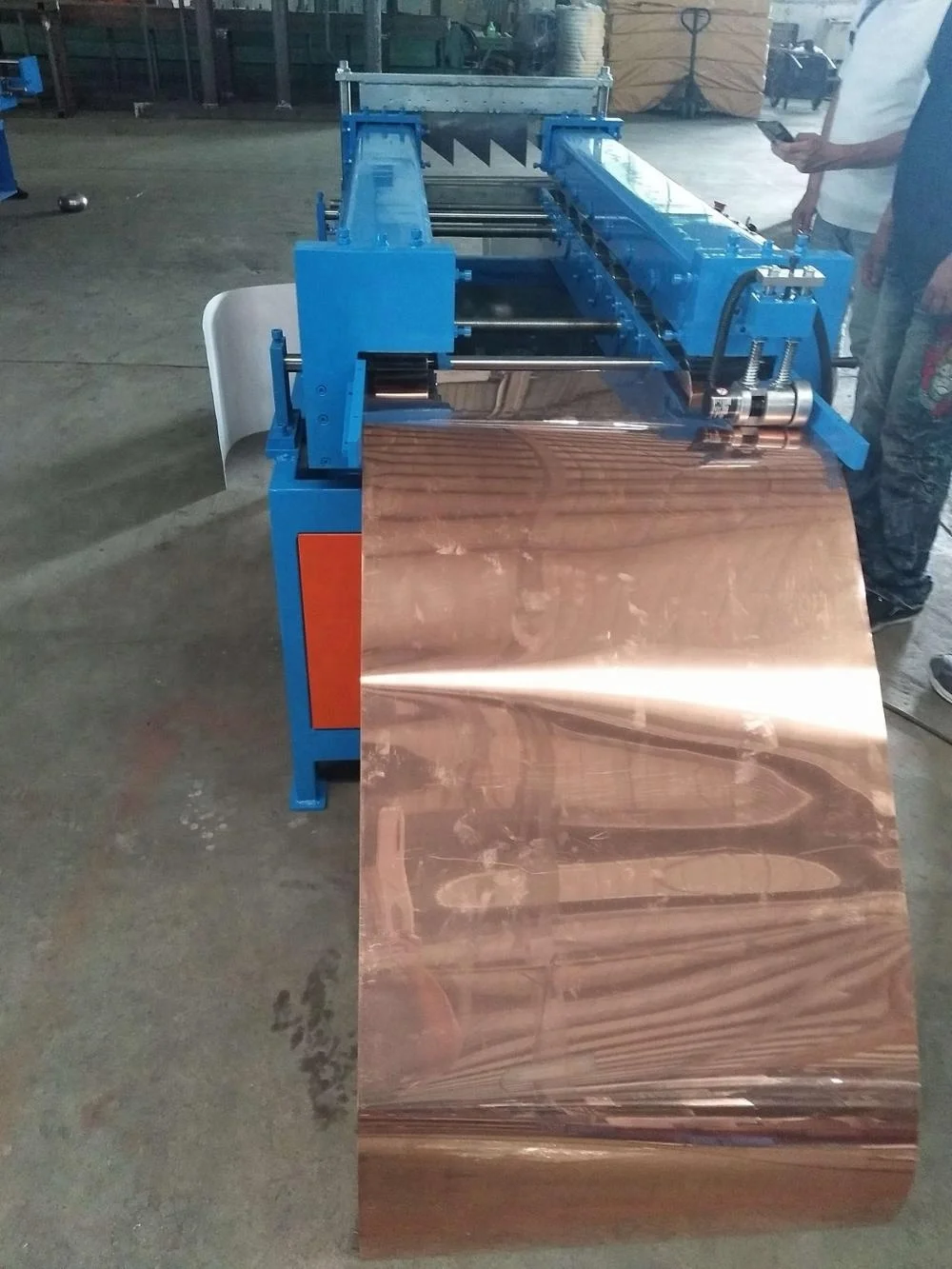

Standing seam steel roof panel machine standing seam metal roof roll forming machine

 Size

 (2000-2300)*1200*1200mm

 Weight

 800-1000KGS base on the design

 Voltage

 380V/50HZ/3PH or base on cutomer requirement

 Motor Power

 2.2KW

 Hydraulic Power

 2.2KW

 Forming Steps

 6-9steps base on the design

 Forming Steel Thickness

 0.5-1.0mm

 Forming Aluminum Thickness

 0.7-1.2mm

 Height of Roofing

 25mm and 38 mm or base on customer design

 Effective Width of Roofing

 230mm - 530mm

 Material Width

 310mm - 610mm

 Tolerance

 ±2mm

 Roller material

 High grade 45# forged steel, Plated hard chrome and polished all the rollers

 Material of principal axis

 High grade 45# forged steel
