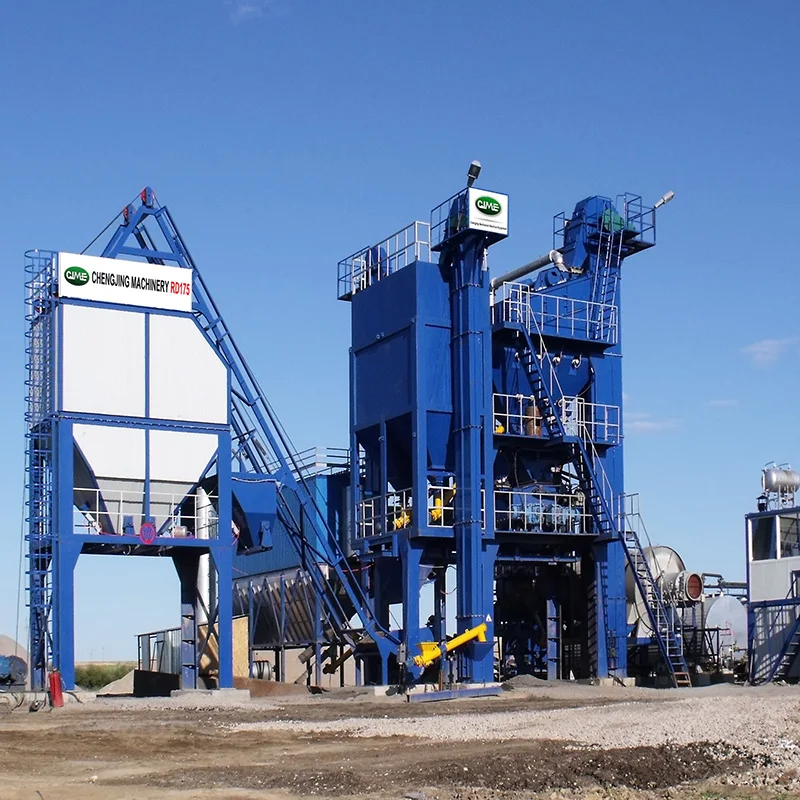

175tph Asphalt Mixing Plant with Famous Brand EBICO Burner Asphalt Plant
- Category: >>>
- Supplier: Henan Cheng Jing Mechanical Electrical Equipment Co. Ltd.
Share on (60778458141):
Product Overview
Description
175tph Asphalt Mixing Plant with Famous Brand EBICO Burner Asphalt Plant
Key Specifications
Model | RD175 |
Rated Production Capacity | 175t/h |
Oil Consumption | |
Figure Dimension | 37m×32m×15m |
Total Power | |
Operation | Manual, auto manual, auto |
Cold Aggregates Supply System | Cold aggregate hopper:5×8m³ |
Conveyer belt width:650mm | |
Drying Drum | Φ2.2m×9m |
China Brand Light Oil Burner | Rated oil consumption:1400kg/h |
Hoisting System | Hot aggregate elevator:1×15KW |
Filler elevator:1×4KW | |
Vibrating Screen | Five layers |
Weighing system | Hot aggregate weighing hopper:2000kg; Weighing accuracy:±0.15% |
Filler weighing hopper:300kg; Weighing accuracy:±0.15% | |
Asphalt weighing hopper:160kg; Weighing accuracy:±0.1% | |
Mixer Capacity | 2200kg/batch |
Dust Collecting System | Gravity dust catcher +Bag dust catcher |
Filler Supply System | Filler storage silo:1×45m³ |
Recycling filler storage silo:1×25m³ | |
Asphalt Supply System | Asphalt tank:3×50m³ |

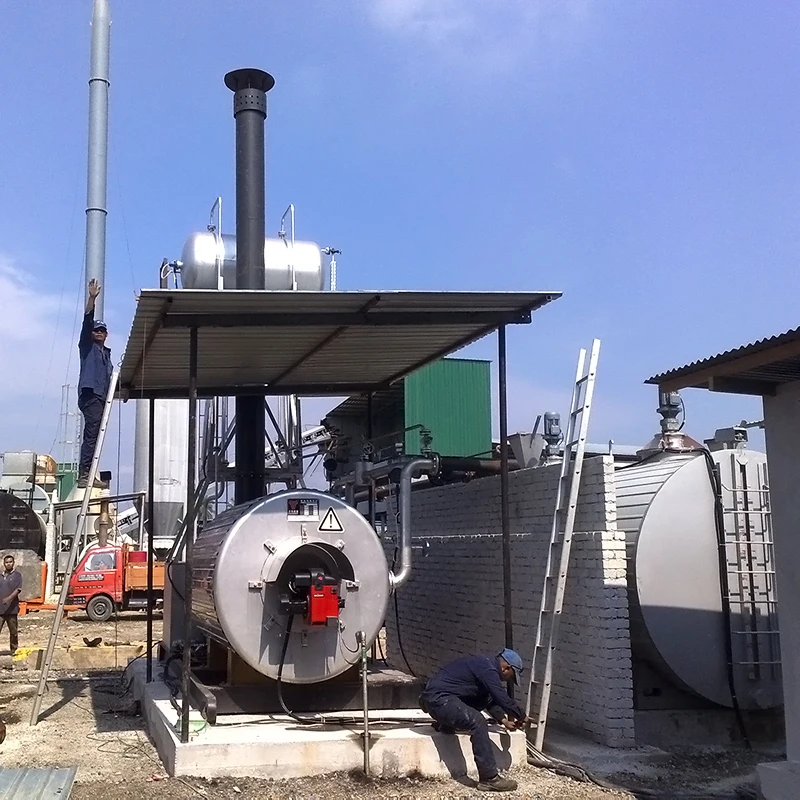

Hot oil heater:0.5 million kcal (fuel: diesel oil)
| |
Electric Control System | Control room:6m×2.2m×2.5m |
Control system: PLC+computer |
Main Features
1.Modularized design, easy installation and transportation;
2.High performance, save energy drying drum system;
3.Strictly test vibrating screen system;
4.High accuracy weighing system;
5.High-efficiency mixing system adopt twin-shaft batch mixer;
6.Famous brand air compressor and high quality pneumatic system used;
7.Easy & stable control system.
Detailed Images

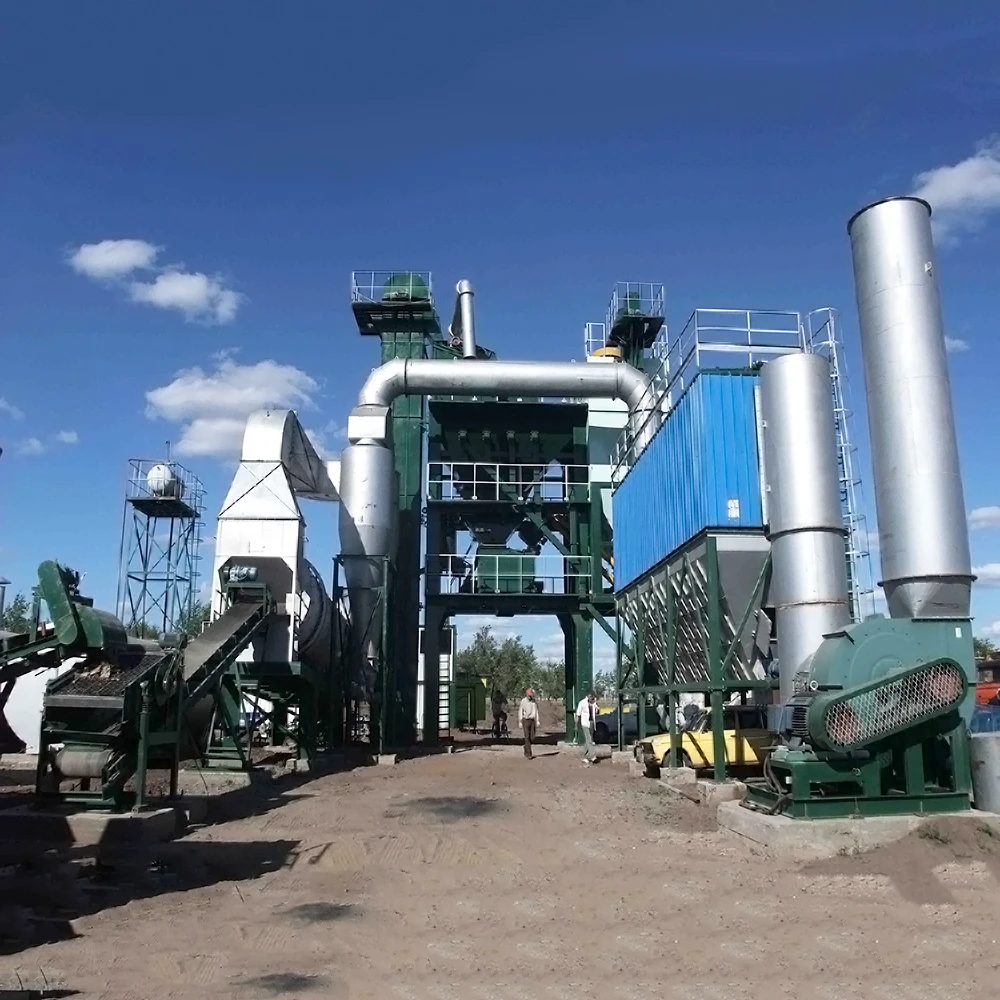

175tph Asphalt Mixing Plant with Famous Brand EBICO Burner Asphalt Plant
Certifications
Packing &Delivery
175tph Asphalt Mixing Plant with Famous Brand EBICO Burner Asphalt Plant
- Port: Shanghai,Qingdao,Tianjian,or other China port
- Lead Time :25-30 days after payment
Related Products
175tph Asphalt Mixing Plant with Famous Brand EBICO Burner Asphalt Plant
Exhibitions
FAQ
Q1. What is the warranty period?
A:12 months,we will provide the technical services for free within this period.
Q2. Can you install the asphalt mixing plant in my country?
A:Sure,we will send engineers to your country for guiding installation and training your works to operate the machine.
Q3.How many works needed for operate the machine?
A. Each one person of bench workers,electrician,welder and opertator.
