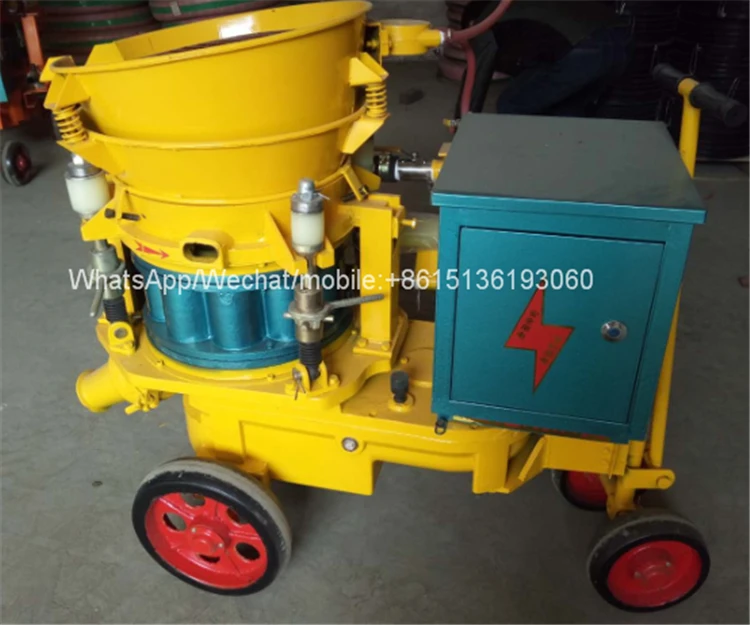

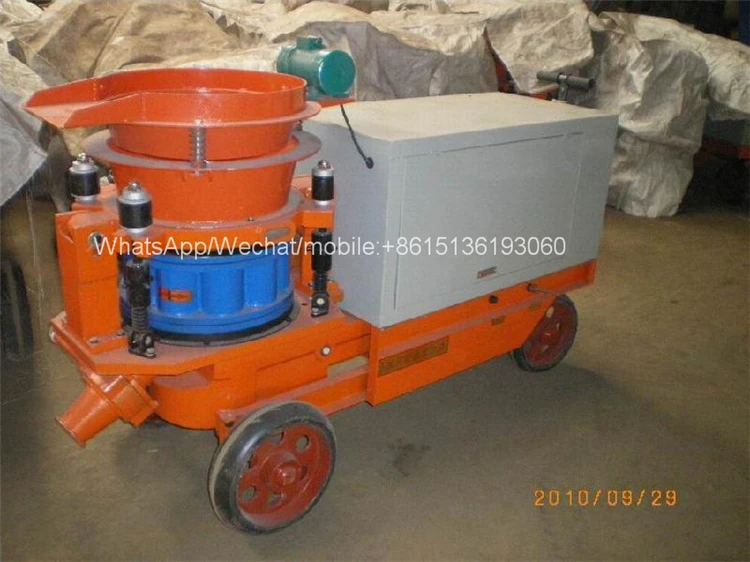

High Quality Small Electric Dry wet shotcrete spraying machine
- Category: Shotcrete Machine >>>
- Supplier: Zhengzhou Megaplant Imp. & Exp. Co. Ltd.
Share on (60778497943):
Product Overview
Description
High Quality Small Electric Dry wet shotcrete spraying machine price
Product Description

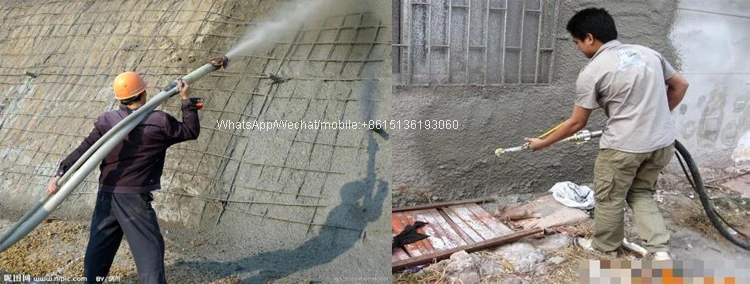

1. Environmental:It can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers’ health.
2. rebound less to strengthen sprayed layer.
3. It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.

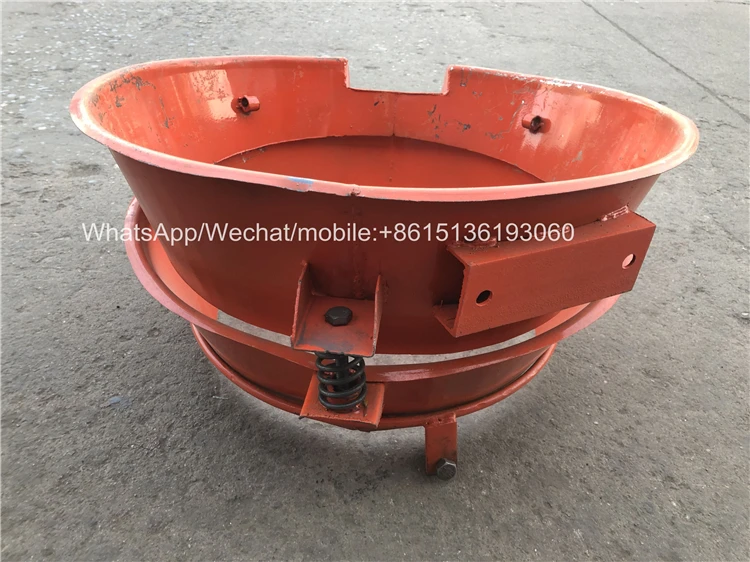

4.Unique vibrating hopper feeds the concrete into the dosing system smoothly.
5.Standardized dosing pump can add exactly concrete accelerator.
6. We can change the color according to your actual requirements.
7. Custom the voltage motor based on your country.
8 .The tread of mine rail wheel have 600mm or 900mm for your choice.
Technology parameter
SPECIFICATIONS FOR SHOTCRETE MACHINE | ||||

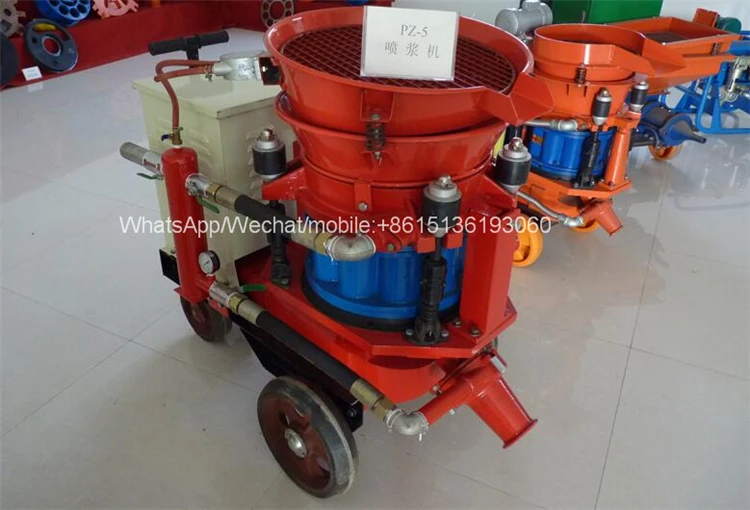

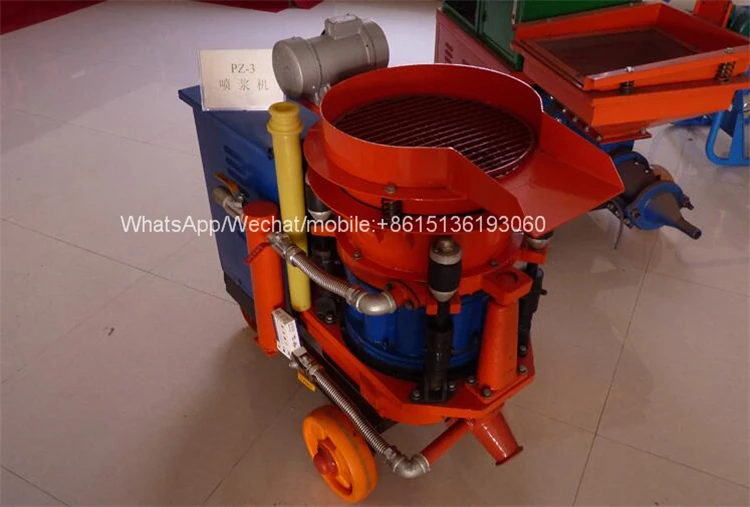

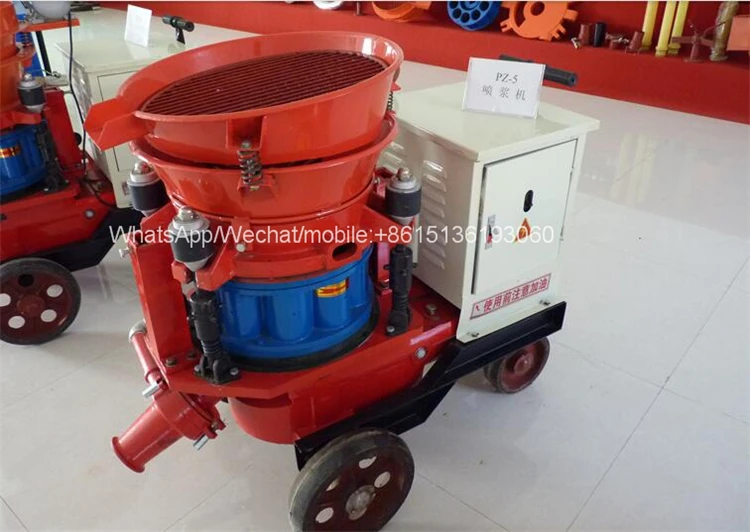

Model | PZ-3 | PZ-5 | PZ-6 | PZ-7 |
Production capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h |
The maximum transmission distance | 200m | 200m | 200m | 200m |
Applicable material proportioning: cement/sa | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 |
Applicable materials water-cement ratio | <0.4 | <0.4 | <0.4 | <0.4 |
The biggest bone size | 10mm | 15mm | 15mm | 20mm |
Transporting pipe inner | 42 | 51 | 51 | 51/64 |
Rotor block diameter | 350mm | 438mm | 438mm | 480mm |
Working pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa |
blast consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h |
motor power | 4KW | 5.5KW | 5.5KW | 7.5KW |
Level of voltage | 380V,440V,660V,1140, 50Hz/60Hz | |||
Weight | 400kgs | 700kgs | 700kgs | 800kgs |

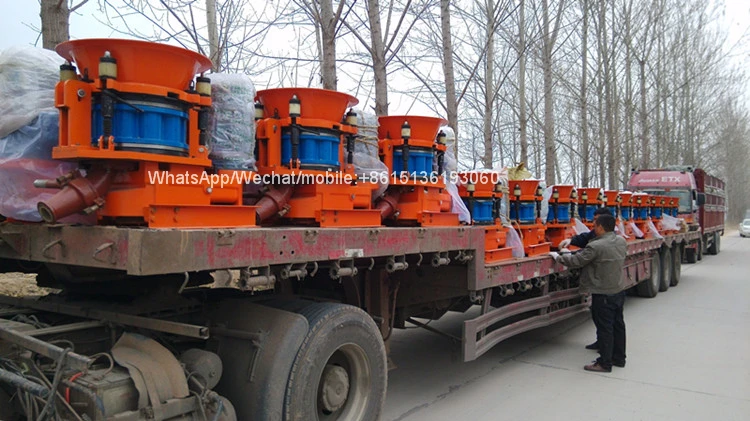

Packaging & Shipping

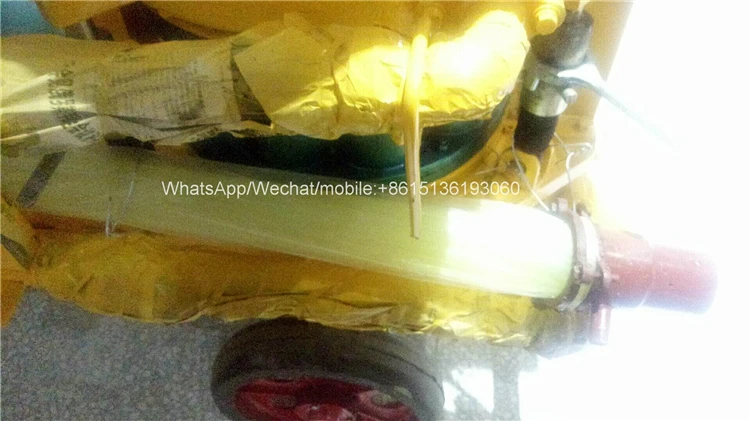

Packaging: Wooden Crate or Pallet or bare package in standard containers for export;
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
Our Services
Company Information
FAQ
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Also you can check our Alibaba Site, there are several importers' transation History.
6. Q: What's the payment you accept ?
A: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow Or PayPal .
Any requirements, contact us freely!
