Product Description




Specification


Feature:
1.99.5% MPPT efficiency, 97% conversion efficiency.
2.Exclusively designed heat dissipation channel, quieter and more stable operation.
3.OLED blue display status information.
4.Built-in lithium battery activation function.
5.Support lead-acid, lithium iron phosphate and ternary lithium batteries charging.
6.Support user-defined, lead-acid and li-ion battery charging.
7.Complete protection functions to ensure stable operation for battery system.
8.Support PC, wired instrument, and remote App monitoring.
9.RJ45 Dual interfaces, support parallel function, integrated management and secondary development.
10. CE FCC RoHS certification.


Runner -RS Reries
R48L40
R48L50
R48L60
R48L80
R48L100
Product Category
MPPT efficiency
≥99.5%
Standby power
1W~1.8W
Heat-Dissipating method
Built-in fan for cooling
Lead-acid battery system
12V System：9VDC~15VDC 24V System：18VDC~30VDC
36V System：32VDC~40VDC 24V System：42VDC~60VDC
Lithium-ion battery system
8VDC~60VDC
Input Characteristics
Max.PV input voltage(Voc)
150VDC
Min.Vmpp Voltage
Battery voltage + 2V
Start-up charging voltage
Battery voltage + 3V
Low input voltage protection
Battery voltage + 2V
Over voltage protection / Recovery
150VDC/145VDC


Reted PV Power
12V system
560W
700W
840W
1120W
1400W
24V system
1120W
1400W
1680W
2240W
2800W
36V system
1680W
2100W
2520W
3360W
4200W
48V system
2240W
2800W
3360W
4480W
5600W
Charge Characteristics
Activation for lithium battery
Optional
Battery type
(default setting gel-sealed lead-acid battery)

Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT)
Rated charge current
40A
50A
60A
80A
100A
Temperature compensation
-3mV/℃/2V
Charge method
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
Output voltage stability accuracy
≤±0.2V
LOAD Characteristics
Load voltage
Same as battery voltage
Rated load current
30A
50A
Load control mode
On/Off , PV voltage control mode, Dual-time control mode, PV + Time control mode
Low voltage protection
Can be set
Setting method
PC software / APP / Controller
Display & Communication
Display
Blue OLED display
Communication
Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized
parallel monitoring
Other Parameters
Protections
Input & output over-volt / low-voltage protection, reverse polarity protection,
over-heating protection, battery shedding protection etc.
Operating ambient temperature
-20℃~+50℃
Storage temperature
-40℃~+75℃
IP(Ingress protection)
IP21
Altitude
0~3000m
Max. connection size
28m㎡
Recommended breaker
≥63A
≥ 63A
≥ 100A
≥ 120A
≥ 150A
Net weight/Gross weight (kg)
2 /2.6
5 / 6.2
Product size /Packing size (mm)
305x185x90/370x218x98
380x210x80/490x350x195


Details Images


Mppt Solar Charge Controller Application:
Homephotovoltaicsystem Communication basestation,etc. Energystoragesystem Solarmonitoring

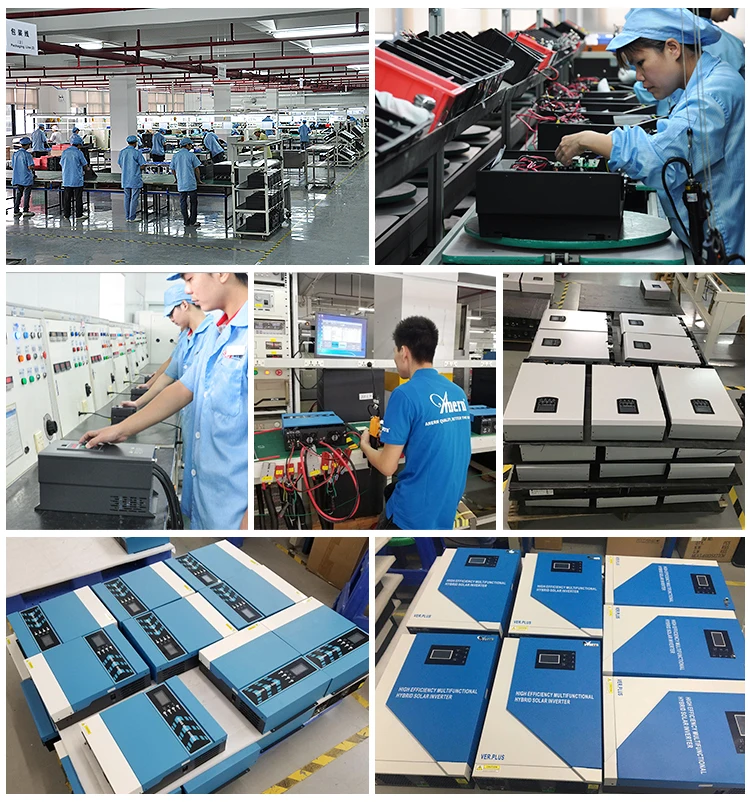

Anern Factory
