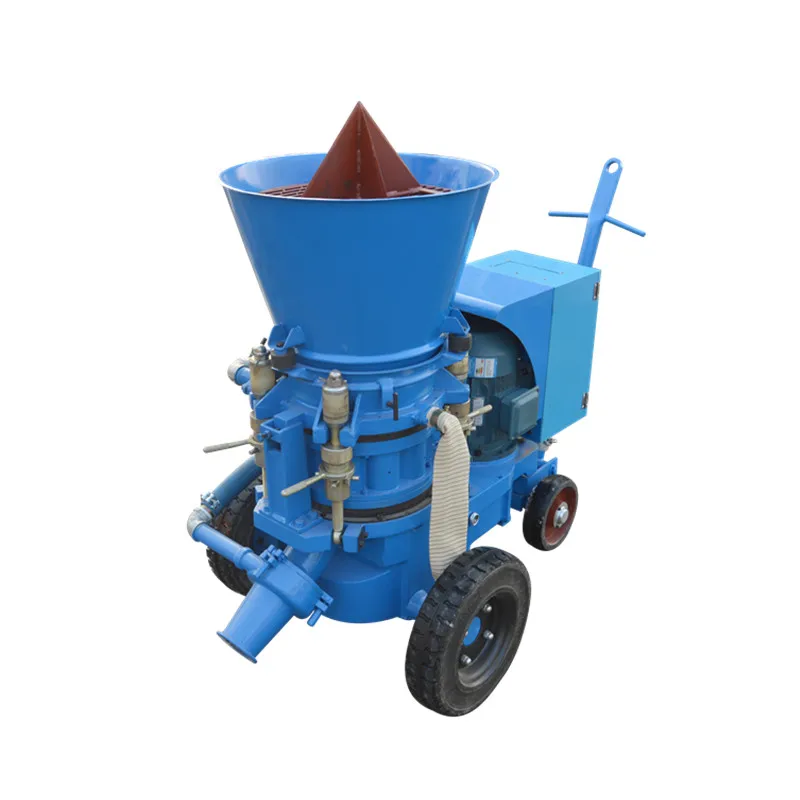

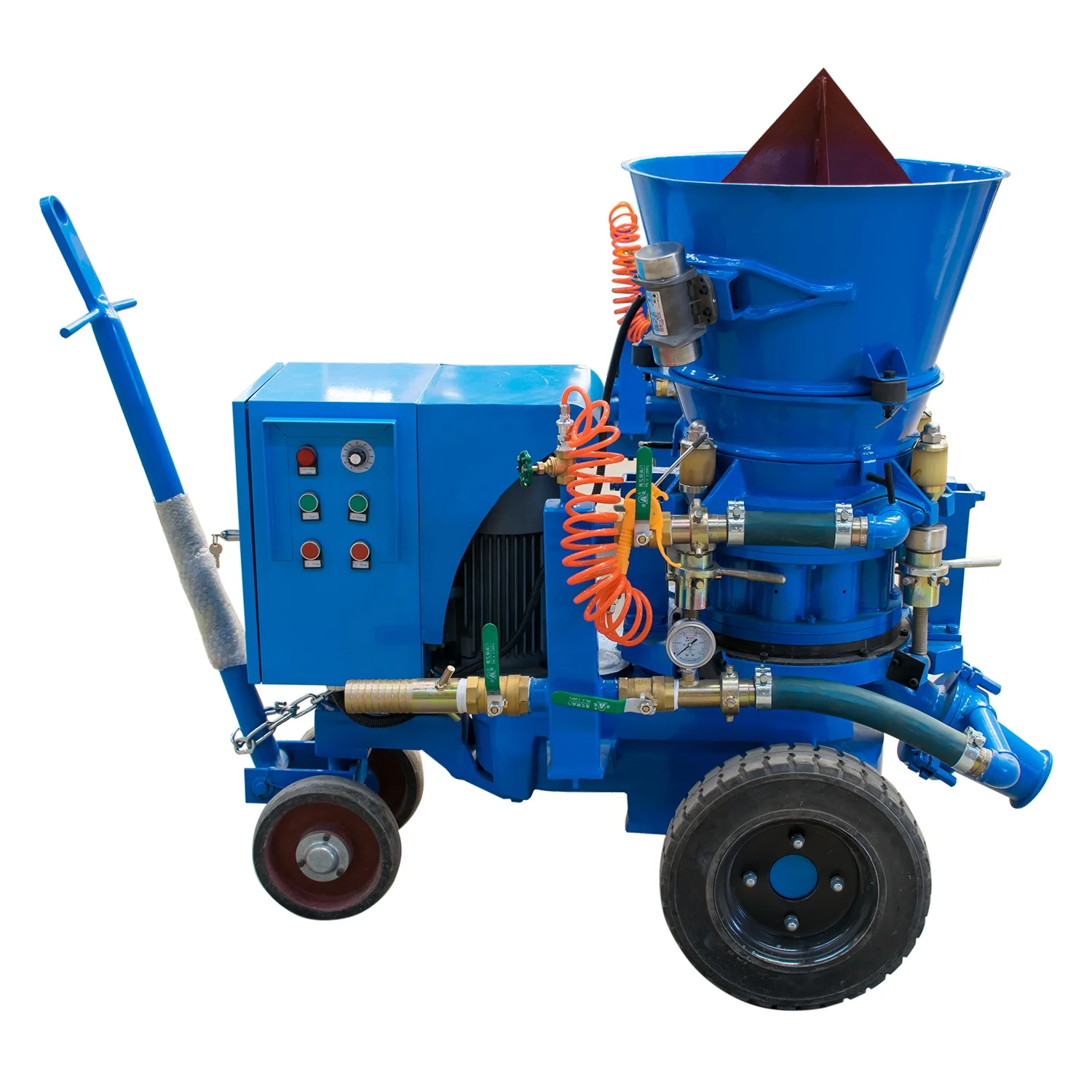

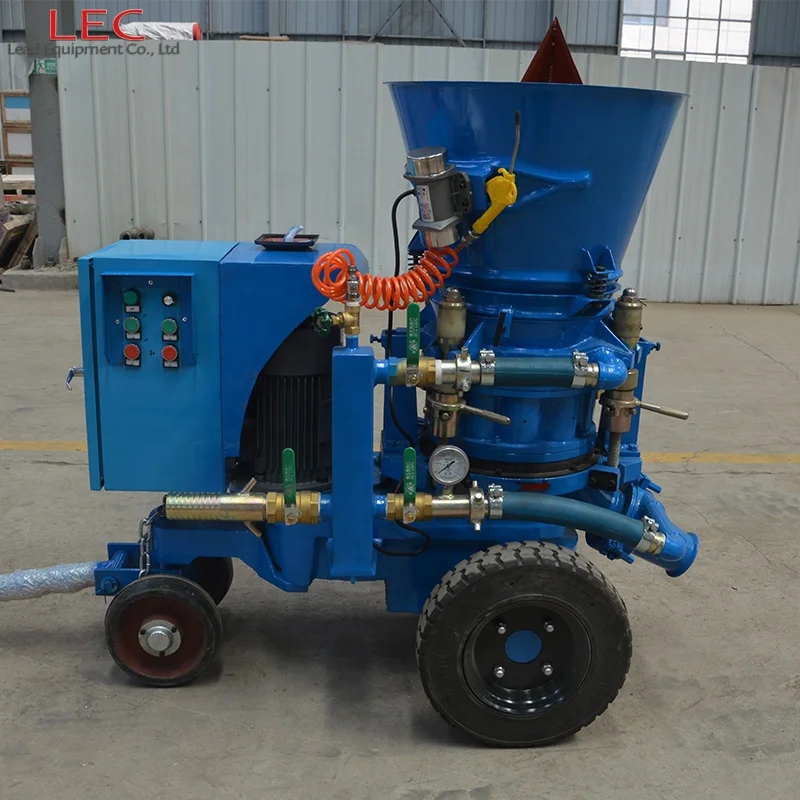

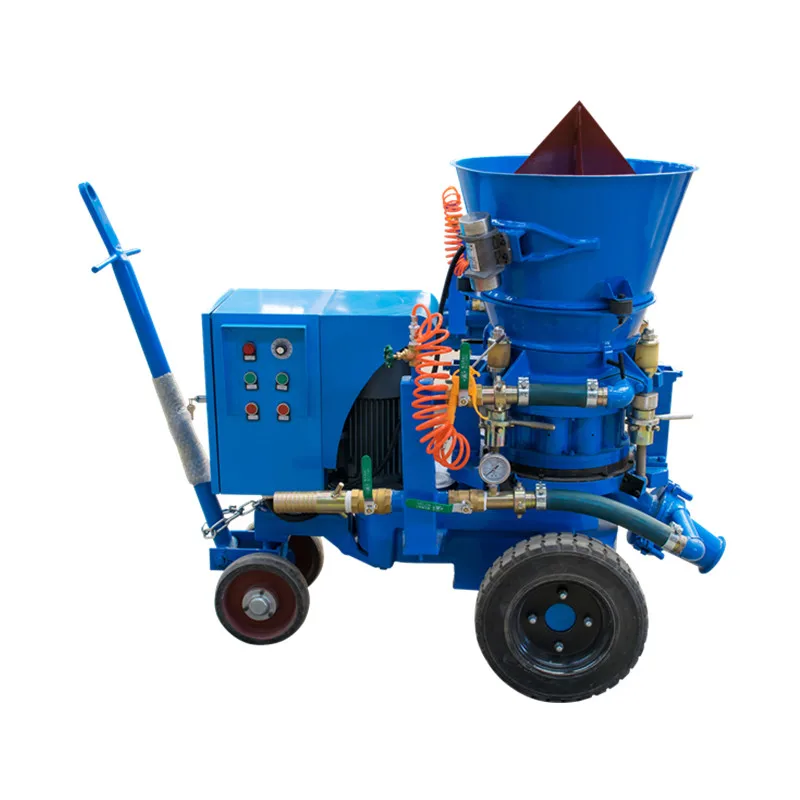

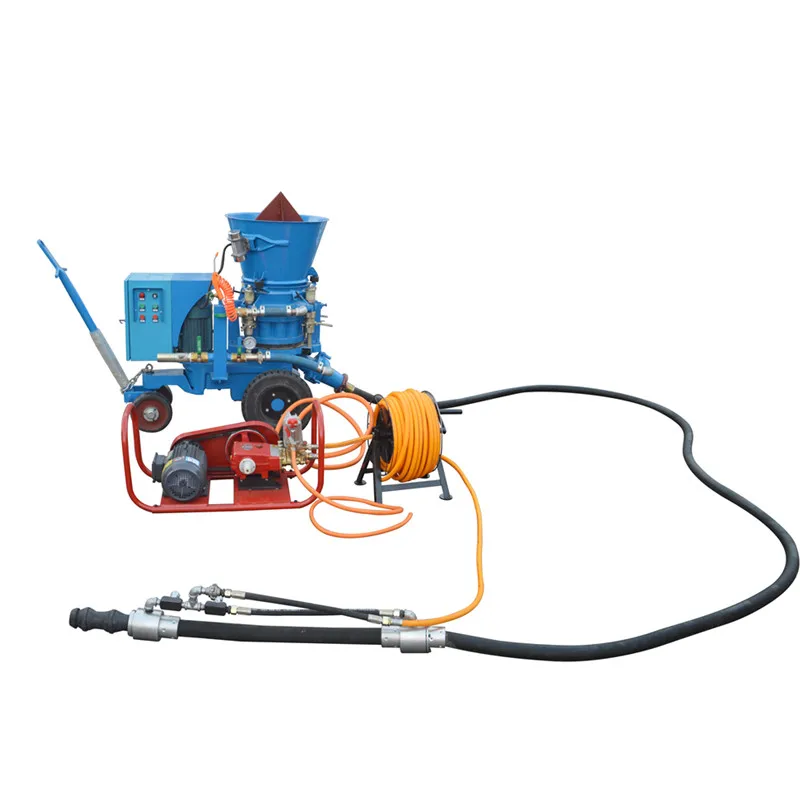

LZ-3ER dry mix refractory gunning machine for sale
Product Description
LZ-3ER dry mix refractory gunning machine for sale is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.
With this LZ-3ER, you can get low dust and high performance spraying flow in nozzle.
With this LZ-3ER, you can get low dust and high performance spraying flow in nozzle.
Technical parameters
Specification: | ||
Rated Output | 1-3m3 /h (2-6 ton/h) | |
Max. Horizontal Conveying Distance | 100m | |
Max. Aggregate Size | Φ10 mm | |
Conveying Hose Inner Diameter | 38mm | |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) | |
Air Consumption | 5~6m3/min | |
Engine | 4kw(electric motor 3 phase380V50Hz) | |
Material Charging Height | 1.1m | |
Rotor Speed | 13.2r/min | |
Overall Dimension(L×W×H) | 1.13×0.54×1.1m | |
Weight | 430kg | |
Product Paramenters
1. Variable Output with ABB variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. New type pre-dampening nozzle assy
8. Blast rubber hose
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. New type pre-dampening nozzle assy
8. Blast rubber hose
