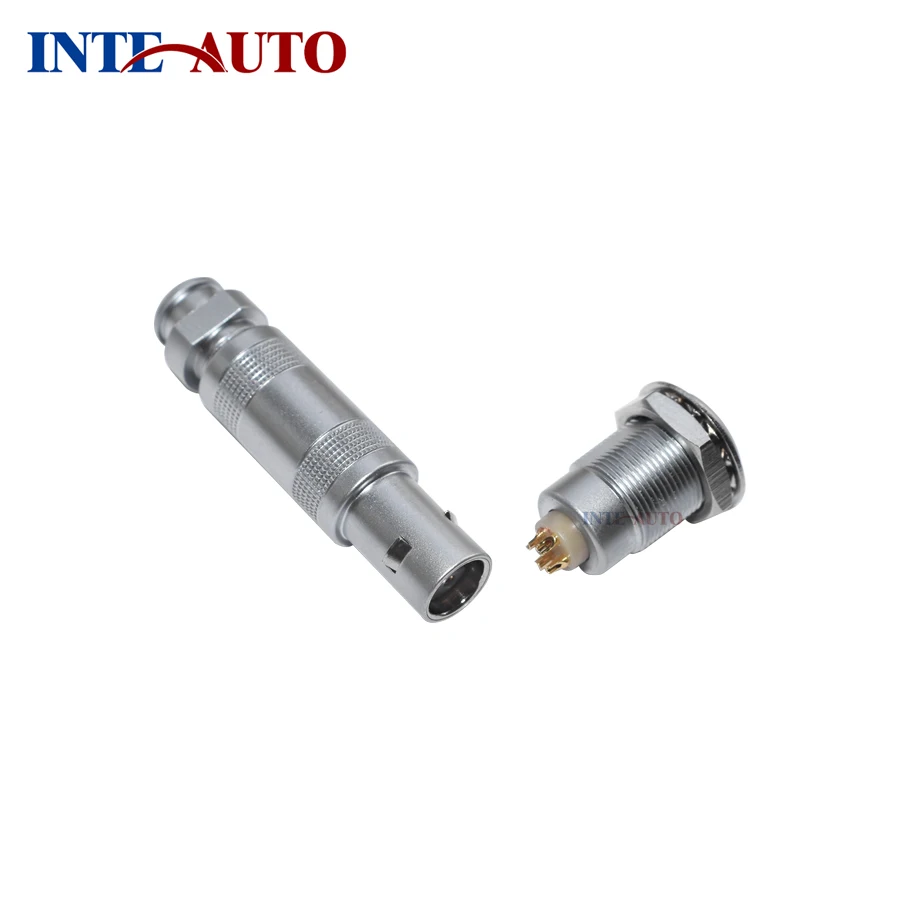

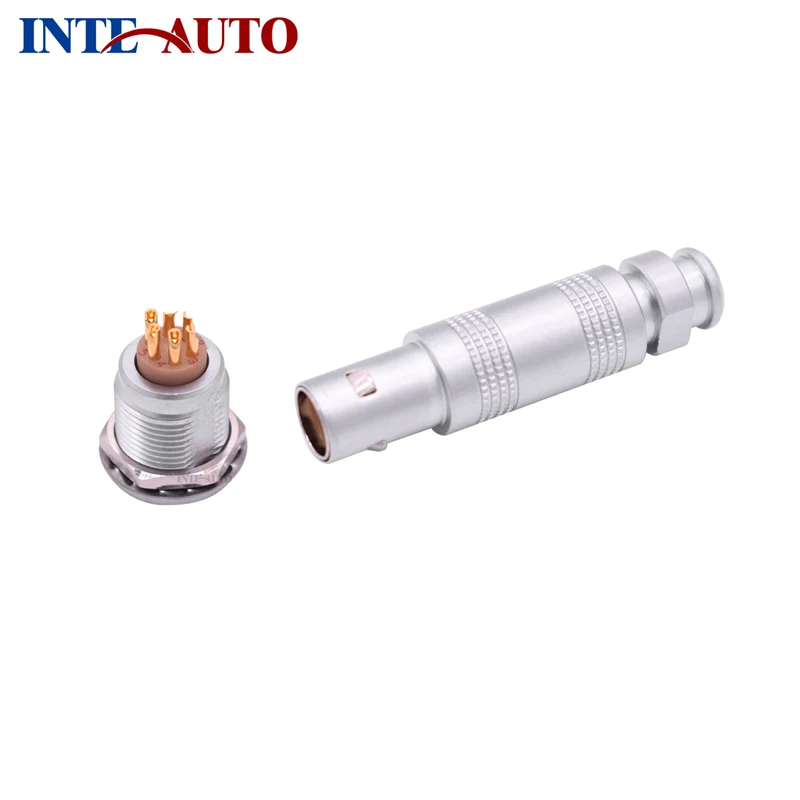

2S multi pin push pull self locking 2 3 4 5 6 ways female male half moon insert key metal connector
- Category: >>>
- Supplier: Shenzhen Yinte Electronic Technology Co. Ltd.
Share on (60778605136):
Product Overview
Description
Advantages
*Sample Free:1-2 PCS.
*Fast lead time: 3-5 work days if the QTY is under 200 PCS.
*Flexiblity payment way:T/T,PayPal,Westunion,Credit card.
*24 hours service for clients.
*Competitive price & stable production.
*Certified TUV,CE and RoHS.
*OEM/ODM/Cable Assemble.
*World-class customer service.
Product Description
S series connectors have main features as follows:
1.Security of the Push-Pull self-latching system
2.Solder or print contacts (straight or elbow)
3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts
4.Polarization by stepped insert (half-moon) fitted with male and female contacts
5.360° screening for full EMC shielding.
1.Security of the Push-Pull self-latching system
2.Solder or print contacts (straight or elbow)
3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts
4.Polarization by stepped insert (half-moon) fitted with male and female contacts
5.360° screening for full EMC shielding.
Product Parameters
| Number | INT-ZRA.2S 305. INT-TFA.2S.305 |
| Size/Series | 2S (Metal (Hermaphroditic Keying)) |
| Shell Style/Model | ERA: Fixed receptacle, nut fixing FFA: Straight plug, cable collet |
| Keying | Hermaphroditic keying ("half moon" insert) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 250 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 50 |

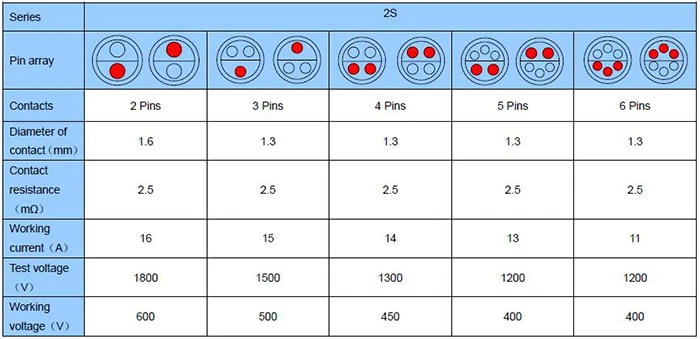

Insulator specs for s series:
Prodcut Size:
FAQ
(Shenzhen INTE-AUTO Technology Co.,LTD)
Expert in making high quality push pull connector & cable assemble.
Promotion items with more than 8 years’ experience!
Our goal is to provide customers with the best service possible and to produce excellent quality.
Brand identification products will meet or exceed your expectations.
All items coming with certification and we have excellent team offering best connector solution for your application.
FAQ:
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery.
one-year warranty for ≥6000 mating cycles.
Strictly quality control, connectors certified by TUV/CE/ROHS.
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Proofing fee & shipping cost will be charged in sample new design.
Q3: How long is your delivery time?
A: Sample is 1-3 work days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: Metal and plastic push pull self-locking connectors, actual or picture or part No. will assist to get a competitive price soon.
Q5: What’s the connector made of?
Metal type materials as below:
Out-shell: Brass plated pearl chrome
collet nut: Brass plated pearl chrome
insulator: PPS
collet: Brass plated nickel
contact: Brass, gold plated
split insert carrier: Brass plated nickel

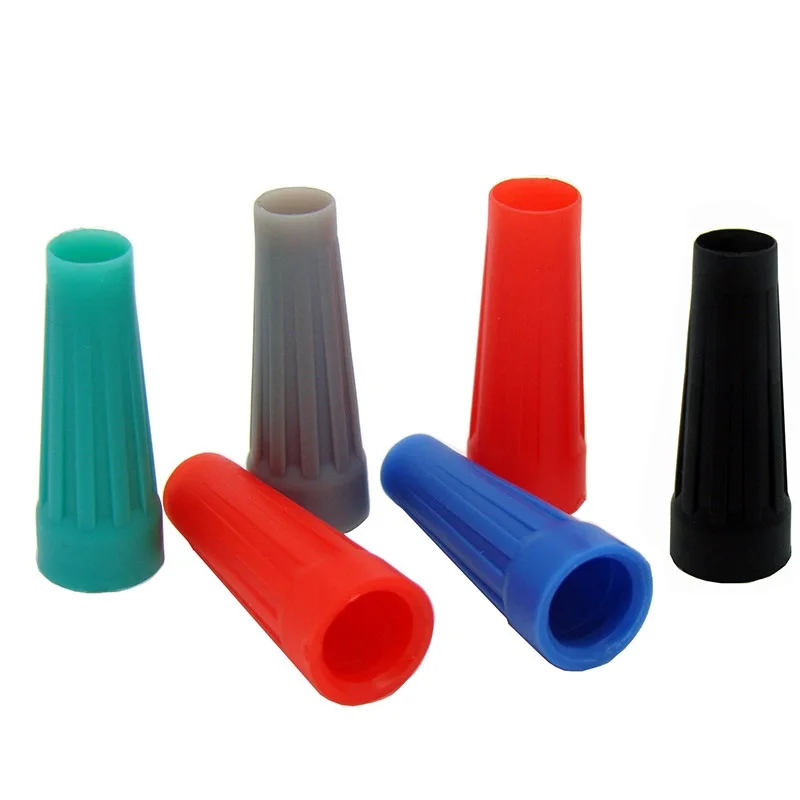

Bend relief: PSU
Plastic type materials as below:
Out-shell: PC
Insulator: PPS
Contacts: Brass
Gold plated is not less than 0.2μ
Bend relief: PSU
Q6: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q7: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
