LSI 9201 16i LSI00244 PCI Express 2.0 x8 SATA SAS Host Bus Adapter Card Single Pack Avago Technologies
- Category: >>>
- Supplier: Shenzhen Datastor Co. Ltd.
Share on (60778616686):
Product Overview
Description

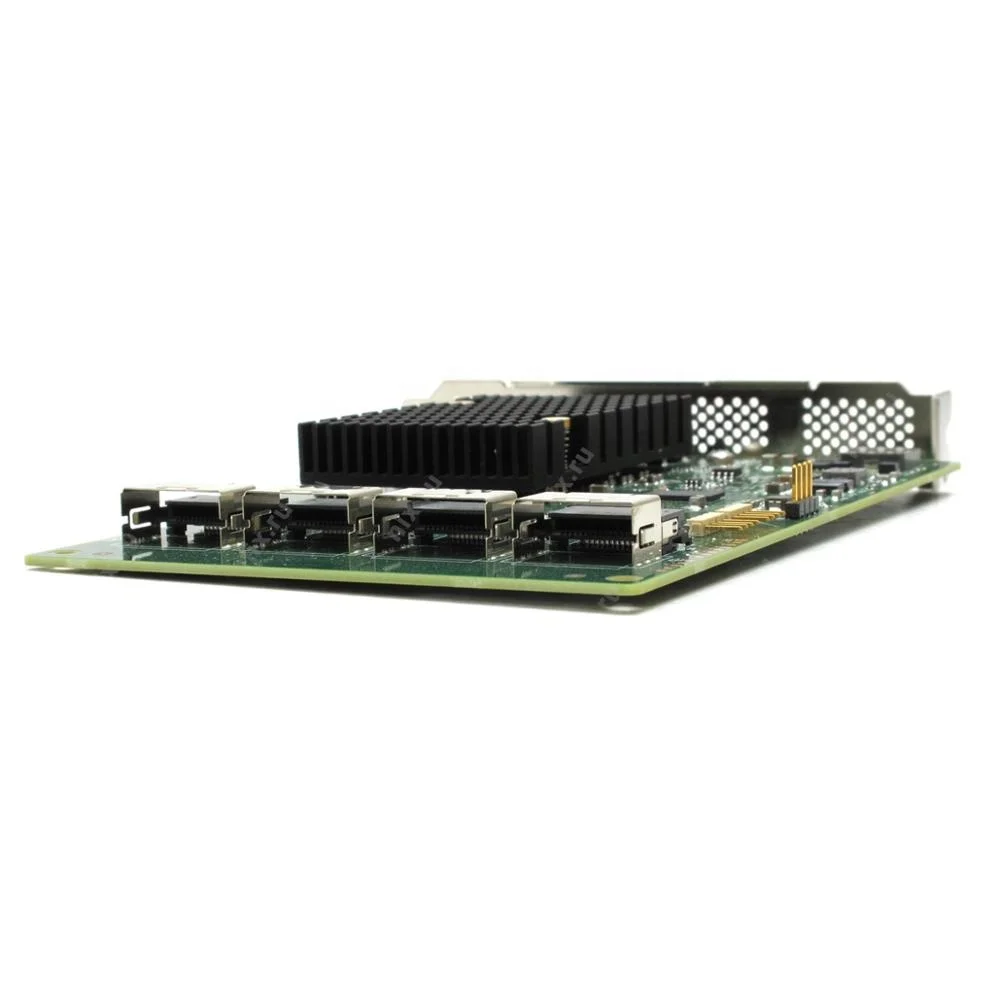

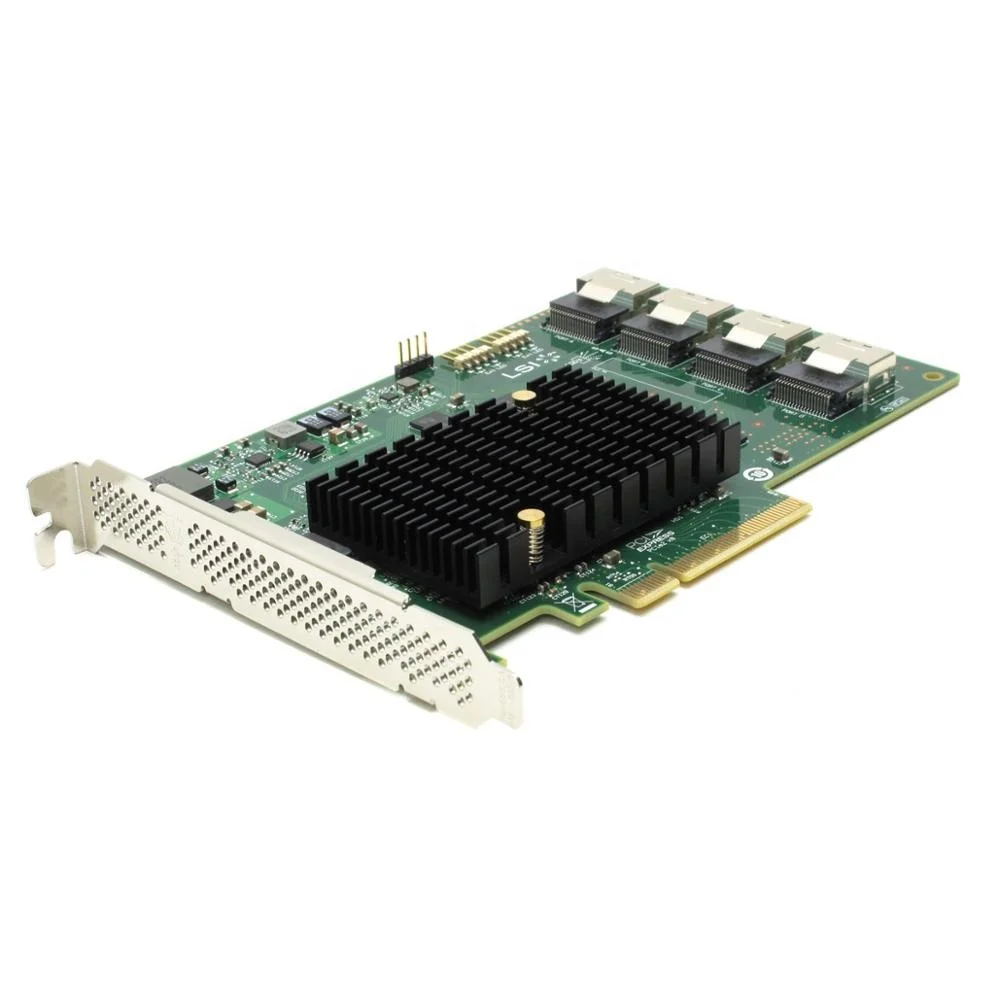

LSI 9201-16i LSI00244 PCI-Express 2.0 x8 SATA / SAS Host Bus Adapter Card Single Pack--Avago Technologies
Product Description
Boasting high performance SATA+SAS ports, the LSI 9201-16i host bus adapter offers a great solution to today's growing storage requirements. It offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility to protect your investment. Regardless of the drive speed, this 6 Gb/s adapter can deliver up to twice the performance level in both read and write applications as compared to their 3 Gb/s predecessors, providing the greatest available throughput to internal server storage arrays.
6Gb/s SATA+SAS Advantage
The LSI SAS 9201-16i host bus adapter (HBA) enables large-scale storage arrays through high-speed 6Gb/s ports, supporting up to 512 SATA and SAS physical devices. It bolsters high capacity server storage RAID and non-RAID enclosures by pairing a x8 PCI Express 2.0 host interface with four internal x4 SFF8087 Mini-SAS connectors.
6Gb/s SAS technology enhancements, such as End-to-End CRC, power management, and hot plug support, combine to produce an extremely powerful yet dependable solution. Additionally, the T-10 Protection Model delivers early detection of and recovery from data corruption while Spread Spectrum Clocking reduces EMI emissions. Other new features include greater signal integrity and longer cables using Decision Feedback Equalization and support for more sophisticated SAS topologies using Expander Self-discovery/Self-configuration.
Flexible to Fit Your Needs
LSI SATA+SAS HBAs build upon previous generations of industry-leading LSI SAS technology, delivering performance and power saving advantages along with the added assurance gained from robust interoperability testing. Built to handle the constantly changing and complex requirements of enterprise storage, LSI HBAs effortlessly manage the need for larger capacity, greater density and scalability.
The LSI SAS 9201-16i works easily with SATA and SAS, hard disk drives, solid state drives, and tape drives. It also doubles the performance of previous generation SATA+SAS HBAs and is optimal for driving cost-effective and reliable scalability in today’s data centers.
Operating System Support
The LSI SAS 9201-16i host bus adapter supports Microsoft Windows, Linux (SuSE, Red Hat), Solaris, and VMware operating systems. All OS drivers are backed by extensive testing and validation to ensure optimum system performance.
Model
| Brand | LSI |
| Model | LSI00244 |
| Form Factor | Low Profile |
Details
| Type | SATA / SAS |
| Internal Connectors | 4 x SFF-8087 mini-SAS |
| Interface | PCI-Express 2.0 x8 |
| Transfer Rate | Up to 6Gb/s |
| Operating Systems Supported | Microsoft Windows, Linux (SuSE, Red Hat), Solaris, VMware, FreeBSD |
| Dimensions | 6.60" x 2.60" |
Features
SAS Controller: LSISAS2116
The sixteen-port LSI SAS 9201-16i, supports data transfer rates of up to 6Gb/s per port, brings new features and improved performance to cost-sensitive server applications using up to 512 SATA or SAS devices.
Packaging & Shipping
1.Packing in factory box/retail box
2.All the products are 100% tested before shipment.
3.When you order, We will ship the products within 1-3 working days(depending on Qty) after the payment is received.
4.We can ship to you by DHL/TNT/UPS/EMS/UPS/Fedex... Please contact us directly and we will ship as you required.
Our Services
We provide 1 year free warranty service.
Only provide 1 year free warranty service for impersonal factor failure or damaged products.
Buyer must bear the freight of the free warranty products at his own expense.
PS:
Faulted or damage of product in the following cases shall not covered by the free warranty service
1.Product is faulted or damaged in the non-specified working environment (temperature, humidity, voltage, current, internal cleanliness of the machine)
2.Product is faulted or damaged due to improper maintenance (e.g. virus infection, water intake, extrusion, etc.)
3.Product is faulted or damaged caused by customers' unauthorized disassembling the parts.
4.Product is faulted or damaged caused by fire, flood, lightning, earthquake or other force majeure events.
Payment
We accept HSBC,Trade assurance, MoneyGram, Western Union,Paypalm,VISA,MasterCard,Bank of China,D/P,L/C,D/A,T/T.
Welcome wholesale!!!
More QTY, better price.
Company Information
Shenzhen Stor Data Co.,Ltd, is a professional supplier specializing in raid adapters, HBAS, network cards,SAS SATA and storage systems, with more than 10 years of experience in the storage industry. And our price is much competitive than others, as so many trade companies and suppliers also make orders from us. Besides, we always have a certain quantity in stock, so that our delivery time is shorter than others.
Contact us
Contact Person: Claie Choi
Phone:86-15913154080
Email:clairechoi@foxmail.com
clairechoi@foxmail.com
Claire Choi
FAQ
1.What is your MOQ?
---1pc
2.When can you send the goods?
---Usually we can send the goods in 1~3 working days(depending on Qty) if we have stock.
3.How could I get the best price?
---We do wholesale on Alibaba.We will guarantee the benefit for both sides.The price is based on the quantity. And We usually offer discount for old customers.
4.How can I buy this Model?
---You can send e-mail to us.We are sure to reply you in 24 hours.You can also talk with us through our trade manager/skype/Wechats. If we are not online, you can leave us a message. We will reply you as soon as possible.
