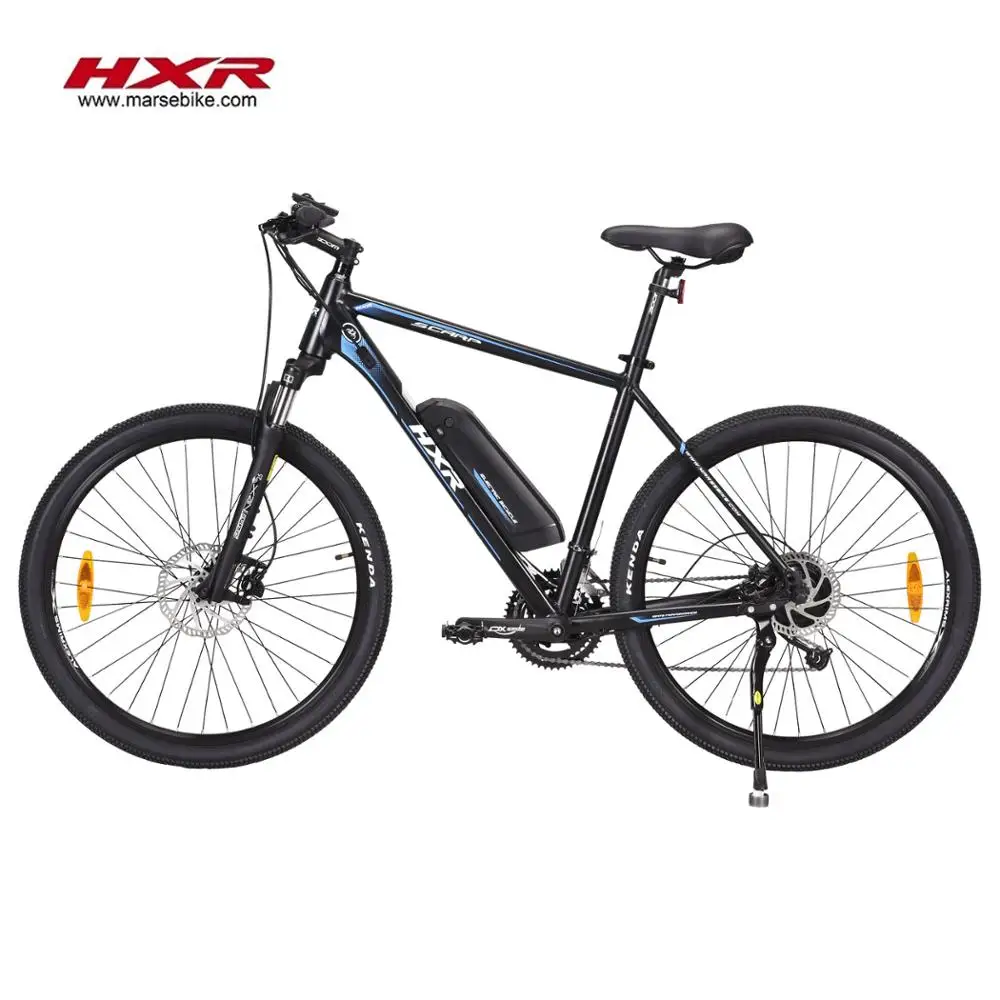

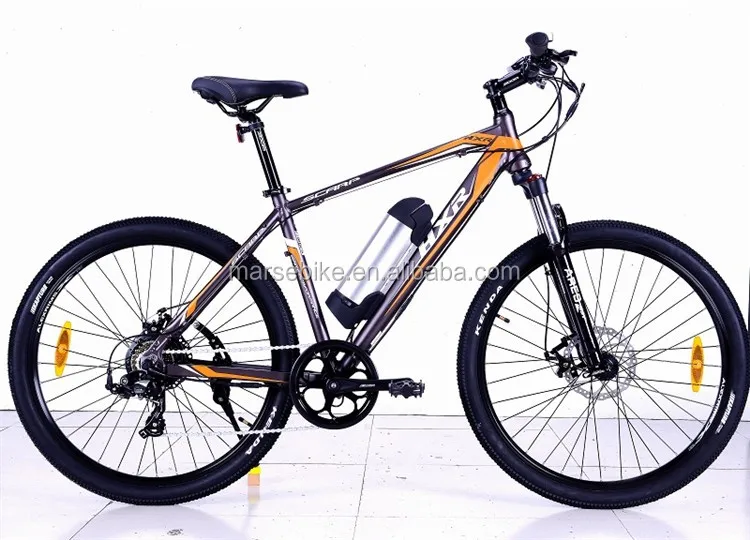

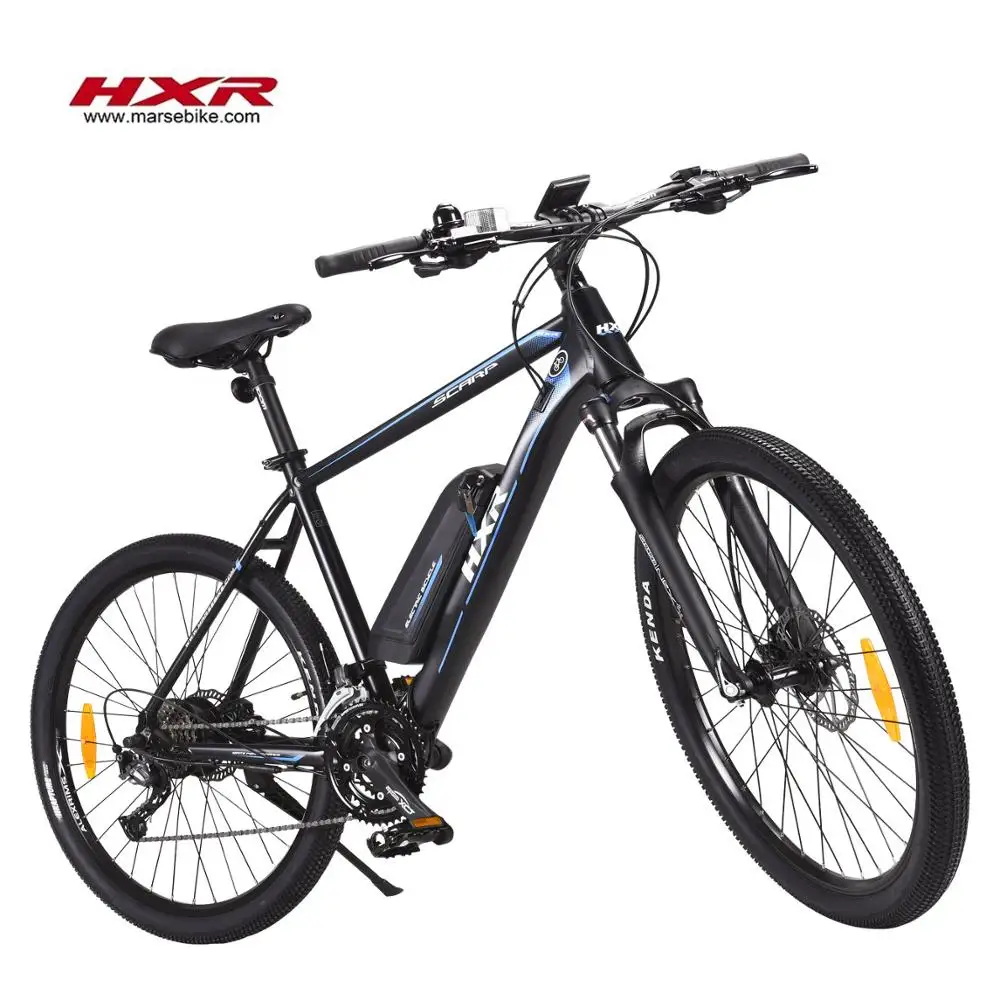

36v 250w pedelec electric bicycle

Product Overview

Description

36v 250w pedelec electric bicycle



 what is the specialty?how about the warranty?

 Warrant Warranty Period



1.36 months for the Frame.
2.24 months for the electric motor.
3.12 months for the Li-ion battery.
4.12 months for the controller.

5.12 months for the charger .

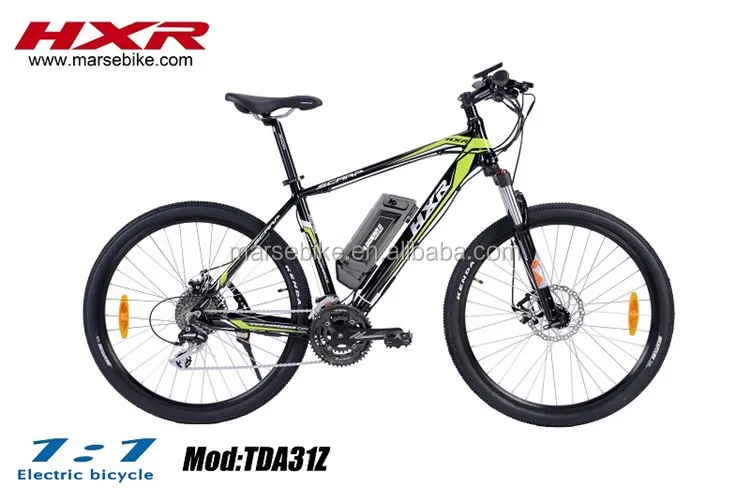

MODEL:TDA31Z



Electric System



1)250W Brushless (XOFO)

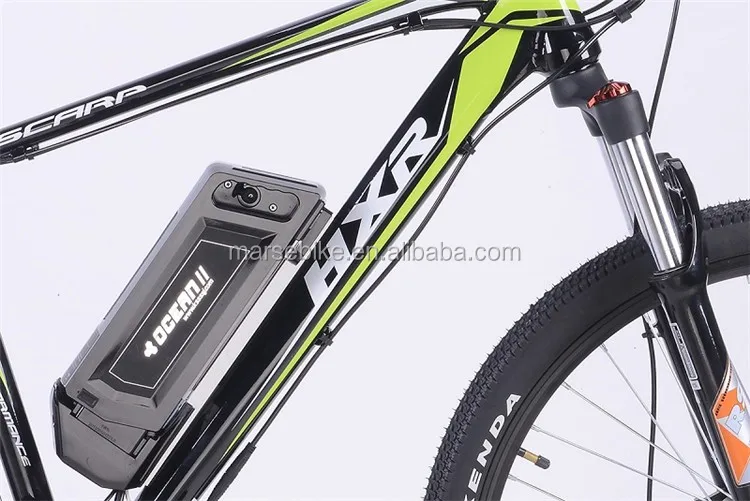

2)Battery:Li-Poly 36V,9Ah

3)charger:AC110V--240V,47-63Hz (ABT)

4)PAS:1:1 Intelligent pedal assistant system 4-level option (neutral gear,1,2,3)

5)Controller:Intelligent controller (LSW)

6)DISPLAY:APT LED,350U,3 assistant model

7)Front Light/rear light:Reflector



Performance & Paking





8)Max speed:25km/h-32km/h



9)Driving distance:45-70KM



10)Charging time&life:6-8 hours,>500 times



11)Max loading:95kg-125kg



12)G.W./N.W.:29/23Kg



13)Product size:1730×635×1075mm



14)Packing size:1500×270×780mm



Main Cable System



Main Components



15)frame:6061 Aluminum alloy (PSJ)

16)front fork:Al alloy Suspension (ZOOM)

17)rim:ALEXX2000/27.5"

18)tyre:KENDA  27.5"×1.95

19)spokes:Steel spokes

20)handlebar:Al alloy,MTB (ZOOM)

21)stem:Al alloy,TDS (ZOOM)

22)Derailleur:SHIMANO RS35-7 speed

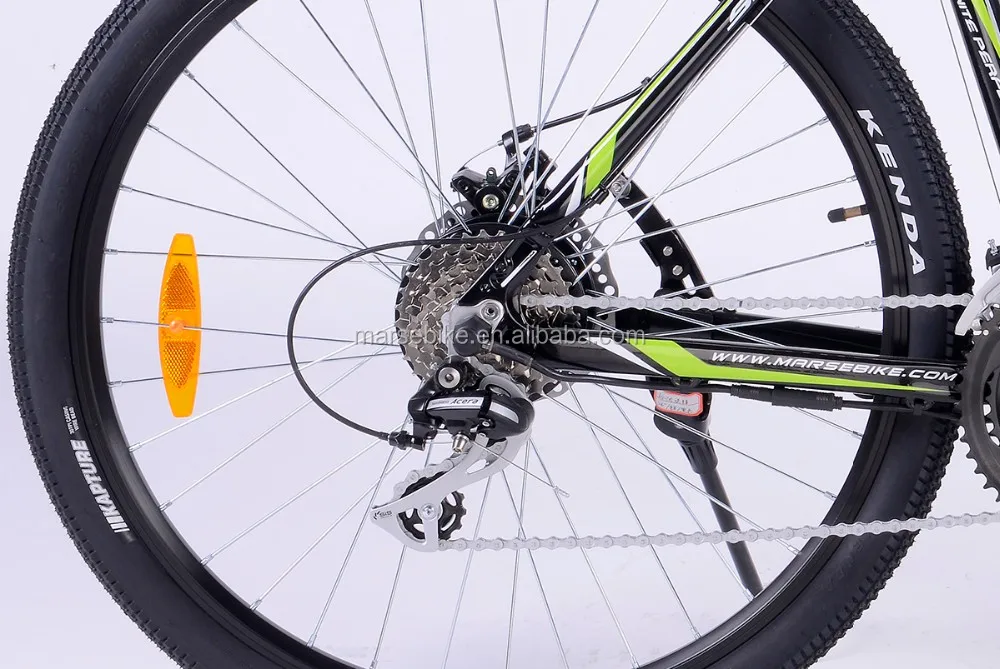

23)Rear derailleur:SHIMANO,TURNEY,RD-TY500D

24)Brake level:Al alloy (WUXING)

25)F/R brake:TEKTRO,D-brake,MD280

26)Grip:DC

27)Throttle:Optional

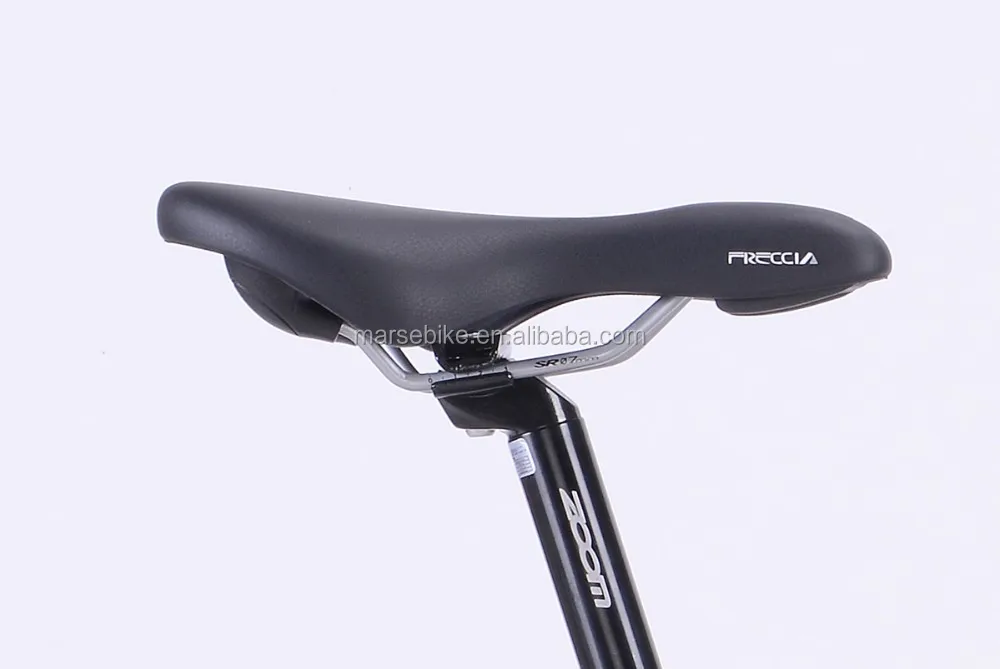

28)sadddle:1003B/B2-01

29)Seat post:Al alloy (ZOOM)

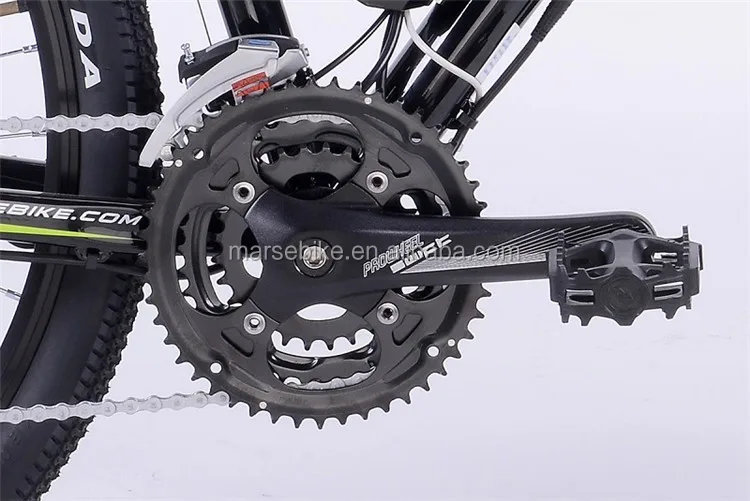

30)Crank Set:PROWHEEL 48T

31)chain:Rust resistant chain,HP6,KMC

32)Pedal:VP 896N

33)Freewheel:SHIMANO,7R

34)Mudguard:Optional

35)rear rack:Optional
