Picture of Flow of 60 m3 / h Stainless Steel Filter for River Water
More information of Flow of 60 m3 / h Stainless Steel Filter for River Water
Flow of 60 m3 / h Stainless Steel Filter for River Water

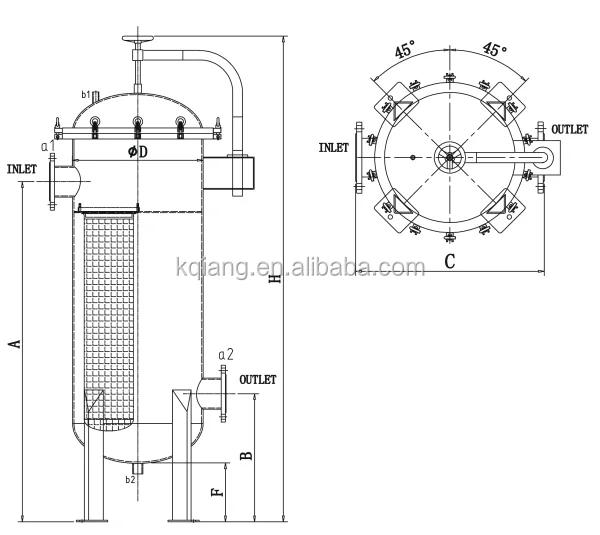

Item
A (mm)
B (mm)
H (mm)
D (mm)
F (mm)
C (mm)
Inlet/outle a1/a2
Flow rate m3/h
Bag NO. b1/b2
KQ-KZ-DS2-2#
1080
320
1400
∅400
120
560
DN65
60
2
KQ-KZ-DS3-2#
1100
350
1430
∅450
120
610
DN80
90
3
KQ-KZ-DS4-2#
1190
400
1540
∅500
150
660
DN100
120
4
KQ-KZ-DS5-2#
1200
400
1560
∅550
150
710
DN125
150
5
KQ-KZ-DS6-2#
1250
450
1630
∅600
150
760
DN125
150
5
KQ-KZ-DS7-2#
1350
450
1740
∅650
150
850
DN150
180
6
KQ-KZ-DS8-2#
1380
500
1780
∅700
150
900
DN150
240
8
KQ-KZ-DS9-2#
1460
500
1920
∅750
150
950
DN200
270
9
KQ-KZ-DS10-2#
1470
550
1950
∅800
150
1000
DN200
300
10
KQ-KZ-DS12-2#
1550
600
2050
∅900
150
1140
DN250
360
12
KQ-KZ-DS16-2#
1570
600
2100
∅1000
150
1240
DN300
480
16
KQ-KZ-DS18-2#
1600
650
2150
∅1100
150
1340
DN300
540
18
Working Principle of Bag filter Housing

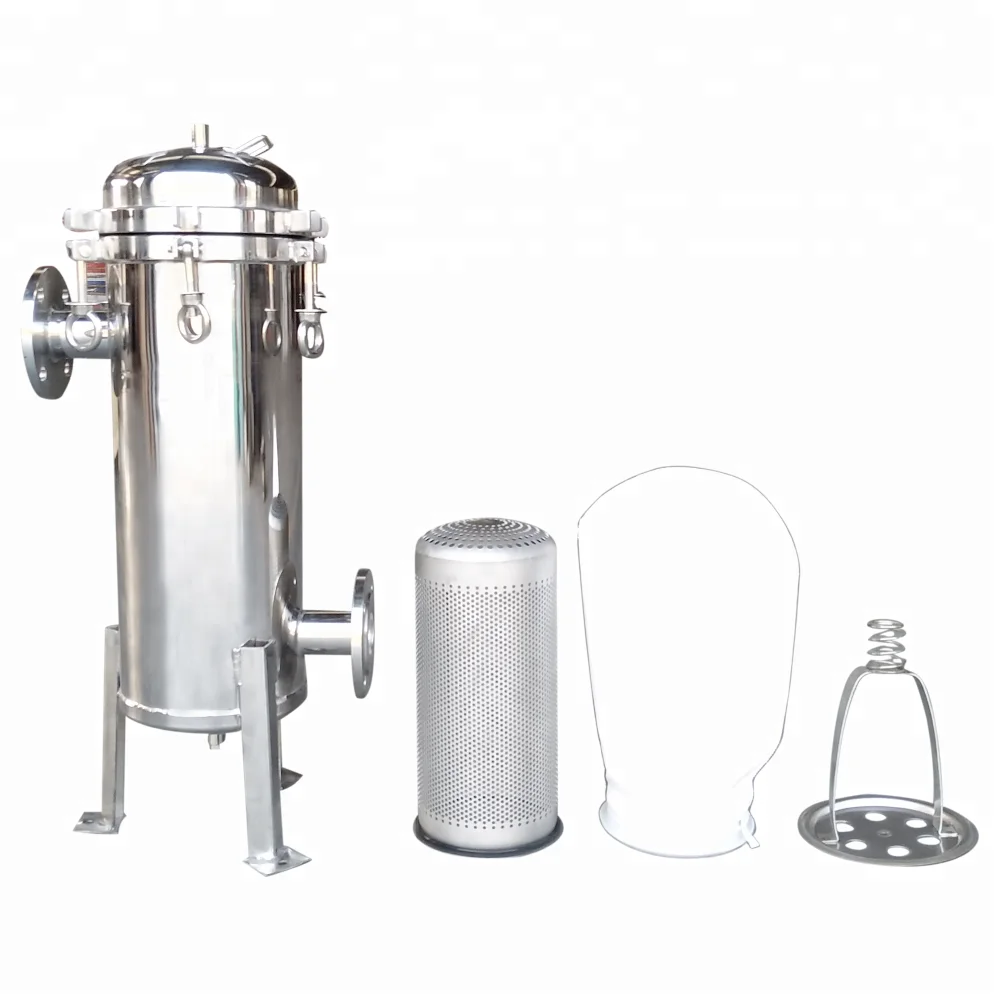

Bag filter is a kind of pressure filter device,its main structure is divided into three parts:filter vessel,support basket with netting on top and filter bag,the filter bag is supported by metal net. Water flowed from the inlet, passed the filter bag and lowed out from outlet, the contamination particle is held up in the filter bag. It can be used continuously after changed a new filter bag.
Application of Bag filter Housing
As the security department of the NF,UF,RO,EDI systerms;
Liquor, wine, beer, yellow wine and other wine filtration, pure draft beer aseptic filtration (replacement pasteurization);
As the security filter in the water pre-treatment systerm,to process the production/living sewage
Others such as biological engineering, oil refining, printing and dyeing, textile industry's water supply and wastewater treatment, scientific research experiments filtering, etc.
Factory Name: Hangzhou Kangqiang water treatment equipment Co.,Ltd.
Address:NO.88 Yangyuan Village, Luzhu Town, Fuyang, Hangzhou City, Zhejiang, China
Since: 2009.
Covers: 20000 m2.
Staffs.: 80 people, 10 technicians and 2 senior engieneers. Mian products: Sand filter,cartridge filter, bag filter,water softener,storage tank,membrane housing,SUS filter tanks, etc.

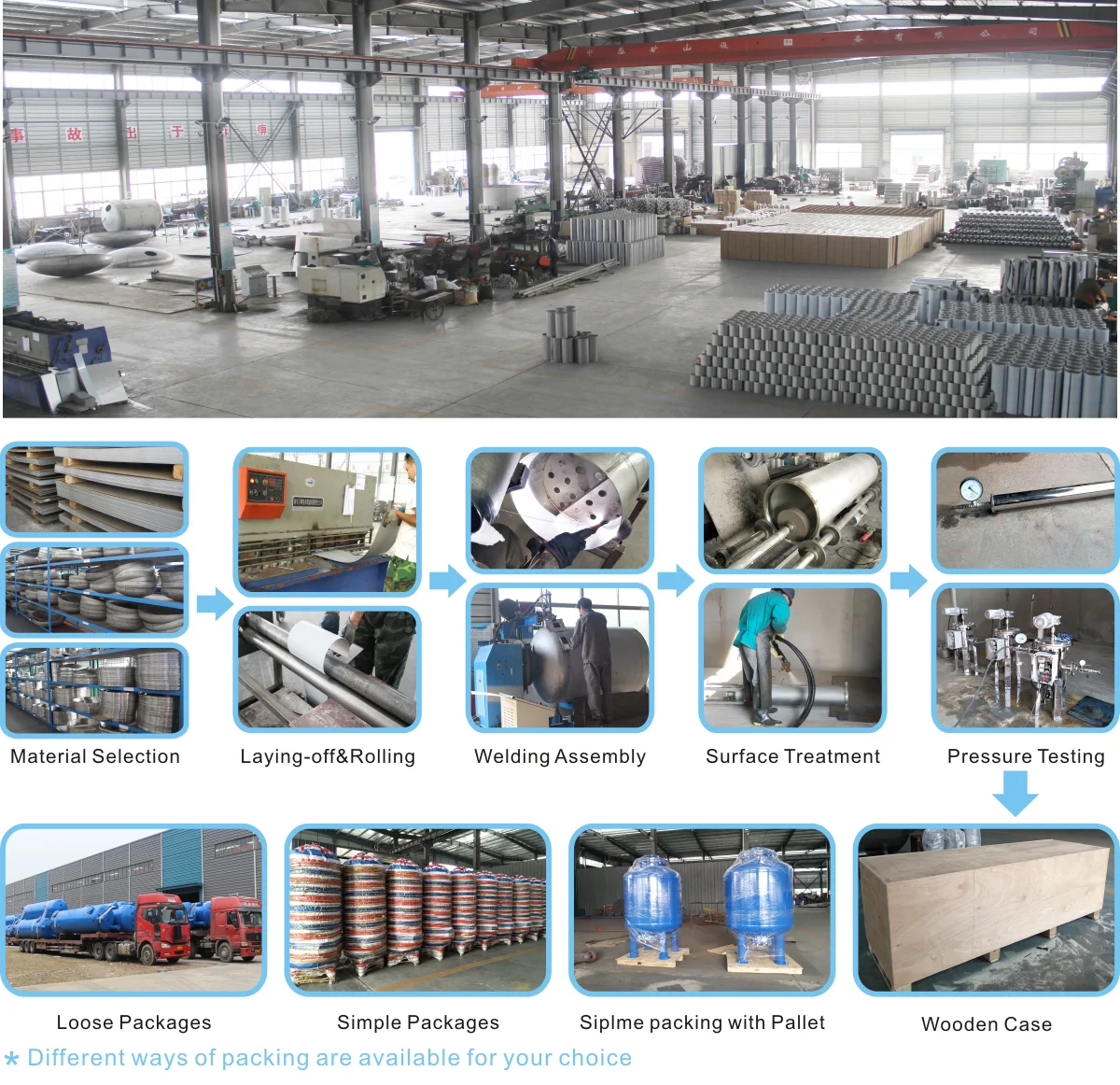

Stainless steel tanks workshop
Company at the Exhibition
FAQ
1.Are you a manufacturer? Yes, we are a manufacturer. we manufacture as <JBT2932 1999 Specification for water treatment equipments>
2.What products do your company offer by yourself?
We are specialized in manufacturing stainless steel and carbon steel filters, such as sand filter(mechanical filter), cartridge filter, bag filter, RO membrane housing, water softener, UV sterilizer, basket filter, water storage tank etc...
3.How do you usually pack the exported goods?
We usually use bubble bag, carton box, or wooden case.
4.Which machine should I choose?
It depends on your raw water quality and your requirements for permeate water.
5.What’s your warranty?
Our warranty is 1 year. But normally, our machine can work more than 5 years before repair.
