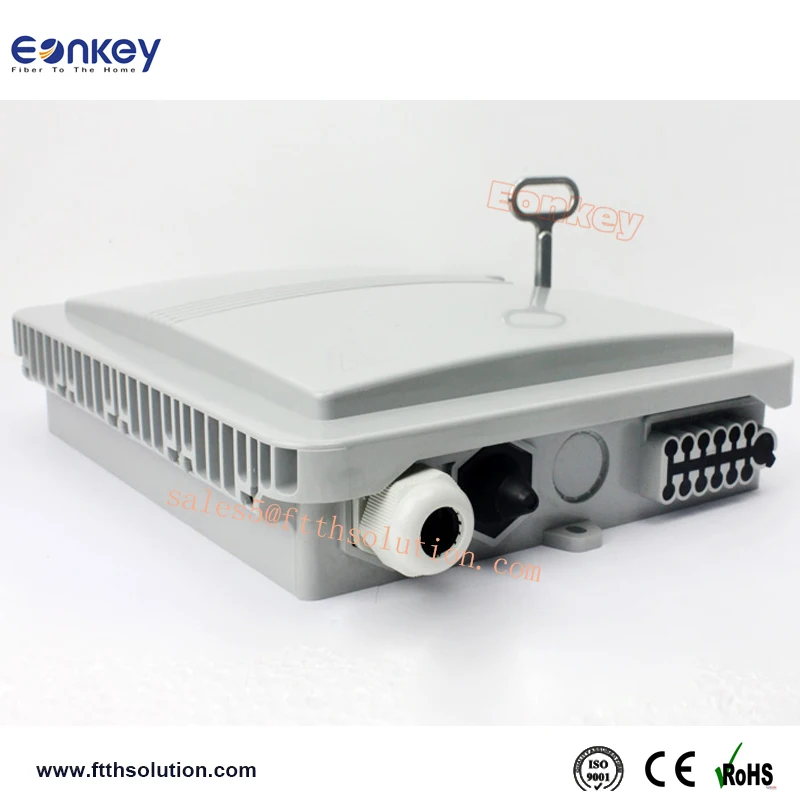

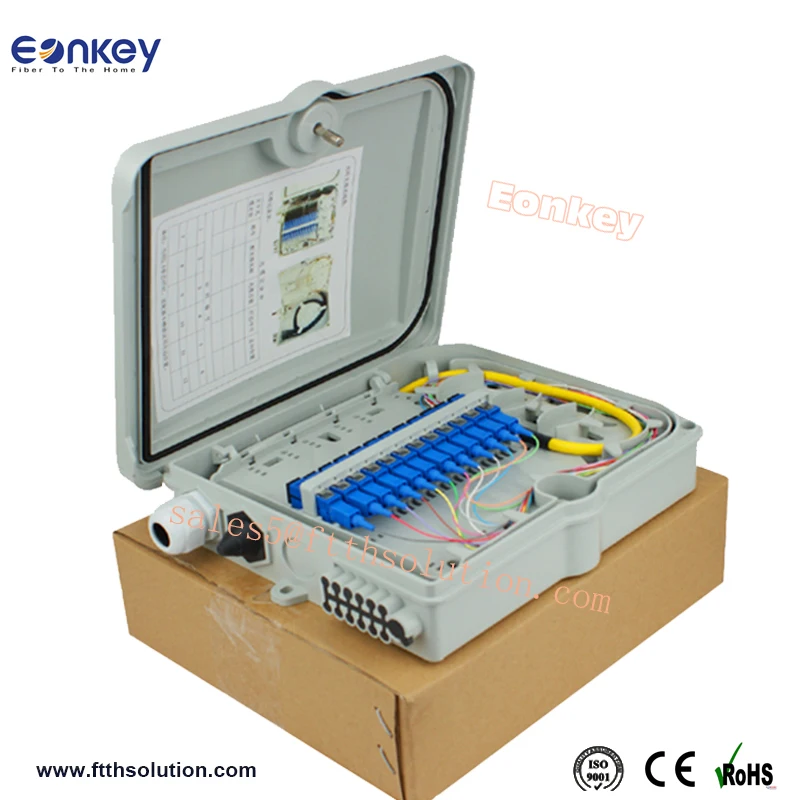

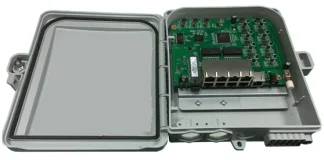

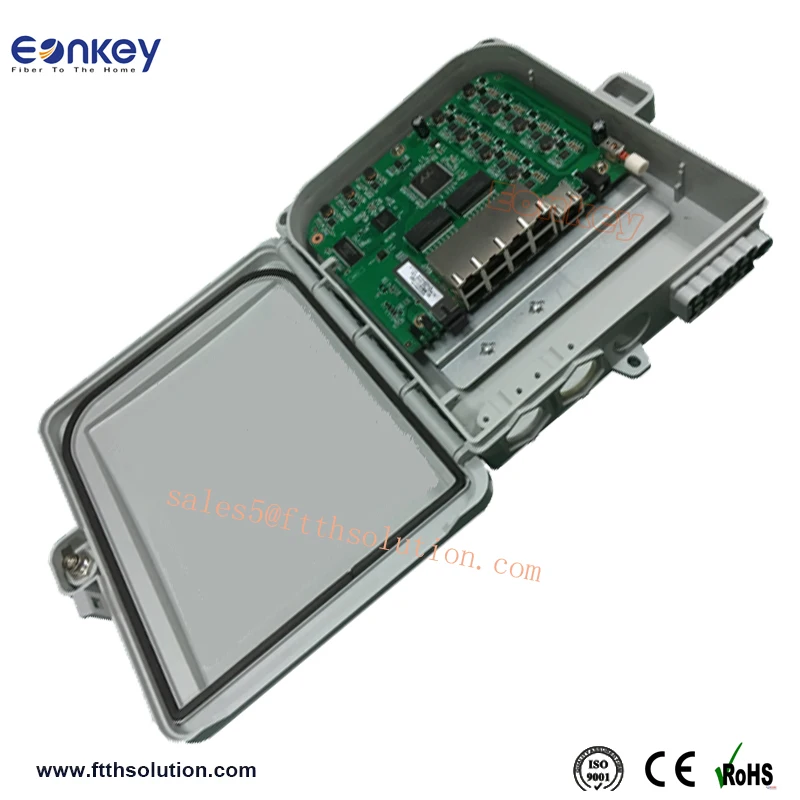

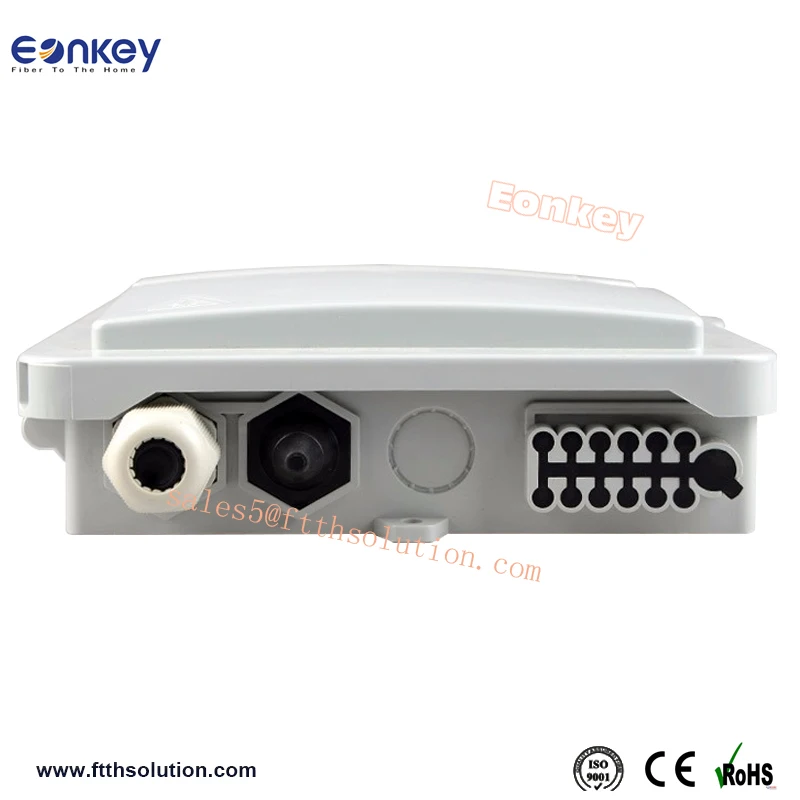

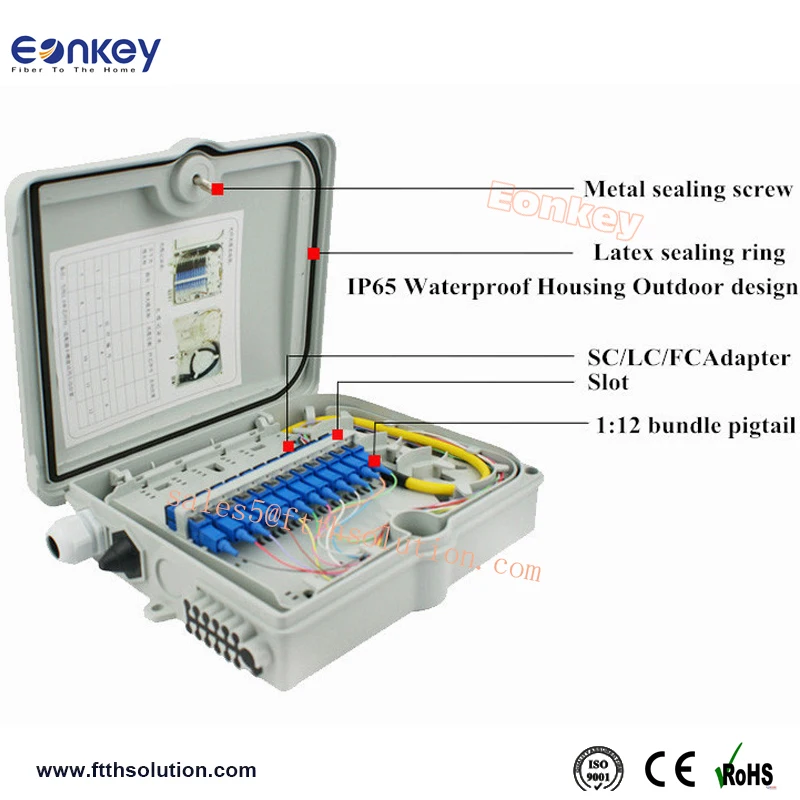

Eonkey PCB FTTH 12 ports FDB Outdoor distribution box with 8 port poe switch

Product Overview

Description

Eonkey PCB FTTH 12 ports FDB Outdoor distribution box with 8 port poe switch

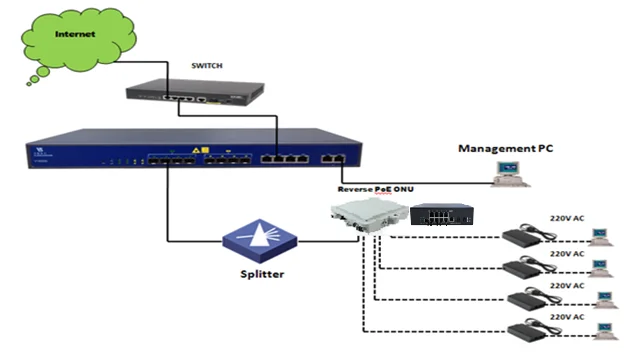

EPON 8FE+Reverse PoE(PD) ONU with reverse PoE designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is basing on the stable and mature Gigabit EPON technology, which has high performance/price ratio, and the technology of layer 2Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. And it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1) from China Telecom. ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.

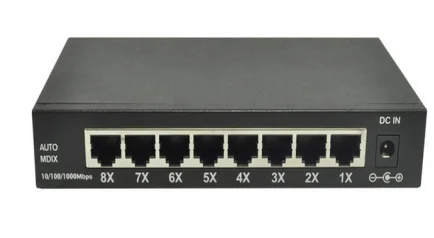

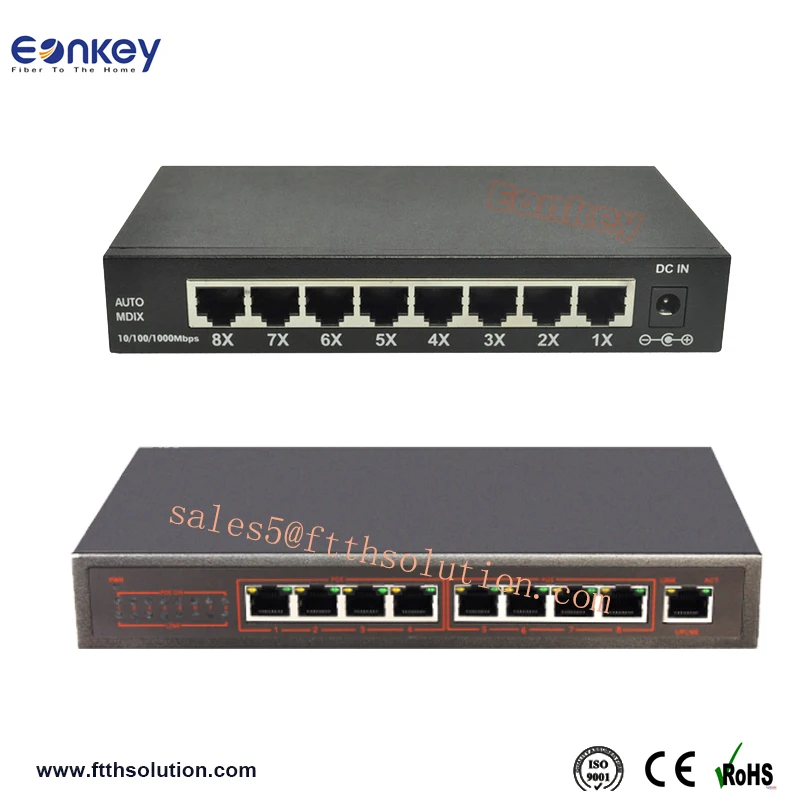

General Standards IEEE 802.3, IEEE 802.3u ,IEEE802.3ab Topology Star Protocol CSMA/CD Data Transfer Rate Ethernet:10Mbps(Half Duplex),20Mbps(Full Duplex) Fast Ethernet:100Mbps(Half Duplex),200Mbps(Full Duplex) Gigabit Ethernet:2000Mbps(Full Duplex) Network Media(Cable) 10Base-T;UTP category 3,4,5 cable (maximum 100m) EIA/TIA-568 100ΩSTP (maximum 100m) 100Base-TX; UTP category 5,5e cable (maximum 100m) EIA/TIA-568 100ΩSTP (maximum 100m) 1000Base-T;UTP category 5 cable (maximum 100m) EIA/TIA-568 100ΩSTP (maximum 100m) Number of Ports 8 of the 10/100/1000Mbps Auto-Negotiation RJ45 ports LED indicators Power,100/1000Mbps Link/Act Transfer Method Store-and-Forward MAC Address Learning Automatically learning. automatically Frame Filler Rate 10Base-T:14880pps/Port 100Base-T:148800pps/Port 1000Base-T:1488000pps/Port Frame Forward Rate 10Base-T:14880pps/Port 100Base-T:148800pps/Port 1000Base-T:1488000pps/Port Environmental and Physical Operating Temperature -10~45℃(14~113ºF) Storage Temperature -15~50℃(14~113ºF) Operating Humidity 10%~90% non-condensing Storage Humidity 5%~90% non-condensing



Packing of FTTH 12 ports FDB with 8 port poe switch:
1,inner box size:331mm*213mm*90mm
2,10 pcs inner box into a Carton (56cmx37.5cmx51.5cm) ,about 15KG

Delivery of FTTH 12 ports FDB with 8 port poe switch: 3-7 days after payment

The best service for you

1,Do you provide free FTTH 12 ports FDB with 8 port poe switch samples?

------ yes, we can supply some free samples , the buyer should bear the shipping cost.

2,Are you trading company or manufacturer ?

------ We are factory also trader.

Welcome to visit us in any time.My cell number is +86 15158331064

3,How long is your delivery time?

------ Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

4,What is your terms of FTTH 12 ports FDB with 8 port poe switch payment ?

------ Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
