Product Overview

Description

Product Description

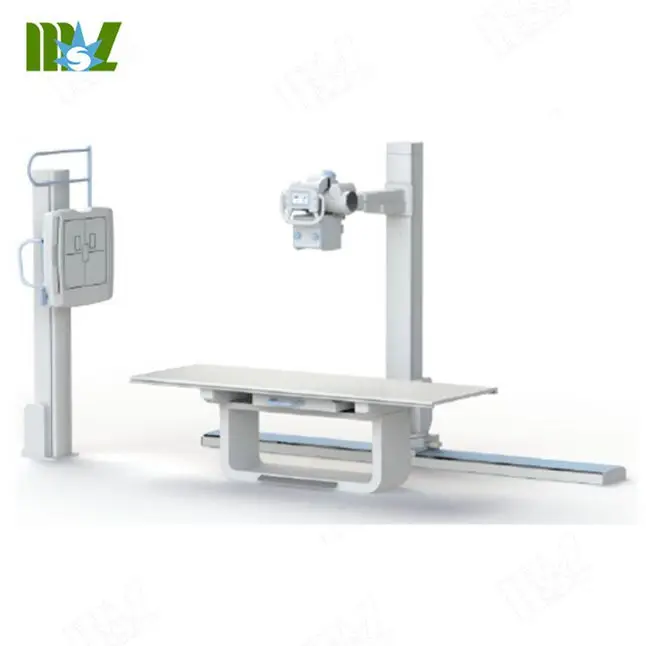

2018 High frequency and pressure medical x ray machine price MSLHX06


Fixed type digital x ray machine for sale


Technical Parameters
Configuration parameter of the x-ray machine
 technical requirements
1
high frequency and pressure X ray generator for medical diagnostic use
1.1
input power: 380V±38V,50Hz±1Hz.
1.2
maximum power output :50 kW
1.3
Photography tube voltage:it can be adjusted continuously, adjustable step width is 1KV,adjustable range: 40kV~150kV
1.4
photography tube current:it can be adjusted by sections. Adjustable range: 10mA~630mA
1.5
load time: adjustable range: 0.001-10sec
1.6
current can be adjusted by sections. Adjustable range: 0.1mAs~500mAs
1.7
working frequency: 100kHz

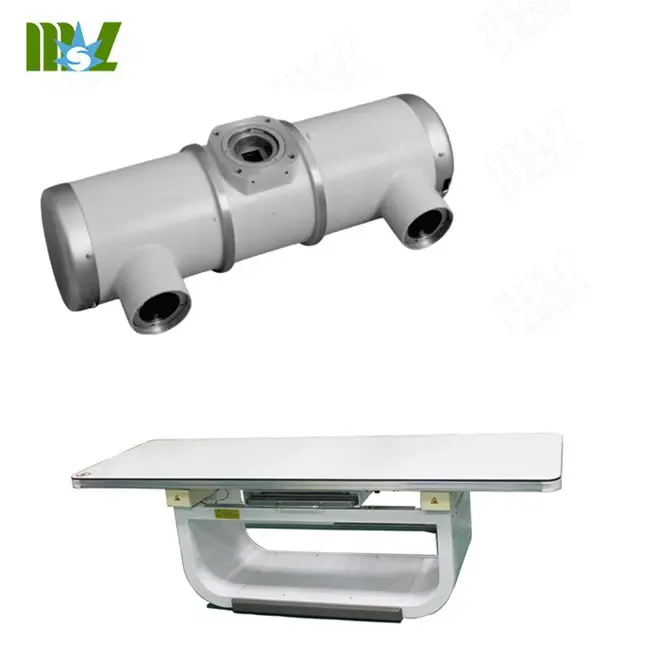

X ray tube
2.1
:highest peak tube voltage: 125kV
2.2
maximum filament current's heat characteristic: big focus:5.4A, small focus:5.4A.
2.3
focus: small focus:0.6mm;big focus:2.0mm
2.4
Anode input power:small focus:18kw;big focus:50kw
2.5
Anode optics angle: 14
2.6
rotate speed of Anode: 2800rmb
2.7
Anode thermal capacity: 160kJ (220kHU)
2.8
tube module thermal capacity: 1250KHU(900KJ)
Filming bed
3.1
length: 2200mm±10%
3.2
width: 750mm±10%
3.3
lengthways moving range of bed surface: 1000mm±10%
3.4
crosswise moving range of bed surface: 250mm±10%
3.5
bed surface locking pattern: electromagnetic lock(permanent magnet)
3.6
bed surface locking control: foot switch
3.7
breaking force: ≥100N
3.8
starting force:≤50N
3.9
load bearing of bed panel: ≥150kg

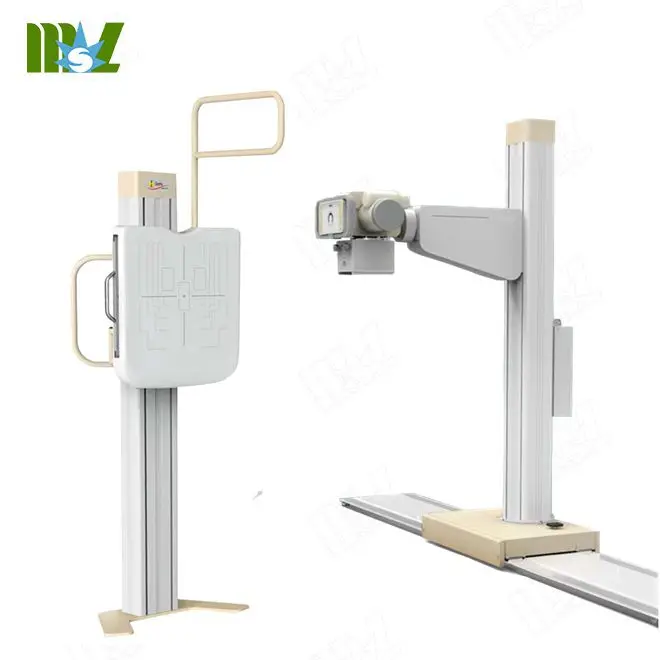

stand column
4.1
height: 1920mm±10%
4.2
up-and-down moving range: 420mm-1810mm±10%
4.3
up-and-down moving range along the lathe bed: 2000mm±50mm
4.4
vertical lift range along the lathe bed: 430mm-1660mm±10%
4.5
left and right moving range of flat panel detector : 350mm±5%
4.6
X ray tube module's slewing range around the cross arm(power brake locking): 360°
4.7
X ray tube slewing range: 0° ±2° ~ ±90° ±2°
4.8
stand column slewing range: fixed
beam-defining clipper
5.1
power supply: 24VAC,7A
5.2
inherent filtration : 2.0mmAL/75KVp
5.3
it is easy to turn on and off, flexible and reliable. It makes different sizes of rectangles exposure field in accordance with various requirements in practice.
others
6.1
high voltage cable:≥8m
