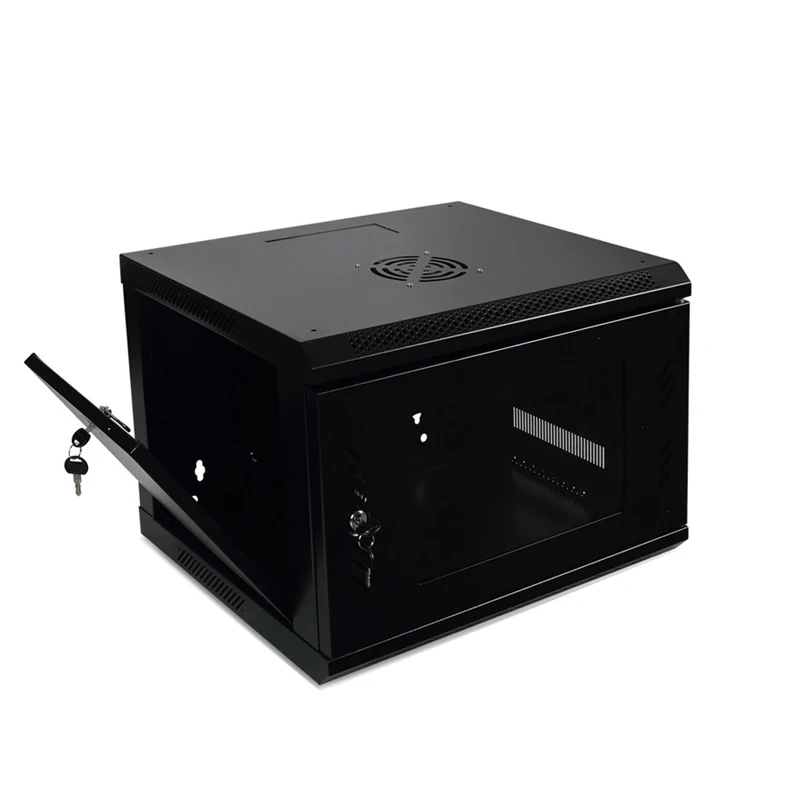

9u network rack dimensions wall mount enclosure

Product Overview

Description

9u network rack dimensions wall mount enclosure

Features:

1.       Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

2.       Advanced technology, precise size.

3.       Reliable structure, static loading capacity:60KG.

4.       Quick and easy wall mounted, 19’’ standard installation inside.

5.       Can be flated pack, save transportation inside.

6.       120mm size fan could be installed at top of cabinet.

7.       Cable entry from top and bottom.

8.       IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Brand:	TUXIN	Column spacing：	465mm (19 inch)
No：	TX-WF-6409	Material：	SPCC cold rolled steel
Size：	600mm*450mm*9U	Function：	Can install server equipment、the router、patch panel、KVM、UPS、Network device,etc.
IOS test：	Pass ISO9001:2008 Qualtiy System	Thickness:	Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment:	Degreasing,pickling,phosphating,power coating,etc.	Configuration：	Cage nuts and M6 screws: 10 sets.
Standard:	Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41491；PARTI、DIN41494；PART7、GB/T3047.2-92 standard; compatible with ETSI standard.	Device Installation:	It is recommended to install network equipment/server device within 350 mm depth.



Order Codes	Capacity	W*D*H(mm)
TX-WF-6404	4	600*450*220
TX-WF-6606	6	600*600*358
TX-WF-6409	9	600*450*492
TX-WF-6612	12	600*600*625
TX-WF-6415	15	600*450*730
TX-WF-6418	18	600*450*820
TX-WF-6422	22	600*450*960
TX-WF-6427	27	600*450*1280
