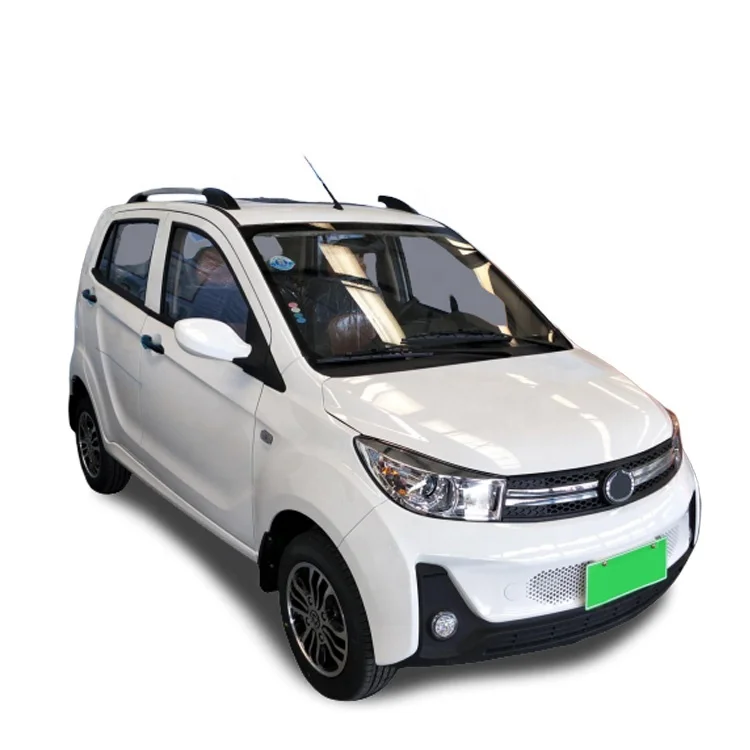

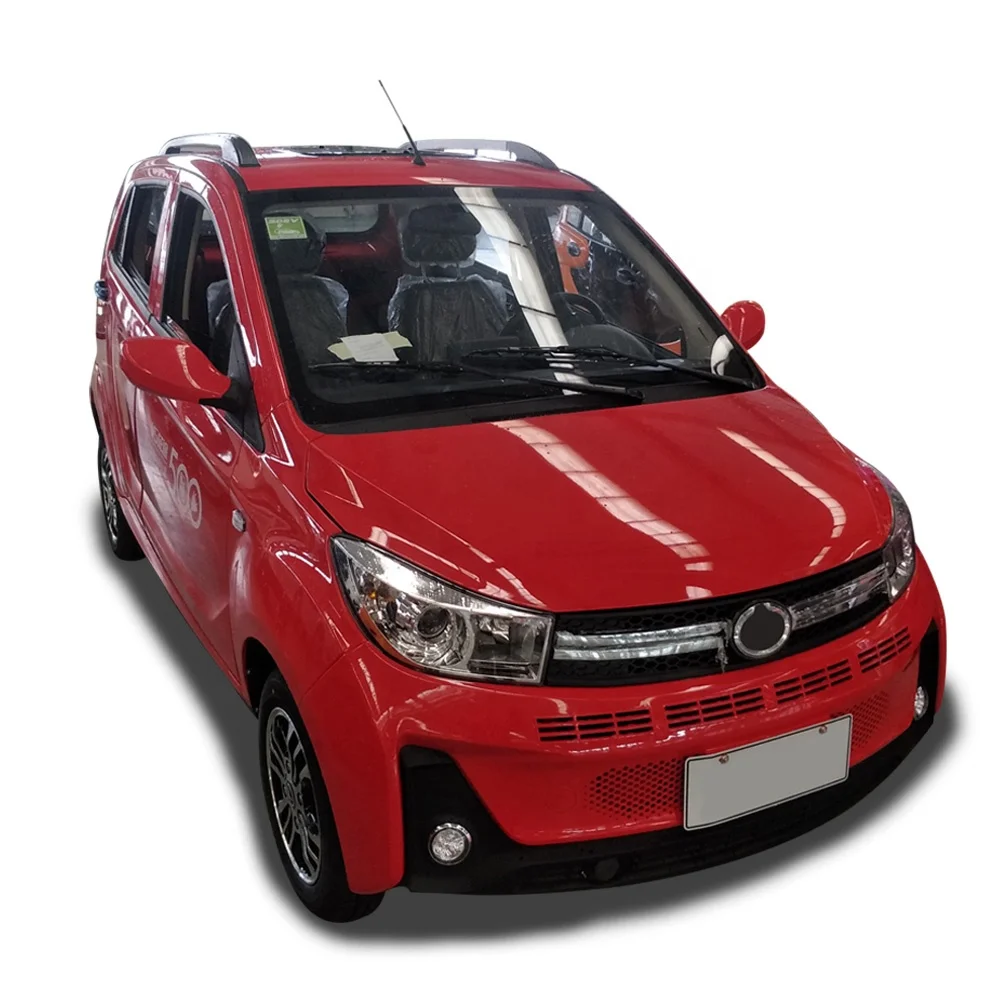

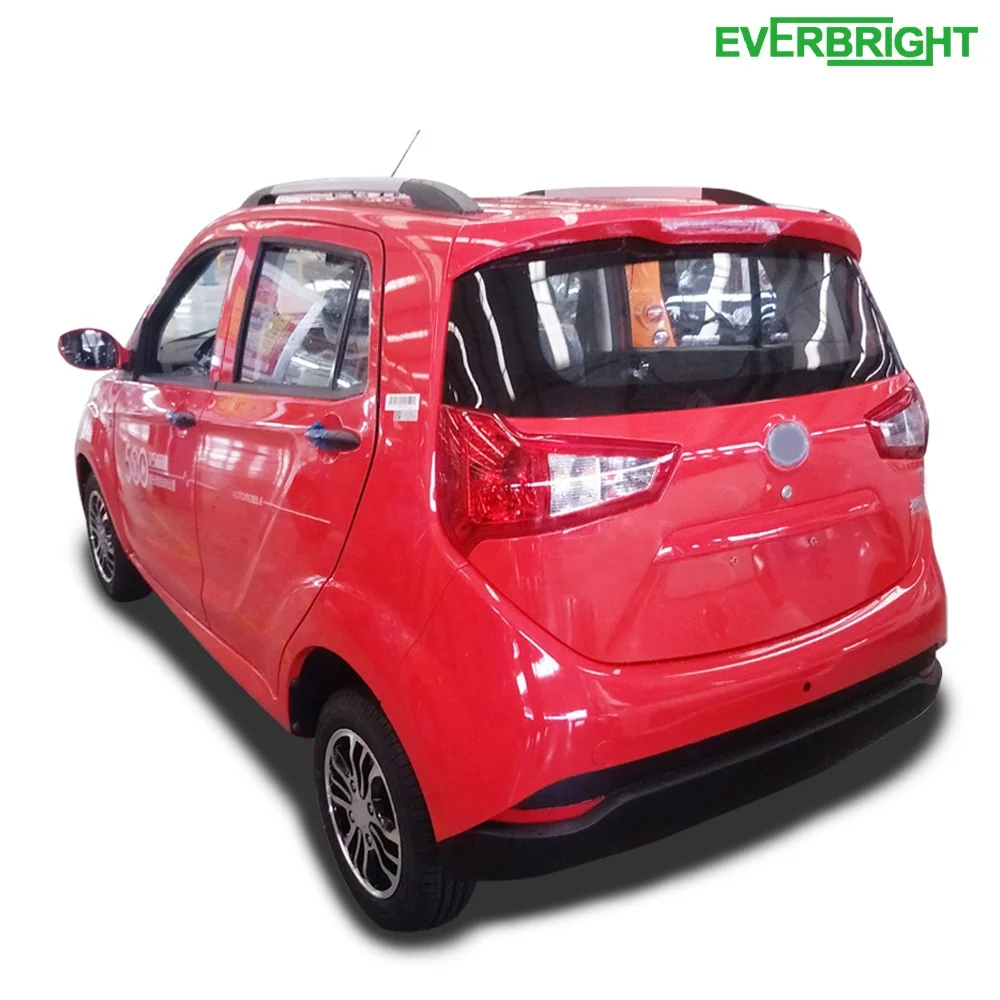

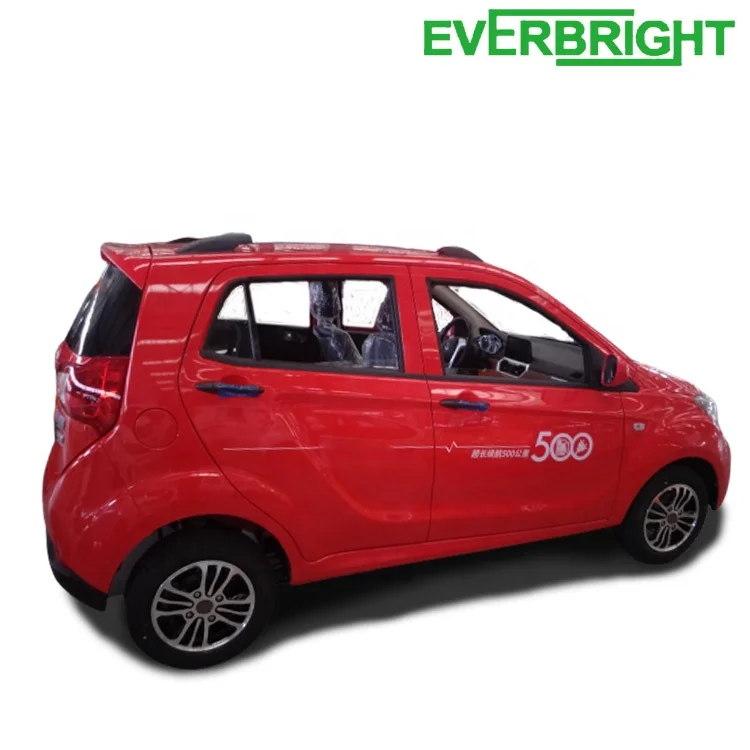

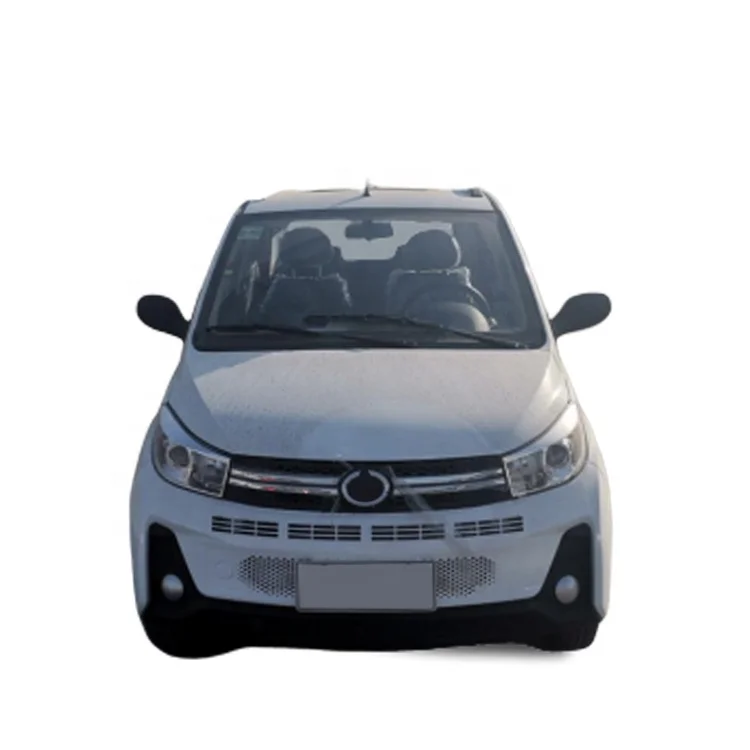

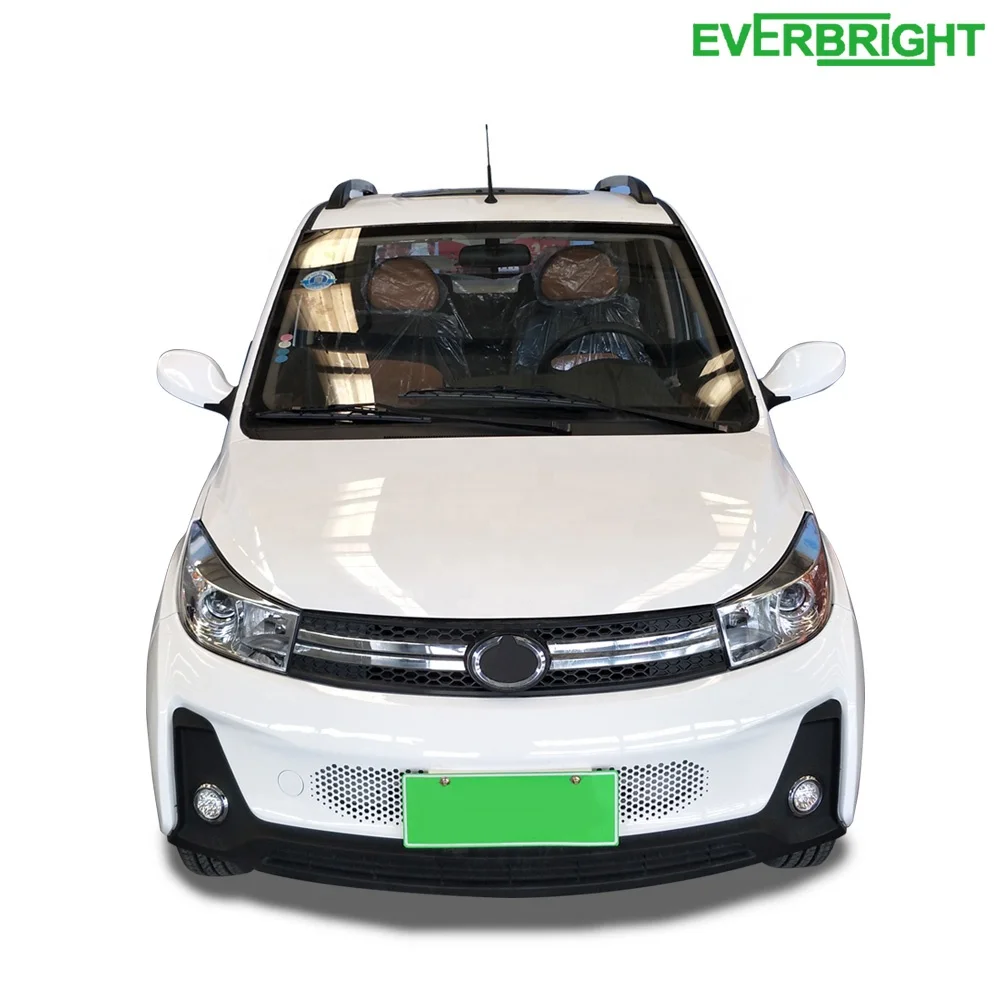

City Use Lithium Battery Adult Solar Electric Car With Solar Panel jiayuan small car of electric car
Product Description
Product Details
MAIN TECHNICAL PARAMETERS
Model No:
EB-45
EB-45Li
Qty/40'container:
5 units
5 units
Dimensions:
3388*1542*1558mm
3388*1542*1558mm
Wheelbase:
2238mm
2238mm
Trackbase:
1300mm/1315mm
1300mm/1315mm
Rated passengers:
5 persons
5 persons
Curbweight:
850kg
660kg
Min.ground clearance:
170mm
170mm
Body structure:
Self-supporting body
Self-supporting body
Suspended system:
Front: MacPhersan type Independent suspension
Front: MacPhersan type Independent suspension
Rear:Semi drag rocker arm Independent suspension
Rear:Semi drag rocker arm Independent suspension
Brake system:
Front disc brake/Rear drum
brak
Front disc brake/Rear drum brak
Parking brake:
Mechanical cable type
Mechanical cable type
Tire size(mm):
145/75 R12
145/75 R12
Battery(V/ah):
12V/100Ah *6pcs
7.04kwh lithium battery
Charging time :
8-10hours
8-10hours
Motor control type:
72v 4kw AC motor
64v 4kw AC Motor
Max.speed:
50km
50km
Max.cruising range:
100km
120km
Min.turning radius:
≤5.0m
≤5.0m
Grand ability:
≥20%
≥20%
Configuration:
Motor with AL-cover,4kw range extender, RR motor (rear motor rear driving),Front power windows, Heater, Central lock, Remote key, EBS, Car charger,12" steel wheel, Intelligent system 1.0, BMS ,power brake
Motor with AL-cover,4kw range extender, RR motor (rear motor rear driving),Front power windows, Heater, Central lock, Remote key, EBS, Car charger,12" steel wheel, Intelligent system 1.0, BMS ,power brake
Notes For Safety
NOTES FOR SAFETY(PLEASE READ IT CAREFULLY)
1) Please read the Descriptions carefully about the function before you using it.
2) Please brake early when meeting bad weather.
3)Our product adapt to the wet and snowy weather.Please take care if too much water cover the controller(circuit) or the motor,cutting out and the damage to the electrical will appear. 4) Reduce your speed when downing the slope or making a turn. 5) Braking the front and rear brake meanwhile is beneficial to its balance and reliability 6) In an emergency, when you need to stop car you must slowly and gently kick the brake pedal several times in case you get away from the car
Electric car maintaining
1) Do not short of power when small car of electric car storage.
2) Make inspection regularly.
3) Do not high current discharge.
4) Grasp charging time correctly.
5) Do not get plug fever when charging.
Company Information
Shandong Everbright Foreign Trade Co.,Ltd is located in Dezhou city, Shandong province. Our company is founded in the year 2003, Shandong Everbright is a leading supplier which is specialized in Solar Electric Car, Right Hand Drive Electric Car, High Speed Electric Car, Electric Rickshaws, and Electric Disabled Car. We have our own overseas warehouse in South Africa. We also have a branch in Algeria. We are the leading supplier of small car of electric cars in China with more than 10 year' s experience. Our products are very popular in the world. Especially in Africa, Euopean countries, Asia etc. We are very gald to establish business relationships with you. Shandong Everbright close to Qingdao and Tianjin port, nearby Jinan, Qingdao, Tianjin and Beijing air port, therefore the transportation is very convenient. During years of development, we have set up mature international market all around the world and have become one of the leading exporter in China. At the same time, we are highly appreciated by our customer due to the good quality and perfect service.
Customer Visit
Packaging & Shipping
Packaging Details: Wooden case, Iron frame or Metal pallet. Based on different small car of electric car dimension, quantity, shipped by LCL or FCL.
Delivery time: Normally within 15-25 working days after receipt of your payment.
FAQ
1. Q: I have never ridden a small car of electric car. Are Electric car easy to ride?
A: Electric car are remarkably easy to ride, and most people need only a few minutes to become comfortable on them. 2. Q: Are small car of electric car safe to ride on city streets?
A: All small car of electric car are for street use. In many urban neighborhoods, you may find your small car of electric car navigates narrow streets and passages more easily than your car. Because your small car of electric car is a relatively small vehicle, you should always drive cautiously and defensively. 3. Q: How do I recharge my small car of electric car?
A: Simple-just plug it in! Each new car comes with a small charging device. Even if you have used up almost all your charge, in a mere 6-8 hours, your small car of electric car has a full charge and is ready to go. Charge it at home overnight, or charge it at the office while you work! The charger is small enough to easily fit in a backpack or in the rear storage compartment. 4. Q: What is your packing and payment?
A: Wooden case or iron frame or as per customer’s specific request. T/T, L/C, West Union, PayPal and etc. 5. Q: What is your shipping type and delivery time?
A: By sea 1 set sample can be shipped by LCL. Quantity order would be shipped by FCL. Normally delivery time within 15-25days after receiving your deposit or L/C. 6. Q: If your company have the ability to do OEM?
A: We can do OEM.
We can supply quality assurance for at least one year, if your Electric Car have any part need change, we can service for you by free.
