Высокотемпературный огнеупорный светоизоляционный кирпич, огнеупорный кирпич из мульлитового волокна

Product Overview

Description



Founded in 2014, Zhejiang Orcas refractories Co.,Ltd locate in Deqing county, Zhejiang province. The factory commits to the development of new energy-saving refractory industry. Our main products cover kinds of ceramic fiber, glass fiber and other refractories, such as ceramic fiber bulk, blanket, paper, board, textile, module, shaped pieces and glass fiber blanket, textile, and carbon fiber blanket, aerogel blanket.

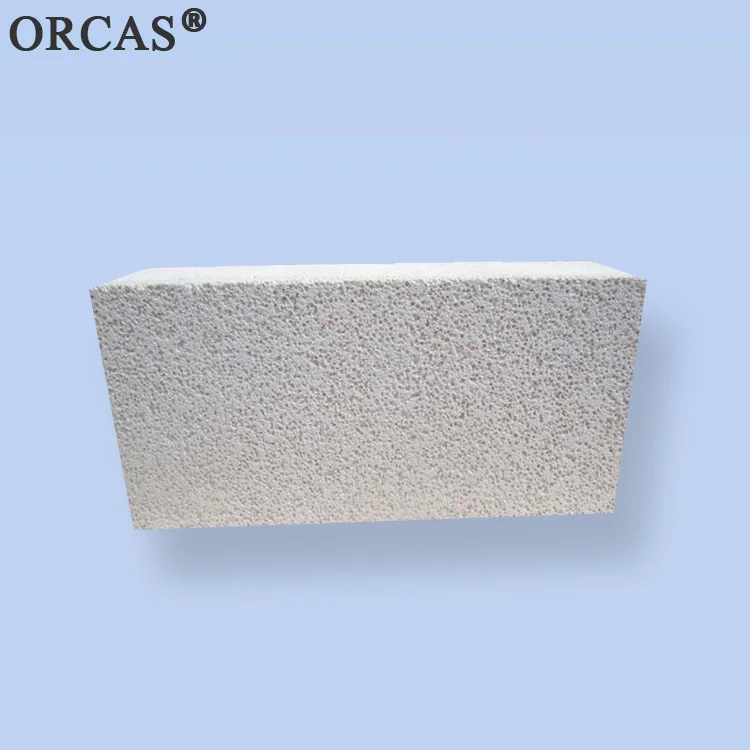

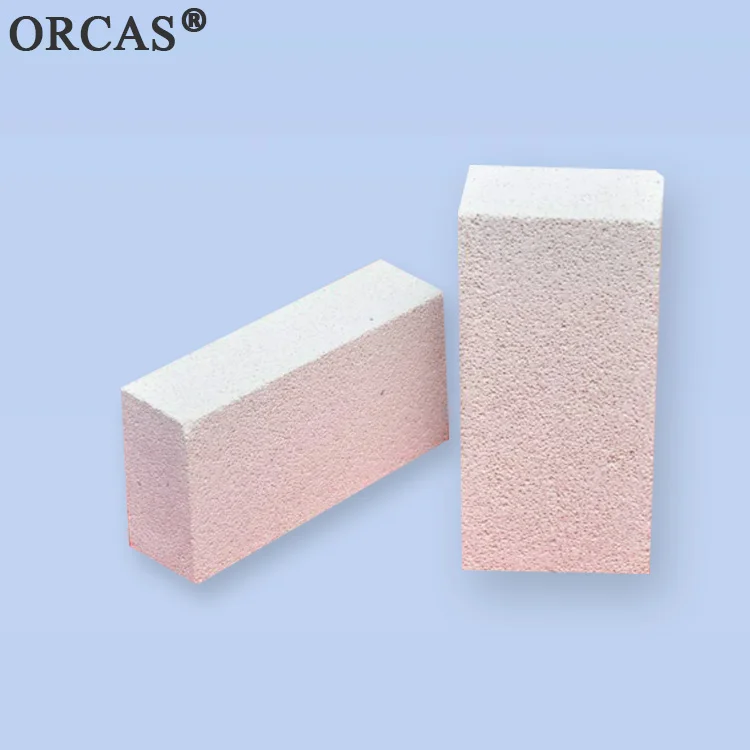

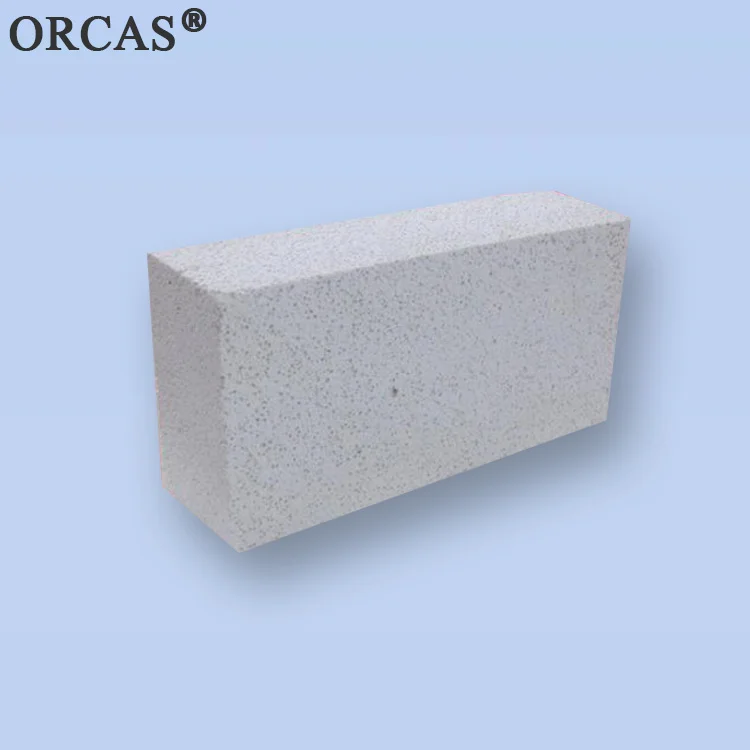

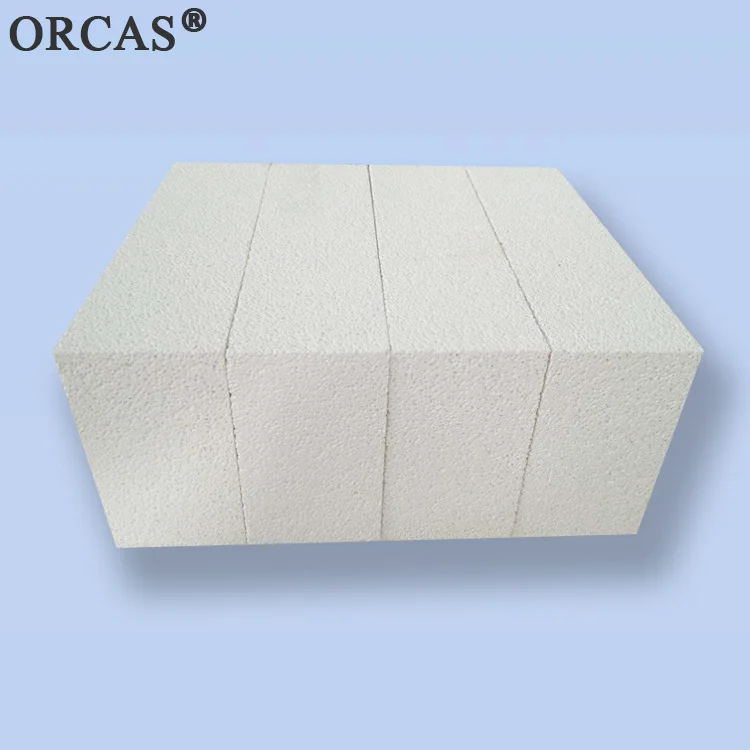

AKB-23 series light weight insulating brick, bulk density of 0.5-1.0g/cm³, using temperature 1250℃ to 1300℃.

AKB series light weight heat insulating brick is made of high quality, high purity raw materials, according to rank with strict classification of filler, forming a uniform pore structure, brick on each side of the machined to the required dimension. Each level product formulation of unique design, to meet the needs of users in different environment requirements.



Brand		AKB-23
Type		A	B	C	D
Density g/cm3		0.5	0.55	0.6	0.8
Reheat Linear Change 1300℃*12h%		-1	-0.6	-0.5	-0.4
Cold compressive strength Mpa		1.1	1.2	1.5	2.2
cold modulus of rupture Mpa		0.9	1.0	1.1	1.3
Thermal conductivity 350℃ W/m.k		0.16	0.17	0.19	0.24
Chemical Analysis %	Al2O3	40	40	41	42
	SiO2	56	56	54	54
	Fe2O3	0.8	0.8	0.8	0.9



The above data are measured the average of the company, only for design reference, may be adjusted according to user needs in the process of production.



Product features

Low thermal conductivity; Excellent thermal insulation effect.

Low heat capacity; due to low heat rate, AKB series insulating brick accumulation little heat, in intermittent operation and obvious effect of energy saving.

Low impurity content: having a very low alkali metal ans iron oxide content, therefore high refractoriness, high aluminum content in the reducing atmosphere still maintain good performance. Hot compressive strength.

Dimensions: accelerate building speed, accurate reduction refractory slurry usage, to ensure the masonry strength and stability, thereby prolonging lining life.



Product Applications:

Can be used as heat surface refractory lining or other refractory insulation backing layer, used in petroleum, chemical industry, ethylene cracking furnace tube type heating furnace, furnace, ammonia synthesis  gas furnace, high temperature shuttle kiln and other industrial furnace refractory lining insulation materials.
