Product Overview

Description



Product Description


Introduction

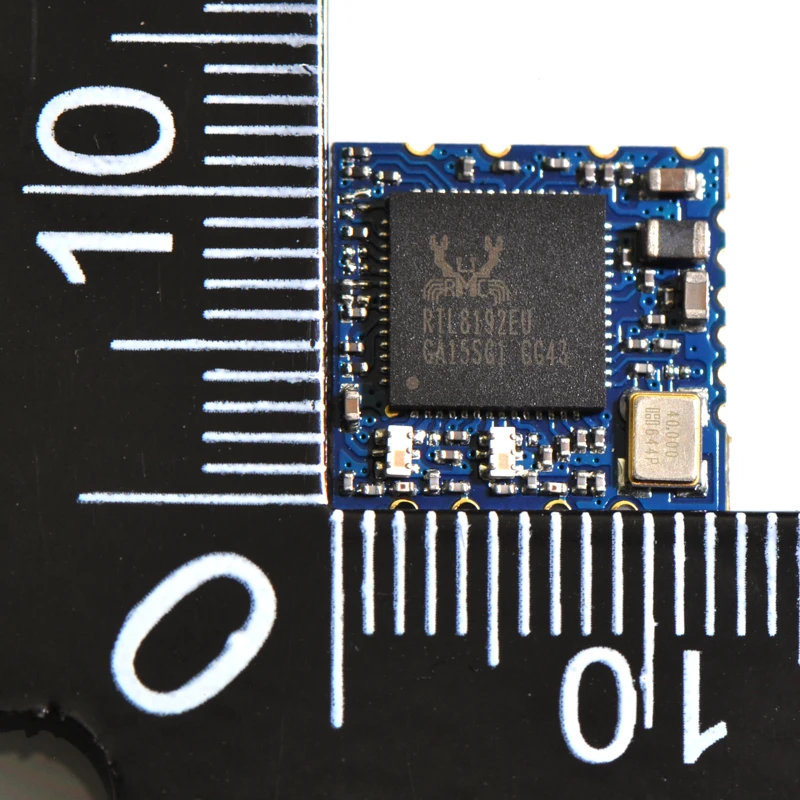

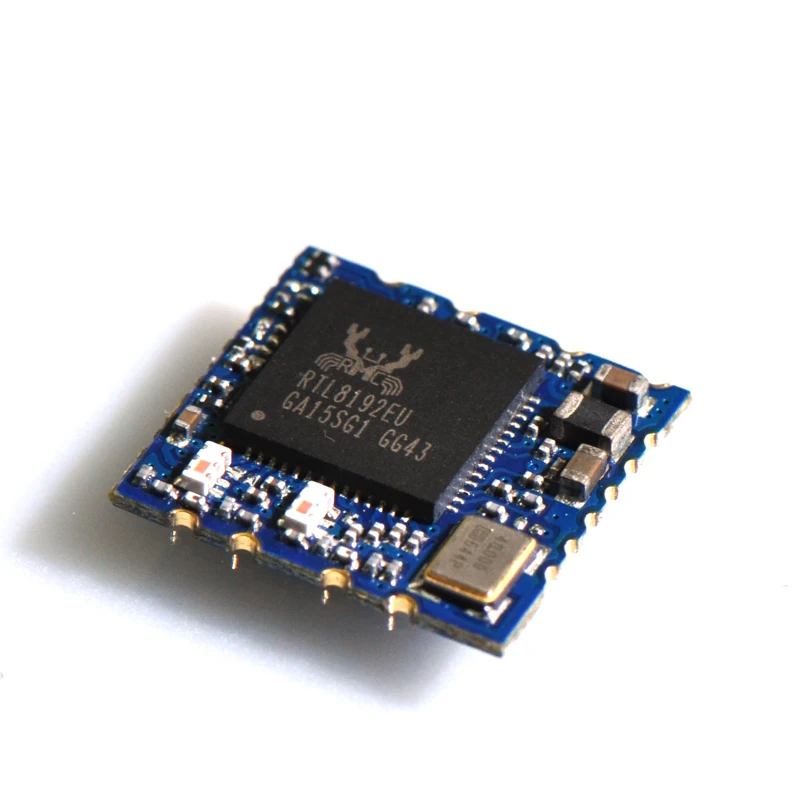

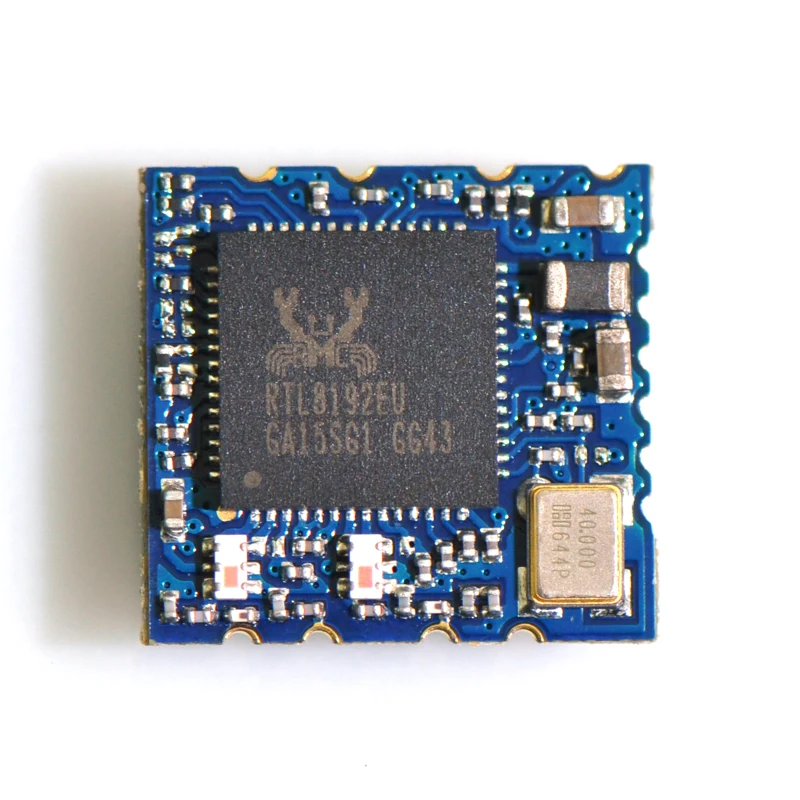

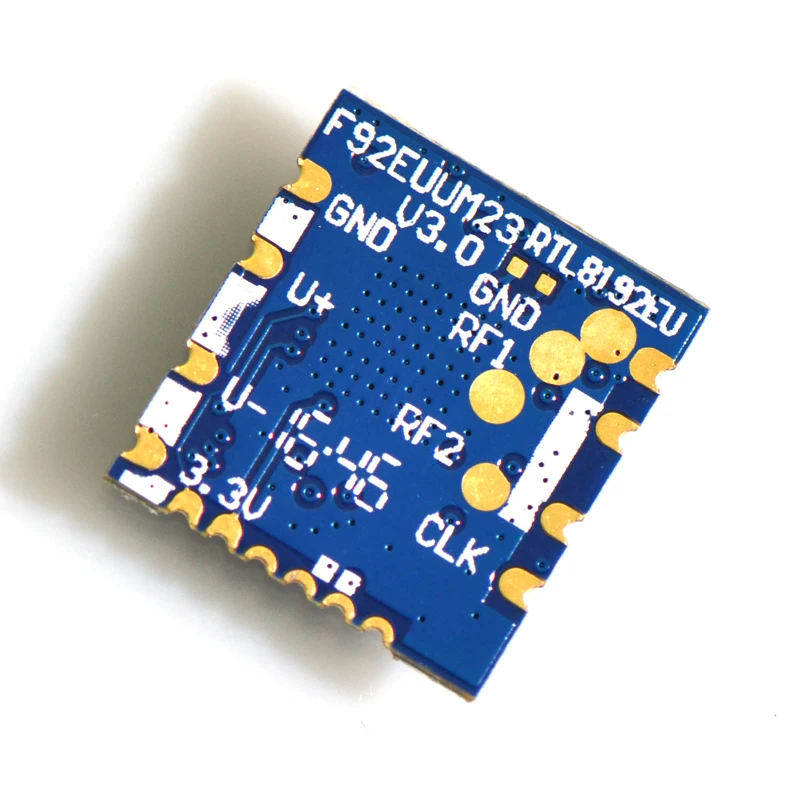

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8192EU. It is a highly integrated single-chip 2*2 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB network interface controller complying with the 802.11n specification. It can work in two modes: Infrastructure and Ad-Hoc It combines a MAC, a 2T2R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.



Features

All-CMOS IEEE 802.11 b/g/n 2x2 single-chip
USB2.0 at 300 Mpbs, with LPM support, using an integrated controller and PHY






Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
F92EUUM23-W1
Main Chipset
RTL8192EU
WIFI/BT Interface
USB
WIFI Standards
IEEE802.11b/g/n
Date Rates
300Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
Android /Linux/Windows
Operating Frequency
2.4GHz
Operating Voltage
3.3V
Dimensions
12.9x 12.19mm
RF Chains
2T2R
Operating Temperature
-20°C to 50°C
Storage Temperature
-40°C to 70°C

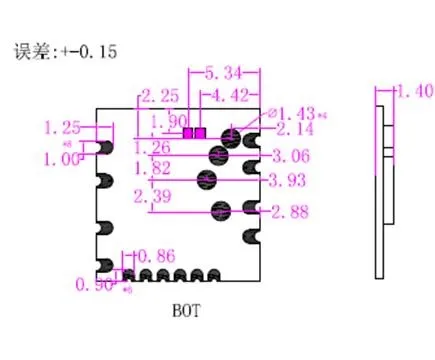

Layout Recommendation





Reference Design





Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
