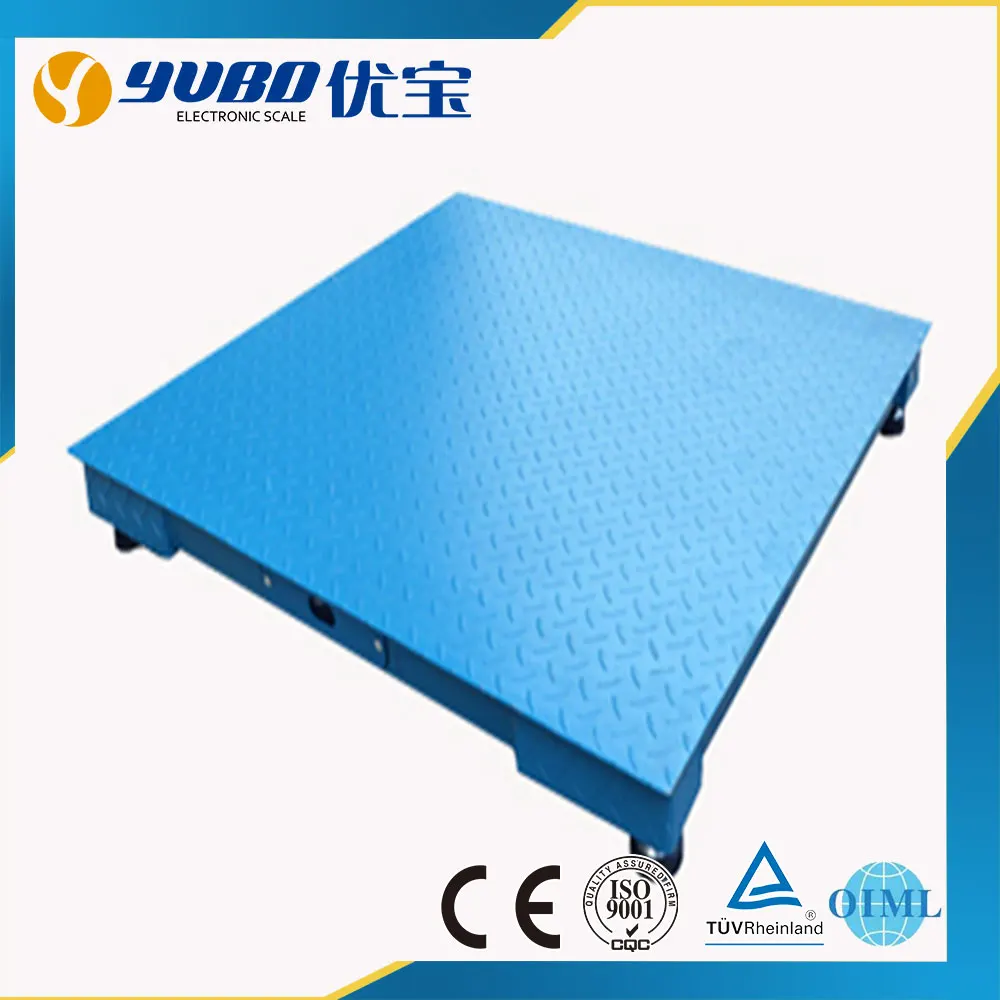

3000 Kg Electronic Best Weight Scales Industrial Floor Scale Checker Rechargeable Battery LED or LCD ZEMIC or KELI Y Series YUBO

Product Overview

Description

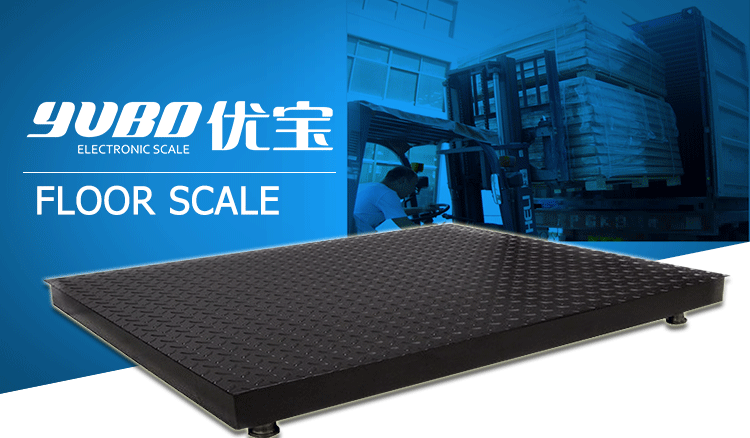

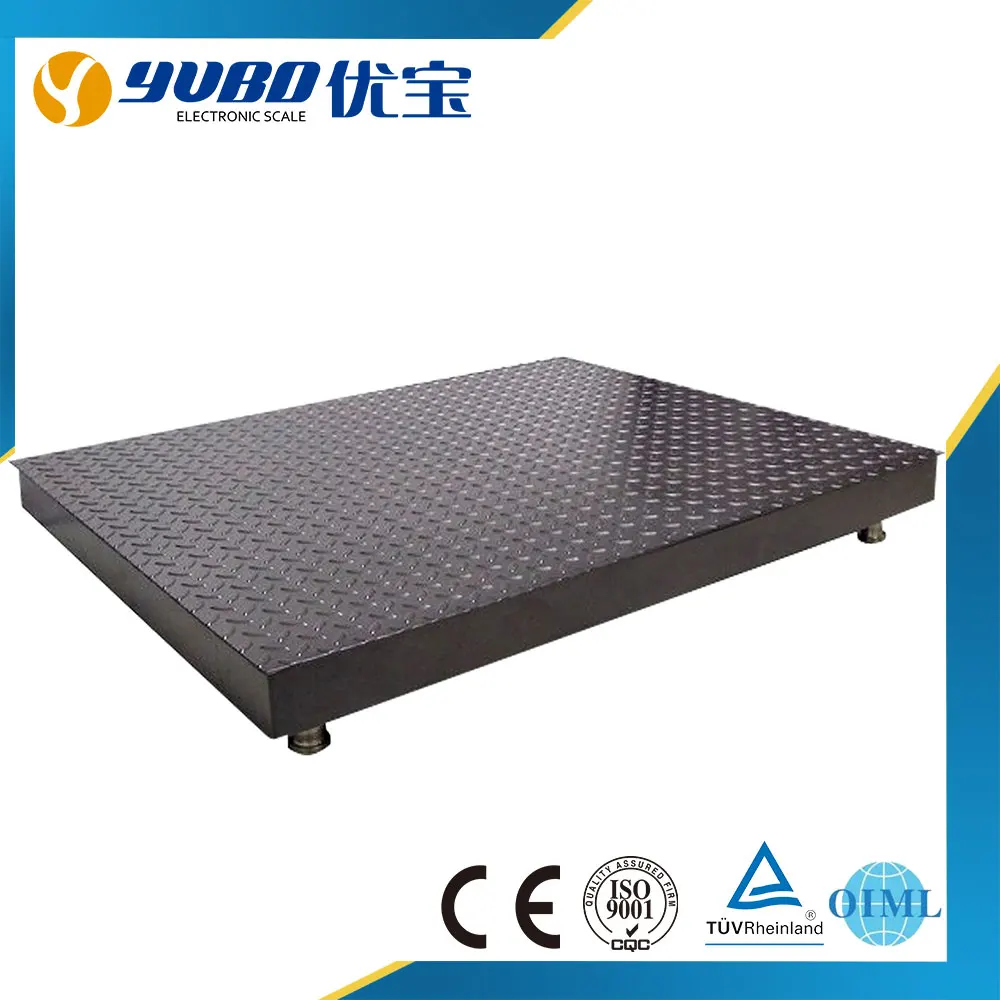

1. 5mm whole Checkered plate platform, without frame, ramps optional



2. Mild steel ,robust,powder coated finshing ,

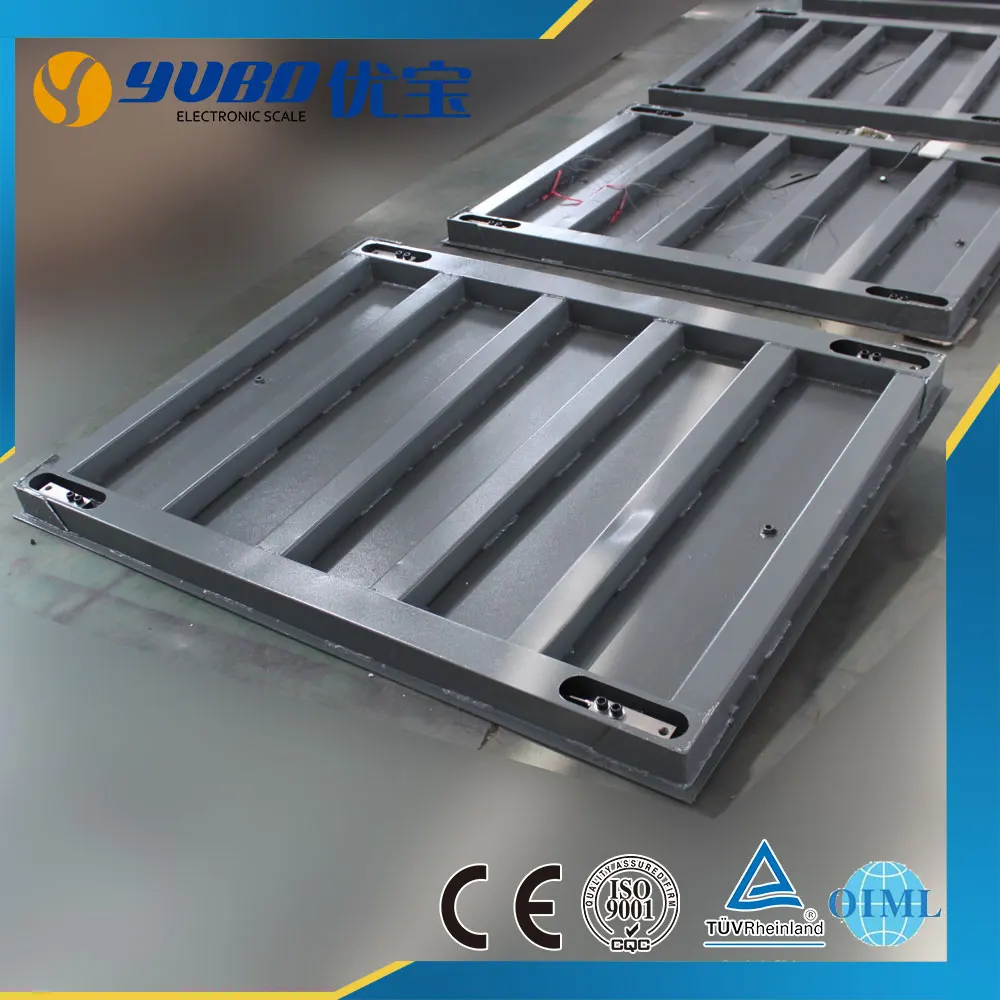

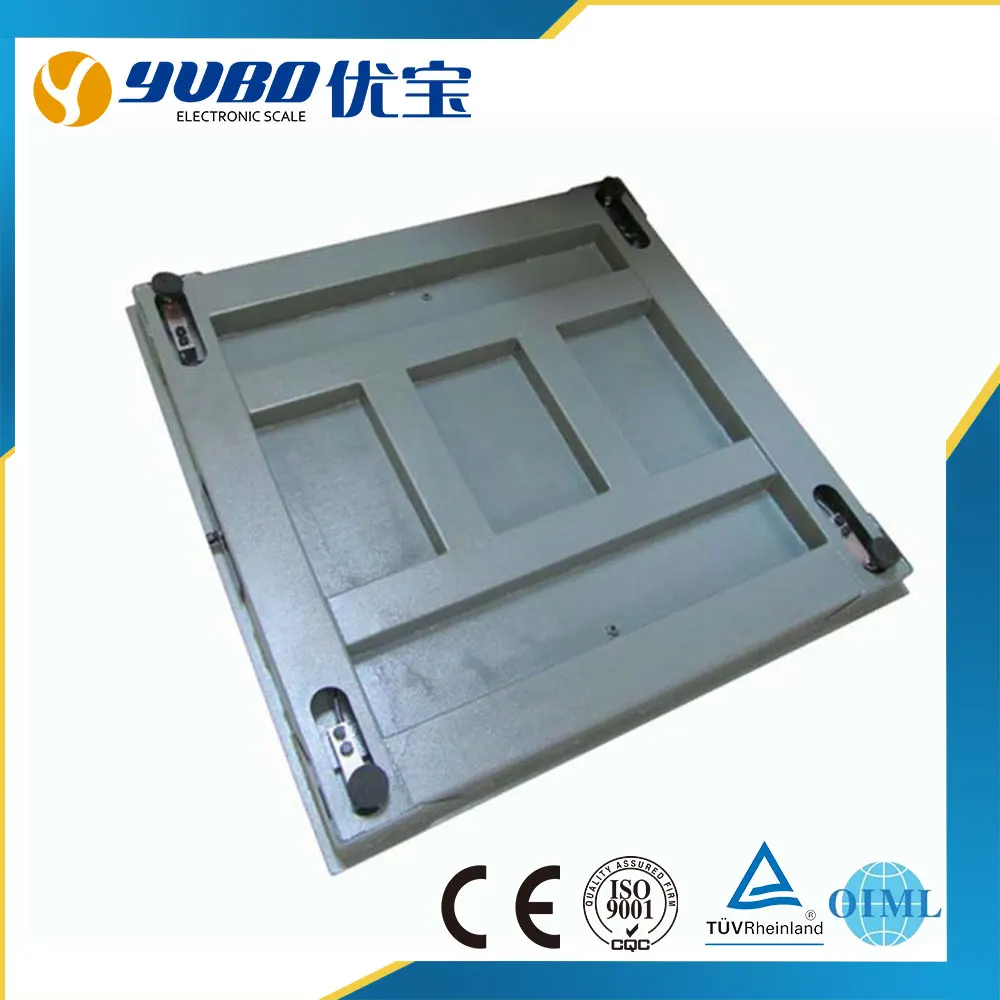

3. With U shape beams as the girder the load cell feet are laid on the ground directly



4. Load cell:  ZEMIC H8C or KELI SQB load cell



5. Adjustable heavy duty rubber feet



6. Junction box: stainless steel junction box with 5m cable



7. Indicator: A12E standard,  A9P (with printer) optional



Platform dimension:0.8x0.8m~1.5mx1.5m.





General floor scale dimention and Capacity:



Model	Max Cap.	Division	Platform size
Y0808	1t, 2t	0.5kg, 1.0kg	0.8*0.8m
Y0810	1t, 2t	0.5kg, 1.0kg	0.8*1.0m
Y1010	1t, 2t, 3t	0.5kg, 1.0kg, 1.0kg	1.0*1.0m
Y1012	1t, 2t, 3t	0.5kg, 1.0kg, 1.0kg	1.0*1.2m
Y1212	1t, 2t, 3t, 5t	0.5kg, 1.0kg, 1.0kg, 2.0kg	1.2*1.2m
Y1215	1t, 2t, 3t, 5t	0.5kg, 1.0kg, 1.0kg, 2.0kg	1.2*1.5m
Y1515	1t, 2t, 3t, 5t	0.5kg, 1.0kg, 1.0kg, 2.0kg	1.5*1.5m

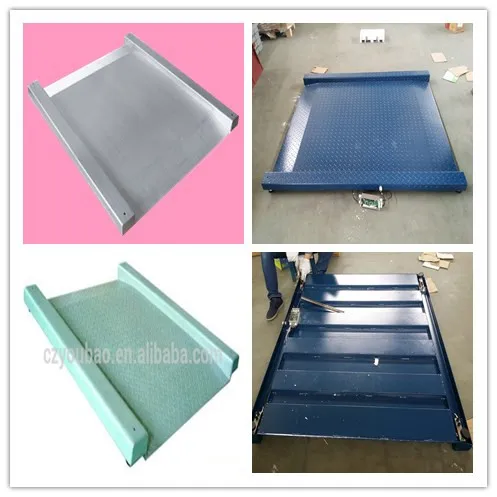

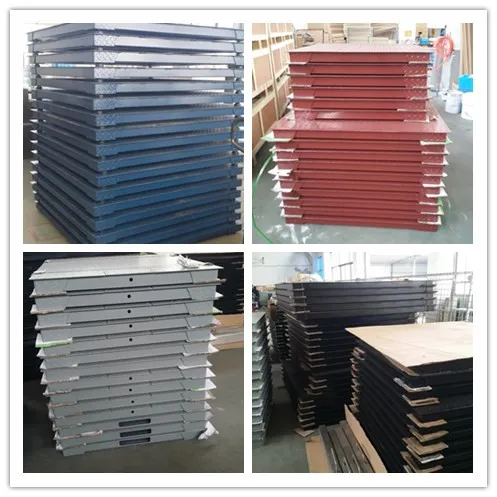

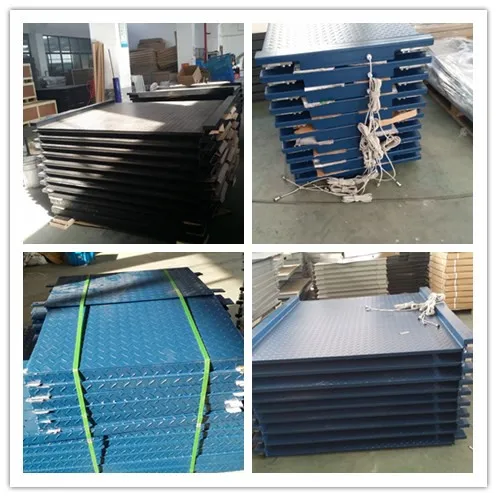

More Photoes
