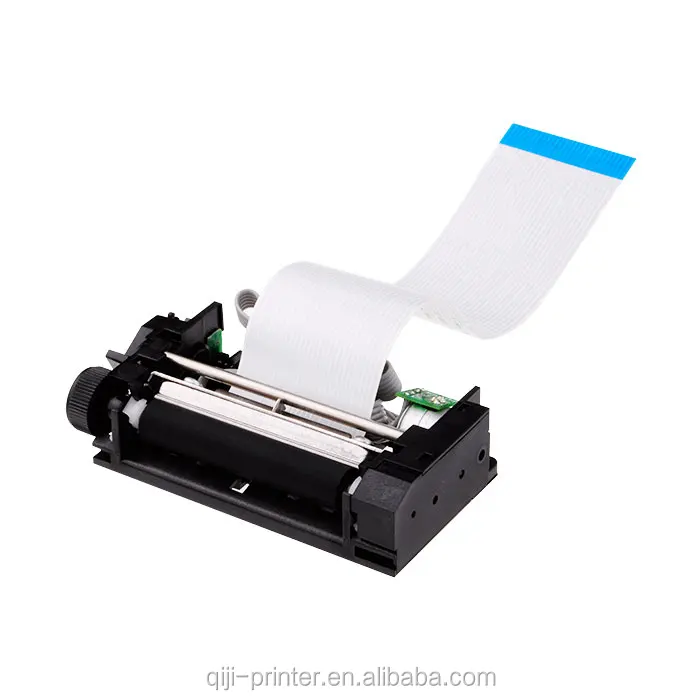

2 Inch Mini PRT Portable Thermal Printer Mechanism PT48C for Cash registers Taxi meters Measuring instruments and ana

Product Overview

Description



PRT is the world leading manufacturer of thermal printer mechanisms and thermal printer modules, and the world leading solution provider of thermal printing technology. With a full product range of thermal printer mechanisms from 1.5inch to 8inch, Kiosk label printer mechanism, label printer mechanism, dot matrix printer mechanism, PRT totally shipped out 4.1M pcs of products domestic and overseas in 2012, ranked the second largest supplier of thermal printer mechanisms all over the world.



Product Basic Information:

• Mini printing module


• Easy paper loading


• Printing speed:80mm/s


• Curved path paper feeding



Product Key Benefits:



•  Low voltage supply


•  Compact and lightweight design


•  Printing with high resolution


•  High speed printing


•  Easy paper loading


•  Low noise

Product Specifications:









Print method	Thermal dot line printing
Dots per line	384 dots
Resolution	8 dots/mm
Print width	48 mm
Paper width	57.5±0.5mm
W * D * H(mm)	85.8*45.8*20
Weight	43g
Maximum printing speed	80 mm/s
Heater element pitch	0.125mm
Paper feed pitch	0.0625mm
Head temperature detection	Via thermistor
Out-of-paper detection	Via photo interrupter
Life span (at 25℃ and rated energy) Activation pulse resistance Abrasion resistance	100 million pulses or more (print ratio=12.5%) 50 km or more
Operating temperature range (℃)	0~50
Operating humidity (RH)	20%~85%
Storage temperature range (℃)	-25~+70
Storage humidity(RH)	5%~90%





Packing Details:



Packing: Carton

Dimensions:W * D * H(mm)=85.8*45.8*20



Shipment:

Shipped in 15 days after payment
