GOWORLD CTS 608 portable eddy current flaw detector for metal testing equipment coating thickness gauging conductivity measuring

Product Overview

Description

Product information:

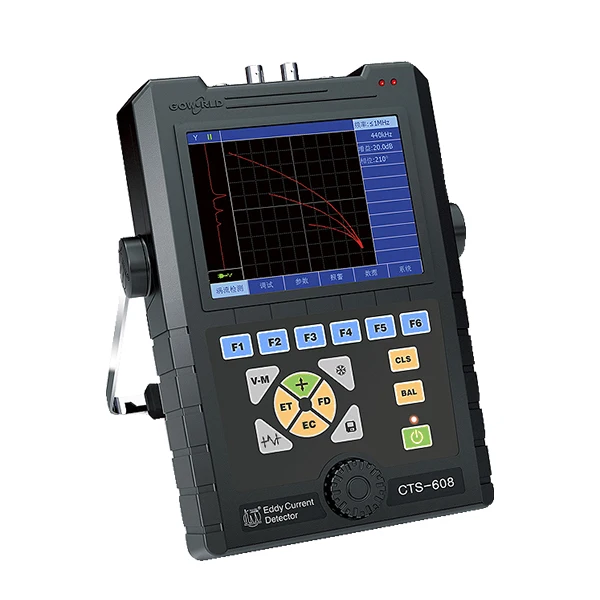

CTS-608 portable eddy-current detector is an eddy-current detecting device/apparatus with adoption of eddy-current, digital electronics and microcomputer techniques. This apparatus is developed with the function of displaying eddy-current impedance ichnography. Its detection frequency ranges from 50Hz-10MHz, which makes it possible to meet the requirements of detecting various metals. It is excellent in performance and lowly consuming in power, with 6 hours of battery life in non-stop service.



Feature:

• CTS-608 is developed to be used in flaw detection, thickness gauging and electric conductivity testing, with employment of the newest digital eddy-current configuration technique.
• Easy operation panel and an all-purpose knob.
• CTS-608 is suitable for detection on various metals and industrial fragments. Flaws like cracks on welds, folds, scars, caves, cracks, scratches, and transversal rends or separates on copper pipe, seamless steal pipe and stainless steal pipe can all be detected by high sensitivity.
• Extra functions such as coating thickness gauging and electric conductivity testing are available for customization.



Specification:

Frequency Range	50Hz~10MHz
Voltage Drive	8 levels tunable
Manual Phase Shift Range	359°(step 1°)
Gain	0~80dB(step 0.5dB)
Sampling Frequency	40MHz, 12-bit data acquisition
Wave Filter	Digital Filter
Alarming	Phase Alarming (Defined Available Alarming Area: A,B,C)
Probe type	Reflective, Differential, and Absolute
Display Mode	Impedance ichnography / Time-base
Balance Mode	Digital
Display	5.7' 640×480 colorful TFT screen, a fine display of the images to detail
Storage	For images or settings and replay
Communication	USB comm port (suitable for PC)
In-set Power supply	large battery capacity in service of 6 hours without cut-off
Outsourced Power supply	DC 12V, DC 12V (through power adapter)
Dimensioon	166mm×246mm×47mm
Weight	≤1.5kg
