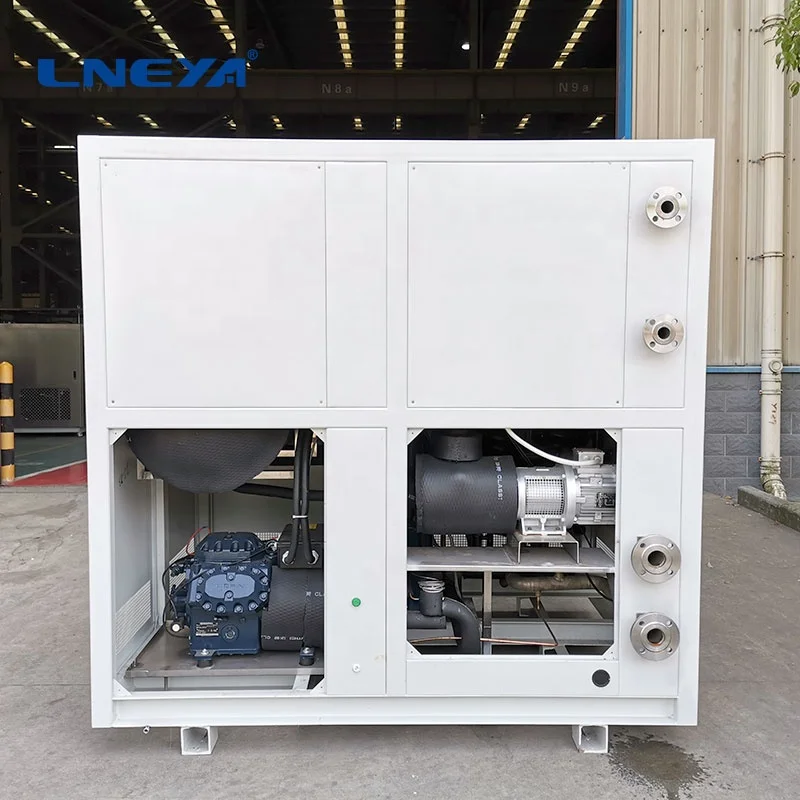

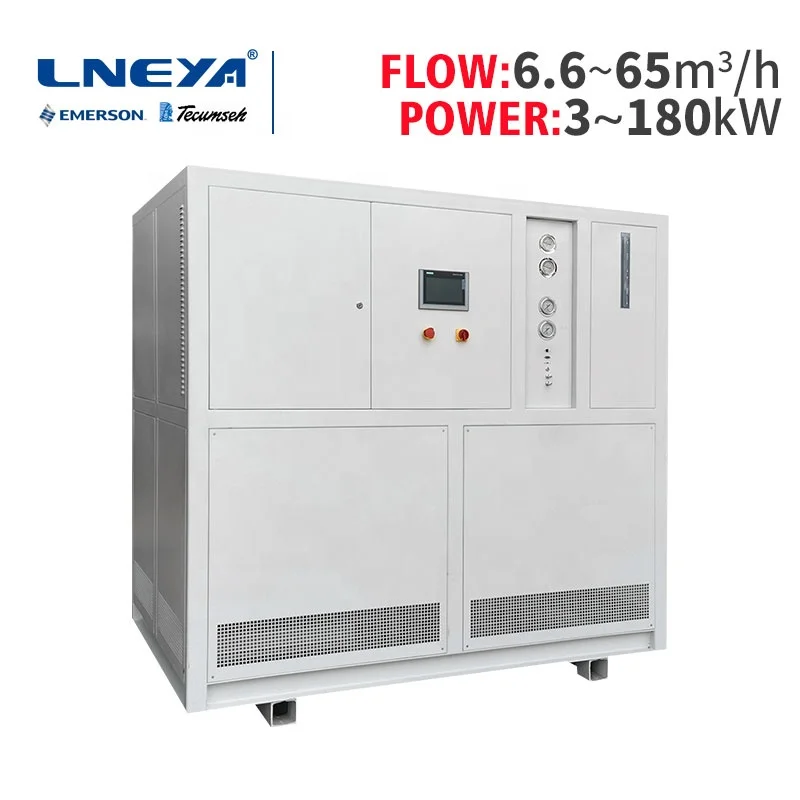

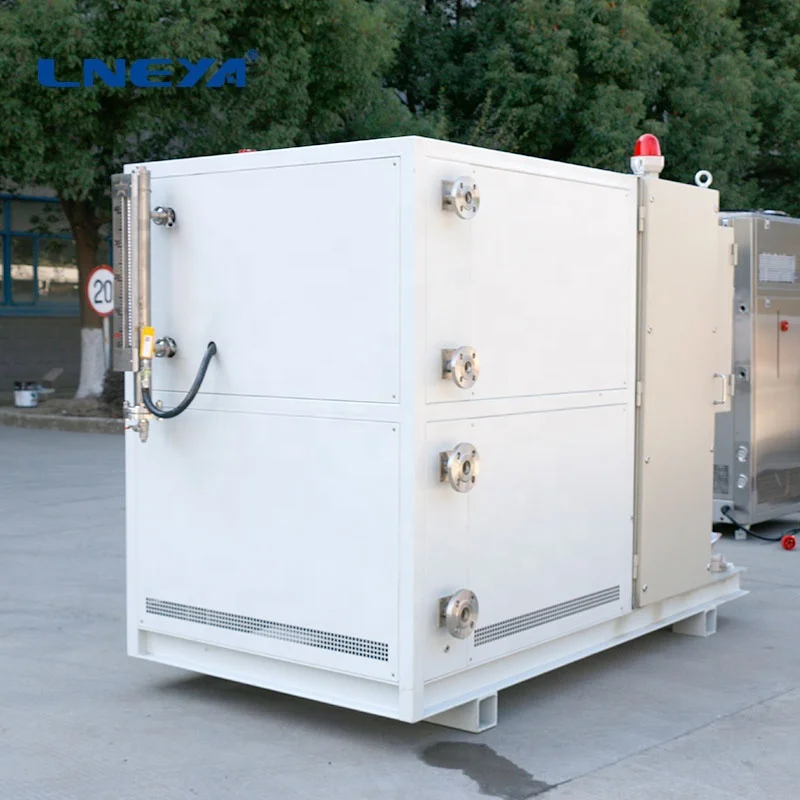

High quality -80 to -30 degree single-fluid water chiller for pharmaceutical industry
Product Description
| Model | LD-4W | LD-6W | LD-8W | LD-12W | LD-20W | LD-30W | LD-40W | LD-60W | LD-90W | LD-120W |
| Temperature Range | -80°C~ -30°C | |||||||||
| Cooling Capacity At -60°C | 6kw | 9kw | 12kw | 18kw | 30kw | 45kw | 60kw | 90kw | 135kw | 180kw |
5160 Kcal/h | 7740 Kcal/h | 10320 Kcal/h | 15480 Kcal/h | 25800 Kcal/h | 38700 Kcal/h | 51600 Kcal/h | 77400 Kcal/h | 116100 Kcal/h | 154800 Kcal/h | |
| Cooling Capacity At -75°C | 4kw | 6kw | 8kw | 12kw | 20kw | 30kw | 40kw | 60kw | 90kw | 120kw |
3440 Kcal/h | 5160 Kcal/h | 6880 Kcal/h | 10320 Kcal/h | 17200 Kcal/h | 25800 Kcal/h | 34400 Kcal/h | 51600 Kcal/h | 77400 Kcal/h | 103200 Kcal/h | |
| Circulation Pump Info | 6.6m³/h | 6.6m³/h | 9m³/h | 15m³/h | 25m³/h | 25m³/h | 25m³/h | 35m³/h | 35m³/h | 50m³/h |
| 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | 2.5bar max | |
| Inlet&outlet connection size | DN-25 PN-10 | DN-25 PN-10 | DN-32 PN-10 | DN-32 PN-10 | DN-40 PN-10 | DN-40 PN-10 | DN-40 PN-10 | DN-50 PN-10 | DN-50 PN-10 | DN-65 PN-10 |
| Cooling Water at 30 degree | 10m³/h | 14m³/h | 20m³/h | 25m³/h | 35m³/h | 45m³/h | 65m³/h | 90m³/h | 120m³/h | 180m³/h |
| Cold Storage tank (optional) | 200L | 350L | 500L | 750L | 1000L | 1200L | 1500L | 2200L | 3000L | 4000L |
| Expansion tank(standard) | 100L | 175L | 250L | 350L | 500L | 600L | 750L | 1000L | 1350L | 1800L |
| Compressor | Dorin semi-closed compressor | Dorin compressor/HANBELL,Fusheng screw compressor | ||||||||

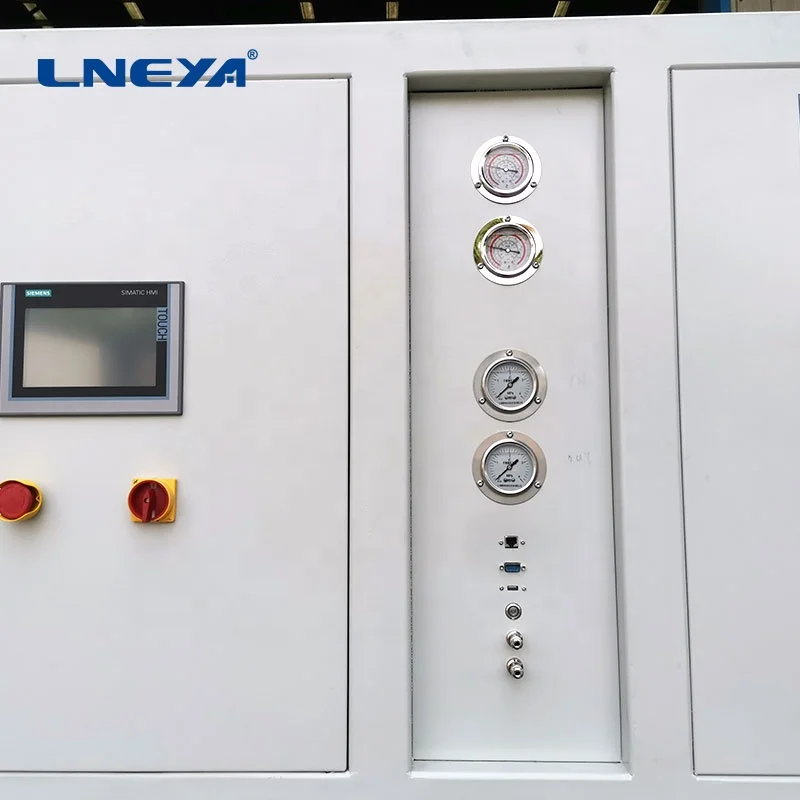

| Operation Panel | 7-inch color touch screen display, temperature curve record | |||||||||
| Control System | SIEMENS S7 PLC&Module,Set temperature difference of refrigeration on & off | |||||||||
| Circulation Pump | The whole system is a full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature | |||||||||
| Circulation Pump | LNEYA Mangetic Pump/German Brand Mangetic Pump | |||||||||
| Evaporator | Danfoss/KAORI plate heat exchanger | |||||||||
| Condenser | Casing type water-cooled condenser / tube-type water-cooled condenser | |||||||||
| Intermediate heat exchanger | Danfoss/KAORI plate heat exchanger | |||||||||
| Refrigeration accessory | Oil separators, drying filters, expansion valves, refrigeration solenoid valves, pressure control, mirrors, etc. all use Emerson / Danfoss and other brands | |||||||||

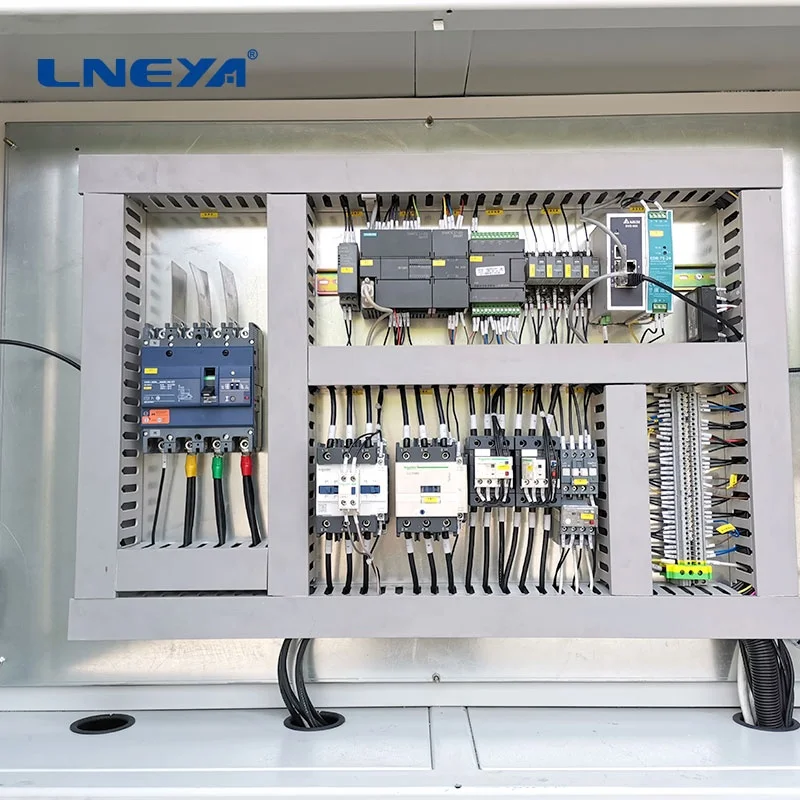

| Electric | AC contactors, intermediate relays, circuit breakers, thermal relays, etc. are Schneider / ABB brand | |||||||||
| Refrigerant | R404A /R23/R14 Mixed Refrigerant | |||||||||
| Secondary refrigerant | Ethanol, dichloromethane, heat transfer oil, etc. | |||||||||
| Safety Protection | High pressure protect; water supply cut-off protection; over-current protection; leakage protection; sequential and phase failure protection; High temperature protection; Sensor Failure protection; Liquid low level protection etc. multi-safety protection | |||||||||
| Level Indicator | Adopt glass liquid level indication | |||||||||
| Piping material | Expansion tank, cold storage tank and circulation pipeline are all made of SUS304 | |||||||||
| Case material | Channel steel + square tube + cold rolled plate sealing plate spray 7035 | |||||||||
Company Information
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensure precise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Certificate
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems.
The products of LNEYA, CE is used as a permit for the product to enter the European market.
So far, LNEYA has11 patents of utility model authorized certificate.
Customer Evaluation
Domestic cooperative customers
LNEYA has established long-term and stable cooperation with customers at home and abroad.
Many customers are enjoying our high quality after-sales service, sending us all kinds of thank-you letters and expressing our desire to continue to establish long-term and solid cooperative relations.
Exhibition
Exhibition at home and abroad
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
FAQ
After sale service
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
High quality -80 to -30 degree single-fluid water chiller for pharmaceutical industry
