Low Current 5mA*3 WS2812 2020 Competitive Good Quality Individually Addressable Mini WS2812B 2020 SMD WS2812C 2020 LED Chip

Product Overview

Description

Low Current 5mA*3 WS2812 2020 Competitive Good Quality Individually Addressable Mini SMD WS2812 C-2020 LED Chip



General description:

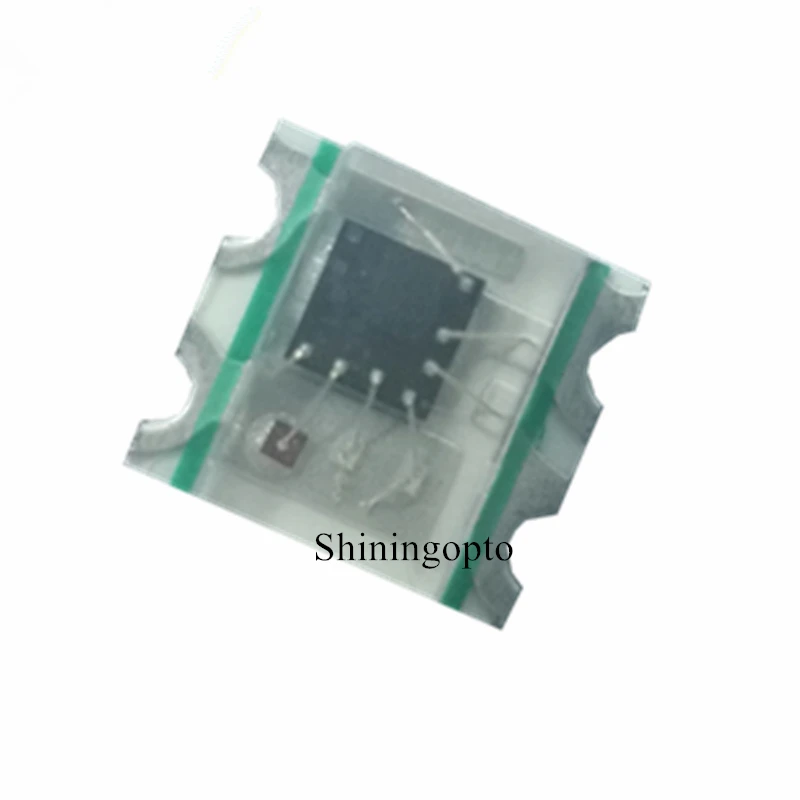

WS2812-2020 is an intelligent control LED light source, its exterior adopts the latest MOLDING packaging technology, the control circuit and RGB chips are integrated in a package of 2020 component. Its internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.



RESET time>280μs , it won't cause wrong reset while interruption, it supports the lower frequency and inexpensive MCU.

Refresh Frequency updates to 2KHz, Low Frame Frequency and No Flicker appear in HD Video Camera, it improve excellent display effect.



LED with low driving voltage, environmental protection and energy saving, high brightness, large scattering angle, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.

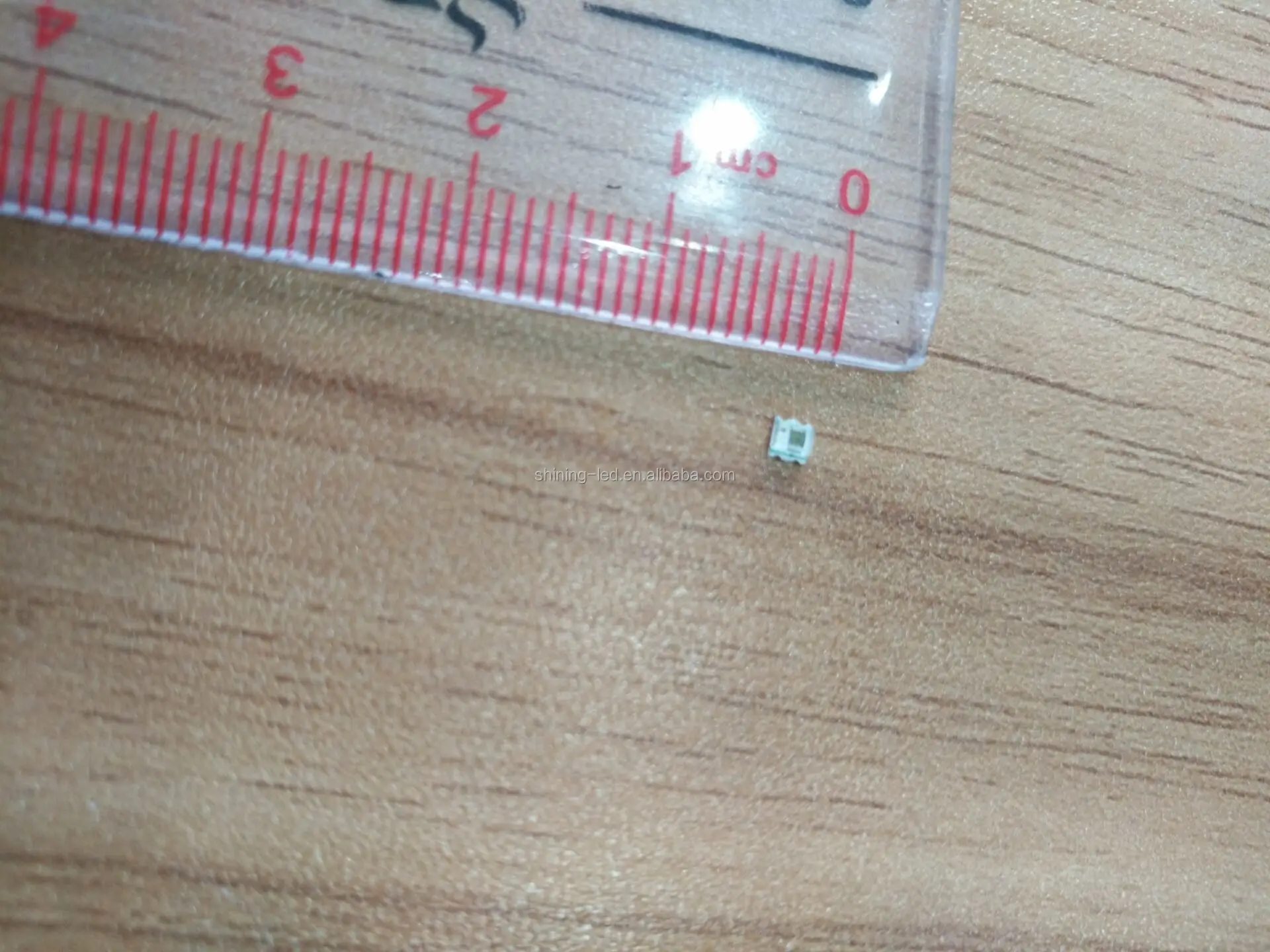

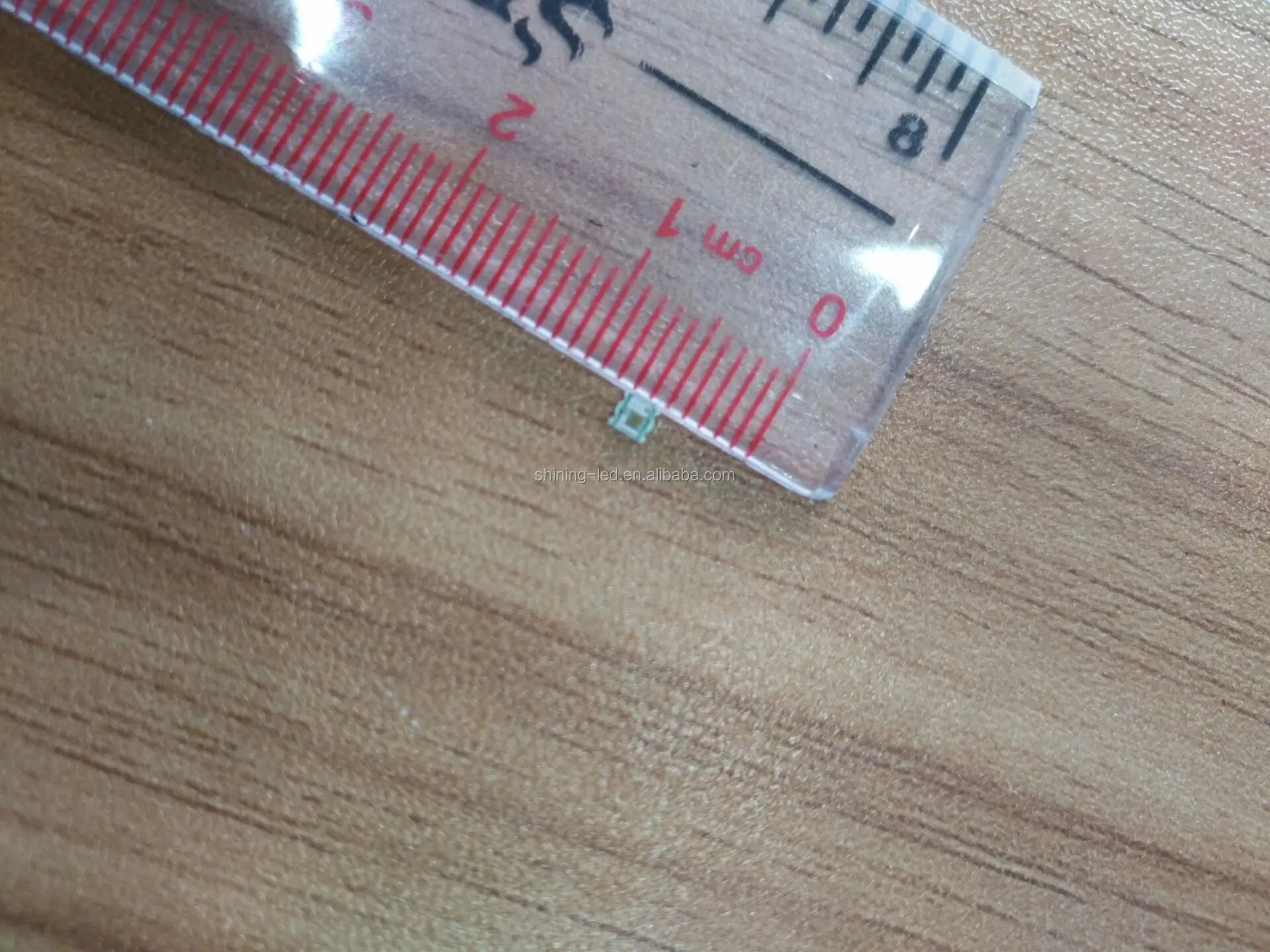

Feature:  Very small size, providing more possibility for delicate and space-limited design





Application:

• Indoor display


• Full color display


•


  Advertising light box





•


  Soft light bar






Product Name	Built-in IC 2020 SMD LED
Model Type	WS2812
Voltage	DC 5V
Forward current	5 mA

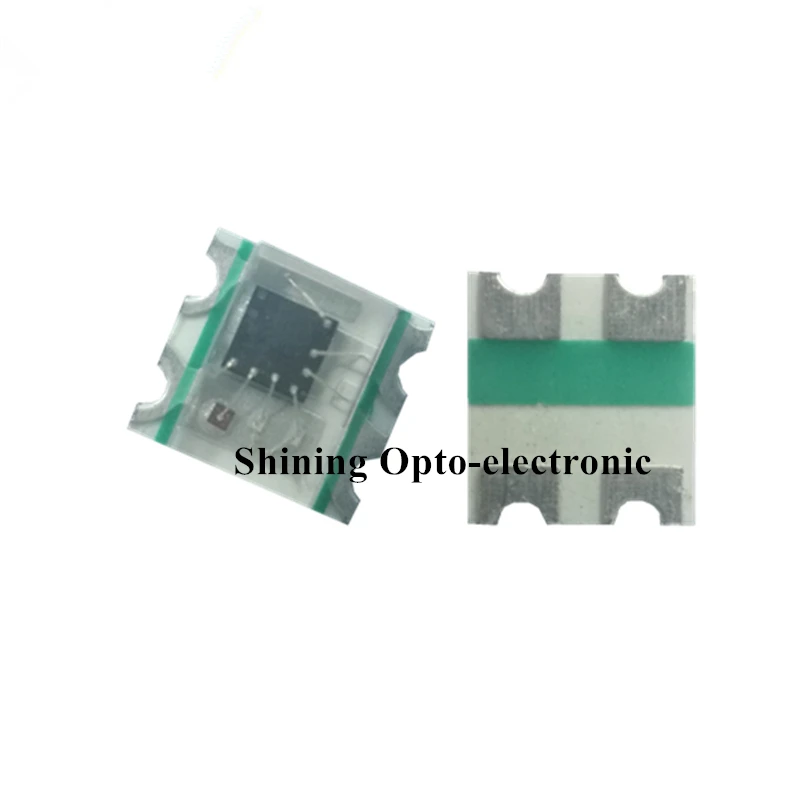

Package size	2.0*2.0*0.9mm
Signal	SPI
Packing	4000 pcs per reel
Pin quantity	4 pins
Data transmission speed	800Kbps
Grey scale	256 level
